JPJ2052-01-520 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> JPJ2052-01-520

JPJ2052-01-520: DescriptionAudio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Jack; CategoryThe connector The connector; File Size115KB，1 Pages; ManufacturerHosiden Corporation

Download Datasheet Parametric View All

JPJ2052-01-520 Overview

Audio/RCA Connector, 4 Pole(s), Solid Lead Terminal, Jack

JPJ2052-01-520 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Body/casing type	JACK
Configuration	1X2 VERTICAL
Connector type	AUDIO/RCA CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Installation type	BOARD
Number of poles	4
Number of ports	2
Options	GENERAL PURPOSE
Termination type	SOLID LEAD
Base Number Matches	1

Preview

Download Datasheet

View All

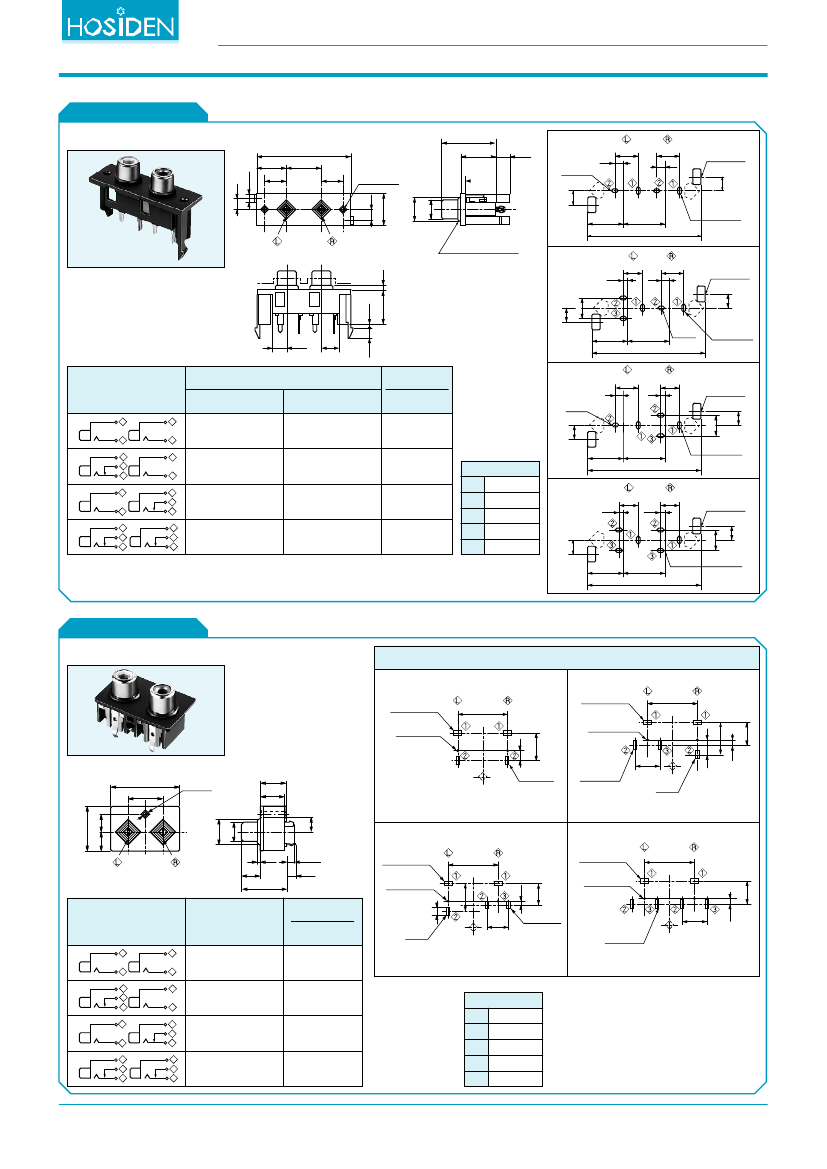

Vertical Type Dual Pin Jacks

Unit: mm

JPJ1151 Series

R＝23.5

3.5

9.5

R=23.5

9.5

2.4

8.3

6.2

2-1×2

8.2

2-3×5.5

絶縁リング

Inslation Ring

Fig. 1

6.7

8.2

2-1×2.5

1.5

7.5

2-3×5.5

4.5

Fig. 2

○

indicate

○

JPJ1151

1.7

6.2

8.2

1×2

4-2.5×1

○

Schematic

○

Insulation RIng

With

Without

Hole Layout

(Bottom view)

Fig. 1

Fig. 2

Fig. 3

Fig. 4

pin jack color No.

below.

1×2

1.5

6.7

2-3×5.5

7.5

1.5

6.7

7.5

6.7

L R

JPJ1151-01-○

○

0 JPJ1161-01-○

○

L R

JPJ1154-01-○

○

0 JPJ1164-01-○

○

L R

JPJ1153-01-○

○

0 JPJ1163-01-○

○

L R

JPJ1152-010○

○

0 JPJ1162-01-○

○

Color No.

Black

Red

White

Yellow

Blue

Fig. 3

6.7

4-1×2.5

1.5

2-3×5.5

7.5

Fig. 4

6-1×2.5

JPJ2052 Series

R＝19.5

Hole Layout (Bottom View)

2-1.3×2.5

Center of

Pin Jack

8.2

(15)

2-1.3×2.5

Center of

Pin Jack

7.5

2.4

11.3

10.3

Fig. 1

8.3

6.2

2-2×1

2-2.5×1

2×1

Fig. 2

(15)

8.2

(15)

Fig. 4

JPJ2052

8 7.5

1.2

8.2

R=19.5

(3.5)

(4)

1.5

○

2×1

Fig. 3

Schematic

Model No.

L R

JPJ2052-01-○

○

L R

JPJ2051-01-○

○

L R

JPJ1051-01-○

○

L R

JPJ1052-01-○

○

Hole Layout

(Bottom view)

Fig. 1

Fig. 2

8.2

7.5

2-2.5×1

4-2.5×1

○

indicate

○

Fig. 3

Fig. 4

pin jack color No.

below.

Color No.

1 Black

2 Red

3 White

4 Yellow

5 Blue

6.7

2-1.3×2.5

Center of

Pin Jack

(15)

2-1.3×2.5

Center of

Pin Jack
