354021: Description32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size62KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354021 Overview

32 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, PRESS FIT

354021 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPLIANT FIT
body width	2.383 inch
subject depth	0.457 inch
body length	3.74 inch
Body/casing type	PLUG
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1550VAC V
Durability	400 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.251 N
Insulation resistance	10000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.2 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Loaded row name	A,C
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	1.023 inch
Terminal pitch	5.08 mm
Termination type	PRESS FIT
Total number of contacts	32
Base Number Matches	1

Preview

Download Datasheet

View All

Datum

date

Anforderungsstufe

class

11,6 max

XXXXXXX

ERNI

RC 2

±0,2

2,9

-0,3

mating transfer zone

Übergabesteckzone

5,08

15 x 5,08 =76,2

95 max

a32

0,3

5,08

0,6

10,6

-0,2

+0,2

8,5

-0,1

2,8

c32

+0,1

-0,2

±0,1

+0,1

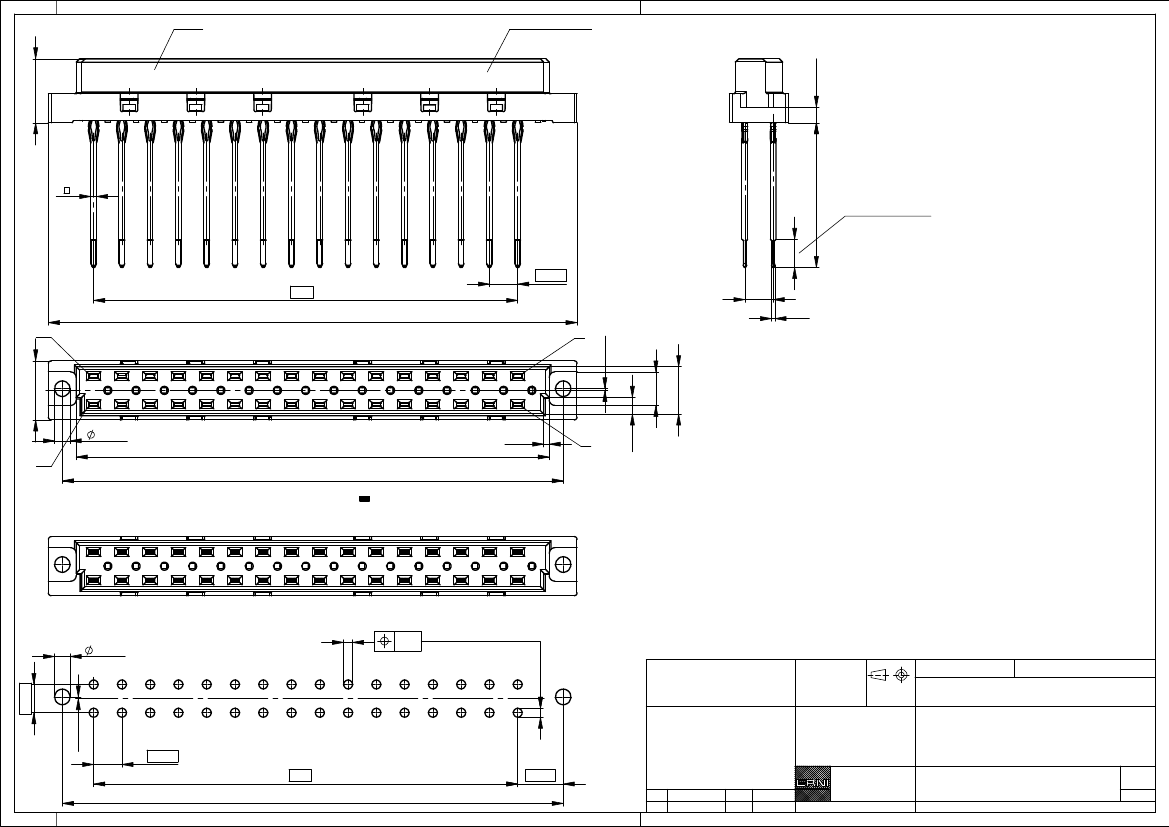

Elastische Einpresszone mit Übergabesteckzone /

compliant pressfit zone with mating transfer zone

Isolierwerkstoff /

housing material:

PBT GF30

Bauart 7 /

type 7

Anforderungsstufe 2 = 400 Steckzyklen /

performance class 2 = 400 mating cycles

Fehlende Masse und Angaben nach IEC 60 603-2 / DIN EN 60 603-2

Bestückungsplan /

contact layout

bestückt /

assembled

Missing information and dimensions per IEC 60 603-2 / DIN EN 60 603-2

Schichtaufbau im metallisierten Loch siehe Zeichnung 164062 / Nr. 10

+ 0,09

1,6

- 0,06

Durchmesser des metallisierten Loches

- 0,06

diameter of drilled hole see drawing 164062 / No. 10

1,6

+ 0,09

Diameter of finished plated-through hole

Leiterplatten-Lochbild Vorschlag/

PCB drillhole pattern proposal

2,8

+0,1

0,05

alle Löcher /

all holes

5,08

0,3

5,08

15 x 5,08 (=76,2)

8,17

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

26.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

Federleiste D 32 EE

Fem. Connector D 32 Pressfit

www.ERNI.com

Class

354021

STVD
