SMD Film Capacitors
Short guide to main applications
Device
Application
A/D converter
PLL filtering
PLL filtering
DMT modulation /
demodulation
Filtering
Input filtering
Filtering
Noise suppression
Filtering, timing,
coupling and
decoupling
Resonant circuit
Input / output
filtering
Inverter unit
Filtering
Inverter unit
Filtering
Arcotronics
SMD Film proposal
LDB series
LDB series
LDE / LDB series
LDE / LDB series
LDE series
LDE series
LDE series
LDE series
Main Competitors
SMD Film advantages
Mobile phone
TELECOM
Bluetooth ®
Modem
Base station
Line Card
Splitter
Wiper
AUTOMOTIVE
Driver
information &
car
entertainment
Tire pressure
monitoring
system
DC/DC
converter
LCD Monitor
DVD player
PDA
Hi-Fi systems
Ceramic NP0
Ceramic NP0
Ceramic NP0
Ceramic X7R
Ceramic NP0
Ceramic X7R
Ceramic X7R
Ceramic X7R
- Low Lock-up time
- Narrow tolerance
- No cracking
- High stability vs. frequency
and temperature
- High reliability
- No cracking
LDE series
Ceramic X7R
- High stability vs. frequency
and temperature
- High reliability
- Low ESR
- No cracking
CONSUMER
LDE series
LDE series
LDB series
LDB series
LDE / LDB series
Ceramic X7R
Ceramic X7R
Ceramic NP0
Ceramic NP0
Ceramic X7R
- High reliability
- Low ESR
- No cracking
- High stability vs. frequency
and temperature
- High reliability
- No cracking
Description:
- Non-encapsulated construction
- Stacked technology
- Metallized PEN (PolyEthylene
Naphtalate)
in LDE series
- Metallized PPS (PolyPhenylene
Sulfide)
in LDB series
- RoHS 6 compliant (no hazardous materials)
Features:
- Excellent stability vs. temperature, frequency and time
- Self-healing
- High reliability
- Low ESR (Equivalent
Series Resistance)
- Typical failure mode at the end of life: open circuit
- No piezoelectric effect
- No cracking
- No VCC (Voltage
Coefficient
of
Capacitance)
SMD Film Capacitors are complementary to MLCCs for professional applications.
07/2008
2
SMD Film Capacitors
Product coding
LDE series - RoHS 6
The part number is composed of 15 digits:
1
2
3
4
5
6
7
8
9
10
11
12 13 14 15
LDB series - RoHS 6
The part number is composed of 14 digits:
1
2
3
4
5
6
7
8
9
10
11
12 13 14
L D E -
-
-
-
-
-
- A -
-
-
0
L D B -
-
-
-
-
-
-
C
-
-
-
Digit 1 to 3 Series code.
Digit 4
D.C. rated voltage: (V
R
)
C = 50 V
DC
D = 63 V
DC
I = 250 V
DC
M = 400 V
DC
Q = 1000 V
DC
(new version)
Digit 5
12.06
12.10
18.12
22.20
28.24
40.30
E = 100 V
DC
P = 630 V
DC
Digit 1 to 3 Series code.
Digit 4
D.C. rated voltage: (V
R
)
A = 16 V
DC
C = 50 V
DC
Digit 5
12.06
Size code
(customized sizes available upon request)
50.40
60.54
Size code
12.10
18.12
A
B
C
D
E
F
G
H
A
B
C
Digit 6 to 9 Capacitance value
Digits 7 - 8 - 9 indicate the first three numbers
of the capacitance value, digit 6 indicates the
number of zeros that must be added to obtain
the rated capacitance in pF.
Digit 10
Capacitance tolerance
Standard:
K = ± 10 %
M = ± 20 %
(J = ±5% available upon request and review of
project/application)
Digit 11
Dielectric code
A = PEN
Digit 12
Version
5 = standard 0 = miniature A to Z = special
Digit 13
Packaging
N = taped
A to Z = special
Digit 14
Internal use
Digit 15
0 (used in LDE RoHS 6 series only)
Digit 6 to 9 Capacitance value
Digits 7 - 8 - 9 indicate the first three numbers
of the capacitance value, digit 6 indicates the
number of zeros that must be added to obtain
the rated capacitance in pF.
Digit 10
Digit 11
Digit 12
Digit 13
Digit 14
Capacitance tolerance
G=±2%
J=±5%
Dielectric code
C = PPS
Version
5 = standard
A to Z = special
Packaging
N = taped
A to Z = special
Internal use
Product packaging
SMD Film Capacitor (top view)
Size
code
12.06
12.10
18.12
22.20
Carrier
tape
code
-
-
a
b
a
b
c
a
b
c
a
b
c
a
b
c
a
b
c
Carrier tape dimensions
A0
[mm]
2.00
3.00
3.80
3.90
5.50
B0
[mm]
3.80
3.80
5.30
5.20
6.50
K0
[mm]
1.30
2.10
2.00
2.60
2.90
3.80
4.90
3.80
4.60
5.50
3.80
4.60
5.80
3.80
4.70
5.90
4.30
5.10
5.80
W
[mm]
8
8
12
12
P
[mm]
4
4
8
8
T
[μm]
250
250
300
250
Tape
Reel dimensions
Ø
[mm]
180
180
330
330
W1
[mm]
8
8
12
12
W2
[mm]
12
12
16
16
Packaging
quantities
(pcs per reel)
3000
2250
4000
3000
3000
2250
1750
2250
1750
1500
1500
1250
1000
1500
1250
1000
1000
750
750
Reel
In accordance with IEC 60286-3
Materials:
- carrier tape: antistatic material
- cover tape: polyester + polythene
- reel: recyclable polystyrene
All parts in reels are packed in
hermetically sealed
Moisture Barrier
Bag
(MBB) Class 1.
28.24
6.60
7.90
16
8
300
330
16
20
40.30
8.60
10.90
10.90
11.00
14.40
11.00
16
12
300
330
16
20
50.40
13.50
24
12
250
300
300
300
330
24
28
60.54
16.00
24
16
330
24
28
3
07/2008
SMD Film Capacitors

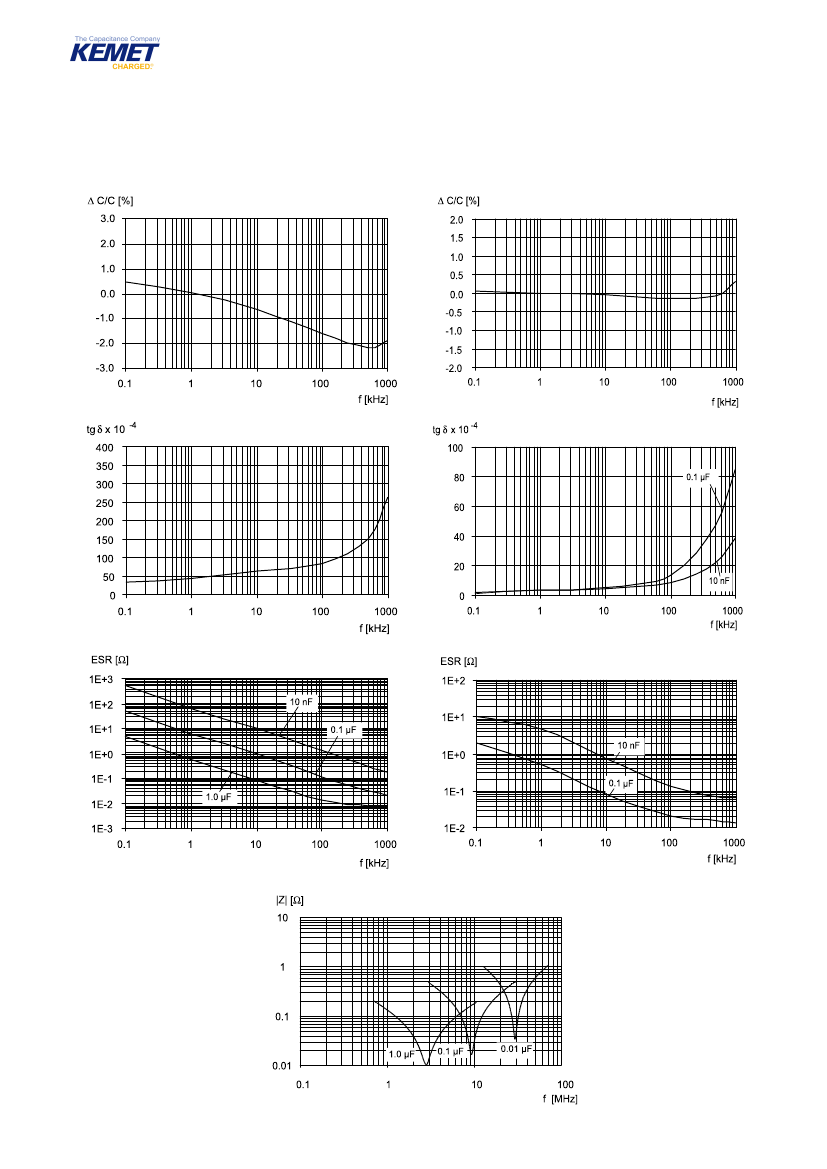

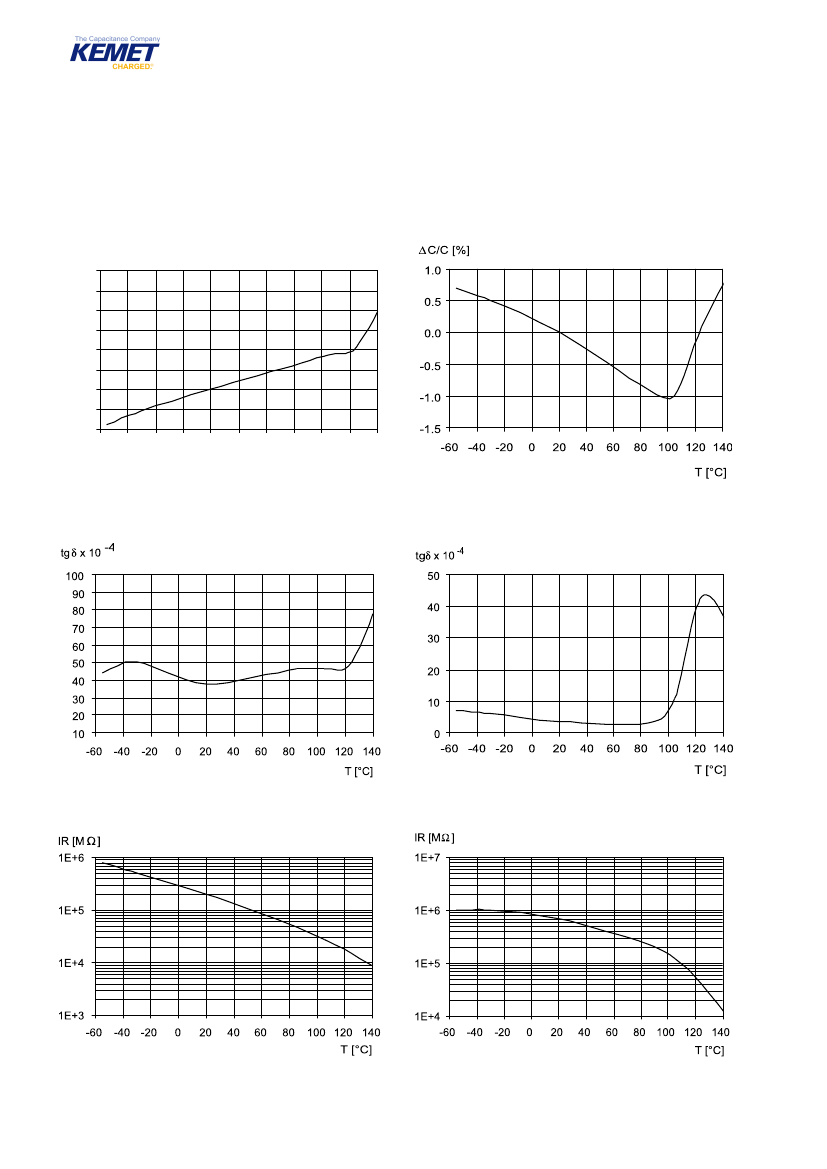

PEN and PPS dielectrics typical temperature graphs
