A-LX5/(A)PC-01-01GR-02 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A-LX5/(A)PC-01-01GR-02

Preview

A-LX5/(A)PC-01-01GR-02: DescriptionFiber Optic Connector Adapter, Single/multi Mode, Simplex; CategoryThe connector The connector; File Size108KB，2 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

A-LX5/(A)PC-01-01GR-02 Overview

Fiber Optic Connector Adapter, Single/multi Mode, Simplex

A-LX5/(A)PC-01-01GR-02 Parametric

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
Connection Type	SIMPLEX
Connector type	FIBER OPTIC CONNECTOR ADAPTER
Coupling type	SNAP
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
model	SINGLE/MULTI
Options	GENERAL PURPOSE

Preview

Download Datasheet

View All

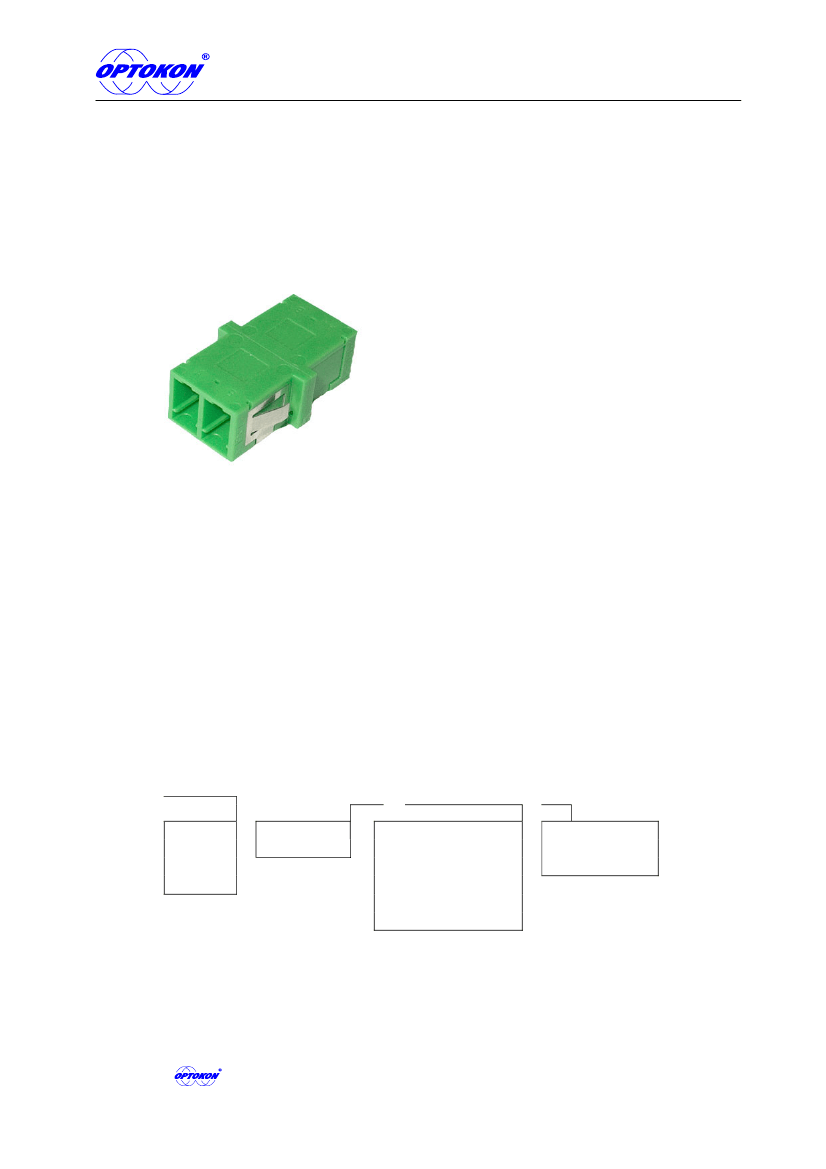

FIBER OPTIC TECHNOLOGY

CALIBRATION LABORATORY

LX.5 adapters

Description:

The LX.5 adapters are designed and manufactured according JIS, IEC, EIA/TIA and ANSI specifications

for intermateability and optical performance. The LX.5 adapters are offered in MM or SM performances,

for connectors with PC and APC polishing method. It is possible to exactly specify your demands

concerning type of flange and adapter performance.

Features:

•

Duplex panel cutouts

Panel clip for easy installation

Available in several standard colors

Available without flanges

Application:

•

Telecom

LAN, WAN

CATV

Sensor Systems

Measuring Technique

Utilities, Railways

Ordering code:

A - LX5 (-D) /

type

LX5

LX5-D

duplex

(A)PC

sleeve

01 zirconia

- XX - XX

XX

- XX

flange

01 2-hole flange

02 no flange

body

01 plastic, metal clip

BL blue (SM)

GR green (SM-APC)

BG beige

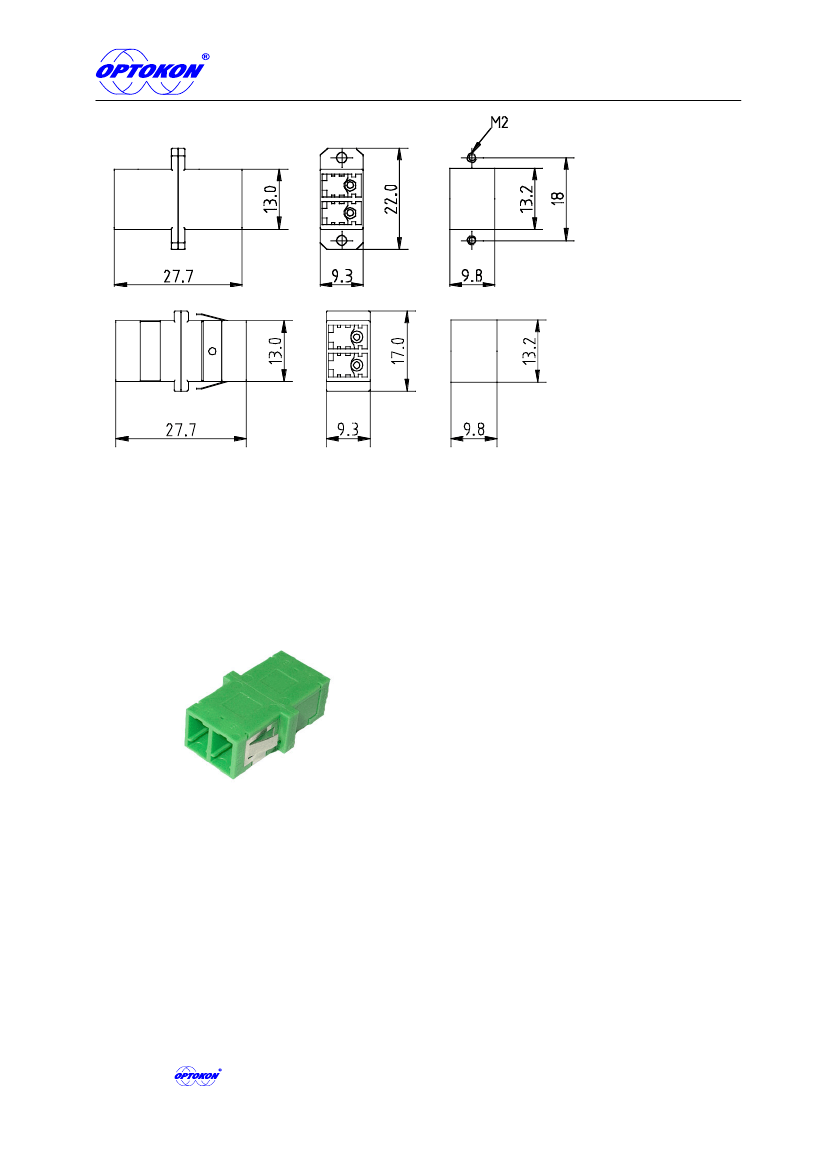

Dimensions:

is registered trademark of Optokon Co., Ltd. Other names and trademarks mentioned herein may be the trademarks of their respective owners.

Optokon Co., Ltd., Cerveny Kriz 250, 586 02 Jihlava, Czech Republic

tel. +420 564 040 111, fax +420 564 040 134, +420 567 311 292, www.optokon.com, info@optokon.cz

ADP_01-02_EN

21/07/2003

1
