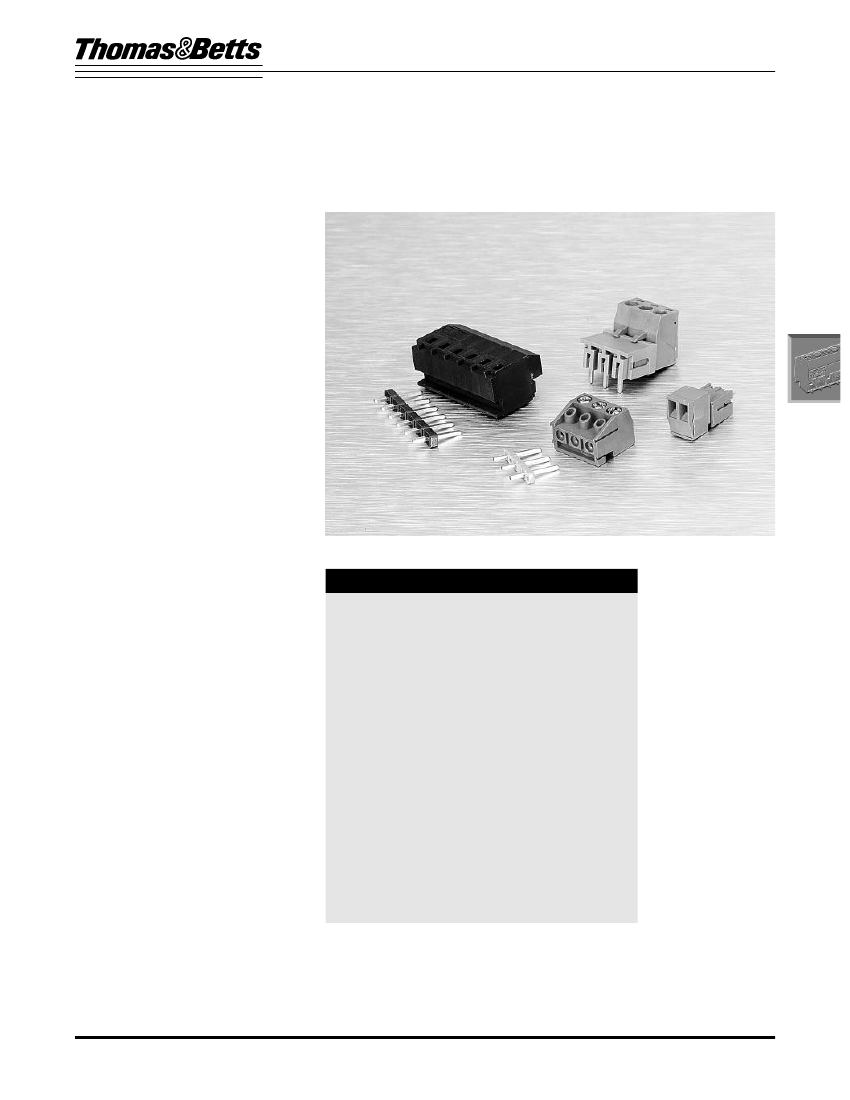

Eurostyle Electronic Connectors
Two Piece / Pluggable
D
ESCRIPTION
/A
PPLICATION
Designed to European specifications,
these two piece blocks provide
interconnection between wire and PC
board. Wire is terminated at the
connector and the header is mounted
to the PC board. The pluggable
design expedites field servicing and
troubleshooting.
TWO PIECE / PLUGGABLE
CONNECTORS
D
ESIGN
A
DVANTAGES
• Pitches Available:
• 3,5mm (0.138")
• 5,0mm (0.197")
• 5,08mm (0.200")
• 7,0mm (0.276”)
• 10,0mm (0.394”)
• 10,16mm (0.400”)
• Locking fingers provide secure
“vibration-proof” connection.
• Mate with either closed-end or
open-end shrouded headers.
• Available in two connection styles:
• Cage clamp for superior
connection.
• Wire protection for economical
designs.
• Vertical, horizontal, or universal
mounting.
• Optional press-on coding key and
polarizing clip system for B52
series. Polarized feature of
connector and header allows for
varied applications.
• UL94V-0 rated
insulator housing.
thermoplastic
CONNECTOR INDEX
3,5mm Connector with Cage Clamp ......................................32
3,5mm Header ........................................................................33
5mm Flush Connector with Cage Clamp ................................34
5mm Flush Header ..................................................................35
5mm Locking Connector with Cage Clamp ............................36
5mm Open End Header ..........................................................37
5mm Closed End Header ..................................................38, 39
5mm Fastening Block, Latch ..................................................40
5mm Flush Connector and Header Combo ............................41
5mm Flush Connector with Wire Protector ............................42
5mm Flush Header ..................................................................43
5,08mm Flush Connector with Cage Clamp ..........................44
5,08mm Flush Header ............................................................45
5,08mm Locking Connector with Cage Clamp ......................46
5,08mm Header ......................................................................47
3,5mm Polarizing Accessories ................................................48
• Gold and silver plated terminals
available in addition to standard tin
plating.
• Terminal marking available.
• Shrouded headers provide
increased circuit isolation with 4
sided barrier protection.
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
31
Eurostyle Electronic Connectors
Two Piece / Pluggable

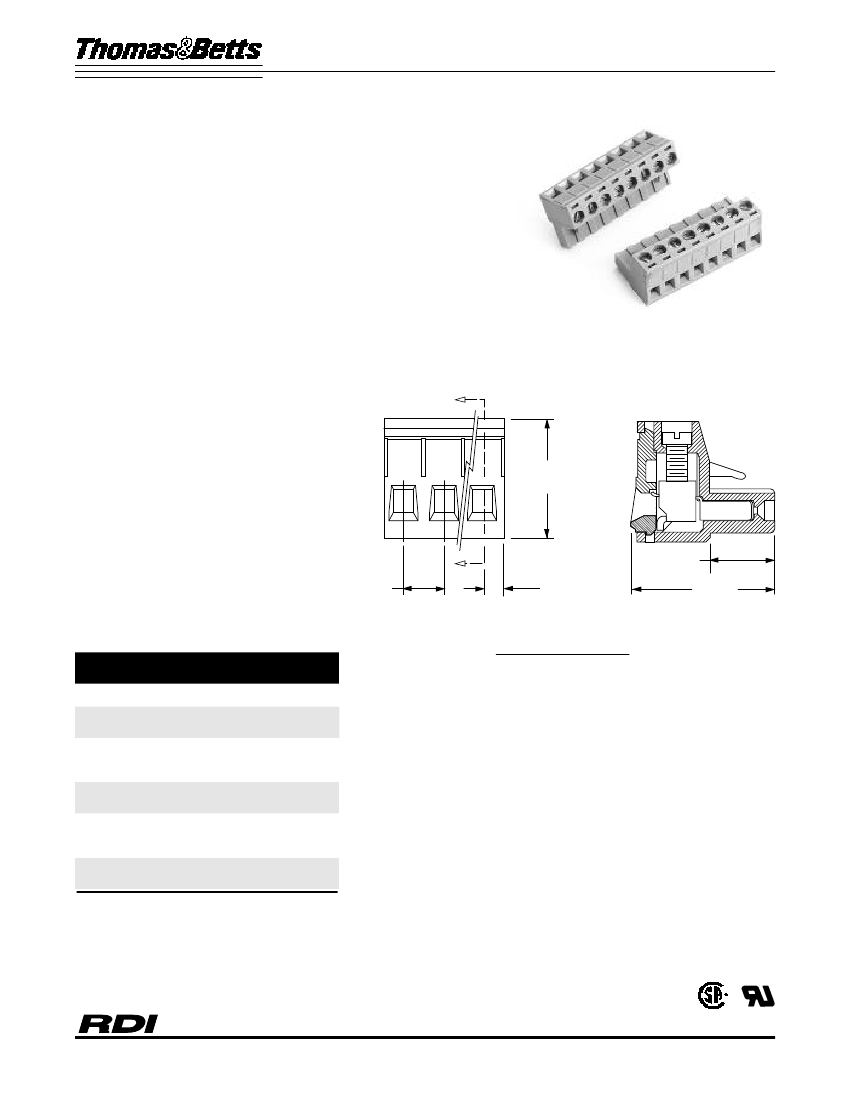

5,08MM PLUG-IN LOCKING CONNECTORS
WITH CAGE CLAMP
SERIES 2ESD
P
HYSICAL
P
ROPERTIES
Housing:
H
OUSING MATERIAL
:
Thermoplastic
F
LAMMABILITY
:
UL94V-0
C
OLORS
:
Green or Black
Terminal:
C
ONTACTS
:
Bright acid-tin plated copper alloy
C
AGE
C
LAMP
:
Zinc plated steel with yellow chro-
mate coating M2.5
5,08mm and 10,16mm Pitch
Mechanical:
R
ECOMMENDED
T
IGHTENING
T
ORQUE
:
4.5 in, lb.
E
LECTRICAL
P
ROPERTIES
R
ATING
:
10 Amps, 300 volts/15 amps, 150 volts
(limited ratings)
W
IRE
R
ANGE
:
14-28 AWG (solid )
14-30 AWG (stranded)
2ESDV (vertical mounting)
A
E
NVIRONMENTAL
P
ROPERTIES
M
AX
. O
PERATING
T
EMPERATURE
:
105° C .
15,0
(.59)
A
'A' NOM
'B' REF.
8,1
(.32)
18,0
(.71)
SECTION A-A
B
2,54
(.100”)
Ordering Information
A
5,08MM VERTICAL
BLACK
2ESDV-02-1
2ESDV-03-1
2ESDV-04-1
2ESDV-05-1
2ESDV-06-1
2ESDV-07-1
2ESDV-08-1
2ESDV-09-1
2ESDV-10-1
2ESDV-11-1
2ESDV-12-1
5,08
(.200”)
# OF
TERMINALS
2
3
4
5
6
7
8
9
10
11
12
5,08MM VERTICAL
GREEN
2ESDV-02
2ESDV-03
2ESDV-04
2ESDV-05
2ESDV-06
2ESDV-07
2ESDV-08
2ESDV-09
2ESDV-10
2ESDV-11
2ESDV-12
N
OTE
:
For 13-24 positions molded to length, minimum
order is 2500 pieces
LR30811
®
E54800
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
46
Eurostyle Electronic Connectors
Two Piece / Pluggable

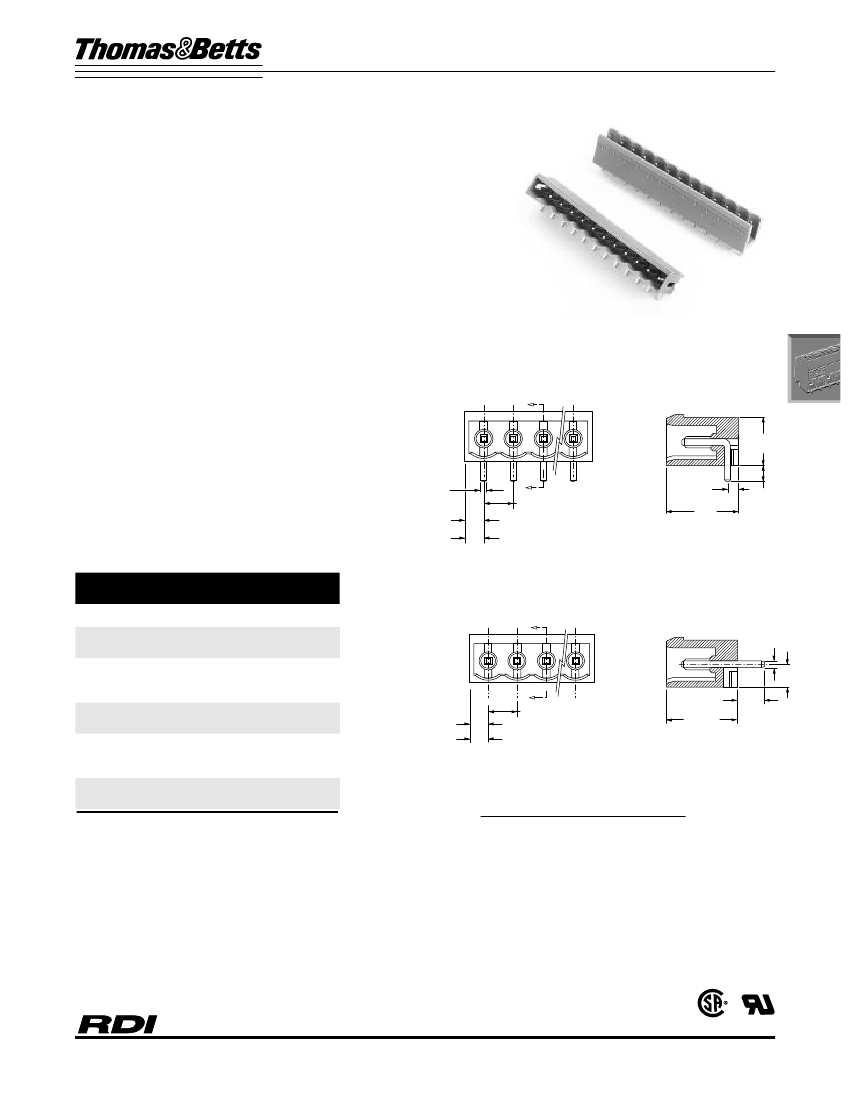

5,08MM HEADERS
(FOR SERIES 2ESD CONNECTORS)
SERIES 2EHD
P
HYSICAL
P
ROPERTIES
Housing:
H
OUSING MATERIAL
:
Thermoplastic
F
LAMMABILITY
:
UL94V-0
C
OLORS
:
Green or Black
Terminal:
C
ONTACTS
:
Bright acid-tin plated copper alloy
S
OLDERABILITY
:
MIL STD 202, Method 208
Mechanical:
P
ITCH
(
TERMINAL LENGTH
):
5,08mm
R
ECOMMENDED
PCB H
OLE
D
IA
.:
.067" diameter
5,08mm Pitch
E
LECTRICAL
P
ROPERTIES
R
ATING
:
10 Amps, 300 volts/15 amps, 150 volts
(limited ratings)
2EHDR (right angle solder pins)
A
E
NVIRONMENTAL
P
ROPERTIES
M
AX
. O
PERATING
T
EMPERATURE
:
105° C.
8,4
(.33)
1,0
(.04)
SQ.
'B'
'C'
A
'A' NOM.
1,8
(.07)
12,2
(.48)
SECTION A-A
4,1
(.16)
For open end header
Ordering Information
RIGHT ANGLE
5,08MM RIGHT ANGLE
CLOSED END
2EHDR-02
2EHDR-03
2EHDR-04
2EHDR-05
2EHDR-06
2EHDR-07
2EHDR-08
2EHDR-09
2EHDR-10
2EHDR-11
2EHDR-12
A
5,08
(.200”)
B
3,1
(.12”)
C
2,54
(.100)
'B'
'C'
For open end header
A
'A' NOM.
12,2
(.48)
SECTION A-A
4,3
(.17)
A
# OF
TERMINALS
2
3
4
5
6
7
8
9
10
11
12
5,08MM VERTICAL
CLOSED END
2EHDV-02
2EHDV-03
2EHDV-04
2EHDV-05
2EHDV-06
2EHDV-07
2EHDV-08
2EHDV-09
2EHDV-10
2EHDV-11
2EHDV-12
2EHDV (vertical solder pins)
1,0
(.04)
SQ.
3,8
(.15)
VERTICAL
N
OTE
:
For 13-24 positions molded to length, min. order is
2500 pieces
N
OTE
:
For open ended headers, consult factory. Min. order
is 2500 pieces
N
OTE
:
Add “-1” for molding color black
®
LR30811
E54800
Thomas & Betts Electronics/OEM Division Tel: 901-252-7766 Fax: 901-252-1312
Dimensions shown are for reference only. Dimensions are in millimeters.
47
