Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7448709068
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
DATUM / DATE : 2013-09-16
A

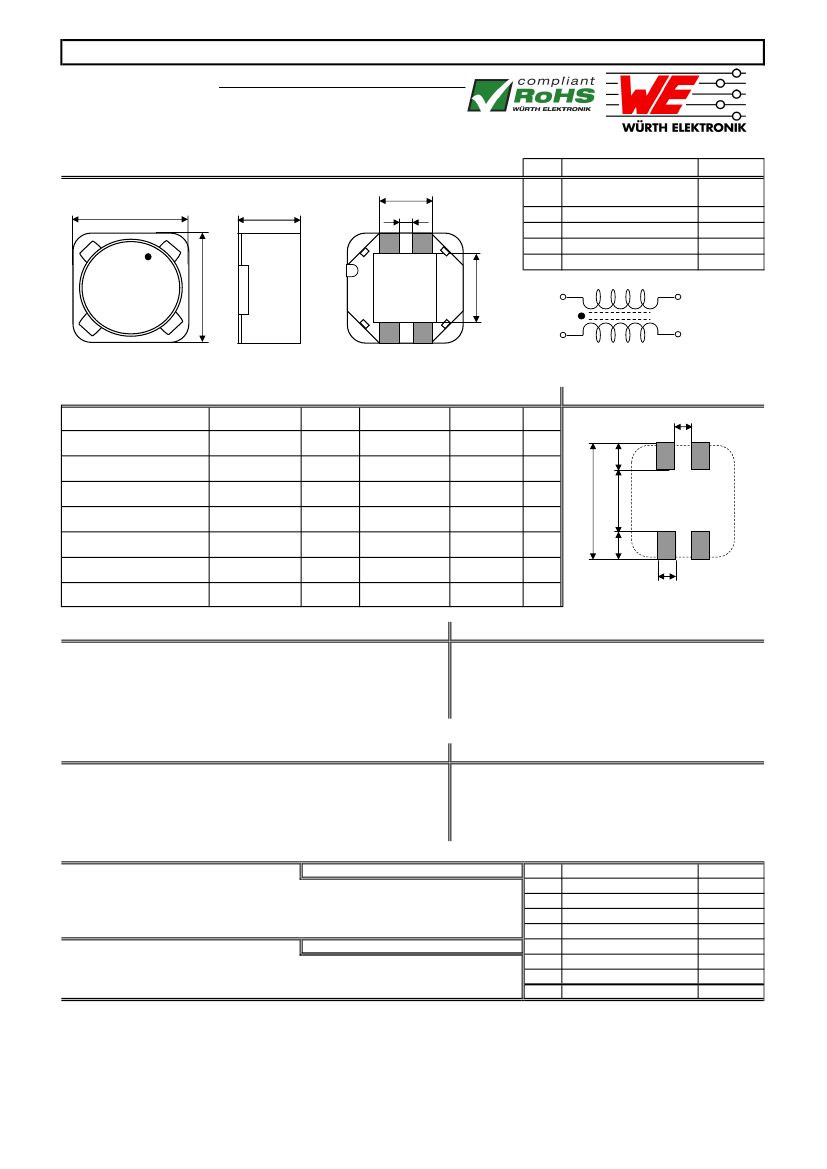

Mechanische Abmessungen / dimensions:
Typ XXL
A
B
1
D
C
2
A
B
C
D
E
12,5 max.
10,5 max.
1,5 ± 0,2
4,9 ± 0,2
7,3 ± 0,5
1
Start
2
v v v v
3
mm
mm
mm
mm
mm
L1
A
E
Finish
v v v v
4
L2
4
3
@@FRM 1@@
B
Elektrische Eigenschaften / electrical properties:
Eigenschaften / properties
Induktivität (je Wicklg.) /
inductance (each wdg.)
DC-Widerstand (je Wicklg.) /
DC-resistance (each wdg)
DC-Widerstand (je Wicklg.) /
DC-resistance (each wdg)
Nennstrom (je Wicklg.) /
rated Current (each wdg.)
Sättigungsstrom (je Wicklg.) /
saturation current (each wdg.)
Eigenres.-Frequenz /
self-res.-fequency
Nennspannung /
rated voltage
Testbedingungen /
test conditions
100 kHz / 0,25V
@ 20°
@ 20°
DT
= 40°C
DL/Lo
= -10%
Wert / value
Einheit / unit
tol.
±20%
C
Lötpad / soldering spec.:
1,0
[ mm ]
L
1,
L
2
R
DC1,2 typ
R
DC1,2 max
I
N1,
I
N2
I
sat
f
res
U
DC
6,8
0,026
0,031
3,30
11,50
23,0
80,0
µH
W
W
A
A
MHz
V
3,85
typ.
max.
max.
typ.
typ.
max.
2,5
3,85
13,8
6,1
D
Prüfgeräte / test equipment:
Wayne Kerr 3260B für/for L und/and I
sat
GMC Metrahit für/for R
DC
Agilent E4991A für/for f
res
Agilent N5776A für/for I
R
E
Testbedingungen / test conditions:
Luftfeuchtigkeit / humidity:
Umgebungstemperatur / temperature:
33%
+20°C
F
Werkstoffe & Zulassungen / material & approvals:
Basismaterial / base material:
Draht / wire:
Ferrit/ ferrite
2 SFBW; 155°C
G
Eigenschaften / general specifications:
Betriebstemp. / operating temperature:
-40°C - + 125°C
Umgebungstemp. / ambient temperature: -40°C - + 85°C
It is recommended that the temperature of the part does
not exceed 125°C under worst case operating conditions.
Freigabe erteilt / general release:
Kunde / customer
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
SvS
Version 2
Version 1
Änderung / modification
13-09-16
12-03-07
...............................................
............................................
SvS
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 1 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7448709068
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
DATUM / DATE : 2013-09-16
H
Induktivitätskurve / Inductance curve:
Induktivität vs Strom (typ.)/
Inductance vs Current (typ.)
8,00
7,00
6,00
5,00
L (µH)
4,00
3,00
2,00
1,00
0,00
0,0
2,0
4,0
6,0
8,0
Current (A)
10,0
12,0
14,0
16,0
Freigabe erteilt / general release:
Kunde / customer
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
SvS
Version 2
Version 1
Änderung / modification
13-09-16
12-03-07
...............................................
............................................
SvS
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 2 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
7448709068
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
DATUM / DATE : 2013-09-16
I

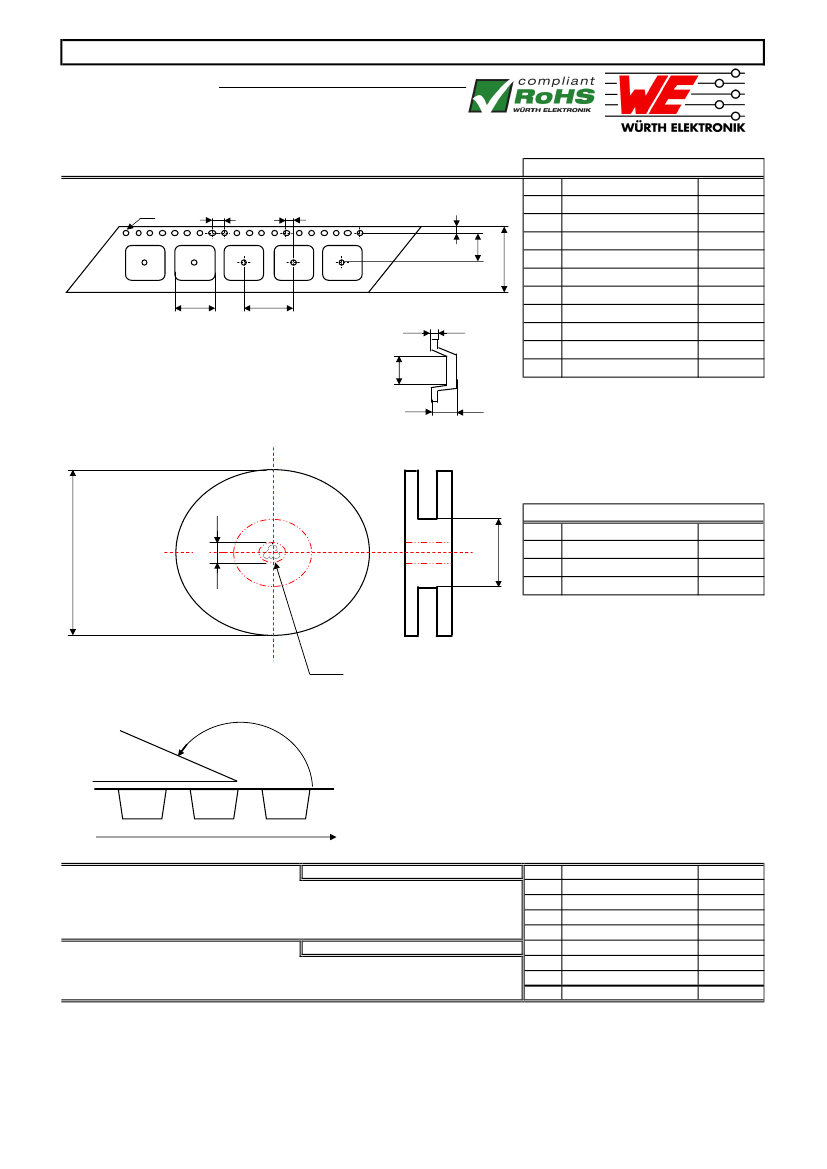

Rollenspezifikation / tape and reel specification:
øD
E
F
G
H
C
C
C
Gurtspezifikation / Tape specification:
A
12,9 ± 0,1
mm
B
20,0 ± 0,1
mm
C
24,0 ± 0,3
mm
D
mm
1,50
+ 0,1
- 0,0
E
F
G
H
I
J
T
4,00
2,00
1,75
11,5
12,3
10,85
0,40
± 0,1
± 0,1
± 0,1
± 0,1
± 0,1
± 0,1
± 0,05
mm
mm
mm
mm
mm
mm
mm
A
B
T
I
J
a
b
d
Rollenspezifikation / Reel specification:
a
330,0 ± 2,0
mm
b
21,00 ± 0,8
mm
c
13,00 ± 0,5
mm
d
100,0 ± 1,0
mm
Øc
150°
The force for tearing off cover tape is
20 to 70 grams in arrow direction
feeding direction
Kunde / customer
Freigabe erteilt / general release:
..................................................................................
..................................................................................
Datum / date
Unterschrift / signature
Würth Elektronik
SvS
Version 2
Version 1
Änderung / modification
13-09-16
12-03-07
...............................................
............................................
SvS
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
This electronic component has been designed and developed for usage in general electronic equipment. Before incorporating this component into any equipment where higher safety and reliability is especially
required or if there is the possibility of direct damage or injury to human body, for example in the range of aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship
control), transportation signal, disaster prevention, medical, public information network etc, Würth Elektronik eiSos GmbH must be informed before the design-in stage. In addition, sufficient reliability evaluation
checks for safety must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 3 VON 3
