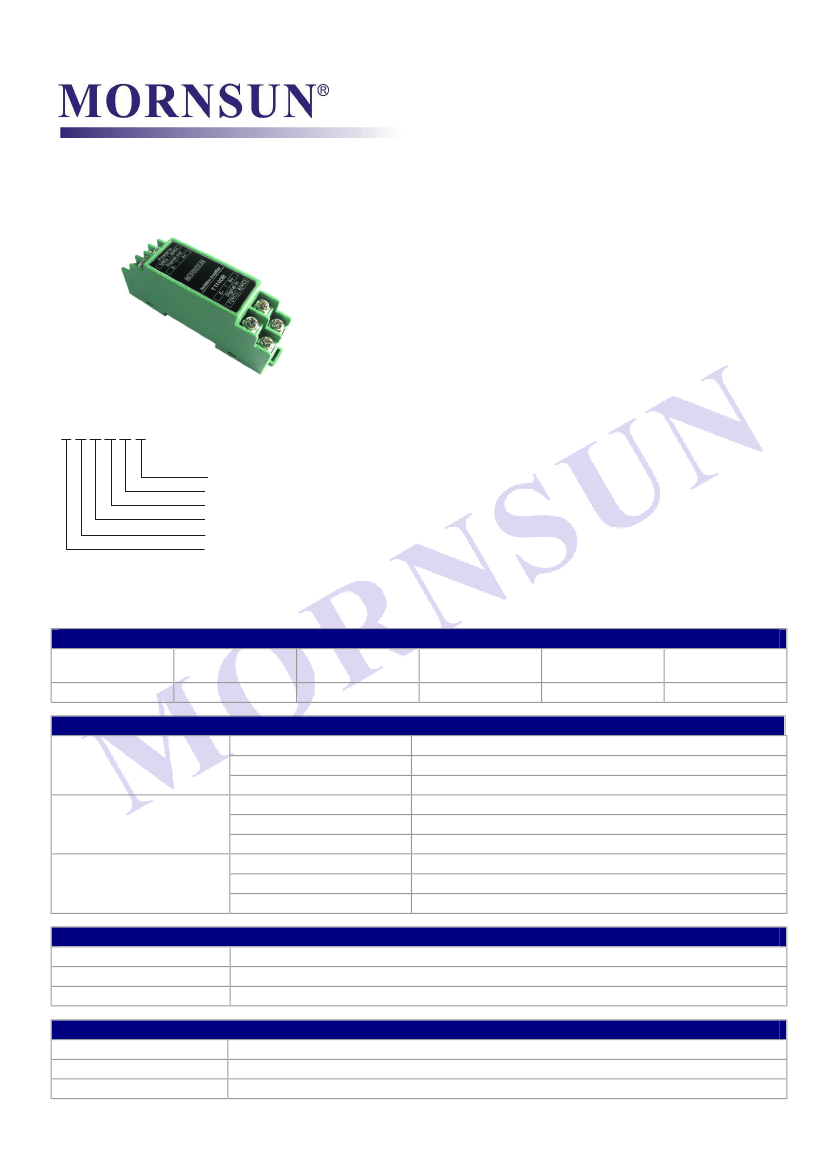

Passive single channel analog signal
Isolation barrier (Iin & Iout)
——
T1100B
FEATURES
●2-port
isolation (signal input and signal output)
●
High accuracy (0.1% F.S.)
●
High linearity (0.1% F.S.)
●
Isolation voltage(3KVDC/60S)
●
Low temperature drift(35PPM/°C)
●
Industry class(Operation temp.: -25°C to +71°C)
●
High reliability(MTBF>500,000 hours)
PART NUMBER SYSTEM
GENERAL DESCRIPTION
Analog signal isolation barrier, is a signal conditioner with
electrical insulation between input and output, it can receive a
variety of analog signal from the field instrument, and transmit a
TXXXXB
Package
Isolation power output
Power supply
Output
Input
Isolation amplifier
standard output signal or user-specified special signal to the
control room or DCS. The product is isolated between power
supply, input and output. It is widely used in the industrial
measurement systems, medical electronic equipment, electrical
equipment
etc.
Adopting
high
efficiency
electromagnetism
isolation technology to achieve signal isolation, it is available to
keep high output accuracy, good linearity and low temperature
drift.
SELECTION GUIDE
Model
T1100B
Power Supply
NONE
Input
4~20mA
Output
4~20mA
Isolation
Power Output
NONE
Channels
1
ELECTRICAL CHARACTERISTICS
Power Supply
Power Supply
Input power
Power Protection
Input Signal
Input
Overload
Voltage Drop-out
Output Signal
Output
Load ability
Load Regulation
NONE
NONE
NONE
4~20mA
≤50mA
<3V(@20mA)
4~20mA
≤300Ω(@Output
=20mA)
<0.05% meas.val./100Ω
TRANSMISSION CHARACTERISTICS
Zero Offset
Gain Error
Temperature drift coefficient
0.1%F.S.
0.1%F.S.
0.0035%F.S./°C (-25°C to +71°C)
ISOLATION CHARACTERISTICS
Galvanic Isolation
Isolation Voltage
Insulation Resistance
Two-port isolation (signal input and signal output)
3kVDC (Tested for 1minute and leakage current < 1mA, humidity < 70%)
100MΩ, 500VDC (Between signal input ,signal output, power supply and isolation power output)
T1100B
2013.07.09-A/2
Page 1 of 3
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
OTHER CHARACTERISTICS
Ambient Temperature
Package
Safety Class
EMC compliance
Weight
Application Environment
Note:
1 .All specifications measured at TA=25°C, humidity<75%, the value of nominal input and rated output load unless otherwise specified.
2. Only typical models listed, specifications of custom product may be different. Please contact our service people directly for certain conditions.
Operation temperature:-25°C to +71°C
Transport and Storage temperature:-40°C to +85°C
35mm DIN-rail package
IP20(IEC60529 / EN60529)
GB/T 18268(IEC61326-1)
60g，typ
No dust, fierce vibration, impulsion and corrosive gas

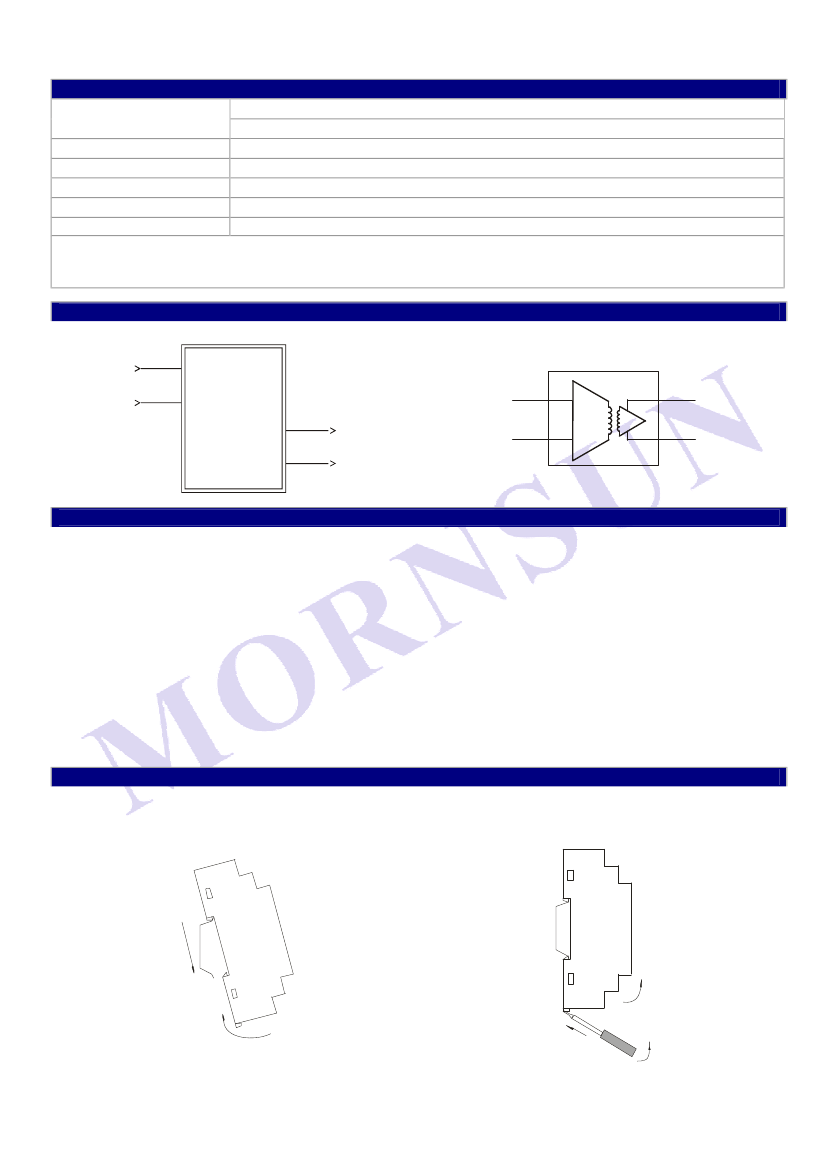

APPLICATION CIRCUIT DIAGRAM &
PIN DESCRIPTION
5(-)
1(NC)
Input
6(+)
2(NC)
5-
Input
Iin-
Iout+
4+
Output
7(NC)
3(-)
Output
8(NC)
4(+)
6+
Iin+
Iout-
3-
CONNECTION
1. Cross section area of wiring: 0.5mm -2.5 mm ;
2. Multi-strand wire, the length of bare wire is about 8mm, fixed by the M4 bolt.
2
2
APPLICATION NOTE
1. Please read the user manual carefully before using. If any question please contact our FAE.
2. Please do not use this product in hazardous area.
AFTER SERVICE
1. Products are carefully inspected and quality controlled during production and before shipment. If they operated abnormally or there was anything
wrong, please contact our agent from which you purchased or MORNSUN FAE as soon as possible.
2. MORNSUN warranty our product for 3 years from manufacturing date. During this period, MORNSUN will repair or replace the product if product
was found to have manufacturing defect.
INSTALLATION & DISASSEMBLY
DIN35mm standard rail installation
1.Upside of the instrument card in the rail;
2.Push underside of the instrument into the rail.
1. Use a screwdriver (Width of edge≤6mm), cut in the metal card lock from
the underside;
2. Boost up the screwdriver and prize the metal card lock downwards;
3. Pull the instrument out of the rail.
1
3
2
1
2
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
T1100B
2013.07.09-A/2
Page 2 of 3

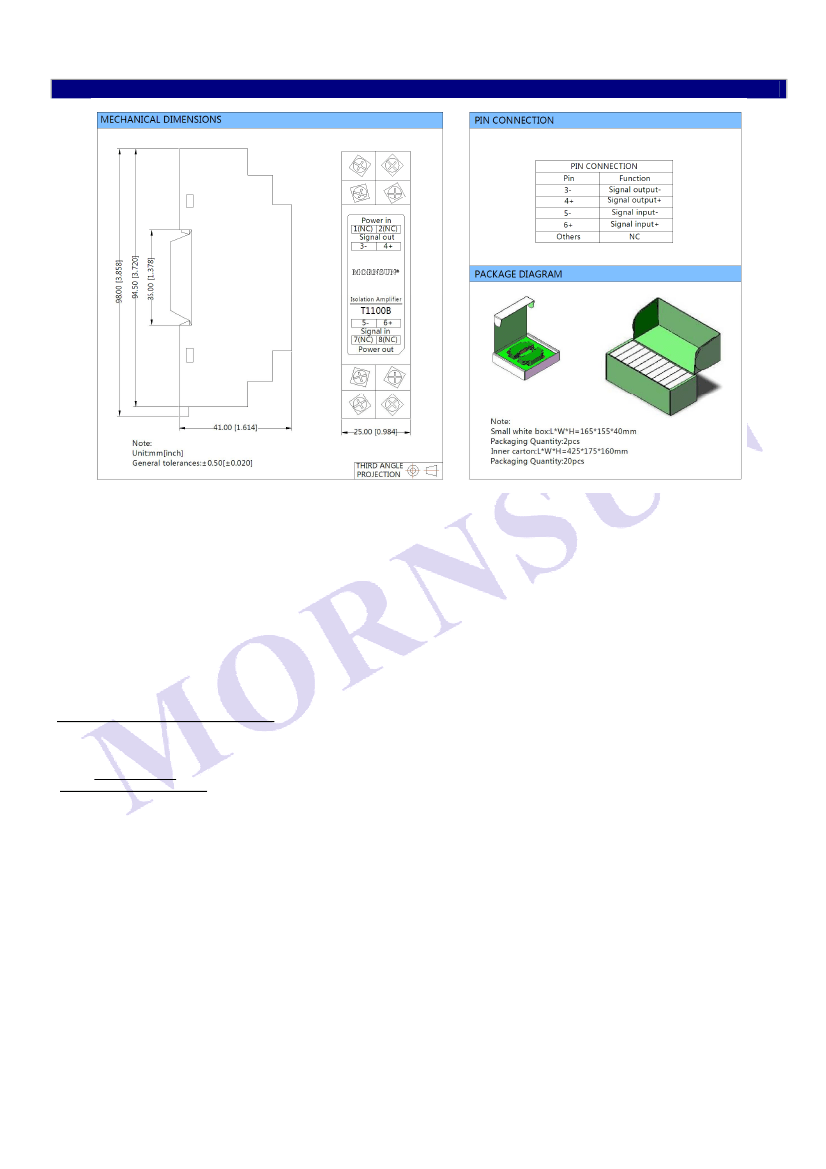

PACKAGING DIMENSION & PACKAGING DIAGRAM
Note:
1. All specifications are measured at Ta=25°C, humidity<75%, the value of nominal input and rated output load unless otherwise specified.
2. In this datasheet, all the test setup and methods are based on our corporate standards.
3. All characteristics are for listed models, and non-standard models may perform differently. Please contact our technical support for more details.
4. Please contact our technical support for any specific requirement.
5. Specifications of this product are subject to changes without prior notice.
MORNSUN Science & Technology Co.,Ltd.
Address: No. 5, Kehui St. 1, Kehui development center, Science Ave., Guangzhou Science City, Luogang district, Guangzhou,P.R.China.
Tel: 86-20-38601850
Fax:86-20-38601272
E-mail: info@mornsun.cn
Http://www.mornsun-power.com
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
T1100B
2013.07.09-A/2
Page 3 of 3
