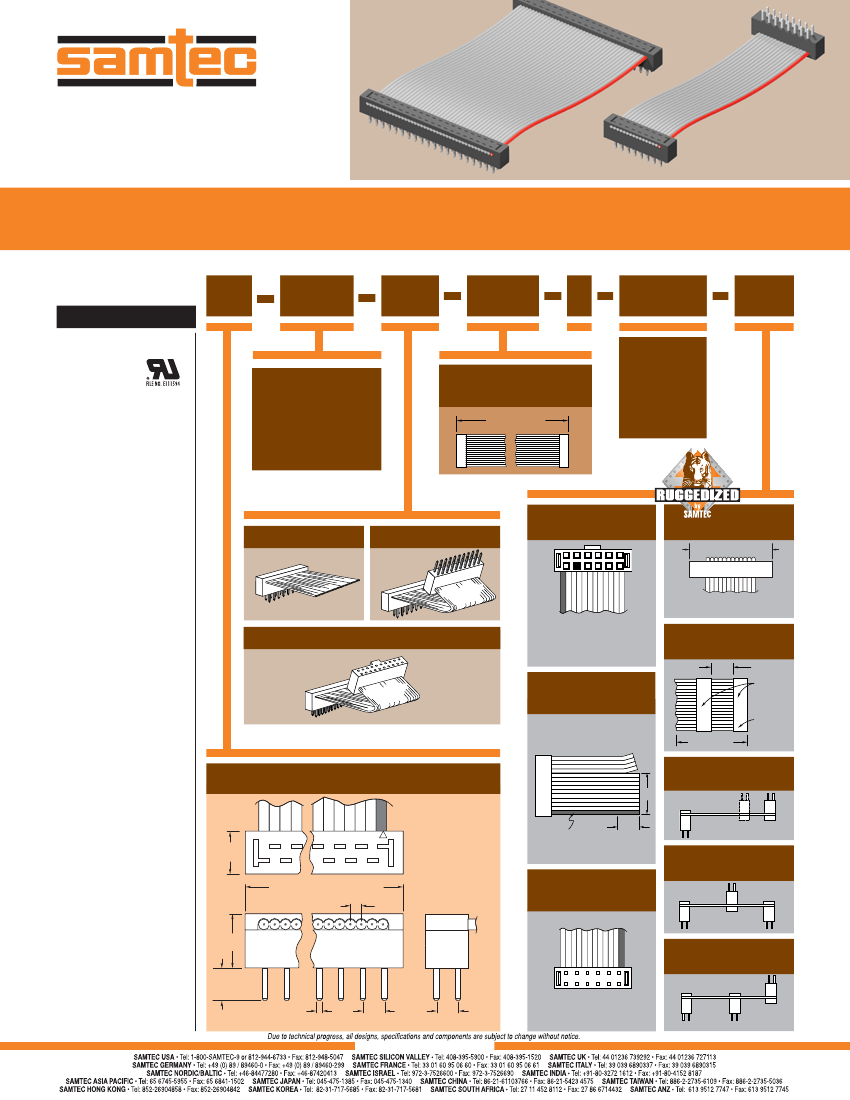

F-209-1
TCMD–20–D–02.50–01
TCMD–08–D–02.50–01–R
2mm IDC CABLE STRIPS
TCMD SERIES
Mates with:
SMM*, MMS*
TYPE
STRIP
NO. PINS
PER ROW
END
OPTION
OVERALL
LENGTH
01
TRANSFER
OPTION
Leave blank for
–S and –D
End Options.
For –T
End Option
Specify “–N”
(Socket has notch
polarization)
OTHER
OPTION
SPECIFICATIONS
For complete specifications
see www.samtec.com?TCMD
Insulator Material:
Black Glass Filled
Polyester
Terminal:
Phospor Bronze
Plating:
Sn over 50µ" (1,27µm) Ni
Wire:
28 AWG 7/36 Stranded,
Tinned, Copper with
Gray PVC Insulator
Current Rating:
1A
Operating Temp Range:
-40°C to +105°C
RoHS Compliant:
Yes
–05, –08,
–10, –12, –13,
–15, –17, –20,
–22, –25
(Call for other sizes)
–“XX.XX”
= Assembled Length
Assembled Length
in INCHES (±1/8")
2 inches minimum
–P “XX”
–S
= Single End
–D
= Double End
= Position Polarization
01
02
–SR
= Strain Relief
No. of positions x
(2,00) .0787 + (7,874) .3100
Not available with –O, –M,
–R, –DXX or –BXX
–T
=Transfer End
Specify “XX” as position
number. Requires
Transfer End. Only
Socket is polarized.
1
–D “XX”
= Daisy Chain
2"
min.
“XX”
± 1/8"
Double
Row
Connectors
Outer
Most
(End of
assembly)
4
–B “XX”
= Breakout
Specify “XX” as number of
conductors to be broken out.
4" minimum
TCMD
=Terminal Strip
“XX”
–R
= Reversed
5"max.
2"min.
01
(4,00)
.158
Breakout starts with Number 1
lead indicated by brown wire or
red stripe. Shown on top side.
5
2
–M
= Middle Reverse
No. of positions x (2,00) .0787
+ (4,00) .158
(1,00)
.03937
–RW
= Reverse Wiring
Requires –DXX
5
(5,08)
.200
*Note:
Standard TCMD callout
will not mate with SMM, MMS.
Must use gold plated callouts.
See drawing on web.
Note:
TCMD Series
assemblies are non-standard,
non-returnable.
01
–O
= Outside Reverse
(3,05)
.120
(0,50)
.020
SQ
(2,00)
.0787
(2,00)
.0787
02
Blue or black wire
opposite position #1.
3
Requires –DXX
5
