REVISION C
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. MINIMUM PUSHOUT FORCE TO BE 12 OZ RETENTION FOR CONTACTS AND WELD TABS.
3. .003[0.08] MAXIMUM TERMINAL BURR.
4. .005[0.13] MAXIMUM HEIGHT VARIATION BETWEEN ANY TWO PINS.
5. PARTS SHALL BE PACKAGED IN TUBES UNLESS OTHERWISE SPECIFIED. SEE SHEET 2.
TFM-1XX-XX-X-DH-XX
No OF POSITIONS
-02 THRU -50
(PER ROW)
LEAD STYLE
-02
(No OF POSITIONS x .050[1.27]) + .271[6.88]
PLATING SPECIFICATION
-S: 30µ" SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-L: 10µ" LIGHT SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
-F: 3µ" FLASHED SELECTIVE GOLD IN CONTACT
AREA, MATTE TIN ON TAIL
OPTION
-TR: TAPE & REEL PACKAGING
(SEE NOTE 5)
ROW SPECIFICATION
-DH: DOUBLE HORIZONTAL
DO NOT
SCALE FROM
THIS PRINT
(No OF POSITIONS x .050[1.27]) + .025[0.64]
((No OF POSITIONS - 1) x .050[1.27])
C
C1-A-MV
"A"
.110 2.79 REF
02
.225 5.72 REF
WT-81-01-T
C
.095 2.41 REF
01
.0100 0.254
REF (TYP)
.050 1.27 REF
(No OF POSITIONS x .050[1.27]) + .154[3.91]
2 MAX SWAY (TYP)
TFM-XX-DH
2 MAX SWAY
(EITHER DIRECTION)
.135 3.43 REF
C3-A-MV
C
"A"
.094 2.39
.025 0.64
REF (TYP)
.155 3.94 REF
.058 1.46 REF
.089 2.26 REF
"B"
.018 0.46 REF (TYP)

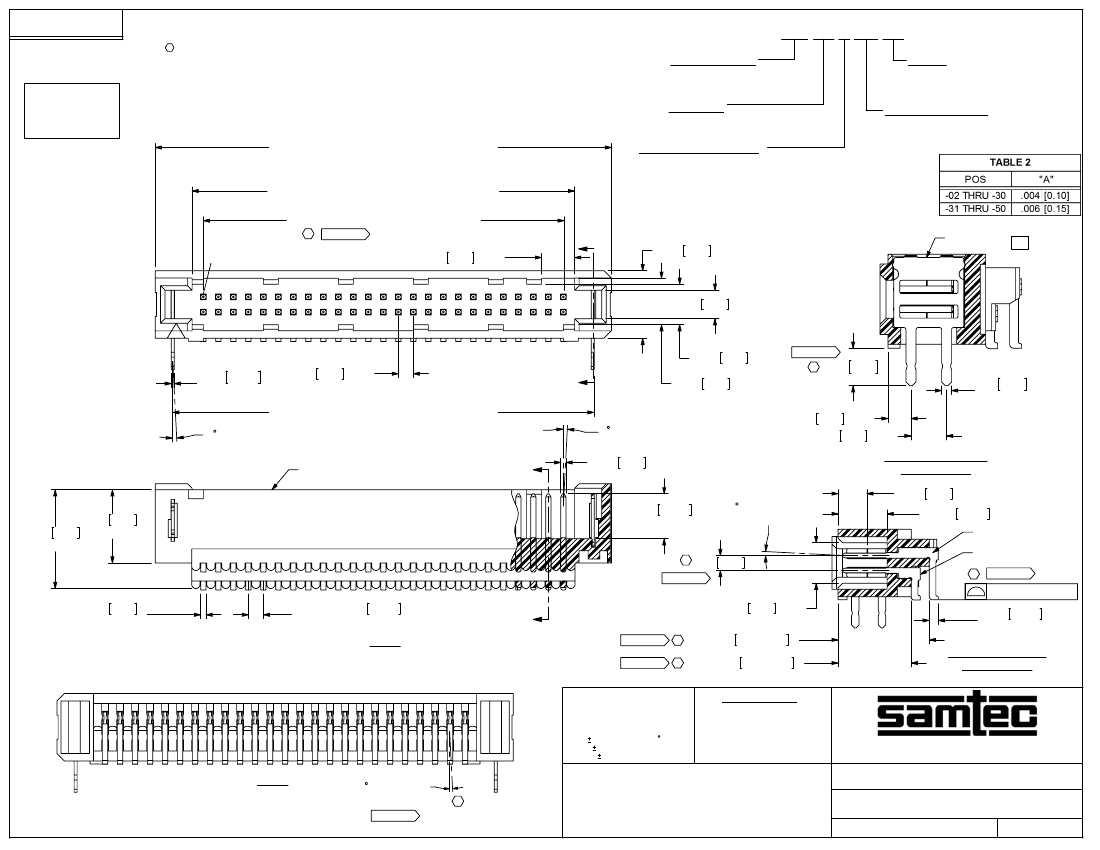

SECTION "A"-"A"
SCALE 4 : 1
2 MAX SWAY
(EITHER DIRECTION)
.096 2.44 REF
.1635 4.153 REF
T-1R46-01-XXX
T-1R45-01-XXX
C
C7-B-MV
.244 6.20
REF
.329 8.36
REF
.150 3.810
REF
C
.050 1.27
C4-B-MV
"A" (SEE TABLE 2)
.018 0.46
REF (TYP)
.0500 1.270
(TOL. NON-ACCUMULATIVE)
TFM-125-02-X-DH SHOWN
"B"
C5-B-MV
C6-B-MV
C
C
.135 3.43 REF
.304±.003 7.72±0.08
.244±.003 6.20±0.08
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
FIG 1
.030 0.762
REF (TYP)
(VIEW ROTATED 90°)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS

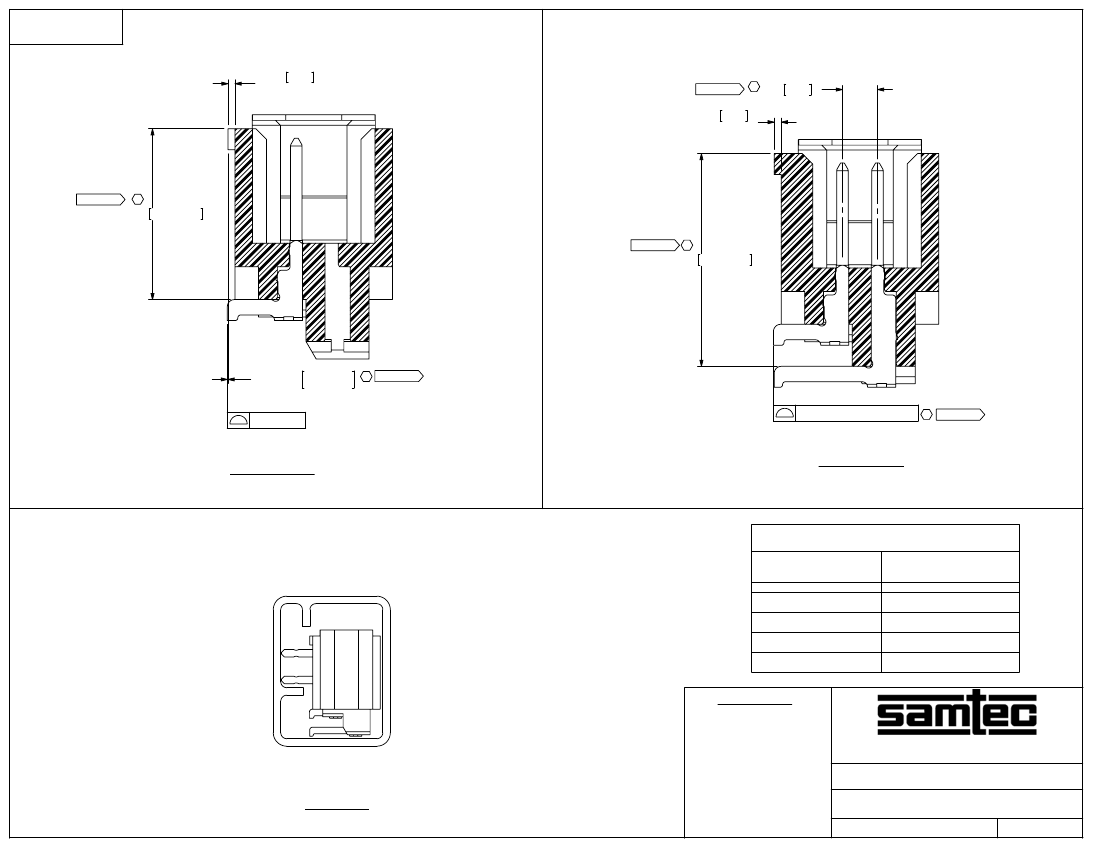

SECTION "B"-"B"
SCALE 3 : 1
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
2 MAX SWAY
BACK VIEW
(EITHER DIRECTION)
TFM-125-02-X-DH SHOWN
C2-A-MV
FIG 2
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
C
INSULATOR: LCP, UL 94-VO
COLOR: BLACK
TERMINAL: COPPER ALLOY
F:\DWG\MISC\MKTG\TFM-1XX-XX-X-DH-XX-MKT.SLDDRW
.050 X .050 DOUBLE HORIZONTAL TERMINAL STRIP
TFM-1XX-XX-X-DH-XX
SHEET
1
OF
2
BY:
J. BROWNING 04/12/2010
REVISION C
.010 0.25
REF
C
C4-B-MV
.050 1.27
.010 0.25
REF
C6-B-MV
C
.244±.003 6.20±0.08
C5-B-MV
C
.304±.003 7.72±0.08
.001
- .002
0.03
- 0.051
.004[0.10]
+.000
0.000
C C8-B-MV
"A" (SEE TABLE 2, SHT 1)
C C7-B-MV
FILL T-1R45-01-XXX
IN-PROCESS 1
FILL T-1R46-01-XXX
IN-PROCESS 2
CRITICAL DIMENSION INSPECTION INSTRUCTION
TABLE
ASSEMBLY OPERATION
IN-PROCESS INSPECTION
FILL ROW 1
FILL ROW 2
FILL WELD TAB
FINISHED GOOD
F:\DWG\MISC\MKTG\TFM-1XX-XX-X-DH-XX-MKT.SLDDRW
C6, C8
C5
C3
C1, C2, C4, C7
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
PT-1-24-01-124
TP-07
TUBE VIEW
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
.050 X .050 DOUBLE HORIZONTAL TERMINAL STRIP
DWG. NO.
DESCRIPTION:
TFM-1XX-XX-X-DH-XX
SHEET
2
OF
2
BY:
J. BROWNING 04/12/2010
