7499010218: DescriptionTelecom and Datacom Connector, ROHS COMPLIANT; CategoryThe connector The connector; File Size313KB，5 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric View All

7499010218 Overview

Telecom and Datacom Connector, ROHS COMPLIANT

7499010218 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	TELECOM AND DATACOM CONNECTOR

Preview

Download Datasheet

View All

more than you expect

Integrated 10/100 Base-T RJ45

Through Hole MIC25 Series

LANDatacom

Features

Electrical Characteristics

Inductance

350uH Min.

1500VAC

Dielectic Rating

1CT:1CT

Turns Ratio

Insertion Loss

-1.0dB max.

-18dB min.

-16dB min.

Return Loss

-14dB min.

-12dB min.

Cross Talk

-33dB min.

Common Mode Rejection

-35dB min.

0.1Vrms, 100kHz, 8mADC

for 1 minute

±2%

1MHz-100MHz

1MHz-30MHz

30MHz-45MHz

45MHz-60MHz

60MHz-80MHz

1MHz-100MHz

•

Optional pin-outs and LEDs

Industry standard footprint

Optimum performance

Cost effective

RoHS compliant

Part Number

MIC25010-5110

MIC25010-5101

MIC25011-5110

MIC25013-5110

MIC25013-5223

7499011219

74990112112

MIC2501A-5110

MIC25113-0141

MIC2511C-6131

MIC2511A-0141

MIC25113-6131

MIC25111-0110

MIC25210-0101

MIC25211-5112

MIC25212-0110

MIC25213-5210

MIC25310-5110

MIC25311-0110

7499010218

LED (left-right)

None

Yellow-Green

Green-Yellow

Green-Green/Yellow

Green-Yellow

Green/Orange-Yellow

Green-Green/Yellow

Green-Yellow

Yellow-Green

None

Yellow-Green

Green-Green

Green-Yellow

None

Yellow-Green

Green-Yellow

Operating

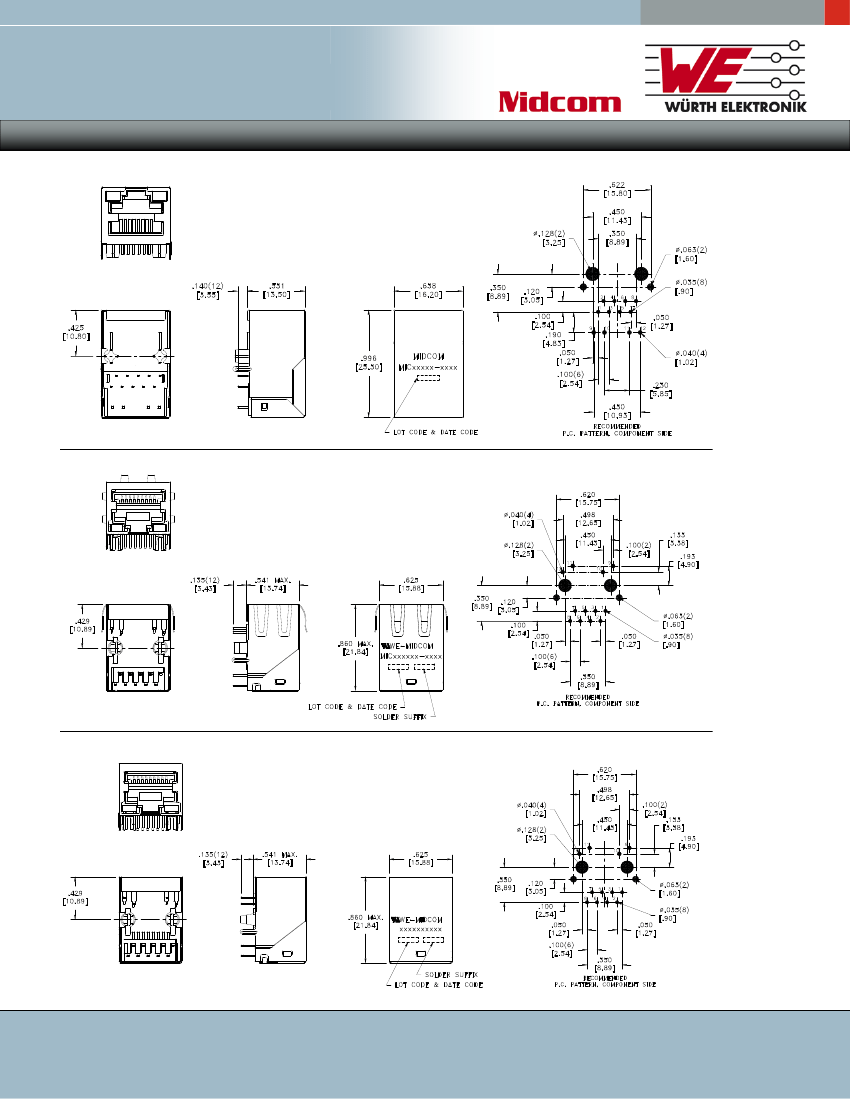

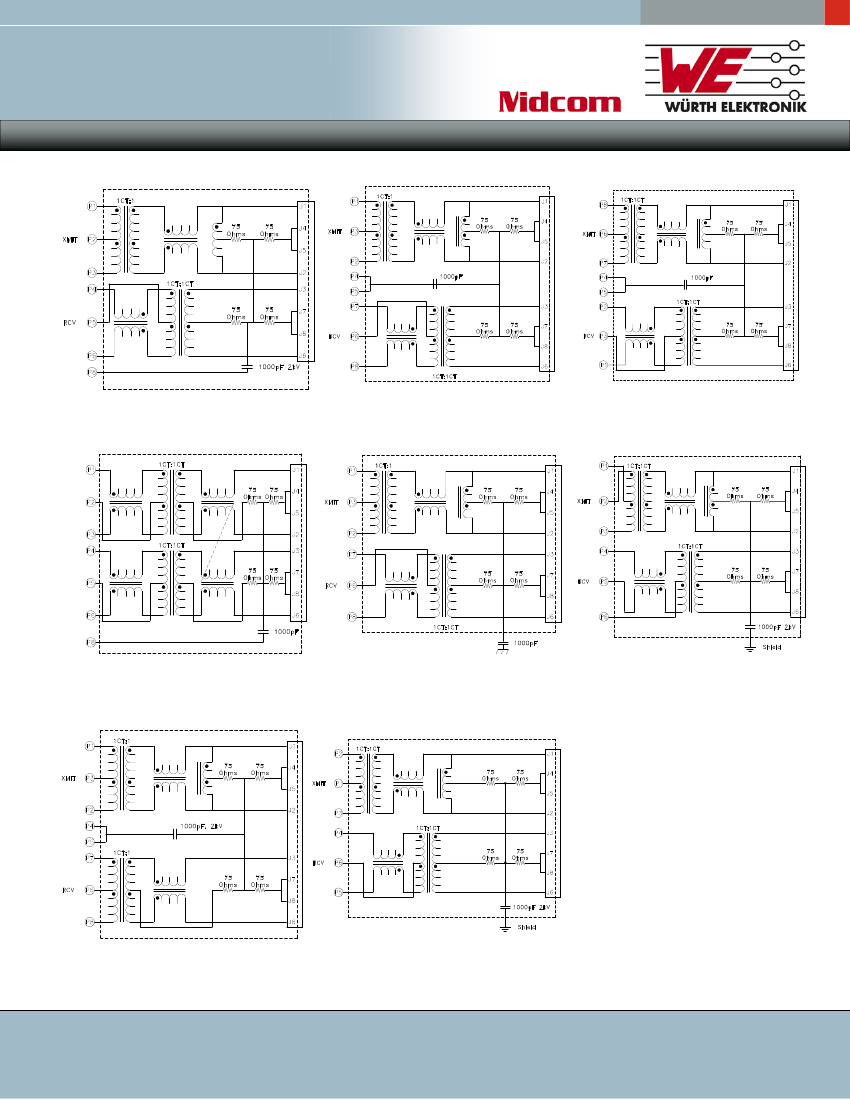

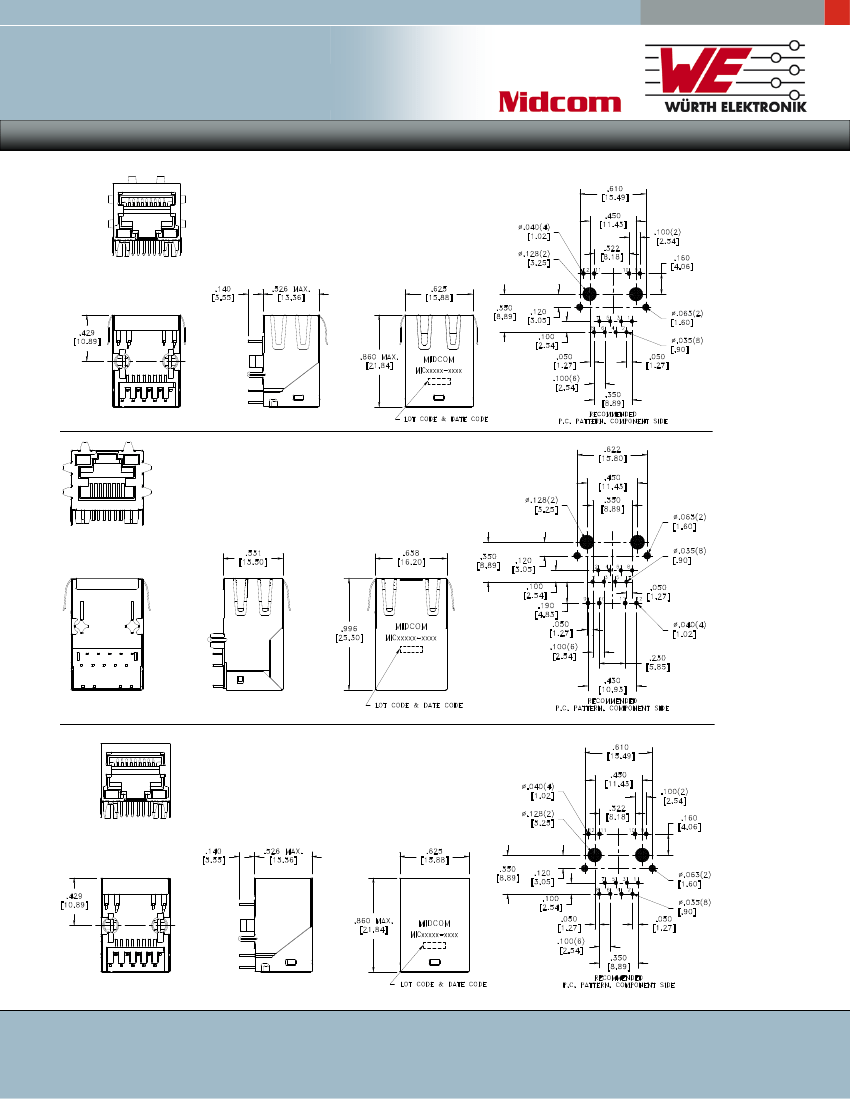

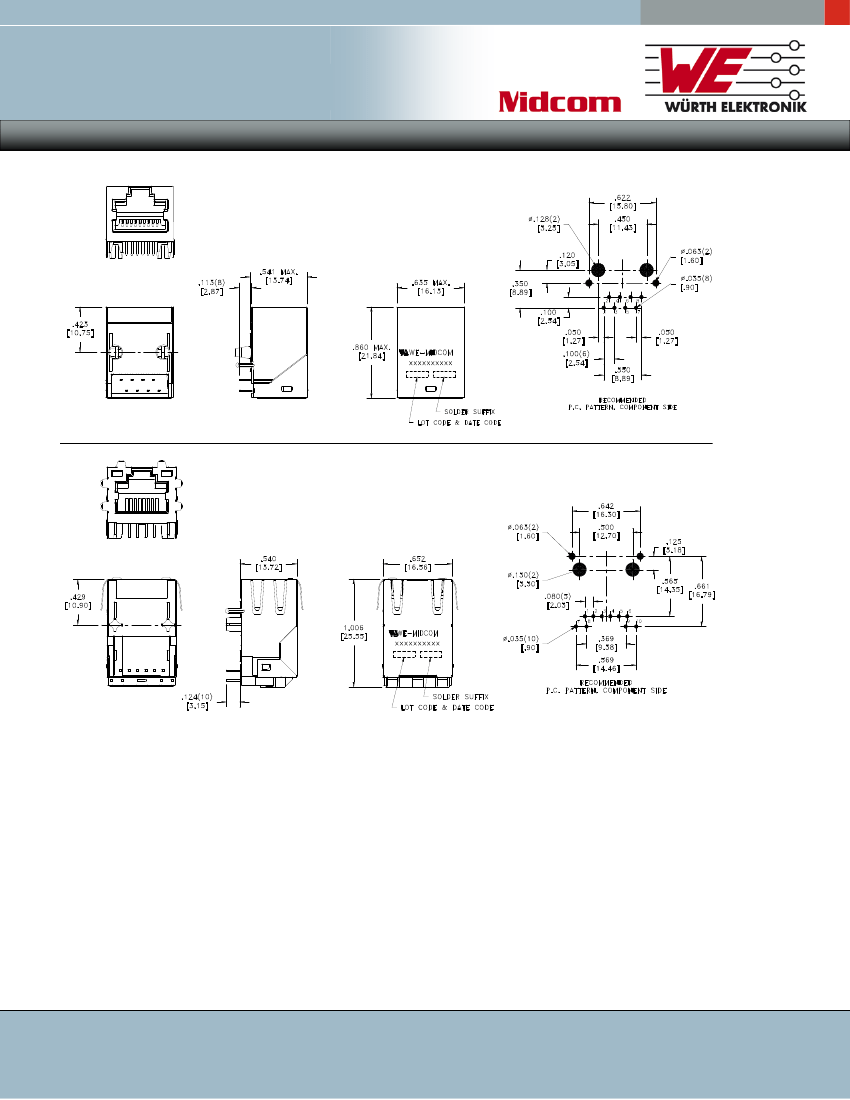

Tab Direction EMI Tabs Temp. Range Schematic Mechanical

Down

Yes

0°C to +70°C

Down

Yes

0°C to +70°C

Down

Yes

0°C to +70°C

Down

Yes

0°C to +70°C

Down

Yes

0°C to +70°C

Down

Yes

0°C to +70°C

Down

Yes

-40°C to +85°C

Down

Yes

0°C to +70°C

Yes

0°C to +70°C

Yes

0°C to +70°C

Yes

0°C to +70°C

Yes

0°C to +70°C

Yes

0°C to +70°C

Down

0°C to +70°C

Down

-40°C to +85°C

Down

0°C to +70°C

Down

0°C to +70°C

Wurth Electronics Midcom, Inc.

121 Airport Drive—PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ 605.886.4486

www.we-online.com ~ email: sales@midcom-inc.com

15-Oct-08

1/5
