more than you expect

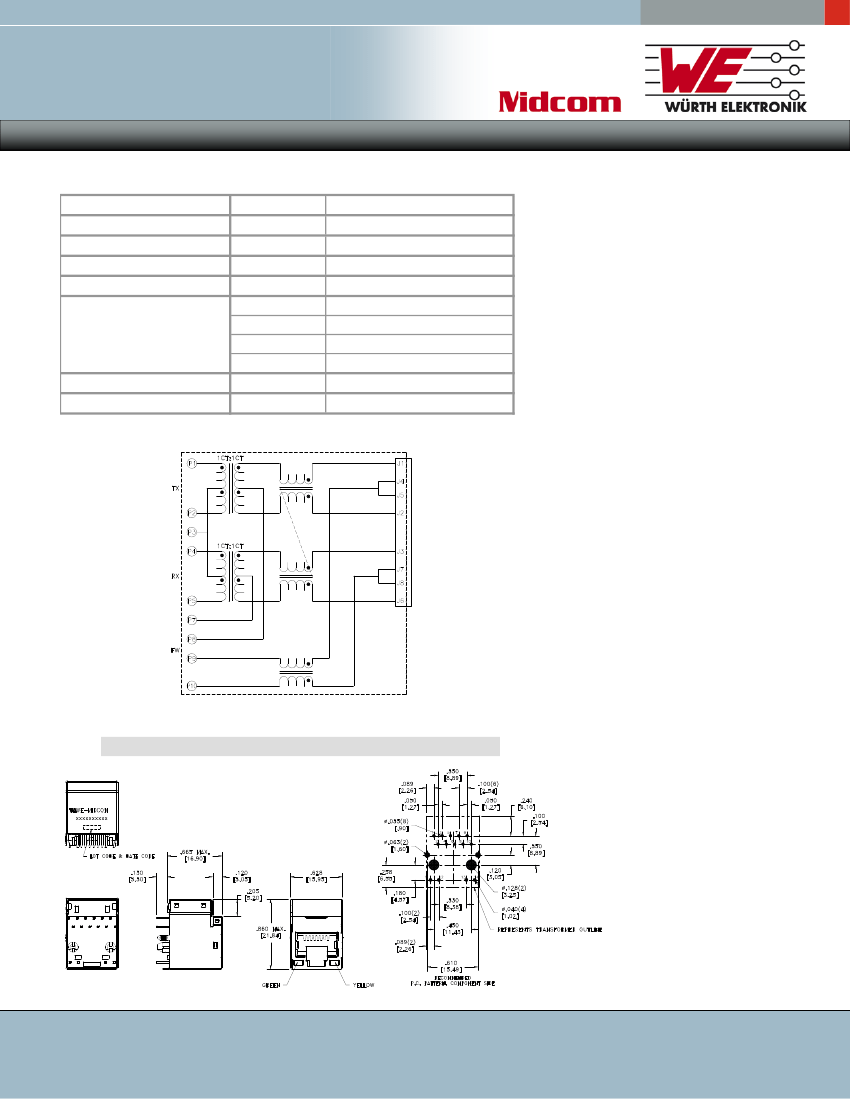

Integrated PoE 10/100 Base-T
Vertical RJ45
LANDatacom
Electrical Characteristics
Inductance
350uH Min.
Choke Inductance
36uH Min.
Dielectic Rating
1500VAC
Turns Ratio
1CT:1
Insertion Loss
-1.0dB max.
-18dB min.
-16dB min.
Return Loss
-14dB min.
-12dB min.
Cross Talk
-30dB min.
Common Mode Rejection
-30dB typ.
Features
0.1Vrms, 100k Hz, 8mADC
0.1Vrms, 10k Hz
for 1 minute
±2%
1MHz-100MHz
1MHz-30MHz
30MHz-45MHz
45MHz-60MHz
60MHz-80MHz
1MHz-100MHz
1MHz-100MHz
•
Through hole
•
PoE compatible (designed for
350mADC and 802.3af)
•
Operating Temperature 0°C to +70°C
•
Optional pin-outs and LEDs
•
Industry standard connector footprint
•
Optimum performance
•
Cost Effective
•
Both RoHS compliant and lead-
terminal parts available
Note1: Electrical Characteristics for individual part may vary; see specification sheet for actual values.
Part Number LED (left-right) Tab Direction
7499210210
Yellow-Green
Down
EMI Tabs
No
Wurth Electronics Midcom, Inc.
121 Airport Drive—PO Box 1330
Watertown, SD 57201
T: 605.886.4385 ~ 605.886.4486
www.we-online.com ~ email: sales@midcom-inc.com
24-Oct-08
1/1
