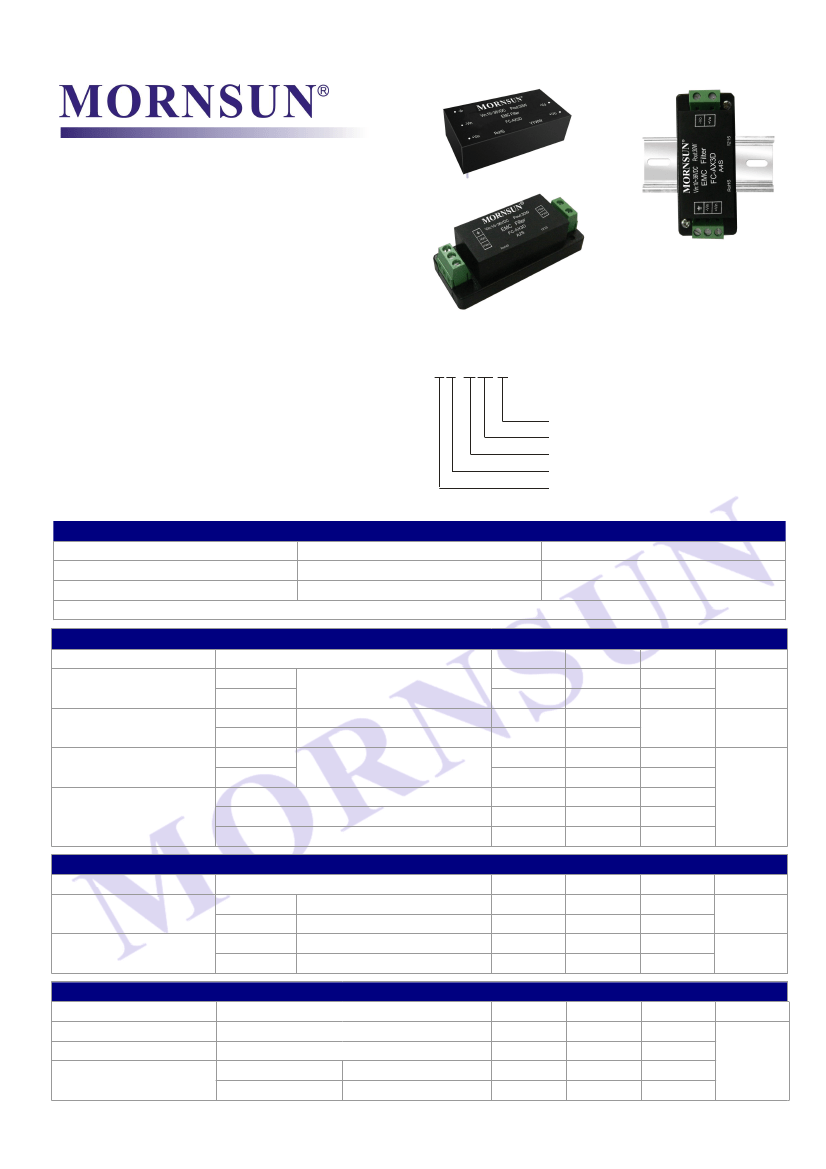

FC-AX3D&FC-B02D
EMC Filter
This model applies to analog circuit which is noise-sensitive. Put the
filter on to the input of DC/DC module can ensure the module meet the
EMC request of GB/T25119-2010, EN50155, RIA12 standard.
The filter used with the MORNSUN DC/DC module, DC/DC module’s
max. Input voltage must less than the filter’s max. Voltage. DC/DC
module’s power must less than the filter’s Max. output power.
RoHS
FEATURES
1.Compact size
2.Efficiency up to 98%
3.With slow start function
4.Input reverse polarity protection
5.Meet IEC/EN61000-4 series standard and CISPR22/
EN55022
6.Meet railway industry RIA 12, IEC 571, EN50155,
GB/T25119-2010 standard
7.Cost-effective
SELECTION GUIDE
Model
FC-AX3D
FC-B02D
PART NUMBER SYSTEM
FC-AX3D
Package
Nominal C urrent
Supporting Produc t Series
EMC Sort
Product Series
Input Voltage Range (VDC)
10~36
18~75
Max. output power(W)
30
30
Note: series with suffix
“A2S”
are chassis mounting, with suffix
“A4S”
are DIN-Rail mounting, for example FC-AX3DA4S.
INPUT SPECIFICATIONS
Item
Input Voltage
Test Conditions
FC-AX3D
FC-B02D
FC-AX3D
FC-B02D
FC-AX3D
FC-B02D
Operating temperature range
24VDC @ No-load
48VDC @ No-load
RIA 12 Transient 20ms
Min.
10
18
--
--
--
--
--
--
--
Typ.
24
48
--
--
--
--
--
--
--
Max.
36
75
10
84
168
1800
8400
960
V
Unit
VDC
No-load Current
mA
Transient Input Voltage
IEC60571/EN 50155 (5/50μs, 5Ω or 100Ω)
Input Voltage Limit (p-p)
IEC60571/EN 50155 (0.05/0.1μs, 100
Ω)
RIA 12
(10/100μs, 5
Ω)
OUTPUT SPECIFICATIONS
Item
Efficiency
Test Conditions
FC-AX3D
FC-B02D
FC-AX3D
FC-B02D
24VDC @30W
48VDC @30W
Input 84V(RIA 12 Transient 20ms)
Input 168V(RIA 12 Transient 20ms)
Min.
--
--
--
--
Typ.
98
98
39
82
Max.
--
--
--
--
Unit
%
Max. Output Voltage Limit
VDC
COMMON SPECIFICATIONS
Item
Operating Temperature
Storage Temperature
Max. Case Temperature
FC-AX3D
FC-B02D
24VDC @30W
48VDC @30W
Test Conditions
Min.
-40
-55
--
--
Typ.
--
--
--
--
Max.
85
125
40
40
°C
Unit
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
Specifications subject to change without notice.
FC-AX3D&FC-B02D
2013.08.06-A/0
Page 1 of 4
Withstand voltage
MTBF
Case Material
+Vin~
, -Vin~
, leakage current＜5mA
--
--
--
1000
500
--
VAC
K hours
MIL-HDBK-217F@40℃
--
PCB mounting
Plastic (UL94-V0)
53.8x28.8x19.00
76.0x31.5x27.80
76.0x31.5x32.40
50
70
90
g
mm
Size
FC-AX3D & FC-B02D
A2S Chassis mounting
A4S DIN-Rail mounting
PCB mounting
Weight
FC-AX3D & FC-B02D
A2S Chassis mounting
A4S DIN-Rail mounting
Note: All specifications measured at Ta=25°C, humidity<75%,unless otherwise specified.
SAFE & EMC
Item
Shake
Test Conditions
10 cycles in each axis
Test time in each axis: 3 minute
Frequency: 10-60Hz amplitude: 0.7mm
Frequency: 60-2000Hz acceleration: 10g
3 shocks in each axis
Peak acceleration: 100g
Duration: 6ms
150KHz-30MHz Class B (With MORNSUN’s Module)
30MHz-1GHz
Air
±8KV
Class B (With MORNSUN’s Module)
Contact
±6KV
perf. Criteria B
Test Procedure
IEC 68-2-6
Impact
CE
RE
ESD
EFT
EMS
Surge
RS
CS
IEC 68-2-27
CISPR22 , EN55022, GB9254
CISPR22, EN55022, GB9254
IEC/EN61000-4-2, GB/T17626.2
IEC/EN61000-4-4, GB/T17626.4
EN50155, RIA12, GB/T25119-2010
IEC/EN61000-4-5, GB/T17626.5
EN50155, RIA12, GB/T25119-2010
IEC/EN61000-4-3, GB/T17626.3
IEC/EN61000-4-6, GB/T17626.6
EMI
±4KV
perf. Criteria B
±2KV（1.2µs/50µs
2Ω）/±4KV（1.2µs/50µs 12Ω） perf. Criteria B
10V/m perf. Criteria A (With MORNSUN’s Module)
10V
perf. Criteria A (With MORNSUN’s Module)

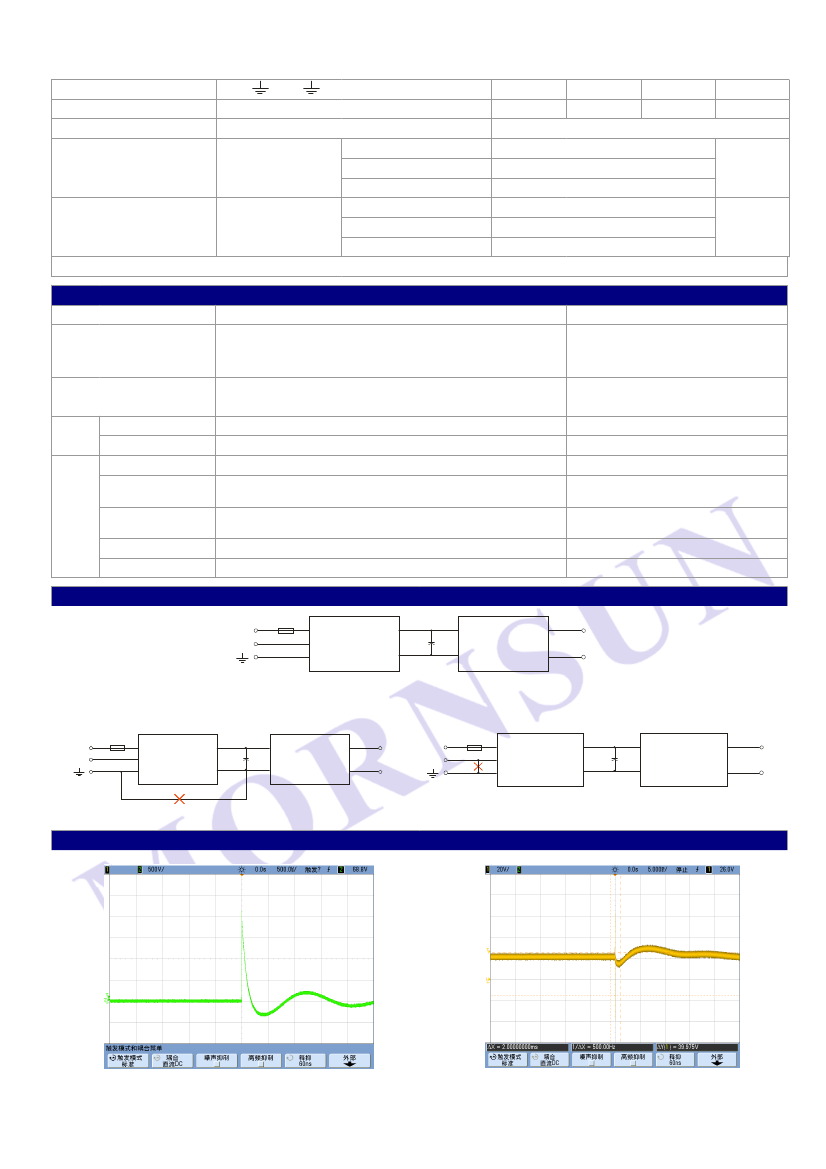

TYPICAL APPLY CIRCUIT
F U SE
+ V in
- V in
+V o
D C -D C
+
+ Vo
FC -AX3 D
-V o
C1
C O N VERTER
0V
FUSE: Due to the difference of the power module input current, the fuse of the recommended values, please refer to the Technical Manual for the
power module.
C1: The following results are measured in the C1 selection under the condition of 1000uF, C1 increased properly, can enhance the anti-jamming of
voltage dips, short interruptions and voltage variations.
F US E
+ Vin
- Vin
+ Vo
DC-DC
+
F USE
+ Vo
+Vin
-Vin
+Vo
DC-DC
+
+Vo
FC-AX3D
-V o
C1
FC-AX3D
-Vo
C1
CONVERTER
0V
CONVERTER
0V
These applications is not supported for this model.
EMC SPECIFICATIONS
①Surge
Test Result
FC-AX3D Input voltage waveform (Differential
mode
2KV)
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
FC-AX3D Output voltage waveform
Specifications subject to change without notice.
FC-AX3D&FC-B02D
2013.08.06-A/0
Page 2 of 4

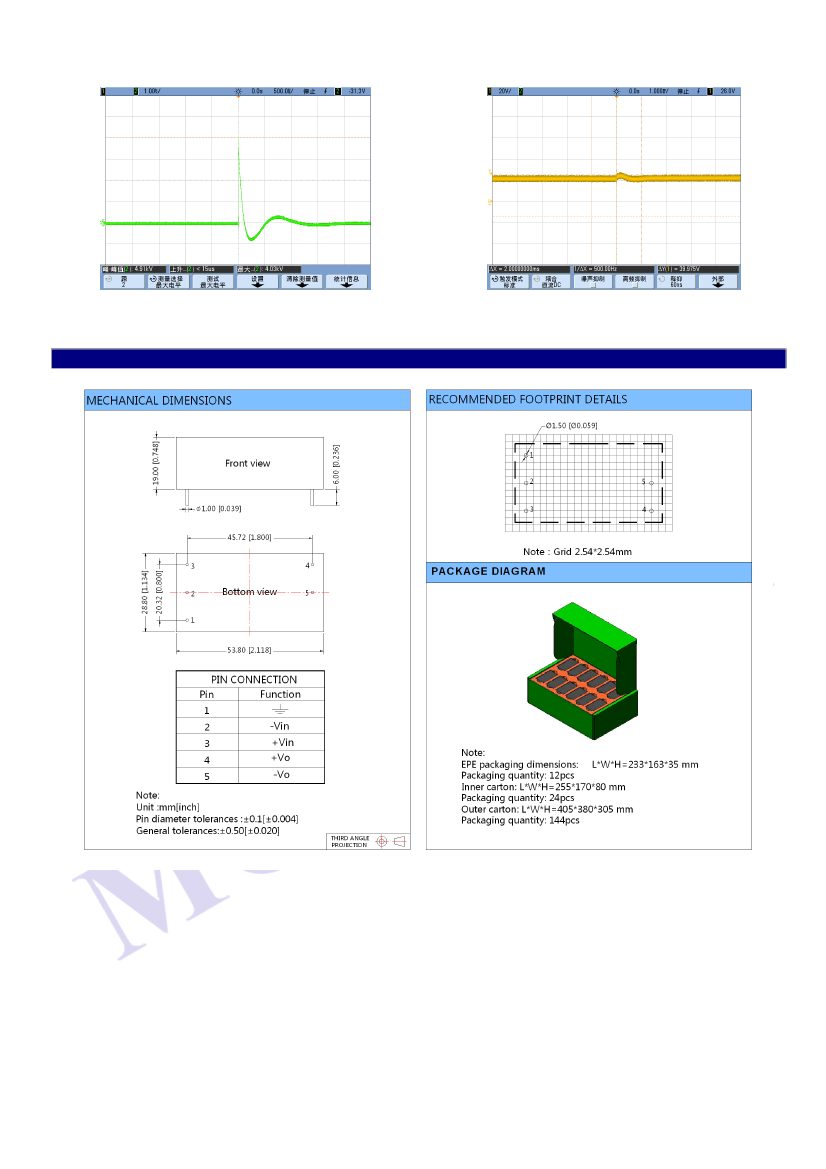

FC-AX3D Input voltage waveform (Common
mode
4KV)
,
Note: Above result was tested on MORNSUN s module URB2403LD-15W.
FC-AX3D Output voltage waveform

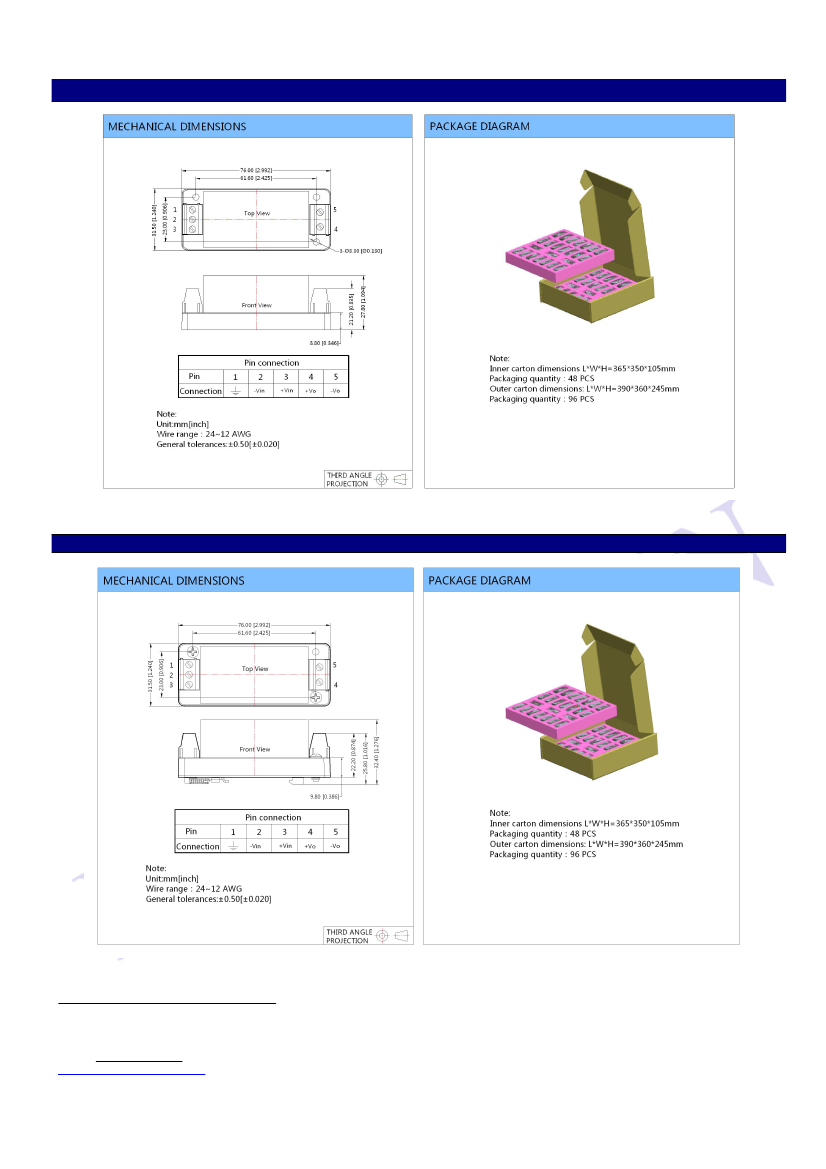

FC-AX3D & FC-B02D DIMENSIONS, RECOMMENDED FOOTPRINT & PACKAGING
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
Specifications subject to change without notice.
FC-AX3D&FC-B02D
2013.08.06-A/0
Page 3 of 4
FC-AX3DA2S & FC-B02DA2S
CHASSIS MOUNTING WITH SCREW TERMINALS
FC-AXDA4S & FC-B02DA4S
DIN-RAIL MOUNTING
MORNSUN Science & Technology Co.,Ltd.
Address: No. 5, Kehui St. 1, Kehui development center, Science Ave., Guangzhou Science City, Luogang district, Guangzhou,P.R.China.
Tel: 86-20-38601850
Fax:86-20-38601272
E-mail: info@mornsun.cn
Http://www.mornsun-power.com
The copyright and authority for the interpretation of the products are reserved by
MORNSUN
Specifications subject to change without notice.
FC-AX3D&FC-B02D
2013.08.06-A/0
Page 4 of 4
