MPSA06D27Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MPSA06D27Z

MPSA06D27Z: DescriptionSmall Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size779KB，17 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MPSA06D27Z Overview

Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN

MPSA06D27Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Parts packaging code	TO-92
package instruction	TO-92, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	0.5 A
Collector-emitter maximum voltage	80 V
Configuration	SINGLE
Minimum DC current gain (hFE)	100
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.625 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

Preview

Download Datasheet

View All

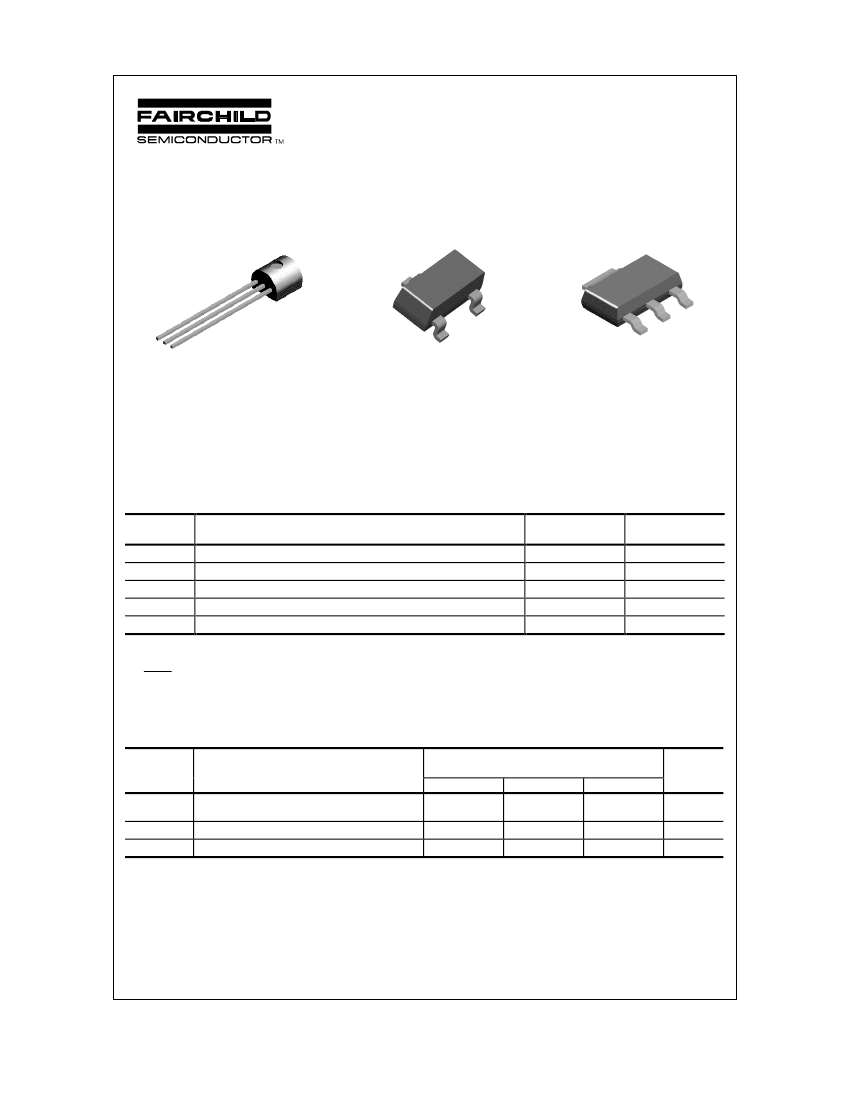

MPSA06 / MMBTA06 / PZTA06

MPSA06

MMBTA06

PZTA06

TO-92

SOT-23

Mark: 1G

SOT-223

NPN General Purpose Amplifier

This device is designed for general purpose amplifier applications

at collector currents to 300 mA. Sourced from Process 33.

Absolute Maximum Ratings*

Symbol

CEO

CBO

EBO

, T

stg

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current - Continuous

TA = 25°C unless otherwise noted

Parameter

Value

4.0

500

-55 to +150

Units

°C

Operating and Storage Junction Temperature Range

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

These ratings are based on a maximum junction temperature of 150 degrees C.

These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics

Symbol

θJC

θJA

TA = 25°C unless otherwise noted

Characteristic

Total Device Dissipation

Derate above 25°C

Thermal Resistance, Junction to Case

Thermal Resistance, Junction to Ambient

MPSA06

625

5.0

83.3

200

Max

*MMBTA06

350

2.8

357

**PZTA06

1,000

8.0

125

Units

mW/°C

°C/W

Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."

Device mounted on FR-4 PCB 36 mm X 18 mm X 1.5 mm; mounting pad for the collector lead min. 6 cm



1997 Fairchild Semiconductor Corporation

MPSA06D27Z Related Products

	MPSA06D27Z	MMBTA06D87Z	MPSA06J05Z	MPSA06L34Z	MPSA06J18Z	MPSA06D75Z	MPSA06D26Z	MPSA06D74Z
Description	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	500 mA, 80 V, NPN, Si, SMALL SIGNAL TRANSISTOR, LEAD FREE, SOT-23, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN	Small Signal Bipolar Transistor, 0.5A I(C), 80V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, TO-92, 3 PIN
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	TO-92	SOT-23	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
package instruction	TO-92, 3 PIN	SMALL OUTLINE, R-PDSO-G3	TO-92, 3 PIN	CYLINDRICAL, O-PBCY-T3	TO-92, 3 PIN	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	unknown	compliant	compliant	compliant	compli
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Collector-emitter maximum voltage	80 V	80 V	80 V	80 V	80 V	80 V	80 V	80 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	100	100	100	100	100	100	100	100
JESD-30 code	O-PBCY-T3	R-PDSO-G3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	RECTANGULAR	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	DUAL	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz	100 MHz
Is it Rohs certified?	conform to	conform to	incompatible	-	incompatible	conform to	conform to	conform to
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
JEDEC-95 code	TO-92	-	TO-92	TO-92	TO-92	TO-92	TO-92	TO-92
JESD-609 code	e3	e3	e0	-	e0	e3	e3	e3
Maximum power dissipation(Abs)	0.625 W	-	0.625 W	-	0.625 W	0.625 W	0.625 W	0.625 W
Terminal surface	Matte Tin (Sn)	MATTE TIN	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
