L414-0.25M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> L414-0.25M

L414-0.25M: DescriptionLVDS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6; CategoryPassive components oscillator; File Size119KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/; Environmental Compliance

Download Datasheet Parametric View All

L414-0.25M Overview

LVDS Output Clock Oscillator, 25MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-6

L414-0.25M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Connor-Winfield
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	L414
Installation features	SURFACE MOUNT
Nominal operating frequency	25 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	7.0mm x 5.0mm x 1.5mm
longest rise time	0.7 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

5.0x7.0mm

Surface Mount LVDS

Clock Oscillator Series

Description

The Connor Winfield Lxxx - Series

is a 5x7.5mm Surface Mount,

LVDS, Fixed Frequency Crystal

Controlled Oscillator (XO) designed

for applications requiring tight

frequency stability, wide temperature

range and low jitter. Operating at 2.5V

or 3.3V supply voltage, the Lxxx -

Series provides an LVDS Differential

Outputs with enable / disable function.

The surface mount package is

designed for high-density mounting

and is optimum for mass production.

0849

L143

155.

52M

Features:

Model Lxxx - Series

5.0 x7.0mm Surface Mount Package

2.5V or 3.3V Operation

LVDS Output Logic

Frequency Stabilities Available:

L14x / L24x / L34x / L44x: +/-20ppm

L11x / L21x / L31x / L41x: +/-25ppm

L12x / L22x / L32x / L42x: +/-50ppm

L13x / L23x / L33x / L43x: +/-100ppm

Temperature Ranges Available:

L1xx Series: 0 to 70°C

L2xx Series: -40 to 85°C

L3xx Series: 0 to 85°C

L4xx Series: -20 to 70°C

Low Jitter <1pS RMS

Tri-State Enable/Disable on Pad 1 or 2

Tape and Reel Packaging

RoHS Compliant / Lead Free

Table 1.0

Units

(Vcc)

Minimum

-55

-0.5

Nominal

Maximum

125

4.6

Vcc+0.5

Units

°C

Vdc

Table 2.0

Minimum

(Fo)

-20

-25

-50

-100

-40

-20

(Vcc)

2.375

3.135

2.375

3.135

(Icc)

Nominal

2.500

3.3

2.500

3.3

0.5

-60

-90

-125

-140

-145

Maximum

260

100

2.625

3.465

2.625

3.465

Units

MHz

ppm

°C

Vdc

ps RMS

dBc/Hz

Table 3.0

Minimum

(Vil)

(Vih)

0.7Vcc

(Icc)

Nominal

Note

2111 Comprehensive Drive

Aurora, Illinois 60505

Phone: 630- 851- 4722

Fax: 630- 851- 5040

www.conwin.com

US Headquarters:

630-851-4722

European Headquarters:

+353-61-472221

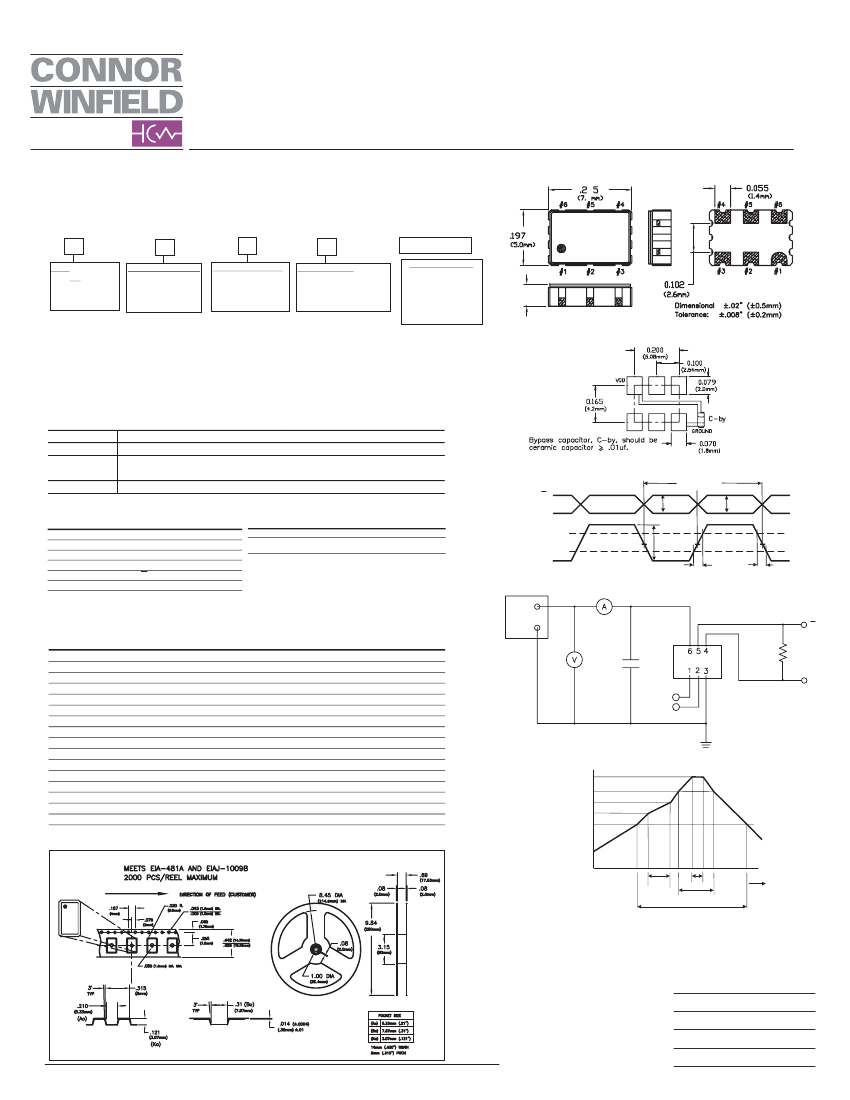

Model Specifications

Absolute Maximum Ratings

Parameter

Storage Temperature

Supply Voltage

Input Voltage

Operating Specifications

Parameter

Center Frequency

Total Frequency Tolerance

Model Lx4x

Model Lx1x

Model Lx2x

Model Lx3x

Model L1xx

Model L3xx

Model L2xx

Model L4xx

Supply Voltage

Model Lxx2

Model Lxx3

Model Lxx4

Model Lxx5

Supply Current

Period Jitter

Phase Jitter (BW=12kHz to 20MHz)

SSB Phase Noise at 10Hz offset

SSB Phase Noise at 100Hz offset

SSB Phase Noise at 1KHz offset

SSB Phase Noise at 10KHz offset

SSB Phase Noise at 100KHz offset

E/D Pad 1 (See Table 9)

E/D Pad 2 (See Table 9)

(See Table 9)

(See Table 9 for full part number)

Operating Temperature Range

Input Characteristics

Parameter

Disable Input Voltage (Low)

Enable Input Voltage (High)

Enable Time

Disable Time

Standby Current (when part is Disabled)

Nominal

700

0.3

Maximum

0.3Vcc

500

200

Units

Vdc

Note

LVDS Output Characteristics

Parameter

LOAD

Output Differential Voltage

Output Swing (Differential Output peak to

peak)

(Vod)

(Vopp)

Minimum

250

500

Maximum

100

450

900

0.7

Units

Ohms

Table 4.0

Note

Bulletin

Page

Revision

Date

DS021

1 of 2

27 Oct 2008

Duty Cycle measured at 50%

Differential Rise / Fall Time 20% to 80%

Package Characteristics

Package

Soldering Process

Hermetically sealed ceramic package and metal cover.

RoHS compliant, lead free, see solder profile on page 2.

Table 5.0

Recommended Resources
