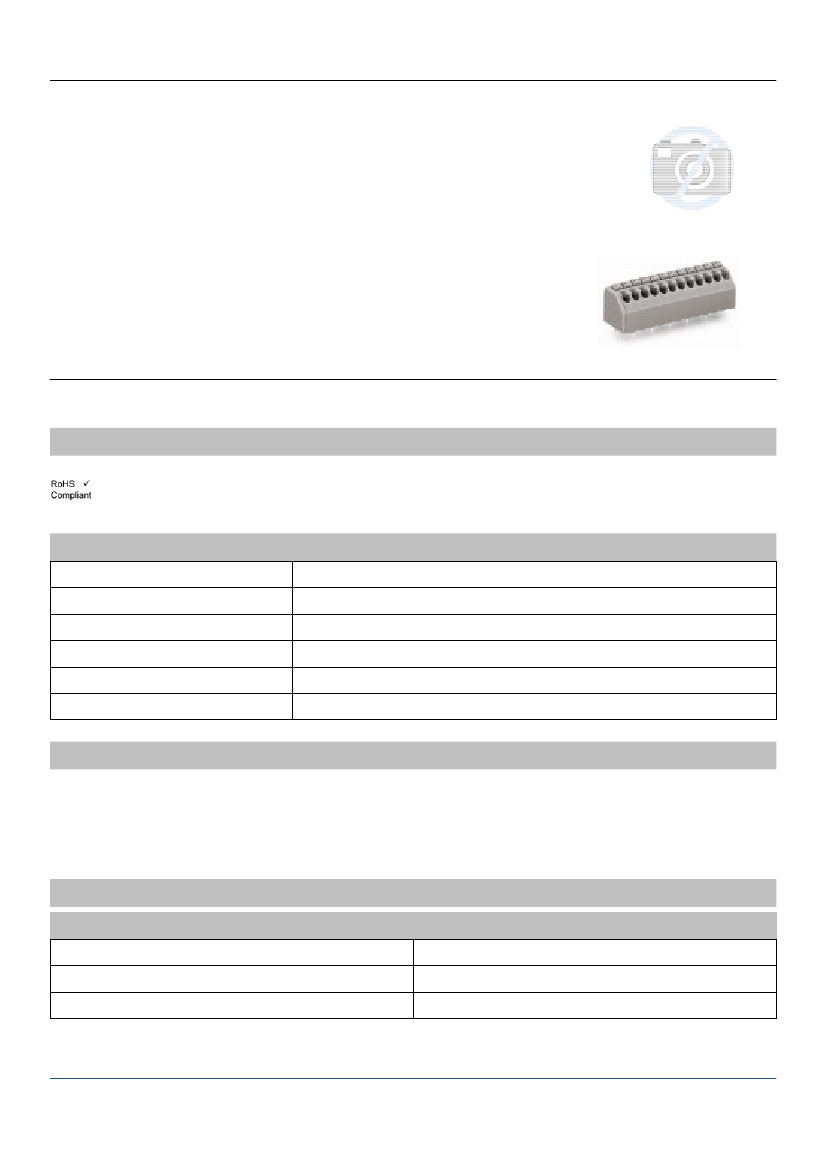

Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE
CLAMP® - Item No.: 250-212
.
PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm;
12-pole; Push-in CAGE CLAMP®
Item No.: 250-212
.
PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE CLAMP®
.
Marking
.
Business data
Supplier
Item no.
GTIN / EAN
Content
Order amount
Customer item number
.
Notes
WAGO
250-212
4044918648820
1
25
Item description:Compact terminal strips with push-buttonsSimple, push-in terminations of solid and ferruled
conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides
easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon request
Technical data
Miscellaneous
No. of poles
Pin spacing
Total number of connection points
12
3.5 mm (0.138 in)
12
WAGO Kontakttechnik GmbH & Co. KG
1
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE
CLAMP® - Item No.: 250-212
Technical data
Total number of potentials
Color
Ratings per
Rated voltage (III / 3) [V]
Rated impulse voltage (III / 3) [kV]
Pollution degree (1)
Rated voltage (III/2) [V]
Rated impulse voltage (III / 2) [kV]
Rated voltage (II / 2) [V]
Rated impulse voltage (II / 2) [kV]
Rated current [A]
Legend for ratings
Number of connection objects
Number of levels
Pull-in time
Connection technology
Number of connection points connector
Actuation type
Solid conductor
Fine-stranded conductor
Fine-stranded conductor with ferrule with plastic collar
12
gray
IEC/EN 60664-1
250 [V]
4 [kV]
2
320 [V]
4 [kV]
630 [V]
4 [kV]
8 [A]
(III / 2 ) Overvoltage category III /
1
1
0.0
Push-in CAGE CLAMP®
1
Operating lever
0.2 … 1.5 mm² / 24 … 16 AWG
0.2 … 1.5 mm² / 24 … 16 AWG
0.25 … 1 mm² / …
Fine-stranded conductor with ferrule without plastic collar 0.25 … 1 mm² / …
Strip length
Conductor entry angle to the PCB [°]
Solder pin arrangement
Solder pin length [mm]
Drilled hole diameter (tolerance) [mm]
Material group
Insulating material
Flammability class per UL94
Limit temperature range
Clamping spring material
Contact plating
Fire load [MJ]
8.5 … 9.5 mm / 0.33 … 0.37 Inch
45 [°]
staggered
3.6 [mm]
1(+ 0.1) [mm]
I
Polyamide 66 (PA 66)
V0
-60 … 105 °C
Copper alloy
tin-plated
0.126 [MJ]
WAGO Kontakttechnik GmbH & Co. KG
2
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE
CLAMP® - Item No.: 250-212
Technical data
Weight [g]
Width
Height
Height from the surface
Depth
5.817 [g]
43.5 mm / 1.713 Inch
16.7 mm / 0.657 Inch
13.1 mm / 0.516 Inch
12 mm / 0.472 Inch
WAGO Kontakttechnik GmbH & Co. KG
3
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE
CLAMP® - Item No.: 250-212

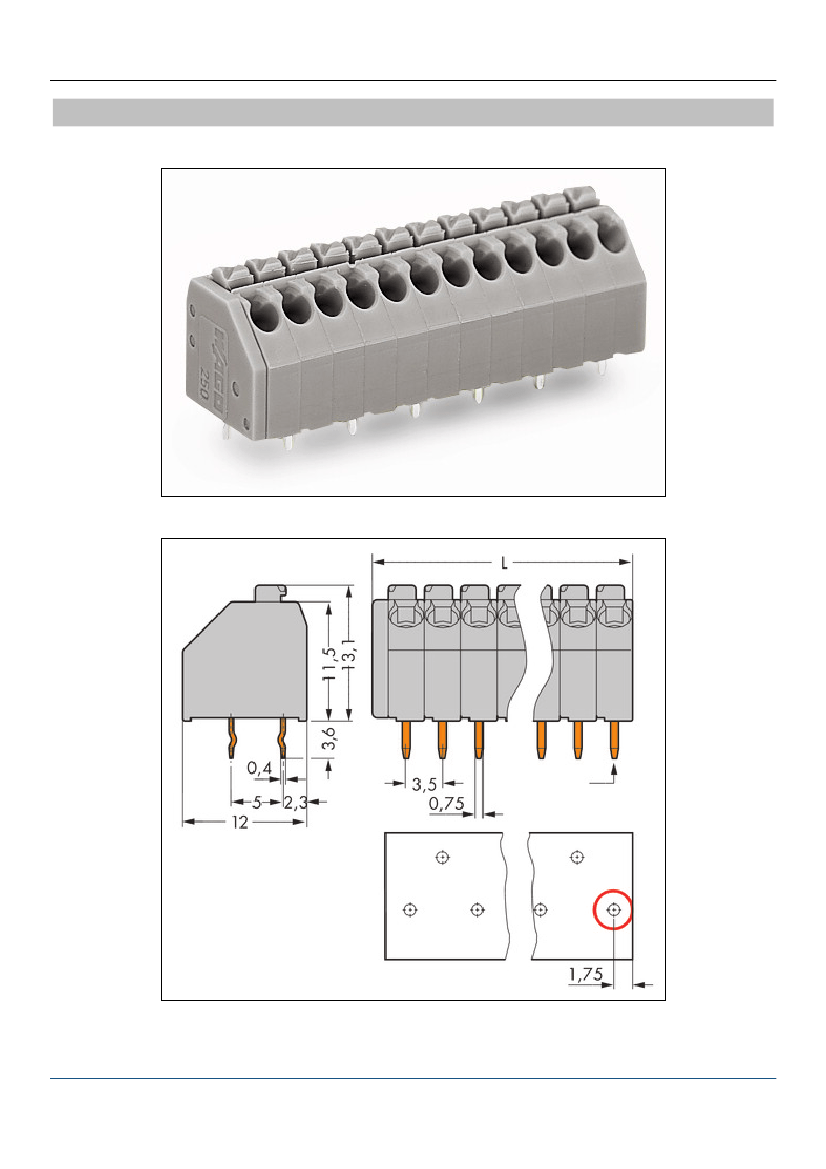

Images & drawings
WAGO Kontakttechnik GmbH & Co. KG
4
Printview: PCB terminal block; Push-button; 1.5 mm²; Pin spacing 3.5 mm; 12-pole; Push-in CAGE
CLAMP® - Item No.: 250-212
.
Address
WAGO Kontakttechnik GmbH & Co. KG
Hansastr. 27
32423 Minden
Telefon: 0571/887-0
Fax: 0571/887-169
http://www.wago.com
© WAGO Kontakttechnik GmbH & Co. KG
Technische Änderungen und Irrtümer vorbehalten.
