CATV Line Amplifier
Note for Correct Use
2F1G22DS
1. On the power input port (Pin#5), 47uF/35V capacitor GND is
recommended.
2. The heat sink of CATV Hybrids is to be mounted in direct contact with
the metal case of the equipment. Heat conducting grease should be
applied to the module/equipment interface and the unit tightly secured.
3. Put the power off before adjusting in/output matching of the system.
4. The unit must have a common ground with the equipment and the
analyzer.
5. Pay close attention to the input voltage not to over power the hybrid.
6. The space between bottom of socket and the tip of the lead is
recommended to have space of 2mm+ to protect the pin
7.
Do not open the plastic cover to change the matching inside the hybrid.
Once opened, RFHIC will not be responsible for the hybrid.
+
+24V
47
㎌
ESD Protection
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity. Proper
ESD control techniques should be used when handling these devices. Some of the precautions recommended are;
- Person at a workbench should be earthed via a wrist strap and a resistor.
- All mains-powered equipment should be connected to the mains via an earth-leakage switch.
- Equipment cases should be grounded.
- Relative humidity should be maintained between 40% and 50%.
- An ionizer is recommended.
- Keep static materials, such as plastic envelopes and plastic trays etc. away from the workbench.
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
3
/
5
All specifications may change without notice
Version 5.8
CATV Line Amplifier

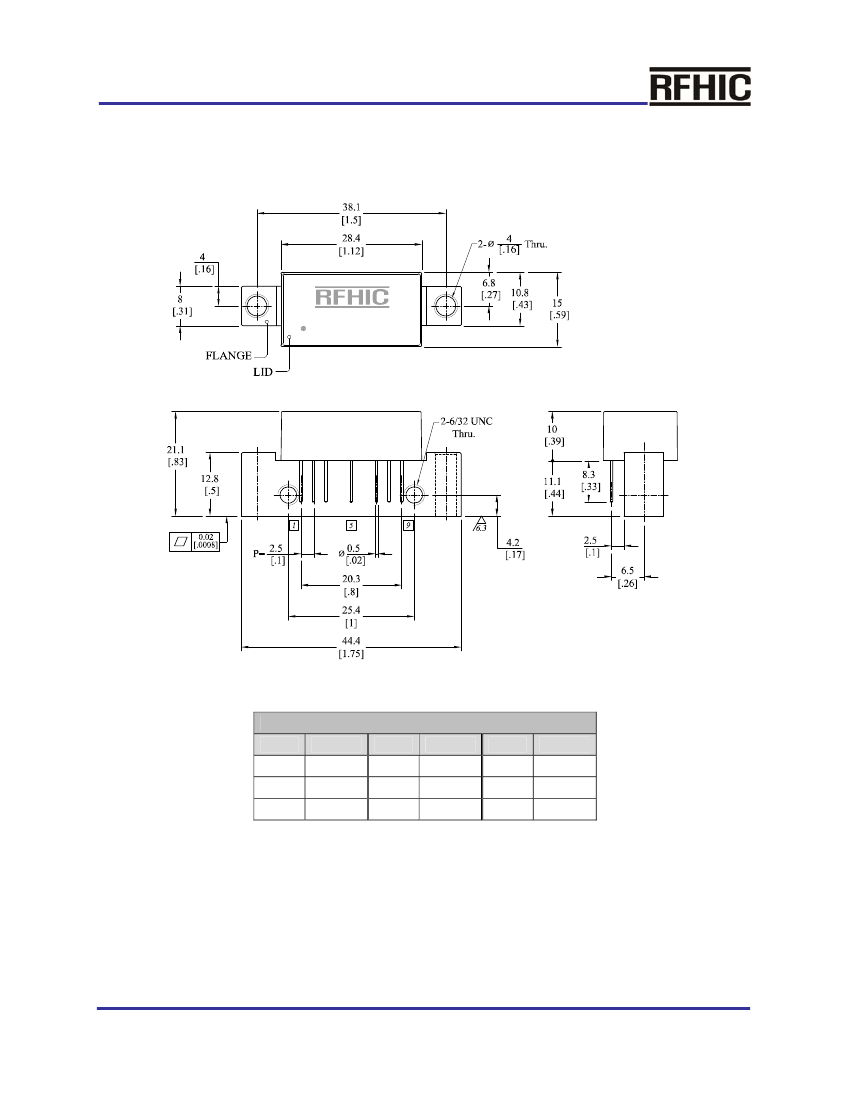

Package Dimensions
(Type: SOT-115J)
2F1G22DS
* Unit: mm[inch] | Tolerance:
±0.2[.008]
▲
Top View
▲
Front View
▲
Side View
Pin Description
Pin No Function Pin No Function Pin No Function
1
2
3
RF Input
GND
GND
4
5
6
-
Vcc
-
7
8
9
GND
GND
RF Output
Korean Facilities : 82-31-250-5078 / rfsales@rfhic.com
US Facility : 919-677-8780 / sales@rfhicusa.com
4
/
5
All specifications may change without notice
Version 5.8
CATV Line Amplifier
Revision History
Part Number
2F1G22DS
Release Date
2012.9.5
Version
5.8
2F1G22DS
Modification
-
Data Sheet Status
-
