Part Number

Search

364722

Description
68-68 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER
CategoryThe connector    The connector
File Size48KB,1 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Environmental Compliance
Download Datasheet Parametric View All

364722 Online Shopping

Suppliers Part Number Price MOQ In stock
364722 - - View Buy Now

364722 Overview

68-68 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER

364722 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerERNI
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresLOW PROFILE
Connector typeBOARD CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE-FEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number364722
Mixed contactsNO
Installation typeBOARD
触点数量:侧 168
触点数量:侧 268
Number of rows loaded2
OptionsGENERAL PURPOSE
direct connectionYES
Base Number Matches1
33 x 1,27 = 41,91
1,27
1,27
44,13
45,13
45,93
5
4,2
ohne Verriegelung
without interlocking
7,35
3:1
4
1,8
3,25
mit Verriegelung
with interlocking
-tray packaging
Verpackt in Tray
Verpackungseinheit 36 Stück
-packaging unit 36
342 max.
Einzelheit X (M 2:1)
detail X
256 max.
62,5
50
62,5
X

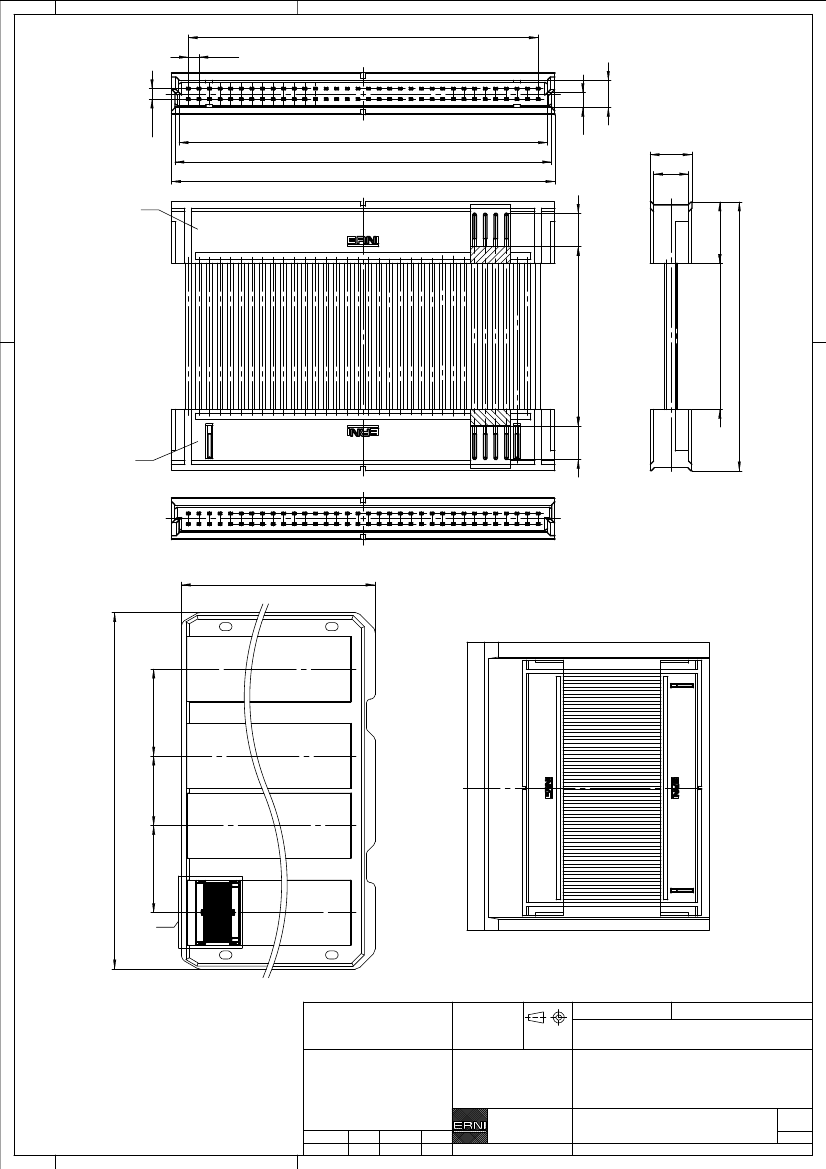

Adapterstück für board-to-board Abstand von 34mm (beidseitig verbaut mit Federleiste: 154808, Low Profile)
Adapter for board-to-board height 34mm (in combination with two female connectors: 154808, low profile)
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
A
Index
21.07.2009
Date
Subject to modification without
prior notice.
Drawing will not be updated.
4
Scale
Designation
1,27 DRC Adapterstück BTB 34mm
68-polig
www.ERNI.com
Class
364722
DRCBTB
32,2
21,5
17,5
I
A3
