39 x 1,27 = 49,53
1,27
1,27
51,75
52,75
53,55
5
4,2
ohne Verriegelung
without interlocking
7,35
4
1,8
3,25
mit Verriegelung
with interlocking
V e rp a c k t in T ra y
V e rp a c k u n g s e in h e it 3 9 S tü c k
-
342 max.
p a c k a g in g
-tra y
Einzelheit X (M 2:1)
p a c k a g in g u n it 3 9
detail X
256 max.
X
85,75
85,75
Adapterstück für board-to-board Abstand von 26mm (beidseitig verbaut mit Federleiste: 154809, Low Profile)
Adapter for board-to-board height 26mm (in combination with two female connectors: 154809, low profile)
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
26.11.2008
Index
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.

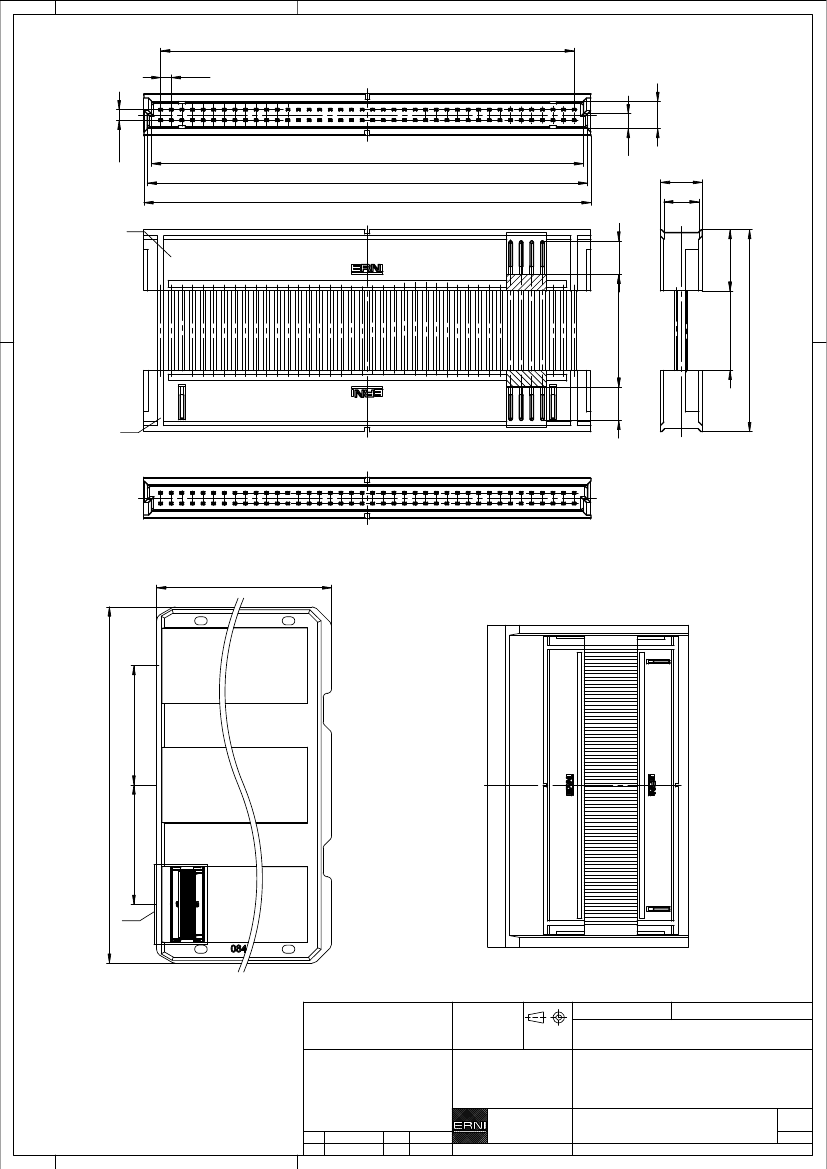

1,27 DRC Adapterstück BTB 26mm
80-polig
4
3:1
www.ERNI.com
Class
364728
DRCBTB
24,2
13,5
9,5
I
A3
