Part Number

Search

364731

Description
80-80 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER
CategoryThe connector    The connector
File Size47KB,1 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Environmental Compliance
Download Datasheet Parametric View All

364731 Online Shopping

Suppliers Part Number Price MOQ In stock
364731 - - View Buy Now

364731 Overview

80-80 CONTACT(S), FEMALE-FEMALE, BOARD MOUNT, PCB ADAPTER

364731 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerERNI
Reach Compliance Codecompliant
Other featuresLOW PROFILE
Connector typeBOARD CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE-FEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation typeBOARD
触点数量:侧 180
触点数量:侧 280
Number of rows loaded2
OptionsGENERAL PURPOSE
direct connectionYES
Base Number Matches1

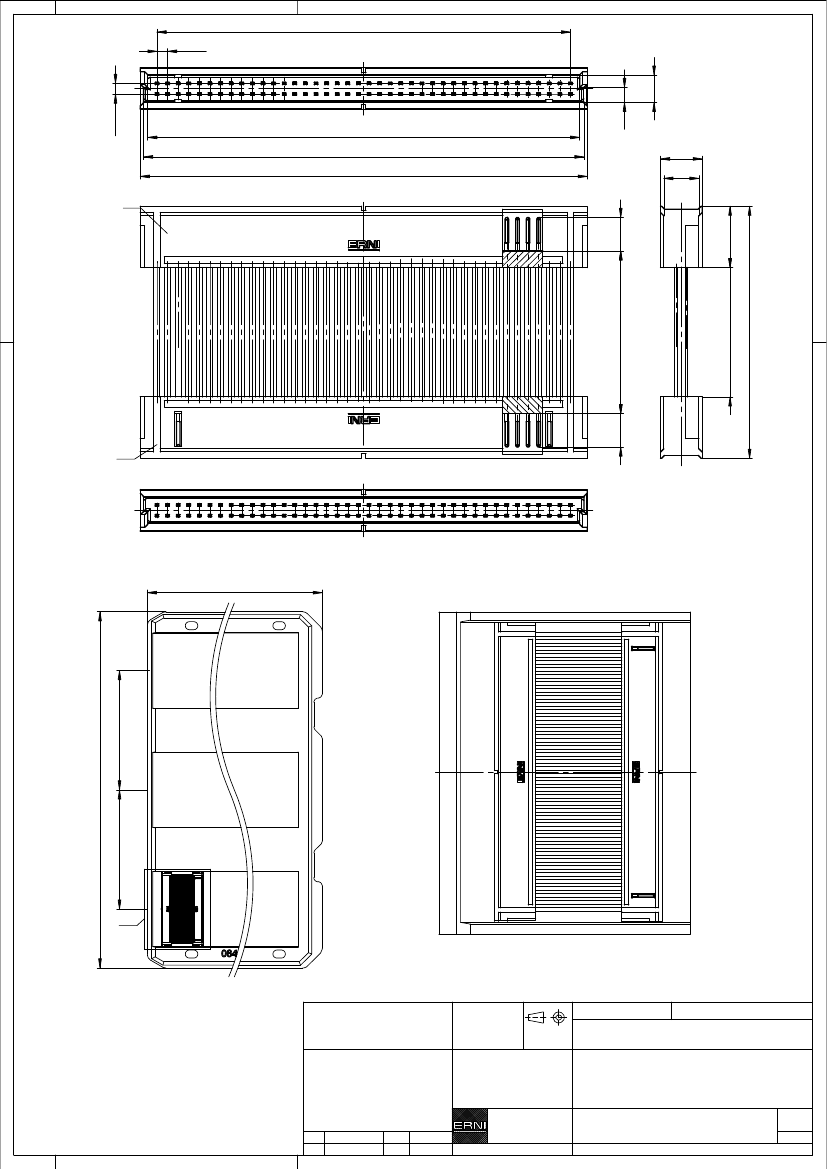

39 x 1,27 = 49,53
1,27
1,27
51,75
52,75
53,55
5
4,2
ohne Verriegelung
without interlocking
7,35
4
1,8
3,25
mit Verriegelung
with interlocking
V e rp a c k t in T ra y
V e rp a c k u n g s e in h e it 3 0 S tü c k
-
342 max
p a c k a g in g
-tra y
Einzelheit X (M 2:1)
p a c k a g in g u n it 3 0
detail X
256 max
85,75
85,75
X
Adapterstück für board-to-board Abstand von 32mm (beidseitig verbaut mit Federleiste: 154809, Low Profile)
Adapter for board-to-board height 32mm (in combination with two female connectors: 154809, low profile)
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
26.11.2008
Index
Date
Designation
Subject to modification without
prior notice.
Drawing will not be updated.
1,27 DRC Adapterstück BTB 32mm
80-polig
4
3:1
www.ERNI.com
Class
364731
DRCBTB
30,2
19,5
15,5
I
A3
