38BC-0-H-2-N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 38BC-0-H-2-N

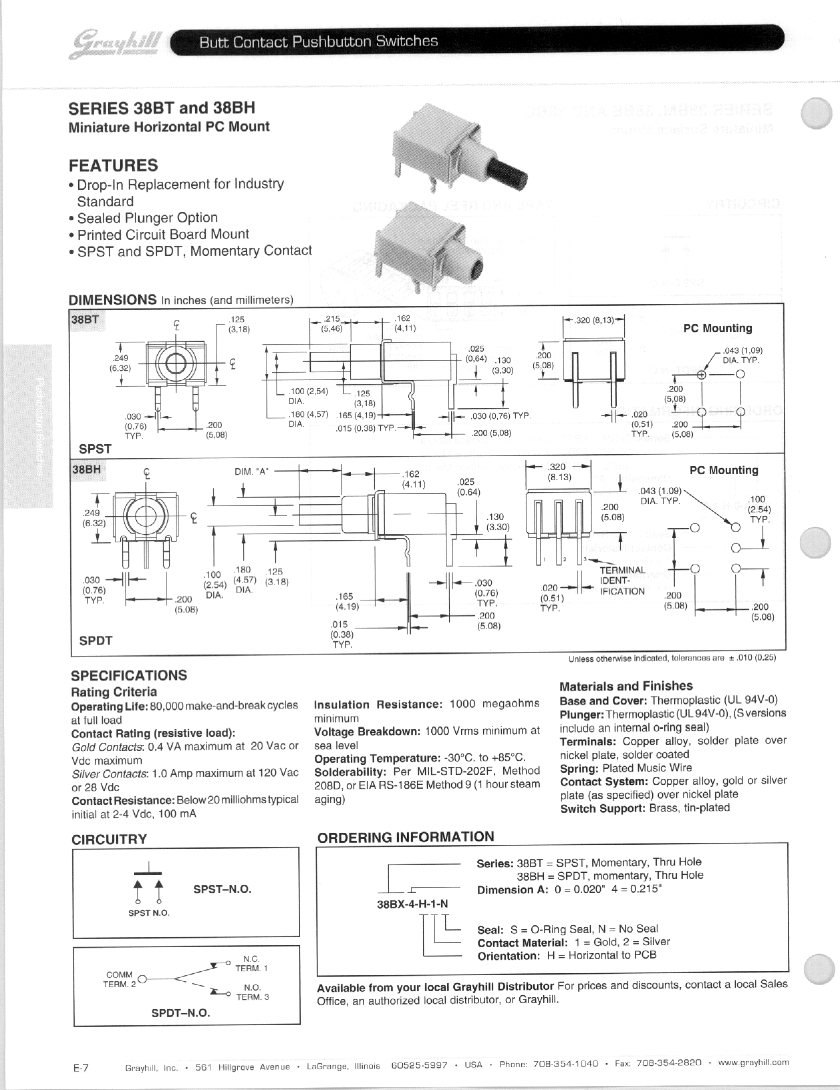

38BC-0-H-2-N: DescriptionPushbutton Switch, SPDT, Momentary, 1A, 28VDC, Solder Terminal, Through Hole-right Angle,; CategoryMechanical and electronic products switch; File Size438KB，1 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

38BC-0-H-2-N Overview

Pushbutton Switch, SPDT, Momentary, 1A, 28VDC, Solder Terminal, Through Hole-right Angle,

38BC-0-H-2-N Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Grayhill
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body width	8.13 mm
body height	5.08 mm
Body length or diameter	9.27 mm
Contact (AC) maximum rated R load	1A@120VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Electrical life	80000 Cycle(s)
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	PUSHBUTTON SWITCH
Termination type	SOLDER

Preview

Download Datasheet

View All

38BC-0-H-2-N Related Products

	38BC-0-H-2-N	38BC-0-H-1-N	38BC-4-H-2-N	38BC-4-H-1-N
Description	Pushbutton Switch, SPDT, Momentary, 1A, 28VDC, Solder Terminal, Through Hole-right Angle,	Pushbutton Switch, SPDT, Momentary, 0.02A, 20VDC, Solder Terminal, Through Hole-right Angle,	Pushbutton Switch, SPDT, Momentary, 1A, 28VDC, Solder Terminal, Through Hole-right Angle,	Pushbutton Switch, SPDT, Momentary, 0.02A, 20VDC, Solder Terminal, Through Hole-right Angle,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator type	PLUNGER	PLUNGER	PLUNGER	PLUNGER
body width	8.13 mm	8.13 mm	8.13 mm	8.13 mm
body height	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Body length or diameter	9.27 mm	9.27 mm	9.27 mm	9.27 mm
Contact (AC) maximum rated R load	1A@120VAC	.02A@20VAC	1A@120VAC	.02A@20VAC
Maximum contact current (AC)	1 A	0.02 A	1 A	0.02 A
Maximum contact current (DC)	1 A	0.02 A	1 A	0.02 A
Contact (DC) maximum rated R load	1A@28VDC	.02A@20VDC	1A@28VDC	.02A@20VDC
Maximum contact voltage (AC)	120 V	20 V	120 V	20 V
Maximum contact voltage (DC)	28 V	20 V	28 V	20 V
Electrical life	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)	80000 Cycle(s)
Installation features	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C
surface mount	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT	SPDT	SPDT
Switch type	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH	PUSHBUTTON SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Grayhill	-	Grayhill	Grayhill
Base Number Matches	-	1	1	1
