LL42 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> LL42

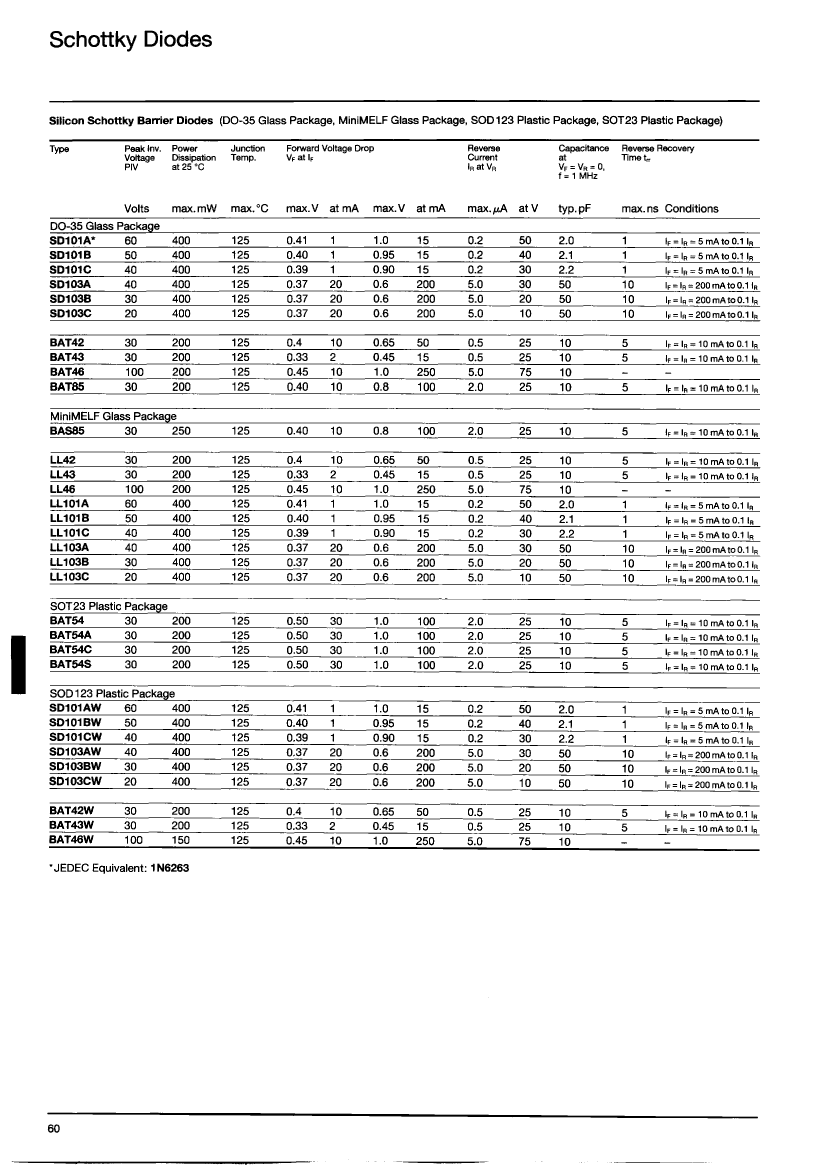

LL42: DescriptionRectifier Diode, Schottky, 1 Element, Silicon; CategoryDiscrete semiconductor diode; File Size45KB，1 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com

Download Datasheet Parametric Compare View All

LL42 Overview

Rectifier Diode, Schottky, 1 Element, Silicon

LL42 Parametric

Parameter Name	Attribute value
Maker	TDK Corporation
package instruction	O-LELF-R2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V
JESD-30 code	O-LELF-R2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.2 W
Certification status	Not Qualified
Maximum reverse current	0.5 µA
Maximum reverse recovery time	0.005 µs
surface mount	YES
technology	SCHOTTKY
Terminal form	WRAP AROUND
Terminal location	END

Preview

Download Datasheet

View All

LL42 Related Products

	LL42	BAS85	BAT46	SD101B	SD101C	BAT46W	LL43
Description	Rectifier Diode, Schottky, 1 Element, Silicon	Rectifier Diode, Schottky, 1 Element, Silicon,	Rectifier Diode, Schottky, 1 Element, Silicon	Rectifier Diode, Schottky, 1 Element, 0.015A, 50V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Element, 0.015A, 40V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Element, Silicon	Rectifier Diode, Schottky, 1 Element, Silicon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.65 V	0.8 V	1 V	0.95 V	0.9 V	1 V	0.45 V
JESD-30 code	O-LELF-R2	O-LELF-R2	O-LALF-W2	O-LALF-W2	O-LALF-W2	R-PDSO-G2	O-LELF-R2
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS	PLASTIC/EPOXY	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	RECTANGULAR	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM	SMALL OUTLINE	LONG FORM
Maximum power dissipation	0.2 W	0.25 W	0.2 W	0.4 W	0.4 W	0.15 W	0.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	0.5 µA	2 µA	5 µA	0.2 µA	0.2 µA	5 µA	0.5 µA
surface mount	YES	YES	NO	NO	NO	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	WRAP AROUND	WRAP AROUND	WIRE	WIRE	WIRE	GULL WING	WRAP AROUND
Terminal location	END	END	AXIAL	AXIAL	AXIAL	DUAL	END
Maker	TDK Corporation	TDK Corporation	TDK Corporation	-	TDK Corporation	TDK Corporation	TDK Corporation
package instruction	O-LELF-R2	O-LELF-R2	O-LALF-W2	-	O-LALF-W2	R-PDSO-G2	O-LELF-R2
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	-	ISOLATED
Maximum reverse recovery time	0.005 µs	0.005 µs	-	0.001 µs	0.001 µs	-	0.005 µs
