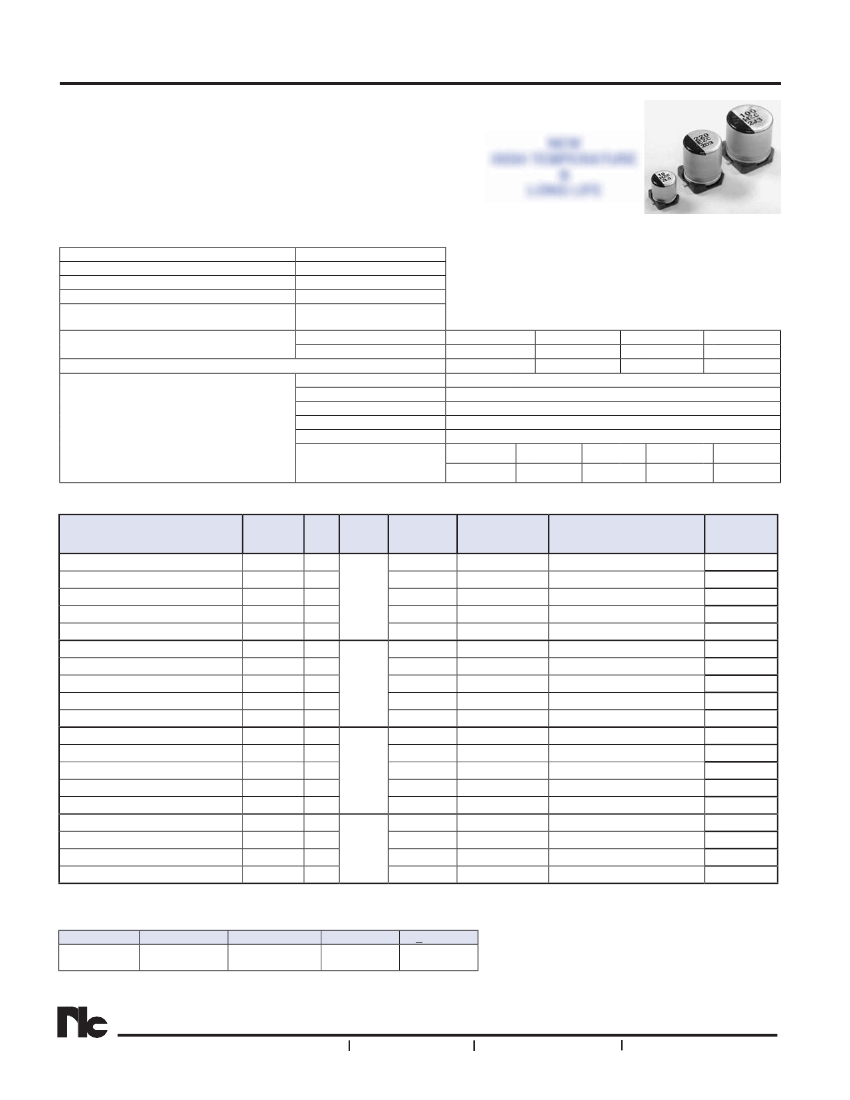

Hybrid Aluminum Electrolytic Capacitors
• CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
• HIGH TEMPERATURE RANGE (+125°C)
• LONG LIFE (4,000 HOURS)
NEW
• LOW ESR, HIGH RIPPLE CURRENT & LOW LEAKAGE
HIGH TEMPERATURE
&
• 5x6.1 ~ 10x10.5mm CASE SIZES
LONG LIFE
• REFLOW SOLDERING RATED TO +260°C (ALL SIZES)
• MEETS THE REQUIREMENTS OF AEC-Q200*
*Contact NIC for supporting test data
CHARACTERISTICS
Rated Voltage Range
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
Working and Surge Voltage Ratings
Tan
δ
@ 120Hz/20°C
Test Duration
Capacitance Change
Tan
δ
ESR
Leakage Current
Low Temperature ESR after
endurance test
ESR @ 100KHz/-40°C
25 ~ 63Vdc
10 ~ 330μF
-55 ~ +125°C
±20% (M)
Less than 0.01CV or 3μA
whichever is greater
W.V. (Vdc)
S.V. (Vdc)
NSPE-Z Series
25
32
0.14
Load Life Test @ +125°C
and Rated Voltage
35
50
44
63
0.12
0.10
All Case Sizes: 4,000 Hours
Within ±30% of initial measured value
Less than 200% of specified max. value
Less than 200% of specified max. value
Less than specified max. value
φ6.3x6.1
1.4Ω
φ6.3x8
0.8Ω
φ8x10.5
0.4Ω
63
79
0.08
φ5x6.1
2.0Ω
φ10x10.5
0.3Ω
STANDARD PRODUCTS AND CASE SIZES Dφ x L (mm)
PART NUMBER
NSPE-Z330M25V5X6.1NLBYF
NSPE-Z560M25V6.3X6.1NLBYF
NSPE-Z101M25V6.3X8NLBYF
NSPE-Z221M25V8X10.5NLBYF
NSPE-Z331M25V10X10.5NLBYF
NSPE-Z220M35V5X6.1NLBYF
NSPE-Z470M35V6.3X6.1NLBYF
NSPE-Z680M35V6.3X8NLBYF
NSPE-Z151M35V8X10.5NLBYF
NSPE-Z271M35V10X10.5NLBYF
NSPE-Z100M50V5X6.1NLBYF
NSPE-Z220M50V6.3X6.1NLBYF
NSPE-Z330M50V6.3X8NLBYF
NSPE-Z680M50V8X10.5NLBYF
NSPE-Z101M50V10X10.5NLBYF
NSPE-Z100M63V6.3X6.1NLBYF
NSPE-Z220M63V6.3X8NLBYF
NSPE-Z330M63V8X10.5NLBYF
NSPE-Z560M63V10X10.5NLBYF
Case Size
(D X L)
mm
5X6.1
6.3X6.1
6.3x8
8x10.5
10x10.5
5X6.1
6.3X6.1
6.3x8
8x10.5
10x10.5
5X6.1
6.3X6.1
6.3X8
8X10.5
10X10.5
6.3X6.1
6.3X8
8X10.5
10X10.5
Cap. Working Max. Tan
δ
Max. ESR (mΩ)
(μF) Voltage 120Hz/20°C @ 100KHz/20°C
33
56
100
220
330
22
47
68
150
270
10
22
33
68
100
10
22
33
56
63
50
35
25
0.14
0.14
0.14
0.14
0.14
0.12
0.12
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.10
0.08
0.08
0.08
0.08
80
50
30
27
20
100
60
35
27
20
120
80
40
30
28
120
80
40
30
Max. Ripple Current
(mA rms) @ 100KHz/125°C
550
900
1400
1600
2000
550
900
1400
1600
2000
500
750
1100
1250
1600
700
900
1100
1400
Load Life
Hours
(+125°C)
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
4,000
For Automotive Applications See Part Numbering System
RIPPLE CURRENT FREQUENCY CORRECTION FACTOR
Frequency
Correction
Factor
120Hz
0.10
1KHz
0.30
10KHz
0.60
>100KHz
1.00
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
1
Hybrid Aluminum Electrolytic Capacitors
PART NUMBER SYSTEM
NSPE-Z 151 M 35V 8x10.5 N LB Y F
RoHS Compliant
Sn-Bi Finish, 15" Reel
Reflow Temp. Code (N=+260°C)
Size in mm
Working Voltage
Tolerance Code M=20%
Capacitance Code in
μF,
fi
rst 2 digits are significant
Third digit is no. of zeros, “R” indicates decimal for
values under 10μF
NSPE-Z Series
Series
Suitable for automotive equipment, sourced to special
production and inspection at TS-16949 certified production site
DIMENSIONS (mm)
Case Size
5x6.1
6.3x6.1
6.3x8
8x10.5
10x10.5
Dφ ±0.5
5
6.3
6.3
8.0
10
L max.
6.1
6.1
8.0
10.5
10.5
A, B ±0.2
5.3
6.6
6.6
8.3
10.3
W
0.55 ~ 0.75
0.55 ~ 0.75
0.55 ~ 0.75
0.7 ~ 1.1
0.7 ~ 1.1
I ±0.3
2.2
2.6
2.6
3.4
3.5
P ±0.2
1.5
1.8
1.8
3.1
4.6
Part Marking
Polarity (Cathode)
33
E ZC
Capacitance
Series Code
Voltage Code
Date Code
Dφ
W
0.3mm max.
+
I
I
-
L
P
B
A
VOLTAGE RATING CODES
Code
E
V
H
J
Voltage Rating
25V
35V
50V
63V
LAND PATTERN DIM. (mm)
Case Dia.
5
6.3
8
10
a
1.5
1.8
3.1
4.6
b
2.8
3.2
4.0
4.1
c
1.6
1.6
2.0
2.0
+
-
c
b
a
c
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process
details with NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
Hybrid Aluminum Electrolytic Capacitors
RECOMMENDED REFLOW SOLDERING PROFILE*
260
230
200
150
100
50
Time (Seconds)
PEAK TEMPERATURE AND DURATION
Peak
Time above
Time above
# of Reflow
Time
Temperature
230°C
217°C
Passes
+260°C
>+250°C 5 sec.
2
φ5
~ 6.3mm
+255°C
>+250°C 10 sec.
2
30 sec. max. 40 sec. max.
+260°C
>+250°C 5 sec.
1
φ8
~ 10mm
>+240°C 10 sec.
2
+245°C
*Two reflow passes are permissible with a cool down to room temperature required between
the
fi
rst and second pass. Acceptable soldering methods are IR or IR & heated air.
Diameter
Preheat - +160°C for
120 seconds max.
Peak Temperature
Time Above 230°C (30 seconds max.)
Time Above 217°C (40 seconds max.)
NSPE-Z Series
Temperature - Deg. C
Time Above 200°C
(70 seconds max.)
TAPING SPECIFICATIONS (mm)
1. Both Leader and Trailer tape: Minimum 40mm (1.57") empty carrier tape pockets.
2. Leader tape: Approximately 20cm of cover tape at leader.
3. Connection: Maximum 3 connections (slices) per reel.
Case Size
5x6.1
6.3x6.1
6.3x8
8x10.5
10x10.5
A
±0.5
5.7
7.0
7.0
8.7
10.7
B
±0.5
5.7
7.0
7.0
8.7
10.7
C
±0.3
12.0
16.0
16.0
24.0
24.0
D
±0.1
5.5
7.5
7.5
11.5
11.5
P
±0.1
12.0
12.0
12.0
16.0
16.0
T
±0.2
6.4
6.4
8.5
11.0
11.0
t
max.
0.4
0.4
0.4
0.4
0.4
4 + 0.1
1.5∅ +0.1/-
1.5φ+0.1/-0
-
1.75
±
1.75 + 0.15
t
C
D
Feeding
+
A
P
T
REEL DIMENSIONS (mm)
Case Size
5x6.1
6.3x6.1
6.3x8
8x10.5
10x10.5
W
±1.0
14
18
18
26
26
Qty per Reel
15" (380mm)
1,000
1,000
900
500
500
2mm ± 0.5mm
φ21mm
± 0.8mm
3mm
φ380mm
± 2.0mm
W
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
φ50mm
min.
φ13mm
± 0.5mm
B
SPECIFICATIONS ARE SUBJECT TO CHANGE
