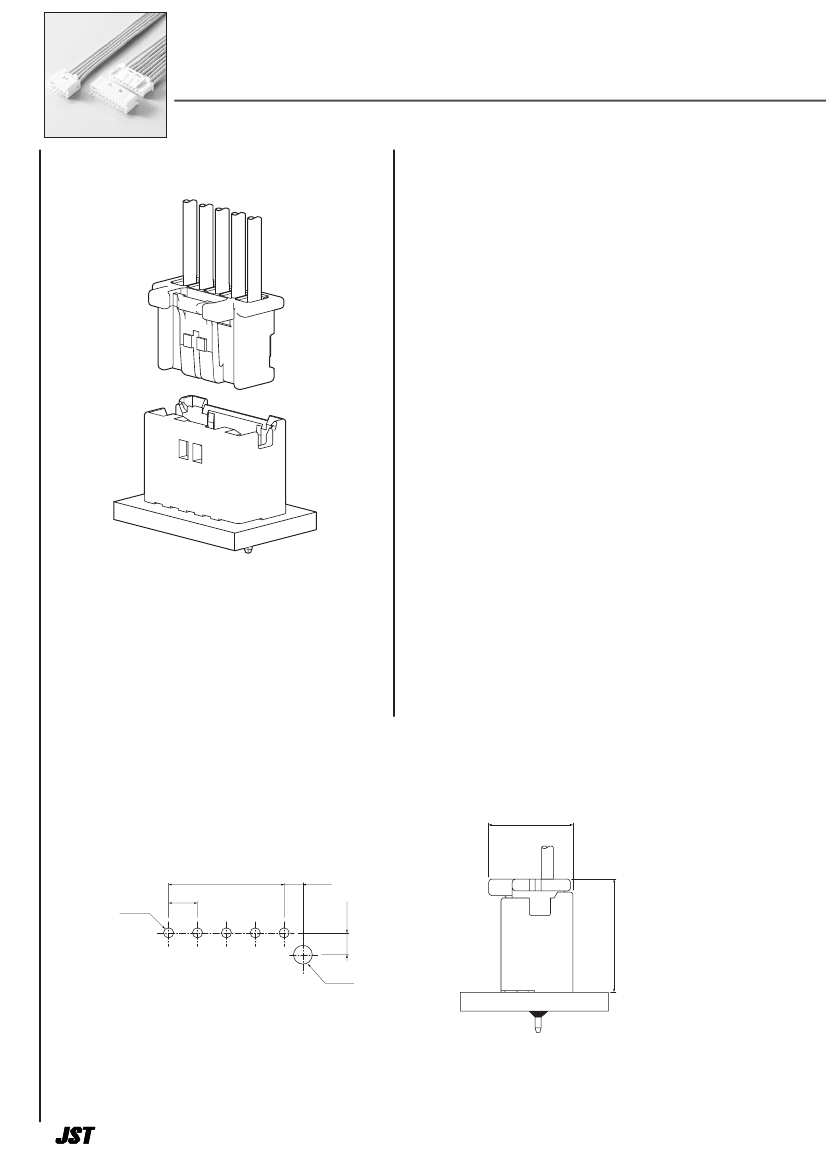

PLI
CONNECTOR
2.0mm pitch/Disconnectable Crimp style connectors
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG #22)
• Voltage rating: 100V AC, DC
• Temperature range:
-
25˚C to
+
85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 10m
Ω
max.
After environmental testing/ 20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 800V AC/ minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This PLI connector is 2.0mm pitch low
profile type board-to-wire connector that
has a mechanism to prevent an incomplete
mating when mating connector.
• Inertia lock mechanism
• Secure locking device
• Low profile
Standards
––––––––––––––––––––––
0
Recognized E 60389
(7.15)
A
2
φ0.7
＋0.1
0
±0.05
±0.05
1.3
±0.05
2.3
±0.05
φ1.3
＋0.1
0
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
1
(9.6)

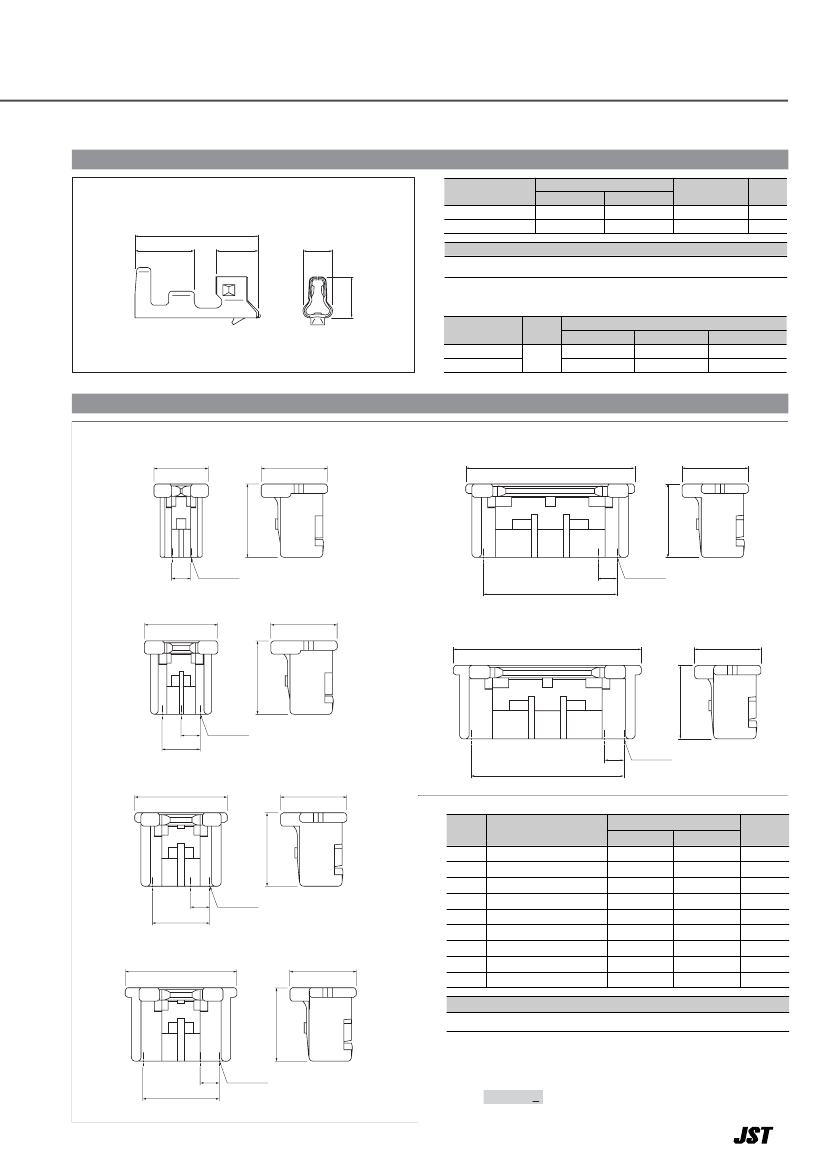

PLI CONNECTOR
Contact
Model No.
SPLI-001T-P0.5
SPLI-002T-P0.5
2.05
1.5
Applicable wire
mm
2
AWG#
0.13∼0.33
0.08∼0.22
26∼22
28∼24
Insulation O.D.
(mm)
1.0∼1.5
0.8∼1.5
Q'ty /
reel
10,000
10,000
6.15
3
Material and Finish
Copper alloy, tin-plated (reflow treatment)
2.08
RoHS compliance
Contact
SPLI-001T-P0.5
SPLI-002T-P0.5
Crimping
machine Crimp applicator
AP-K2N
MKS-L
MKS-L
Applicator
Dies
Crimp applicator with dies
MK/SPLI-001-05 APLMK SPLI001-05
MK/SPLI-002-05 APLMK SPLI002-05
Housing
<2 circuits>
B
6.65
<8 circuits>
B
6.65
7.7
2
Circuit No.1
A
2
Circuit No.1
<3 circuits>
B
6.65
<9, 10 circuits>
B
6.65
7.7
7.7
2
Circuit No.1
A
6.65
2
A
Circuit No.1
<4, 6 circuits>
B
Circuits
7.7
Model No.
PLIP-02V-S
PLIP-03V-S
PLIP-04V-S
PLIP-05V-S
PLIP-06V-S
PLIP-07V-S
PLIP-08V-S
PLIP-09V-S
PLIP-10V-S
Dimensions (mm)
A
–
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
7.7
B
5.7
7.7
9.7
11.7
13.7
15.7
17.7
19.7
21.7
Q'ty /
box
1,000
1,000
1,000
1,000
1,000
1,000
500
500
500
2
3
4
2
A
Circuit No.1
5
6
7
<5, 7 circuits>
B
6.65
8
9
10
Material
7.7
Glass-filled PBT, UL94V-0, natural
RoHS compliance
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
PLIP-02V-S
S…natural R…red E…blue Y...yellow M...green K...black
2
A
Circuit No.1
2
PLI CONNECTOR
Shrouded header
<2 circuits>
B
2
Circuit No.1
mark
6.1
Circuits
2
3
4
5
8.5
Model No.
B02B-PLISK-1
B03B-PLISK-1
B04B-PLISK-1
B05B-PLISK-1
B06B-PLISK-1
B07B-PLISK-1
B08B-PLISK-1
B09B-PLISK-1
B10B-PLISK-1
Dimensions (mm)
A
–
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
B
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
Q'ty /
box
1,000
1,000
500
500
400
350
300
250
250
6
7
8
9
3.4
10
1.3
2.3
Material and Finish
Post: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Glass-filled PA 66, UL94V-0, natural
<3 to 10 circuits>
B
A
2
Circuit No.1
mark
6.1
RoHS compliance
This product displays (LF)(SN) on a label.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
8.5
B02B-PLISK-1
S…natural R...red E...blue Y...yellow M...green K...black
1.3
2.3
3
3.4
