TD8287 datasheet, PDF - EEWORLD Datasheet

TD8287: DescriptionBus Transceiver, 82 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20; Categorylogic logic; File Size94KB，5 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

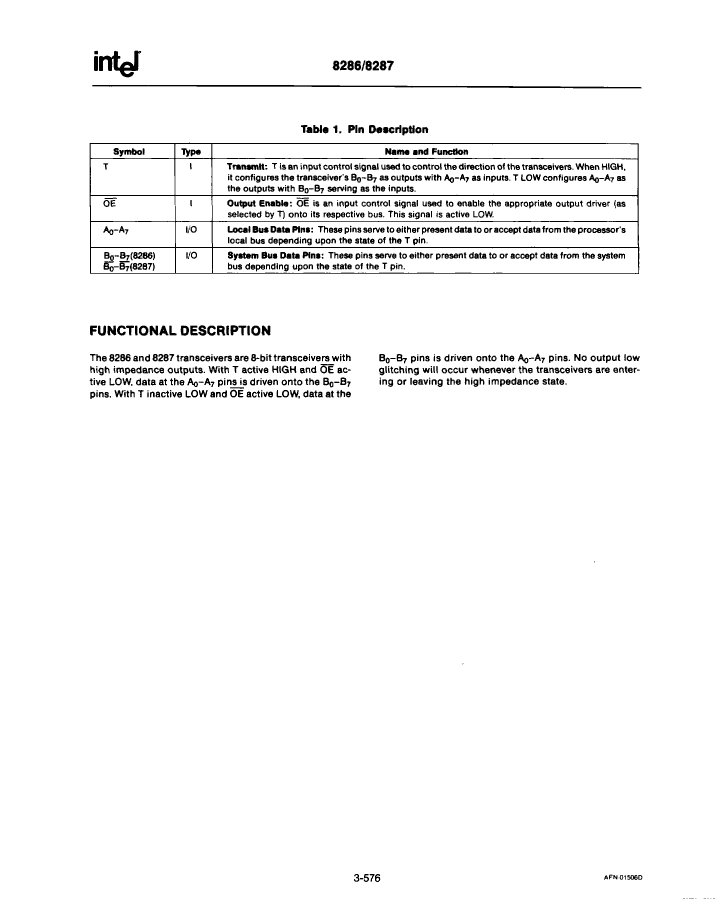

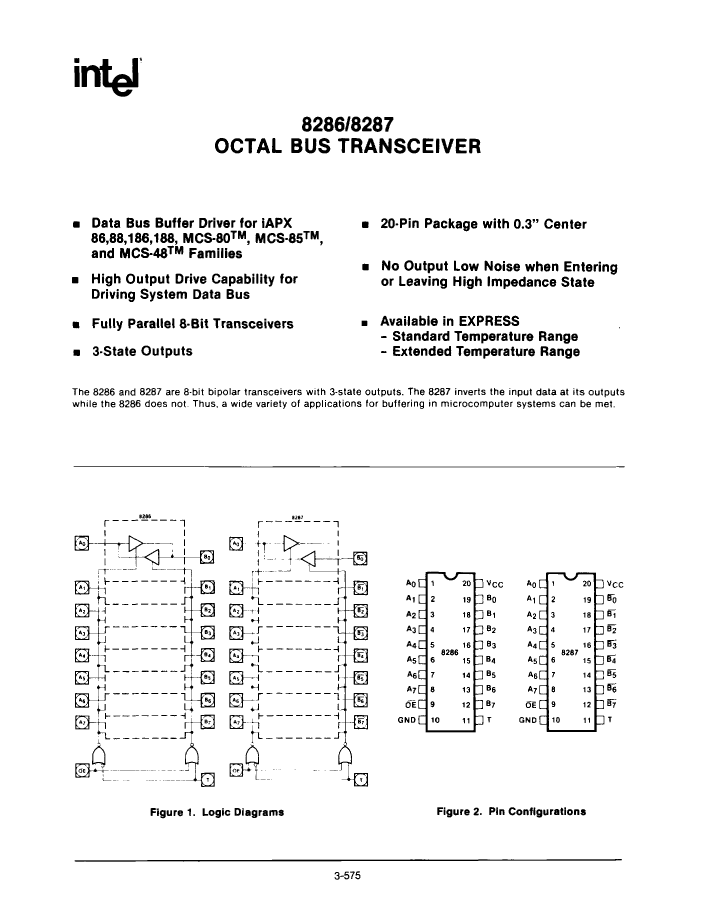

TD8287 Overview

Bus Transceiver, 82 Series, 1-Func, 8-Bit, Inverted Output, TTL, CDIP20

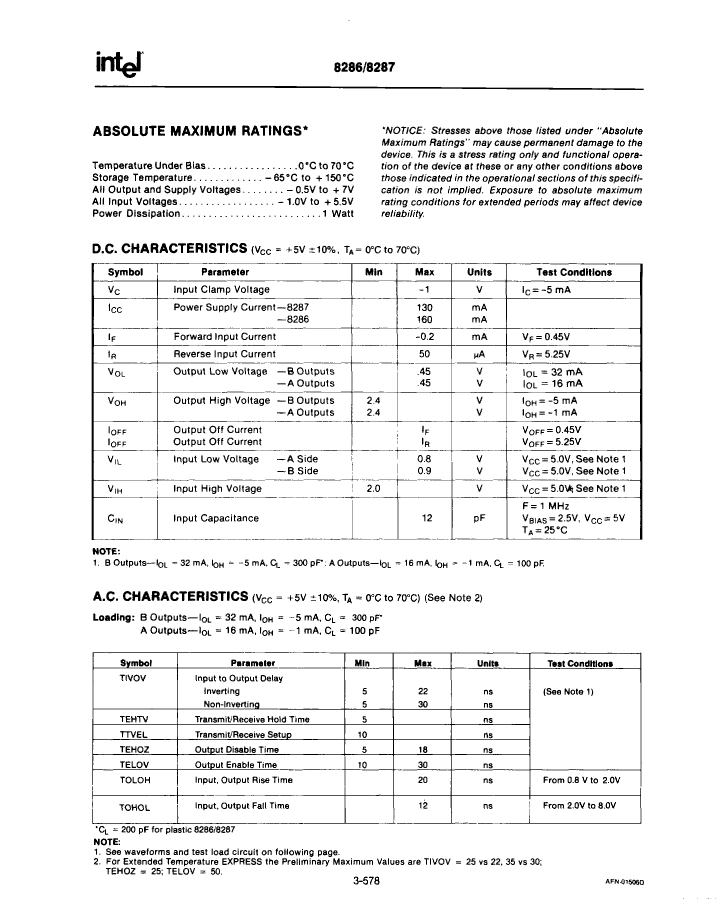

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
Control type	COMMON CONTROL
Counting direction	BIDIRECTIONAL
series	82
JESD-30 code	R-GDIP-T20
JESD-609 code	e0
length	24.825 mm
Logic integrated circuit type	BUS TRANSCEIVER
MaximumI(ol)	0.032 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	130 mA
Prop。Delay @ Nom-Sup	30 ns
propagation delay (tpd)	22 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
translate	N/A
width	7.62 mm
