354147 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 354147

Preview

354147: Description110 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

354147 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	354147	-	-	View	Buy Now

354147 Overview

110 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT

354147 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	354147
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	110
Base Number Matches	1

Preview

Download Datasheet

View All

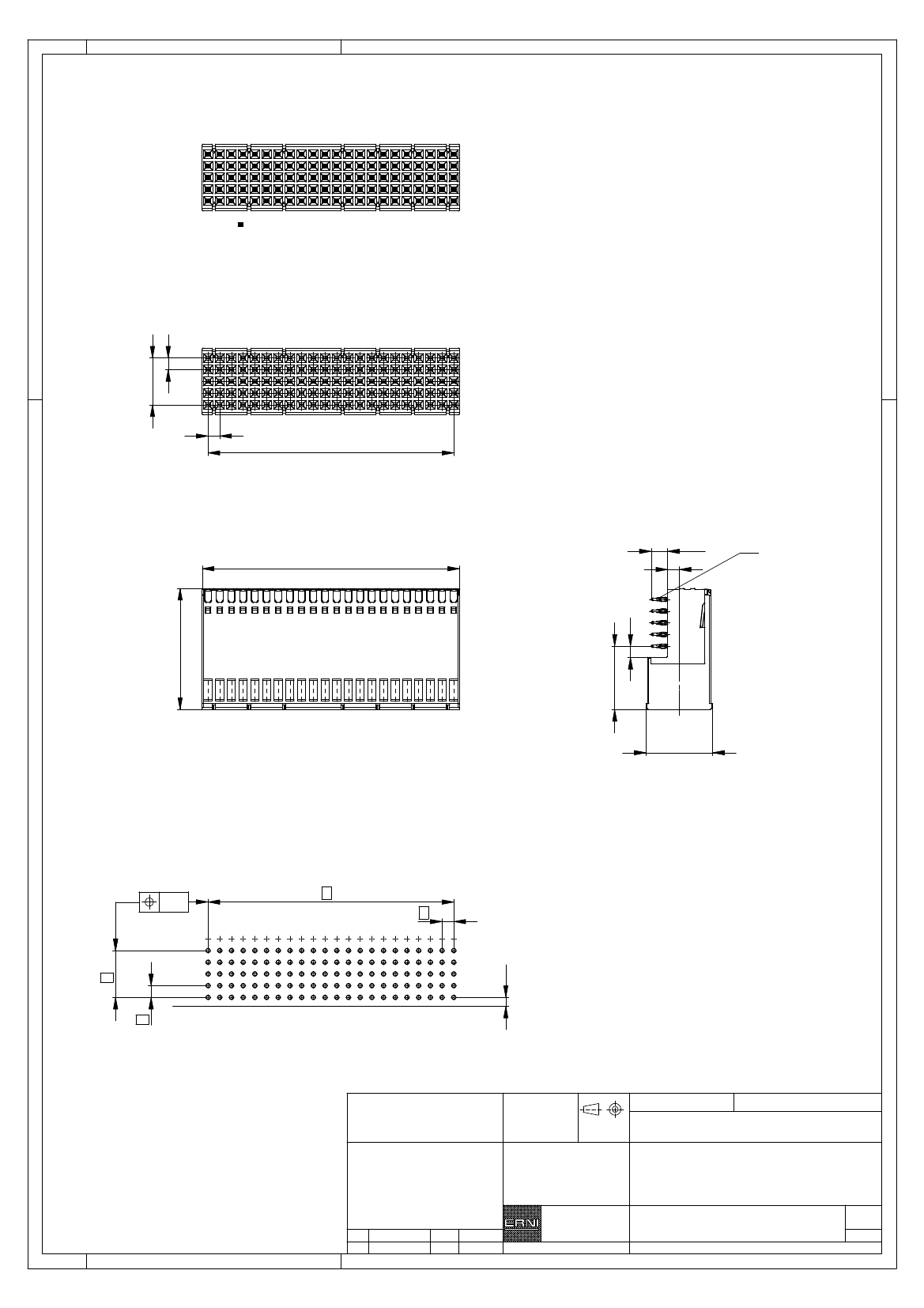

Bestückungsplan /

contact layout

22

1

e

d

c

b

a

= bestückt /

assembled

22

1

e

d

c

b

a

4x2=8

2

21 x 2 = 42

3

-0,4

44 max.

2

EN-Zone für

durchkontaktierte

Löcher

Ø

0,6

±0,05

compliant zone for

thru hole

Ø

0,6

±0,05

20,7

10,8

1,9

11,4

1)

Lochbild für Leiterplatte

(Bestückungsseite)

Ø

0.6

±0.05

Durchmesser des metallisierten Loches

Board hole pattern

(Component mounting side

0.6

±0.05

Diameter of finished plated-through hole

0.7

±0.05

Bohrungsdurchmesser des Loches

0.7

±0.05

Diameter of drilled hole

0,05

alle Löcher

21 x 2 = (42)

2

f

e

d

c

b

a

22

1

Schichtaufbau im metallisierten Loch

siehe Zeichnung 114406

all holes

Metal plating of plated through hole

see drawing 114406

1,5

4 x 2 = (8)

2

Fehlende Maße und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

Information:

Tolerances

All Dimensions

in mm

Copyright by ERNI GmbH

Proprietary notice pursuant to ISO 16016 to be observed.

Scale

2:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

c

Index

25.06.2012

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

ERmet Federleiste B22

ERmet Female Type B22

www.ERNI.com

Class

354147

ERMB22

I

A3
