3629BM

Description
Instrumentation Amplifier, 1 Func, BIPolar, MDIP14,
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size195KB，6 Pages
ManufacturerBurr-Brown
Websitehttp://www.burr-brown.com/
Download Datasheet Parametric Compare View All

3629BM Overview

Instrumentation Amplifier, 1 Func, BIPolar, MDIP14,

3629BM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerBurr-Brown
Reach Compliance Codeunknown
Amplifier typeINSTRUMENTATION AMPLIFIER
JESD-30 codeR-MDIP-T14
JESD-609 codee0
Number of functions1
Number of terminals14
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Package body materialMETAL
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Certification statusNot Qualified
surface mountNO
technologyBIPOLAR
Temperature levelOTHER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

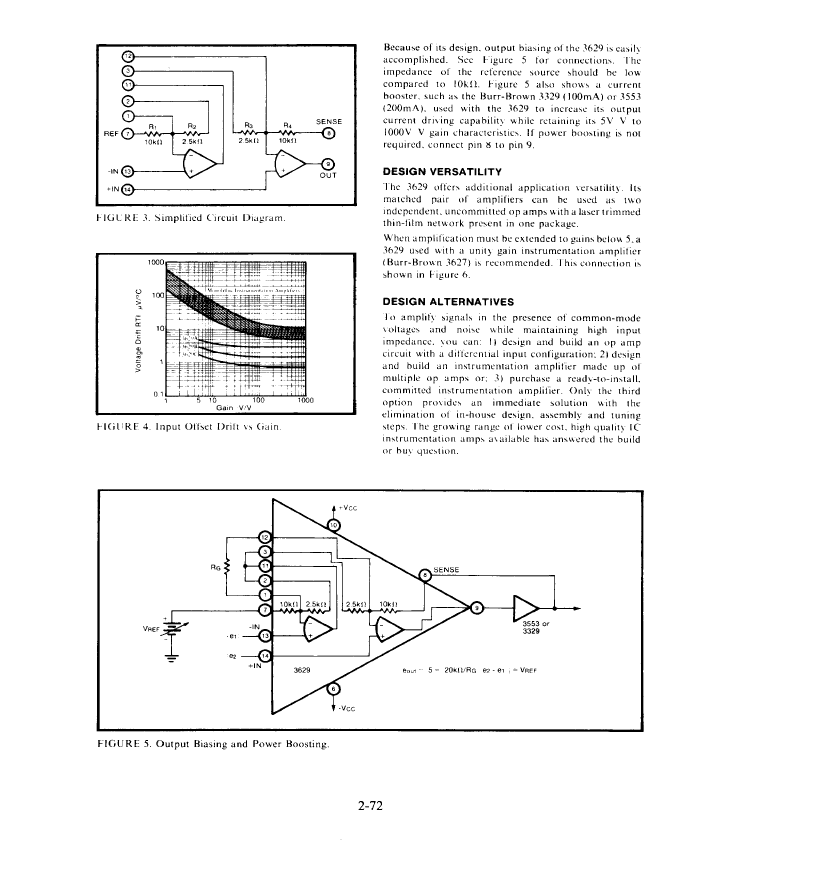

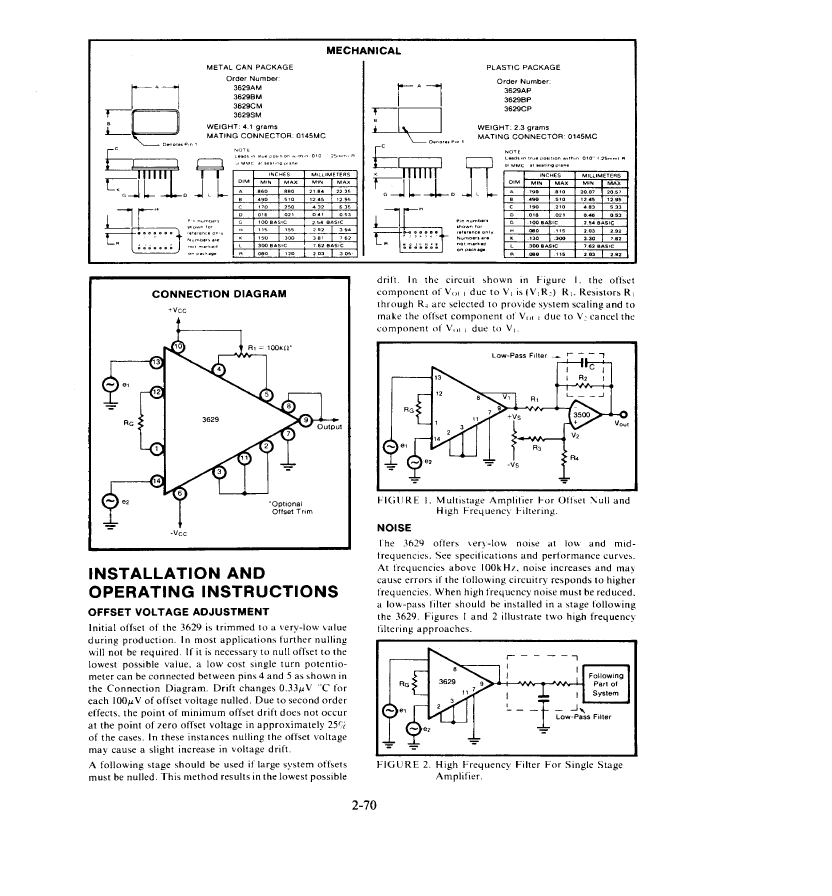

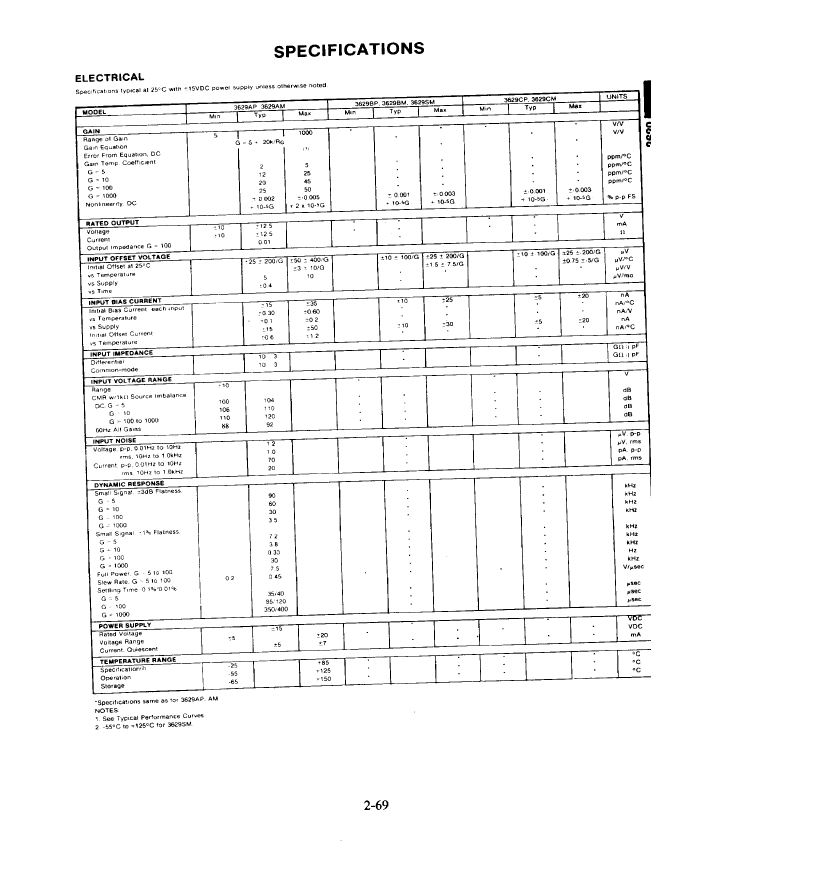

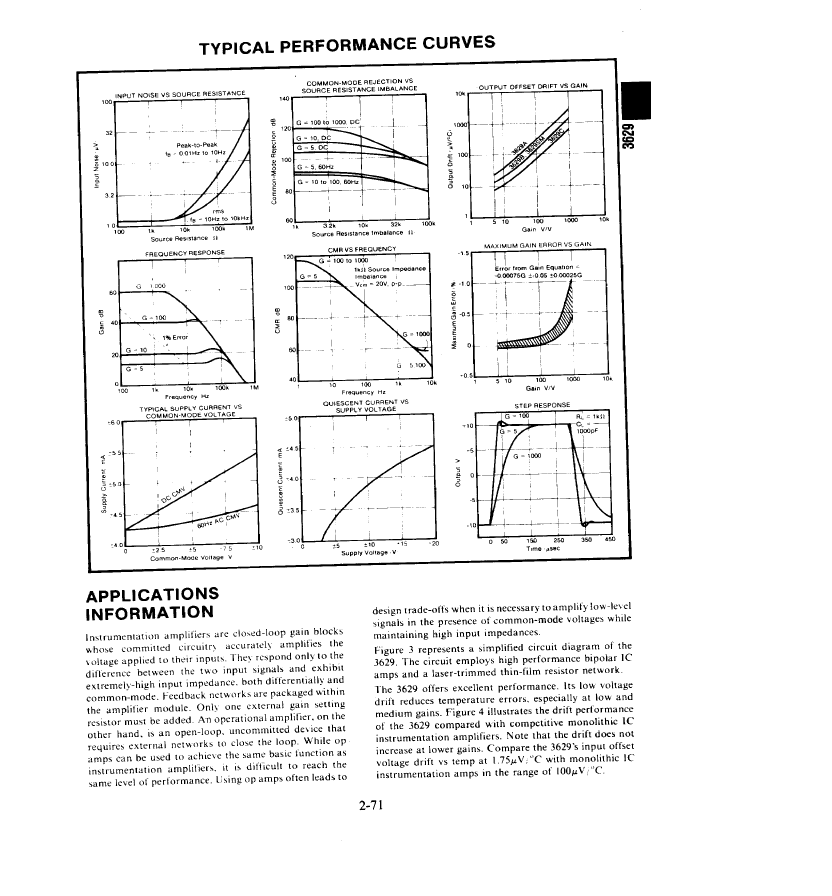

3629BM Preview

This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
This Material Copyrighted By Its Respective Manufacturer
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

3629BM Related Products

3629BM 3629AM 3629AP 3629CP 3629CM 3629BP
Description Instrumentation Amplifier, 1 Func, BIPolar, MDIP14, Instrumentation Amplifier, 1 Func, BIPolar, MDIP14, Instrumentation Amplifier, 1 Func, BIPolar, PDIP14, Instrumentation Amplifier, 1 Func, BIPolar, PDIP14, Instrumentation Amplifier, 1 Func, BIPolar, MDIP14, Instrumentation Amplifier, 1 Func, BIPolar, PDIP14,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible
Maker Burr-Brown Burr-Brown Burr-Brown Burr-Brown Burr-Brown Burr-Brown
Reach Compliance Code unknown unknown unknown unknown unknown unknown
Amplifier type INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER INSTRUMENTATION AMPLIFIER
JESD-30 code R-MDIP-T14 R-MDIP-T14 R-PDIP-T14 R-PDIP-T14 R-MDIP-T14 R-PDIP-T14
JESD-609 code e0 e0 e0 e0 e0 e0
Number of functions 1 1 1 1 1 1
Number of terminals 14 14 14 14 14 14
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -25 °C -25 °C -25 °C -25 °C -25 °C -25 °C
Package body material METAL METAL PLASTIC/EPOXY PLASTIC/EPOXY METAL PLASTIC/EPOXY
encapsulated code DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP14,.3 DIP14,.3 DIP14,.3 DIP14,.3 DIP14,.3 DIP14,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO NO NO
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level OTHER OTHER OTHER OTHER OTHER OTHER
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL
