5962-9162101HXA datasheet, PDF

5962-9162101HXA: DescriptionOperational Amplifier, 1 Func, 5700uV Offset-Max, Hybrid, MBFM8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size233KB，4 Pages; ManufacturerApex [Apex Microtechnology]; Related ProductsFound13parts with similar functions to 5962-9162101HXA

Download Datasheet Parametric Compare View All

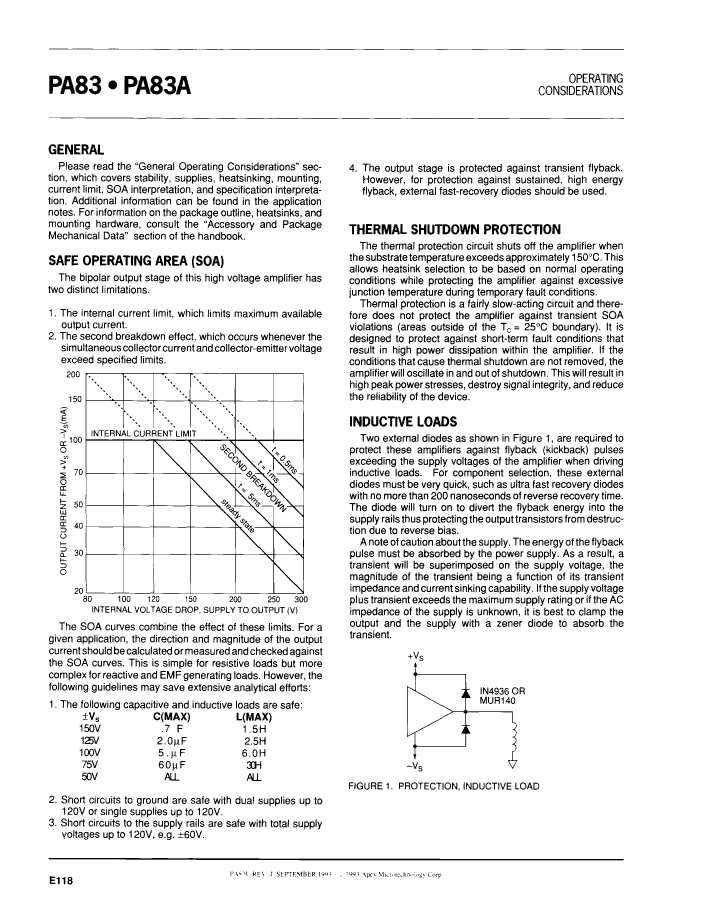

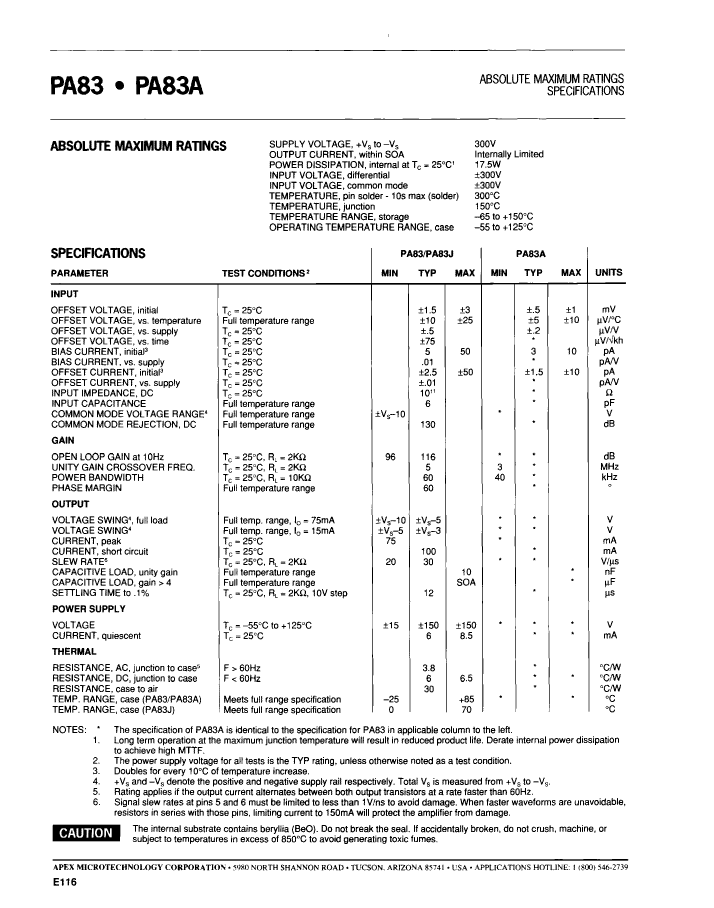

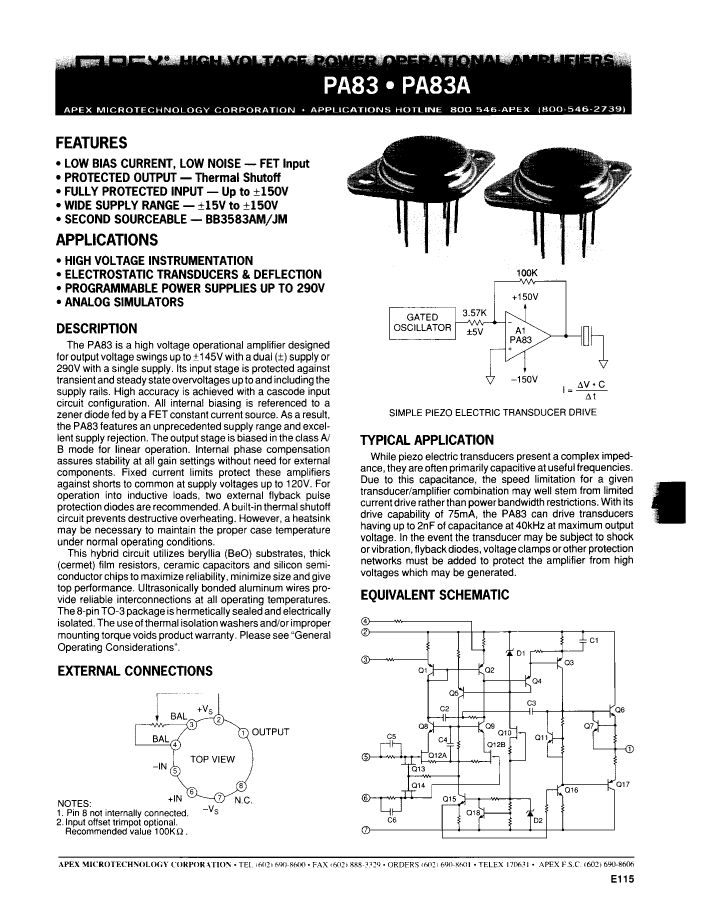

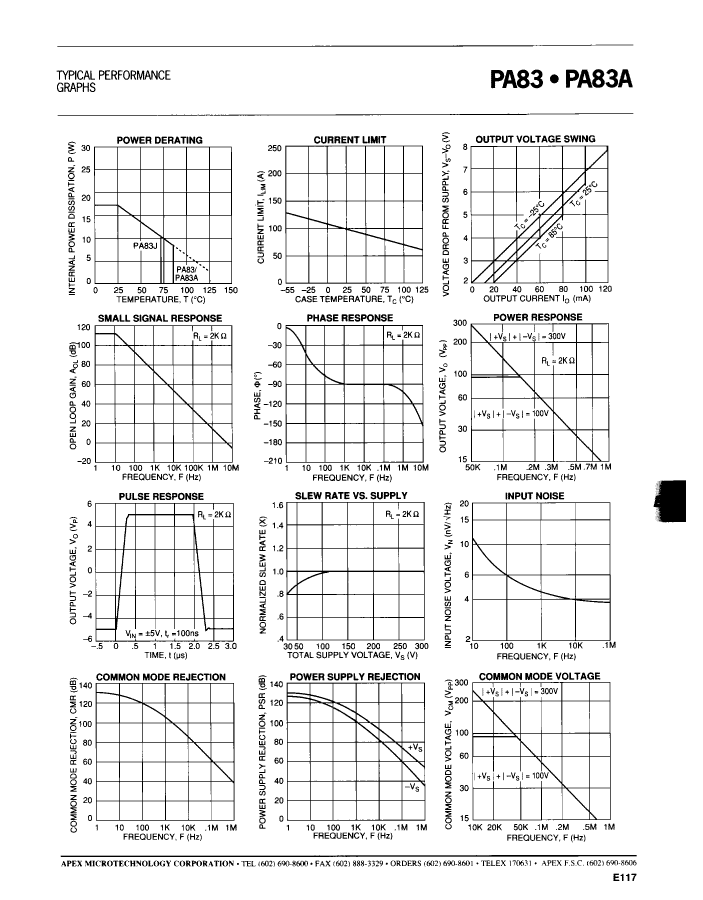

5962-9162101HXA Overview

Operational Amplifier, 1 Func, 5700uV Offset-Max, Hybrid, MBFM8,

Parameter Name	Attribute value
Maker	Apex [Apex Microtechnology]
Parts packaging code	TO-3
package instruction	, CAN8/9,.5FL
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00005 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	5700 µV
JESD-30 code	O-MBFM-P8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-150 V
Nominal Negative Supply Voltage (Vsup)	-150 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8/9,.5FL
Package shape	ROUND
Package form	FLANGE MOUNT
power	YES
power supply	+-15/+-150 V
Certification status	Qualified
Filter level	MIL-PRF-38534 Class H
minimum slew rate	20 V/us
Maximum slew rate	10 mA
Supply voltage upper limit	150 V
Nominal supply voltage (Vsup)	150 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Minimum voltage gain	50000

	5962-9162101HXA
Description	Operational Amplifier, 1 Func, 5700uV Offset-Max, Hybrid, MBFM8,
Maker	Apex [Apex Microtechnology]
Parts packaging code	TO-3
package instruction	, CAN8/9,.5FL
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.00005 µA
Maximum bias current (IIB) at 25C	0.00005 µA
Nominal Common Mode Rejection Ratio	90 dB
frequency compensation	YES
Maximum input offset voltage	5700 µV
JESD-30 code	O-MBFM-P8
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Negative supply voltage upper limit	-150 V
Nominal Negative Supply Voltage (Vsup)	-150 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
Encapsulate equivalent code	CAN8/9,.5FL
Package shape	ROUND
Package form	FLANGE MOUNT
power	YES
power supply	+-15/+-150 V
Certification status	Qualified
Filter level	MIL-PRF-38534 Class H
minimum slew rate	20 V/us
Maximum slew rate	10 mA
Supply voltage upper limit	150 V
Nominal supply voltage (Vsup)	150 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal location	BOTTOM
Minimum voltage gain	50000

Part Number	Manufacturer	Description
PA83A	Apex [Apex Microtechnology]	OP-AMP, 1000 uV OFFSET-MAX, 5 MHz BAND WIDTH, MBFM8
PA83	Apex [Apex Microtechnology]	OP-AMP, 3000 uV OFFSET-MAX, 5 MHz BAND WIDTH, MBFM8
PA73M/883	Apex [Apex Microtechnology]	IC opamp power 1mhz to3-8
PA73M	Apex [Apex Microtechnology]	OP-AMP, 10000 uV OFFSET-MAX, 1 MHz BAND WIDTH, MBFM8
5962-9162101HXX	Apex [Apex Microtechnology]	Operational Amplifier, 1 Func, 5700uV Offset-Max, MBFM8,
PA83M	Apex [Apex Microtechnology]	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, MBFM8, HERMETIC SEALED, TO-3, 8 PIN
PA83M/883	Apex [Apex Microtechnology]	IC opamp power 5mhz to3-8
3583JM	Rochester Electronics	OP-AMP, 3000 uV OFFSET-MAX, 5 MHz BAND WIDTH, MBFM8, HERMETIC SEALED, TO-3, 8 PIN
3583AM	Burr-Brown	OP-AMP, 3000 uV OFFSET-MAX, 5 MHz BAND WIDTH, MBFM8
3583AM	Texas Instruments(德州仪器)	OP-AMP, 3000uV OFFSET-MAX, 5MHz BAND WIDTH, MBFM8, HERMETIC SEALED, TO-3, 8 PIN
3583JM	Burr-Brown	OP-AMP, 3000 uV OFFSET-MAX, 5 MHz BAND WIDTH, MBFM8
3573AM	Burr-Brown	Operational Amplifier, 1 Func, 10000uV Offset-Max, Hybrid, MBFM8,
3583JM	Texas Instruments(德州仪器)	High-Voltage, High-Current Operational Amplifier 8-TO-3
