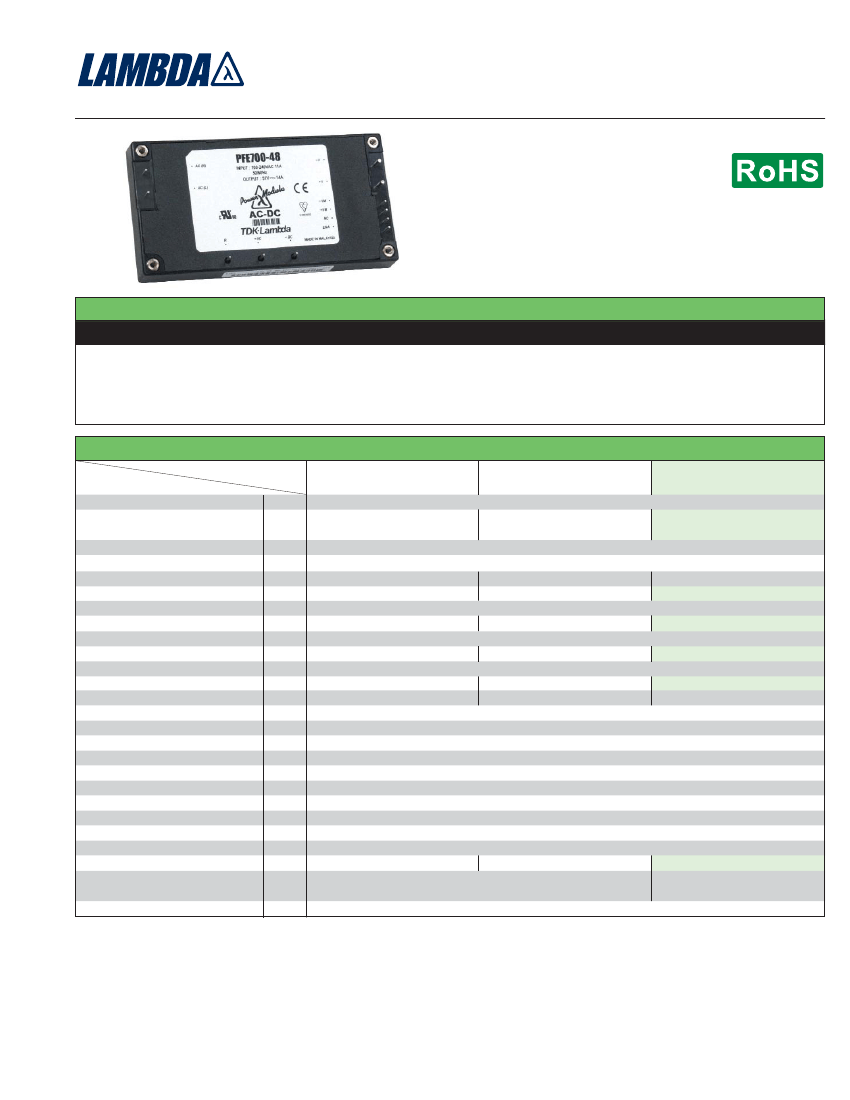

PFE300-700
300 to 714W AC-DC Power Module
Low profile, small size
100°C baseplate temperature
High power density
High Efficiency
Suitable for conduction cooling
Features and Benefits
Feature
Low profile
High Efficiency
Power Factor Corrected (PFC)
Operation up to 100°C baseplate
Benefit
Assists system integration
Easier to cool
Supports Global Use
Operates in harsh environments
Specifications
MODEL
ITEMS
AC Input
Input Current (100 / 220VAC)
A
Model dependant
Inrush Current (100 /200VAC) (1)
A
Power Factor
Output Voltage Setpoint Accuracy
-
Ripple and Noise
(1)
-
Over Current Protection
%
Over Voltage Protection
-
Series Operation
-
Parallel Operation
-
Power On Signal (ENA)
-
Auxilliary Supply
-
Remote On/Off (Opto isolated)
-
Overtemperature Protection
Operating Baseplate Temp.
°C
Storage Temperature
°C
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Certifications
Weight
g
Size (WxHxL)
mm
in
Warranty
yrs
PFE300
PFE700
PFE500F
PFE500
(Preliminary)
VAC 85 to 265VAC, 47-63Hz (Operation to 440Hz possible(3))
4.0 / 2.0
8.8 / 4.4
6.8 / 3.4
6.2 / 3.2
20 / 40 peak
0.95 minimum
±2%
±1V
±2%
1%
4V
1%
105 - 140% (Automatic Recovery)
125 - 145%
60 - 69.6V
125 - 145%
Yes
No
Yes (Droop mode)
Yes (Single wire)
Open collector (10mA sink current). Low (on) when output is present
None
None
10 - 14V, 20mA
None
None
High = On
Yes
-40 to +100°C (2)
-40 to +100°C
Operating: 20 - 95%RH, Non Operating: 10 - 95%RH
Conduction
Input to Output 3kVAC, Input to Baseplate 2.5kVAC, Output to Baseplate 1.5kVDC
Output to baseplate: 100M Ohm at 500VDC, 25°C ambient, 70%RH
10-55Hz (1 min sweep), constant amplitude 0.825mm (max 49m/s
2
), X, Y, Z 1 hour each
196.1m/s
2
UL60950-1, CSA60950-1 (cUL), EN60950-1, CE mark (LVD)
250
250
300
61 x 12.7 x 116.8mm
70 x 12.7 x 122mm
2.4 x 0.5 x 4.6”
2.76 x 0.5 x 4.8”
2 years
2)
3)
PFE500-12 & PFE500F-12: -40 to 85°C. See instruction manuals for derating curves
Requires the use of an undervoltage relay or similar. Contact technical support
Notes: (Consult Installation Manual for detailed specifications, test methods and
application notes)
1) External components are required, consult Application Notes
3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4
61
PFE300-700
Model Selector
Model
PFE300-12
PFE500-12
PFE500F-12
PFE300-28
PFE500-28
PFE500F-28
PFE300-48
PFE500-48
PFE500F-48
PFE700-48
(4) 100 / 200VAC
(5) Total regulation range
Output
Voltage (V)
12
12
12
28
28
28
48
48
48
51
Adjust.
Range (V)
9.6 - 14.4
9.6 - 14.4
9.6 - 14.4
22.4 - 33.6
22.4 - 33.6
22.4 - 33.6
38.4 - 57.6
38.4 - 57.6
38.4 - 57.6
None
Maximum
Current (A)
25
33
42
10.8
18
18
6.3
10.5
10.5
14
Maximum
Wattage (W)
300
396
504
302
504
504
302
504
504
714
Load
Reg. (mV)
48
48
48
56
56
56
96
96
96
Line
Reg. (mV)
Efficiency
typ (4)
81
82
81
83
84
84
84
84
84
86
/
/
/
/
/
/
/
/
/
/
83
83
83
85
86
86
86
86
86
89
48
48
48
56
56
56
96
96
96
50 - 57V (5)

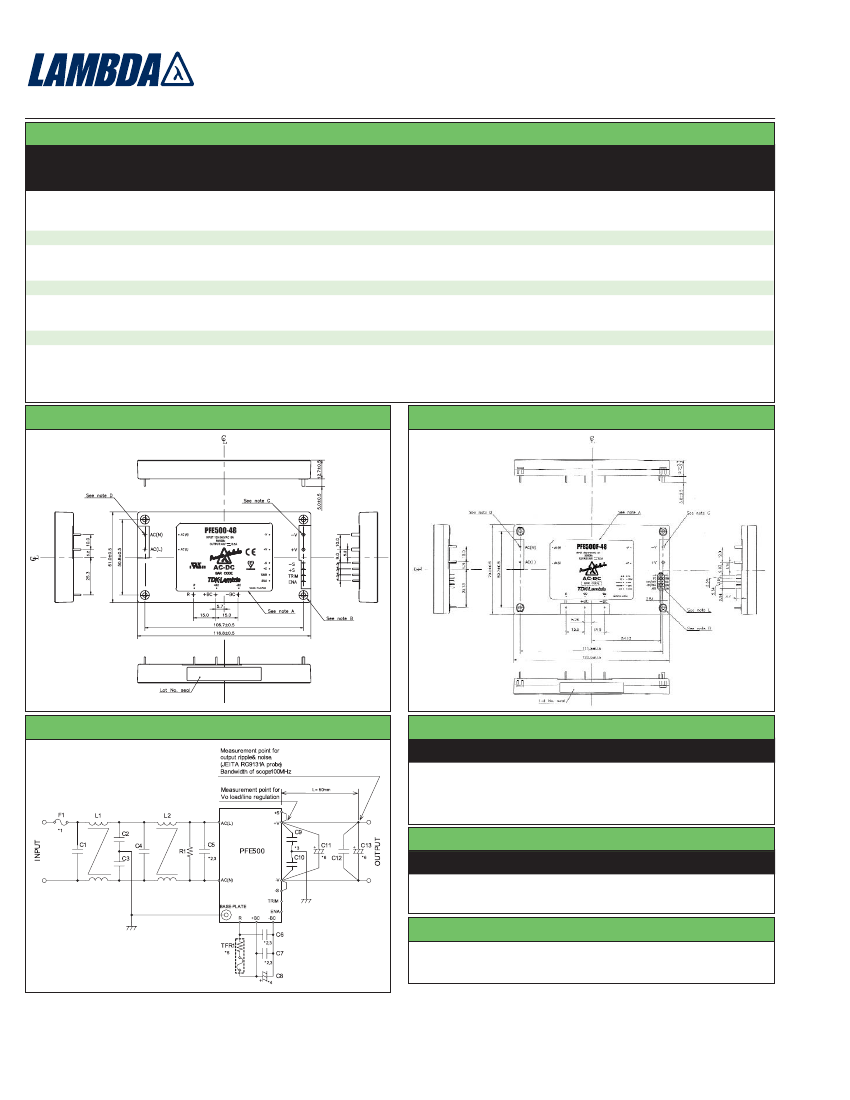

PFE500 and PFE700 Outline Drawing
PFE500F Outline Drawing
PFE500 Basic connection
H e a t s i n k Ta b l e
Heatsink
HAF-10L
HAF-15L
HAF-15T
Size (mm)
116.8 x 25.4 x 61
116.8 x 38.1 x 61
116.8 x 38.1 x 61
Thermal Resistance
2.2°C/W
1.9°C/W
1.5°C/W
Options
Suffix
Blank
/T
PAE, PAH, PAF
CC-E, PX
Description
M3 tapped mounting inserts (4)
3.3mm non-threaded inserts (4)
50 to 600W DC-DC converters
1.5 to 40W DC-DC converters
Other Lambda Products
For Additional Information, please visit
www.lambdapower.com/products/pfe-series.htm
62
3055 Del Sol Blvd • San Diego, CA 92154 • 1-800-LAMBDA-4
Revision B3: Mar 2008
