404-51050-51 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 404-51050-51

404-51050-51: DescriptionBoard Stacking Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size221KB，2 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de; Environmental Compliance

Download Datasheet Parametric Compare View All

404-51050-51 Overview

Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,

404-51050-51 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ept Connectors
Reach Compliance Code	compliant
ECCN code	EAR99
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO

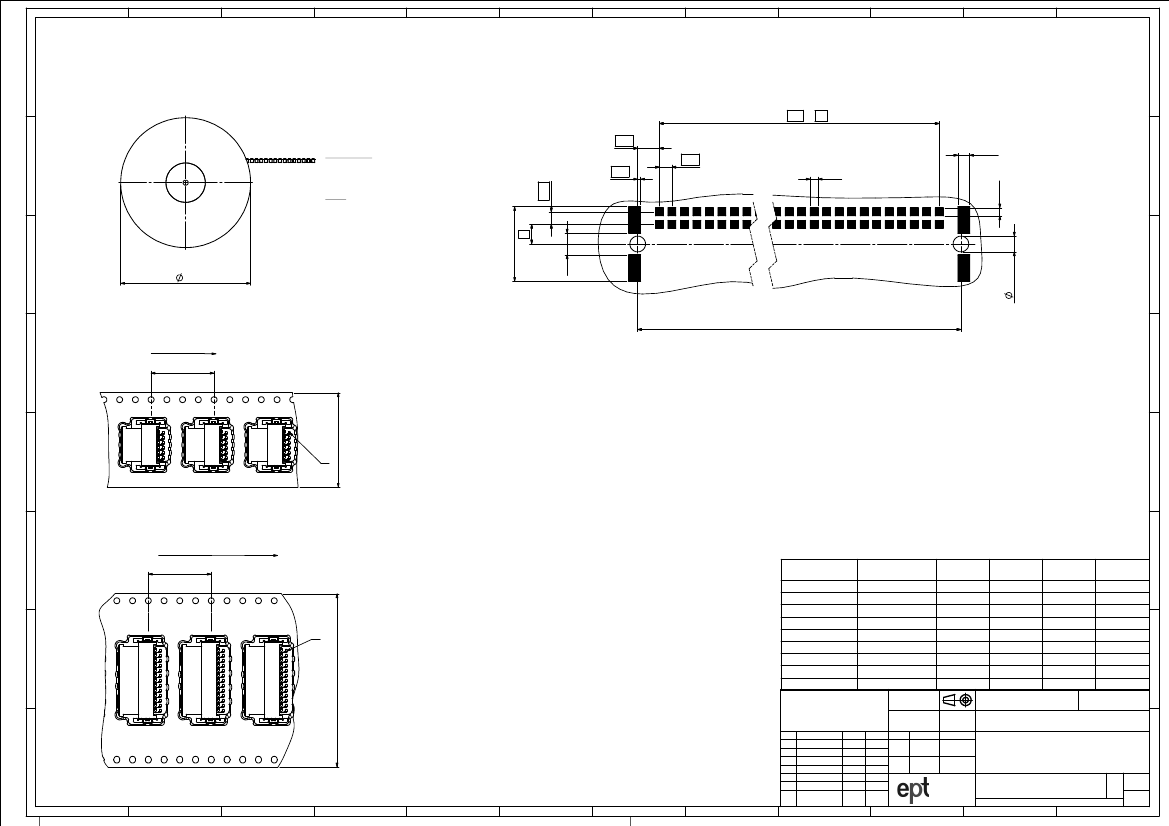

Preview

Download Datasheet

View All

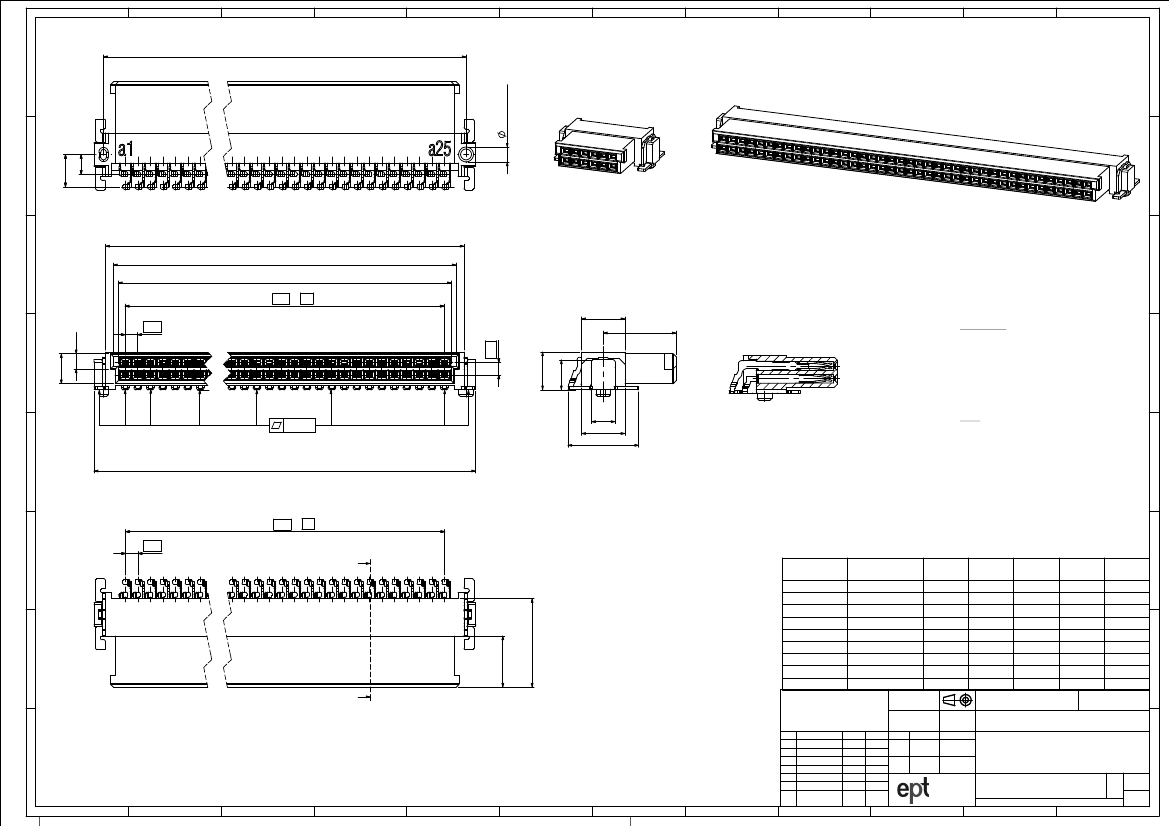

"L"

1,50

-0,05

(2x)

3,27

.........

12-pol. /

12-pin

"N"

80-pol. /

80-pin

"P"

"S"

"Q" x 1,27 = "R"

4,40

1,27

1,55

1,27

7,40

A-A

Bemerkungen:

Werkstoffe

Isolierkörper: LCP UL94 V-0

Signalkontakt: Kupferlegierung

Board-Lock: Kupferlegierung

Kontaktoberflächen

Anforderungsstufe 1 (min. 500 Steckzyklen)

3,05

3,85

3,05

0,10 CZ

all solder connections

2,39

4,40

7,20

Notes:

Material

Insulator: LCP UL94 V-0

Signal-Contact: Copper Alloy

Board-Lock: Copper Alloy

Contact Surface

Performance Level 1 (min. 500 mating cycles)

"M"

"Q" x 1,27 = "R"

Zuwiederhandlungen verpflichten zu Schadensersatz. Alle Rechte für den Fall der Patent-, Gebrauchsmuster- oder Geschmacksmustereintragung vorbehalten.

1,27

Technische Änderungen vorbehalten /

all data subject to amendment without notice

Artikelnummer

part number

404-51012-51

404-51016-51

404-51020-51

404-51026-51

404-51032-51

Beschreibung

description

12-polig / 12-pin

16-polig / 16-pin

20-polig / 20-pin

26-polig / 26-pin

32-polig / 32-pin

40-polig / 40-pin

50-polig / 50-pin

68-polig / 68-pin

80-polig / 80-pin

Allgemeintoleranz /

General tolerances

Tolerierungsgrundsatz /

Fundamental tolerancing principle

Maß "L"

dimension "L"

10,77

13,31

15,85

19,66

23,47

28,55

34,90

46,33

53,95

Maß "M"

dimension "M"

12,71

15,25

17,79

21,6

25,41

30,49

36,84

48,27

55,89

Maß "N"

dimension "N"

10,35

12,89

15,43

19,24

23,05

28,13

34,48

45,91

53,53

Maß "P"

dimension "P"

9,37

11,91

14,45

18,26

22,07

27,15

33,50

44,93

52,55

Maß "S"

dimension "S"

8,37

10,91

13,45

17,26

20,07

26,15

32,50

43,93

51,55

404-51040-51

404-51050-51

404-51068-51

404-51080-51

Werkstoff / Material:

5,20

Maßstab / Scale: 1:1

Verwendungsbereich / Range of application

DIN ISO 8015

Datum / Date

Erst./Drawn

Name / Name

customer drawing

Benennung / Description

28.04.2015

S. Scholl

One 27 Federleiste right angle

One27 Female connector right angle

12-80 polig / 12-80 pin

Zeichnungsnummer / Drawing number

Art / Art

Blatt / Sheet

Version/

Version

drawing modified

First edition

Änderung / Revision

15.03.2016

25.06.2015

28.04.2015

S. Schol

03.02.2016 C. Weise

Gepr./Insp.

Datum / Date Name / Name

ept GmbH

www.ept.de

404-51XXX-5X

Proj 341

1/2

Status / Status

404-51050-51 Related Products

	404-51050-51	404-51040-51	404-51026-51	404-51016-51	404-51012-51	404-51032-51	404-51080-51	404-51068-51	404-51020-51
Description	Board Stacking Connector, 50 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 40 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 26 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 16 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 12 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 32 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 80 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 68 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,	Board Stacking Connector, 20 Contact(s), 2 Row(s), Female, Right Angle, Surface Mount Terminal,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Maker	ept Connectors	-	ept Connectors	ept Connectors	ept Connectors	ept Connectors	ept Connectors	ept Connectors	ept Connectors
