Datasheet> All Categories > logic> logic> DV74HC08AD

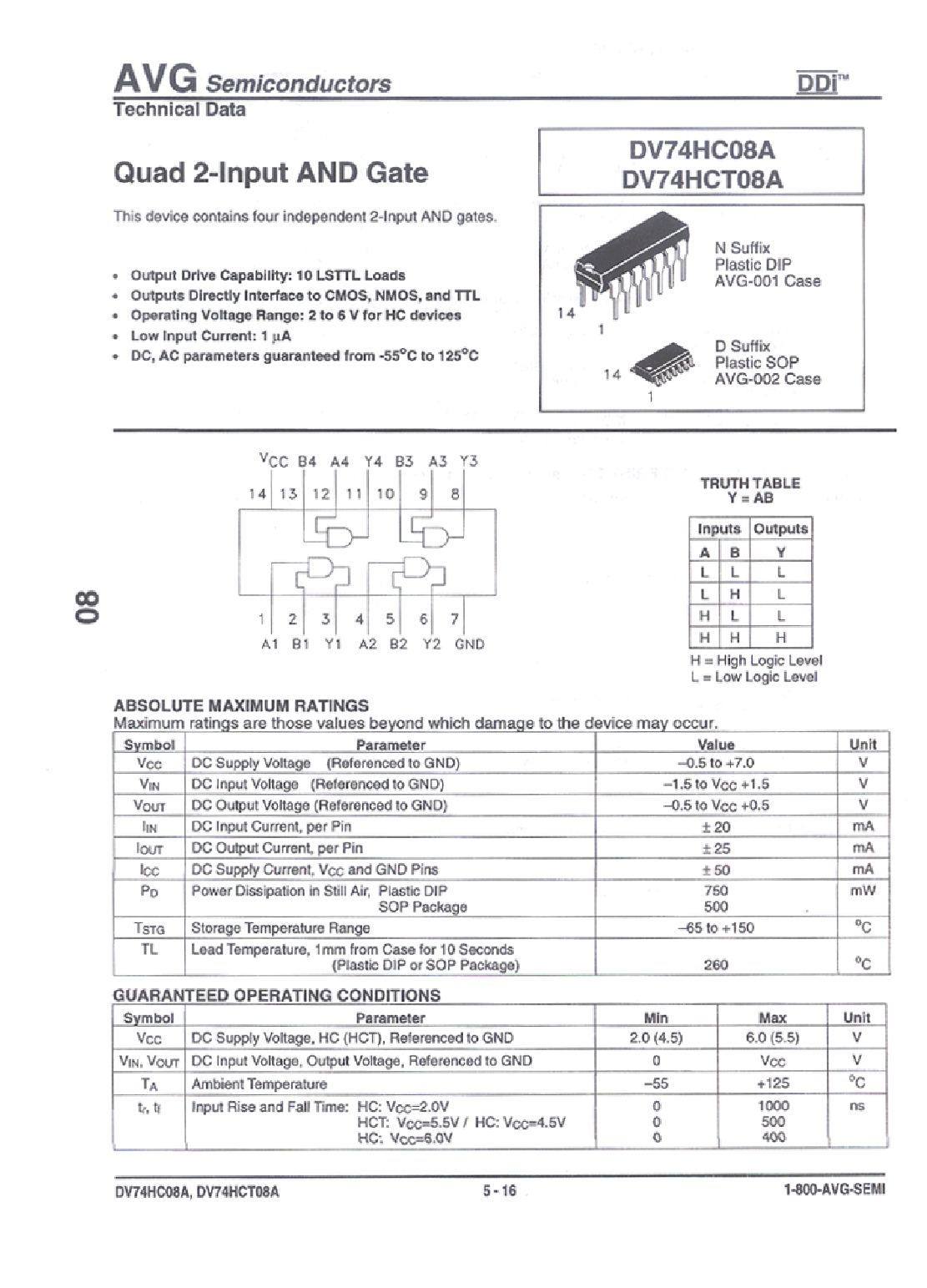

Preview

DV74HC08AD: DescriptionAND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size466KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74HC08AD Overview

AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14

DV74HC08AD Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	AND GATE
MaximumI(ol)	0.004 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	22 ns
propagation delay (tpd)	110 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

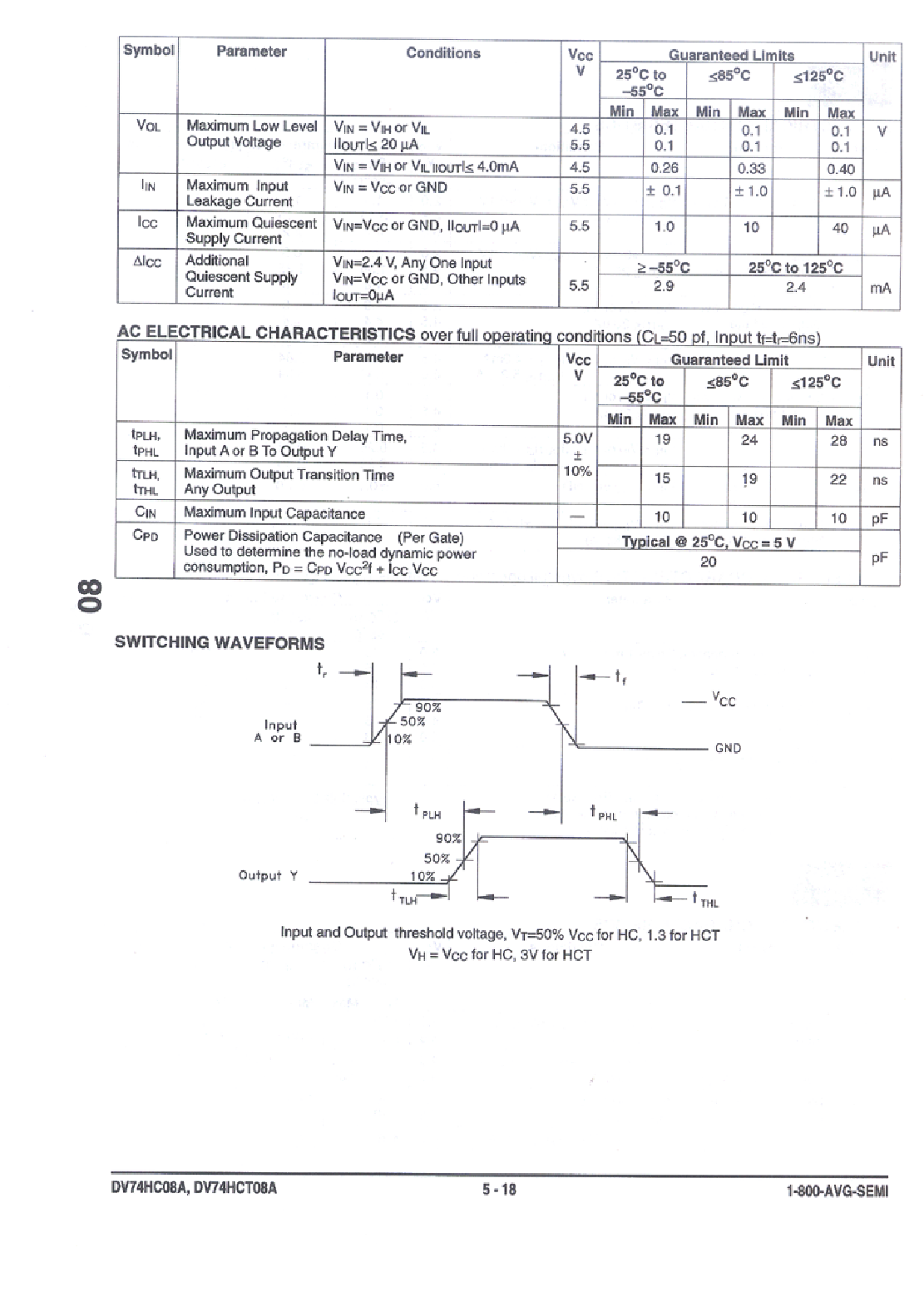

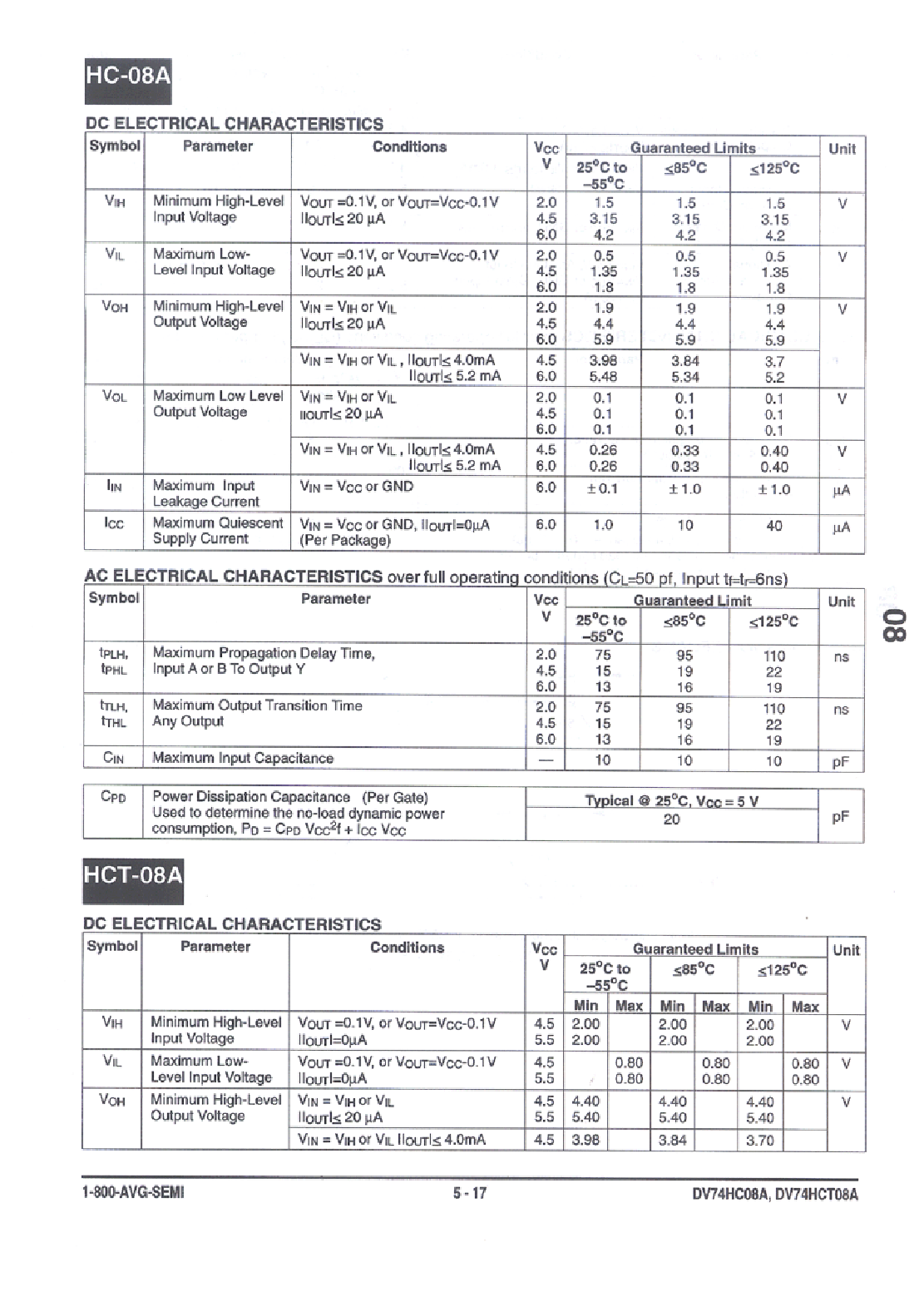

Preview

Download Datasheet

View All

DV74HC08AD Related Products

	DV74HC08AD	DV74HCT08AD	DV74HC08AN	DV74HCT08AN
Description	AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, PDSO14, PLASTIC, SOP-14	AND Gate, HC/UH Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14	AND Gate, HCT Series, 4-Func, 2-Input, CMOS, PDIP14, PLASTIC, DIP-14
Parts packaging code	SOIC	SOIC	DIP	DIP
package instruction	SOP, SOP14,.25	SOP, SOP14(UNSPEC)	PLASTIC, DIP-14	DIP, DIP14(UNSPEC)
Contacts	14	14	14	14
Reach Compliance Code	unknown	unknown	unknown	unknown
series	HC/UH	HCT	HC/UH	HCT
JESD-30 code	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14	R-PDIP-T14
length	8.65 mm	8.65 mm	18.86 mm	18.86 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A	0.004 A
Number of functions	4	4	4	4
Number of entries	2	2	2	2
Number of terminals	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	DIP	DIP
Encapsulate equivalent code	SOP14,.25	SOP14(UNSPEC)	DIP14,.3	DIP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	2/6 V	5 V	2/6 V	5 V
Prop。Delay @ Nom-Sup	22 ns	28 ns	22 ns	28 ns
propagation delay (tpd)	110 ns	28 ns	110 ns	28 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO
Maximum seat height	1.75 mm	1.75 mm	4.69 mm	4.69 mm
Maximum supply voltage (Vsup)	6 V	5.5 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	4.5 V	2 V	4.5 V
Nominal supply voltage (Vsup)	4.5 V	5 V	4.5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	7.62 mm	7.62 mm
Maker	AVG [AVG Semiconductors(HITEK)]	-	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
