DM74LS32CW datasheet, PDF - EEWORLD Datasheet

DM74LS32CW: DescriptionOR Gate, LS Series, 4-Func, 2-Input, TTL, WAFER; Categorylogic logic; File Size119KB，6 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric Compare View All

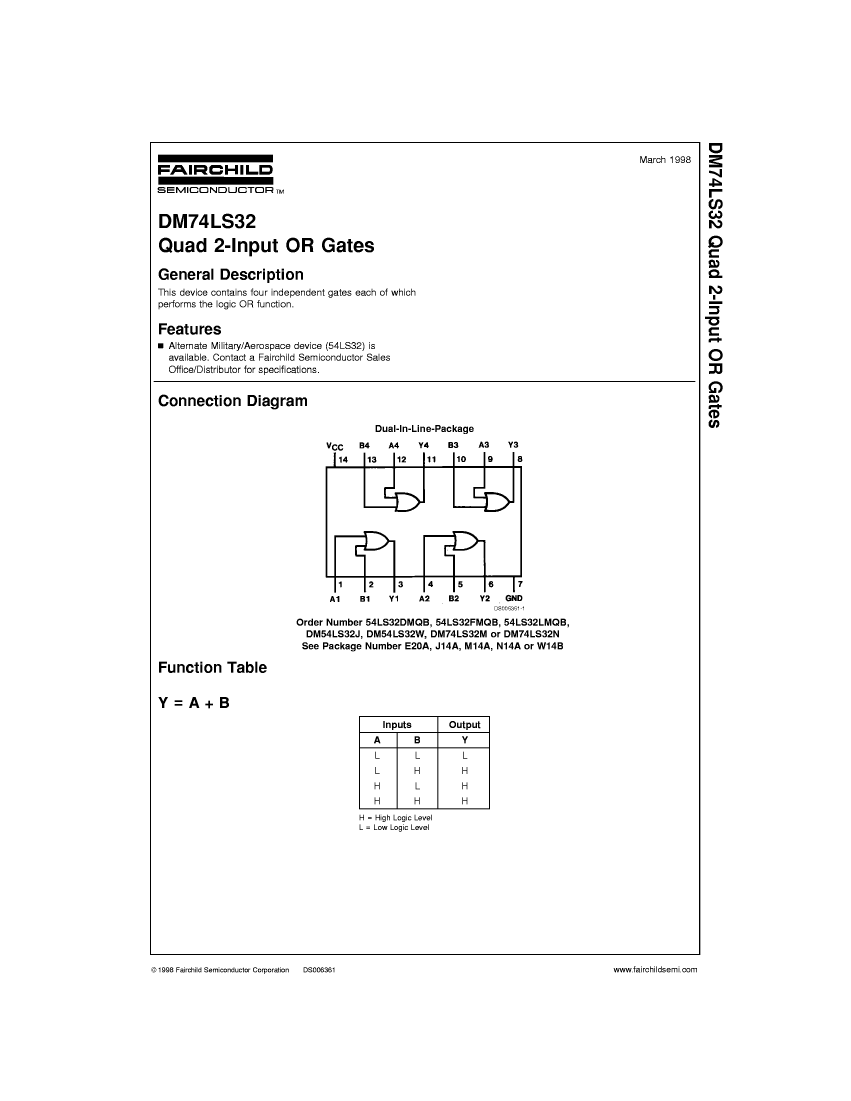

DM74LS32CW Overview

OR Gate, LS Series, 4-Func, 2-Input, TTL, WAFER

Parameter Name	Attribute value
Maker	Rochester Electronics
package instruction	WAFER
Reach Compliance Code	unknown
series	LS
JESD-30 code	X-XUUC-N14
Logic integrated circuit type	OR GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP

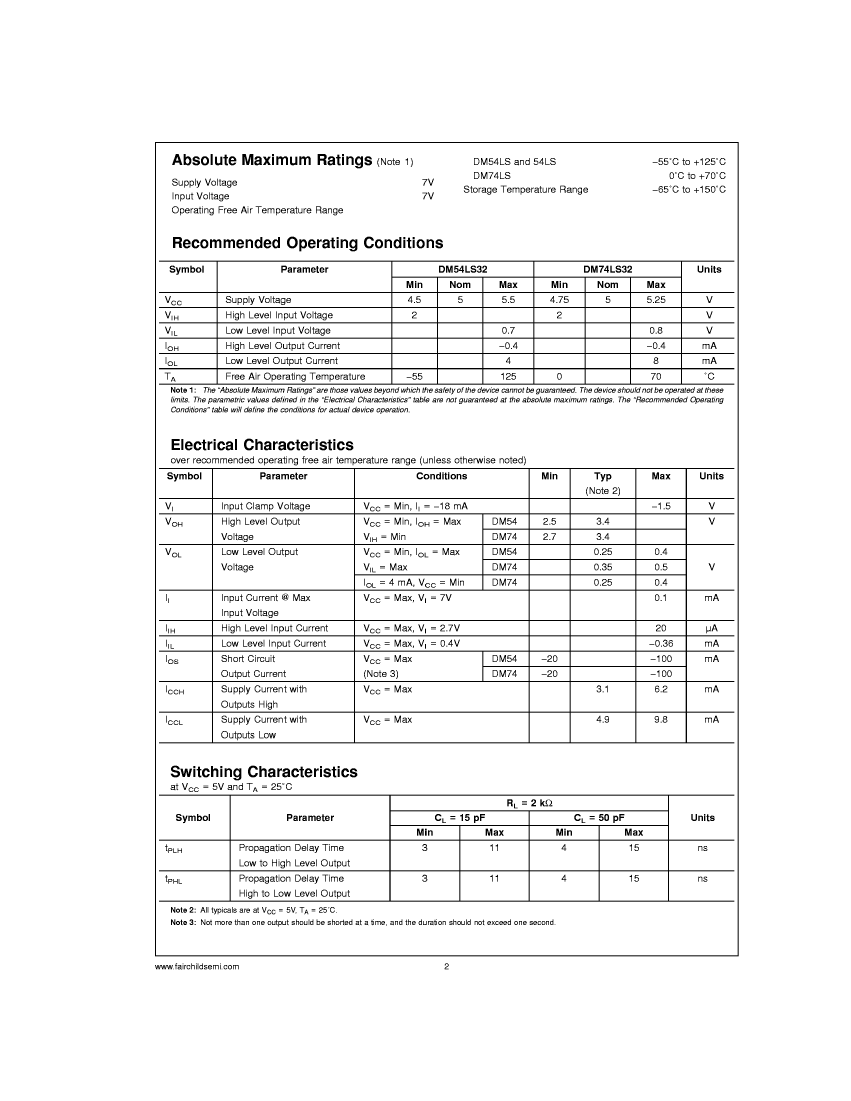

propagation delay (tpd)	15 ns
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Terminal form	NO LEAD
Terminal location	UPPER

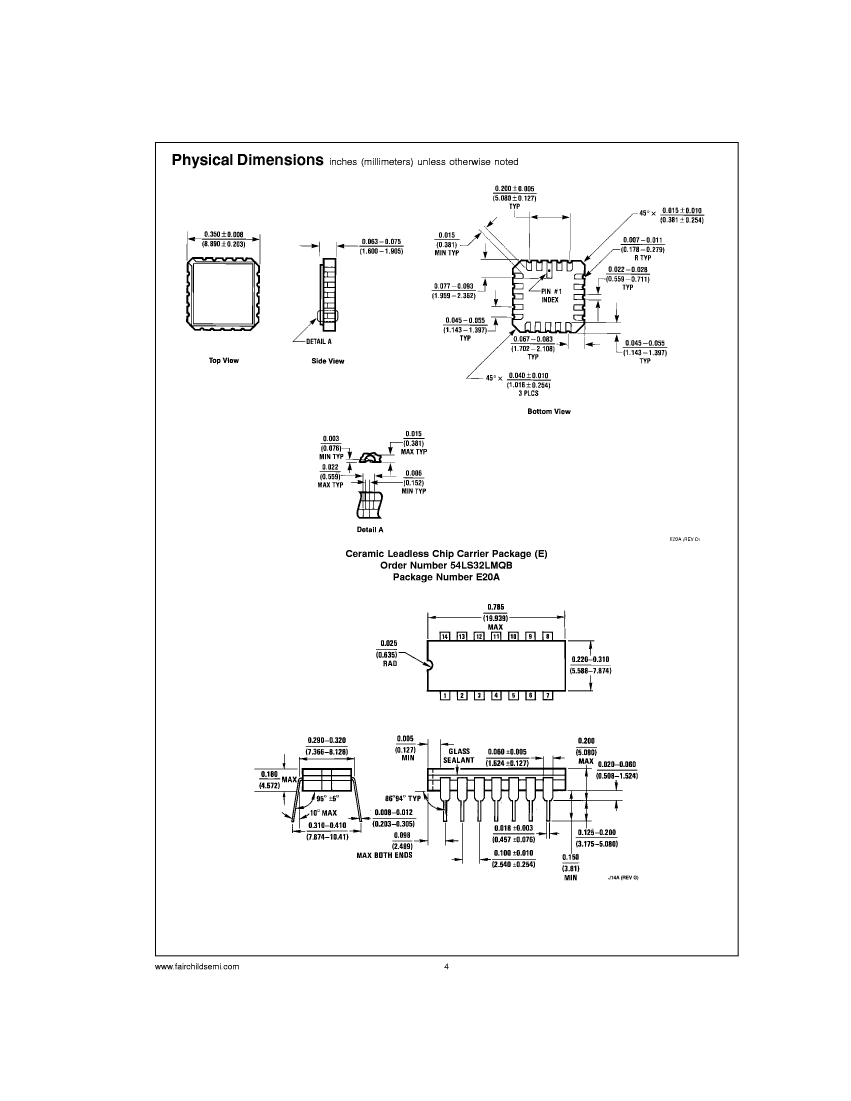

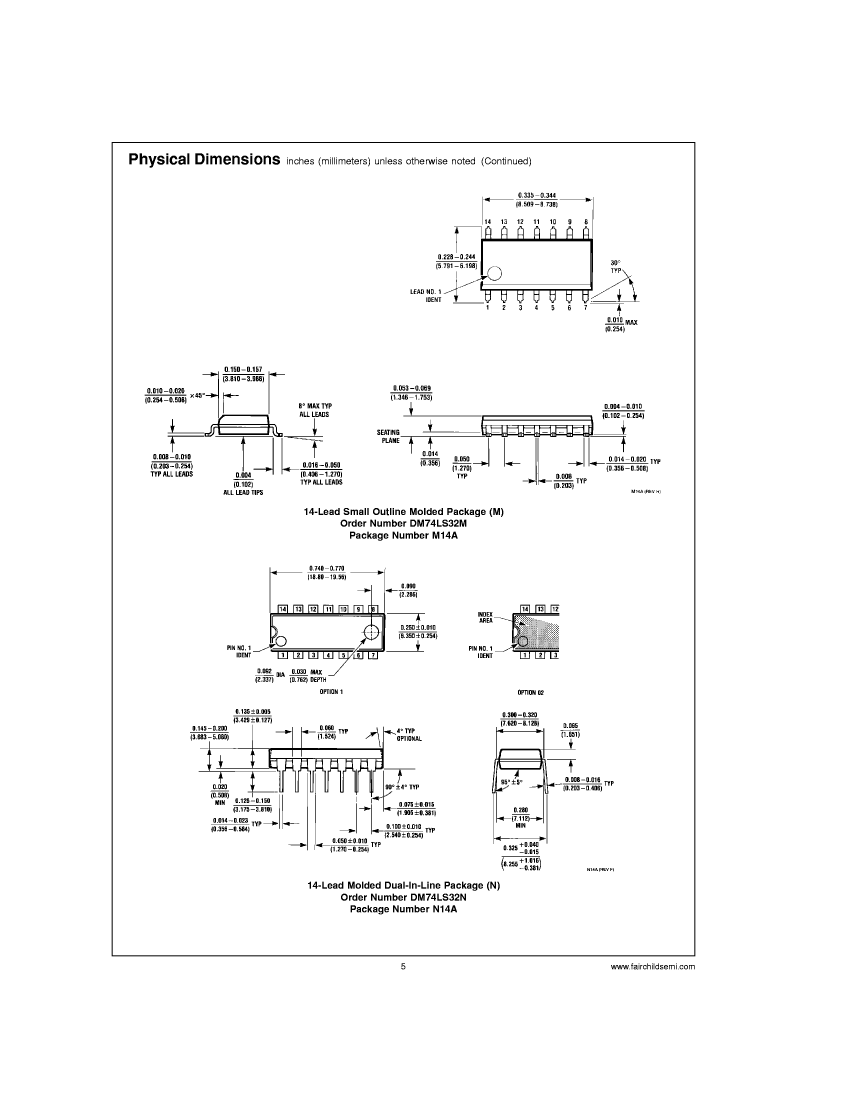

	DM74LS32CW	DM54LS32J	DM54LS32W
Description	OR Gate, LS Series, 4-Func, 2-Input, TTL, WAFER	OR Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	OR Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14
package instruction	WAFER	DIP,	CERAMIC, FP-14
Reach Compliance Code	unknown	unknown	unknown
series	LS	LS	LS
JESD-30 code	X-XUUC-N14	R-GDIP-T14	R-GDFP-F14
Logic integrated circuit type	OR GATE	OR GATE	OR GATE
Number of functions	4	4	4
Number of entries	2	2	2
Number of terminals	14	14	14
Package body material	UNSPECIFIED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DIE	DIP	DFP
Package shape	UNSPECIFIED	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	IN-LINE	FLATPACK
propagation delay (tpd)	15 ns	15 ns	15 ns
Maximum supply voltage (Vsup)	5.25 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	NO	YES
technology	TTL	TTL	TTL
Terminal form	NO LEAD	THROUGH-HOLE	FLAT
Terminal location	UPPER	DUAL	DUAL
Maximum operating temperature	-	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C
Maximum seat height	-	5.08 mm	2.032 mm
Temperature level	-	MILITARY	MILITARY
Terminal pitch	-	2.54 mm	1.27 mm
width	-	7.62 mm	6.2865 mm
Base Number Matches	-	1	1
