DM54LS09N datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DM54LS09N

DM54LS09N: DescriptionAND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14; Categorylogic logic; File Size127KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

DM54LS09N Overview

AND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14

DM54LS09N Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DIP
package instruction	PLASTIC, DIP-14
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDIP-T14
length	19.18 mm
Logic integrated circuit type	AND GATE
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

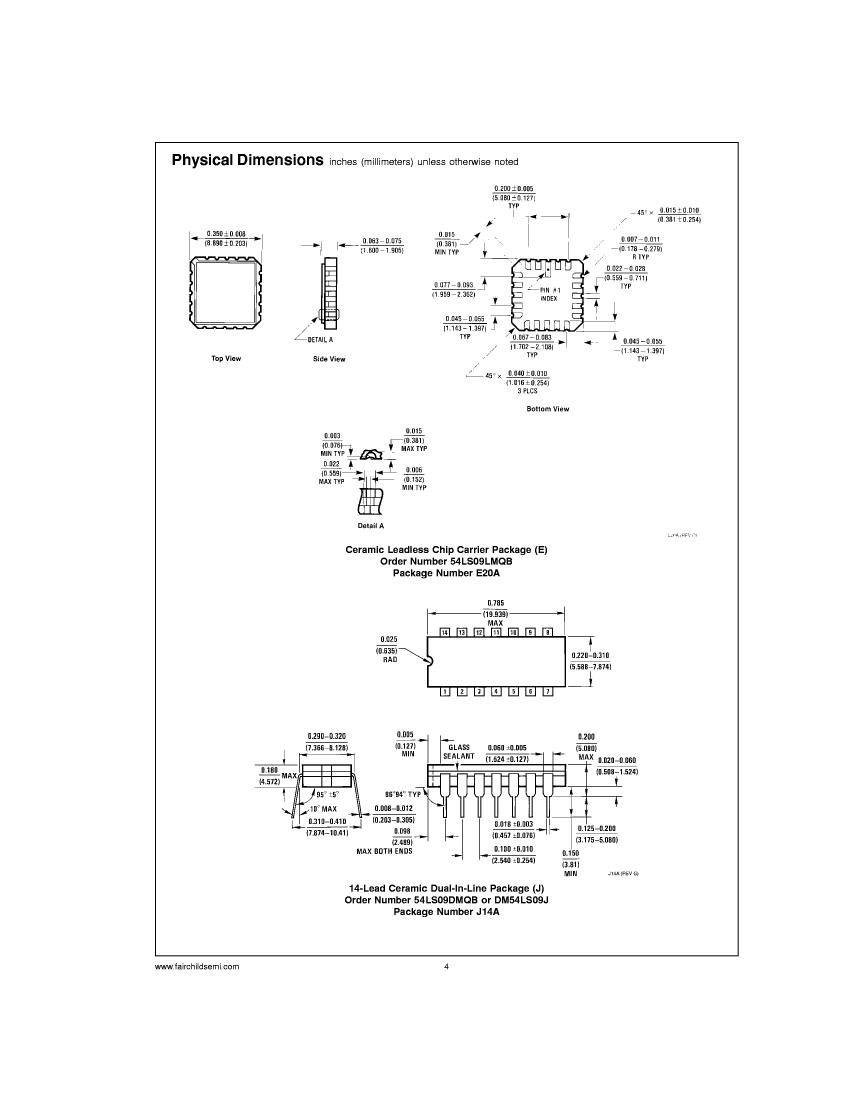

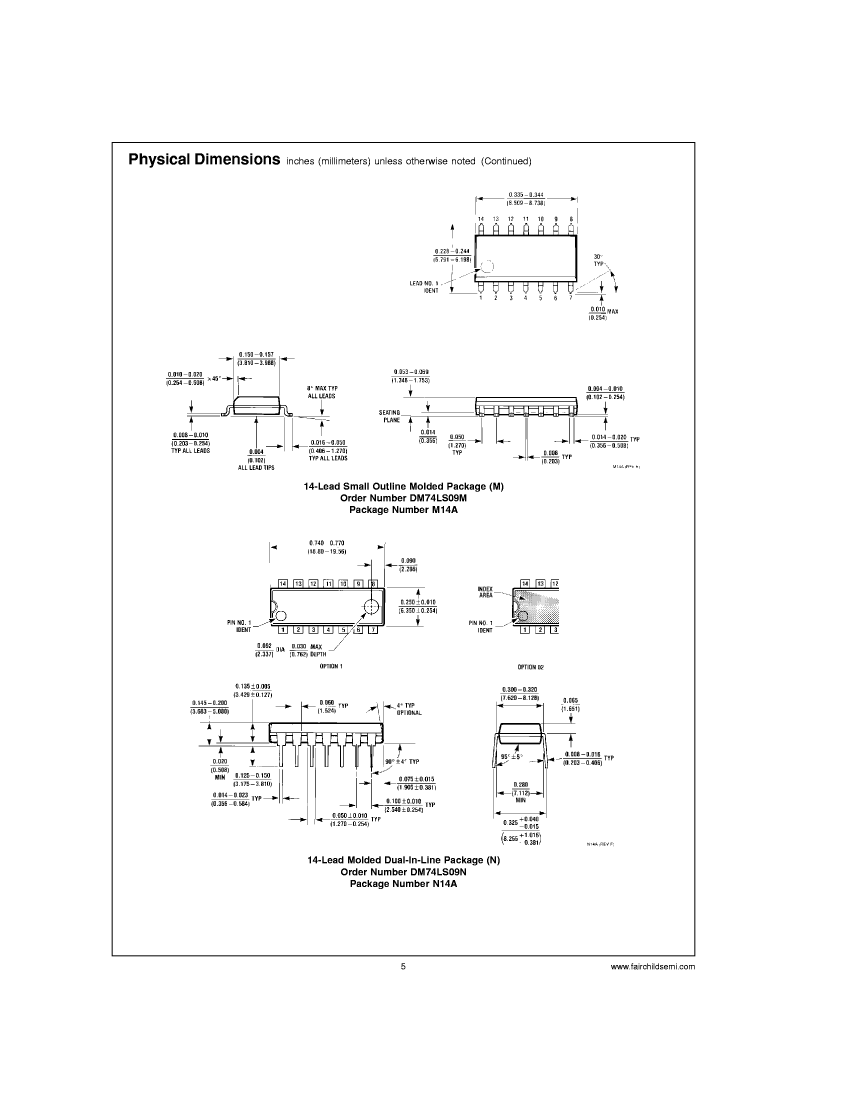

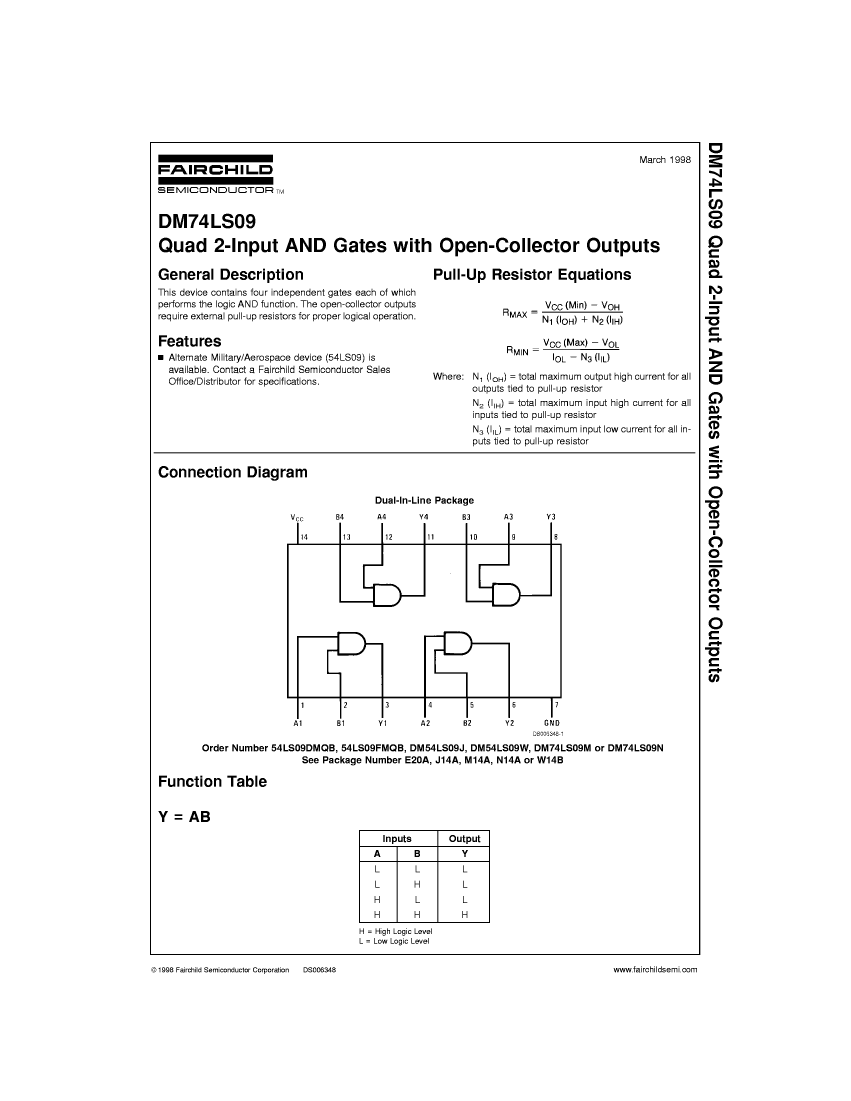

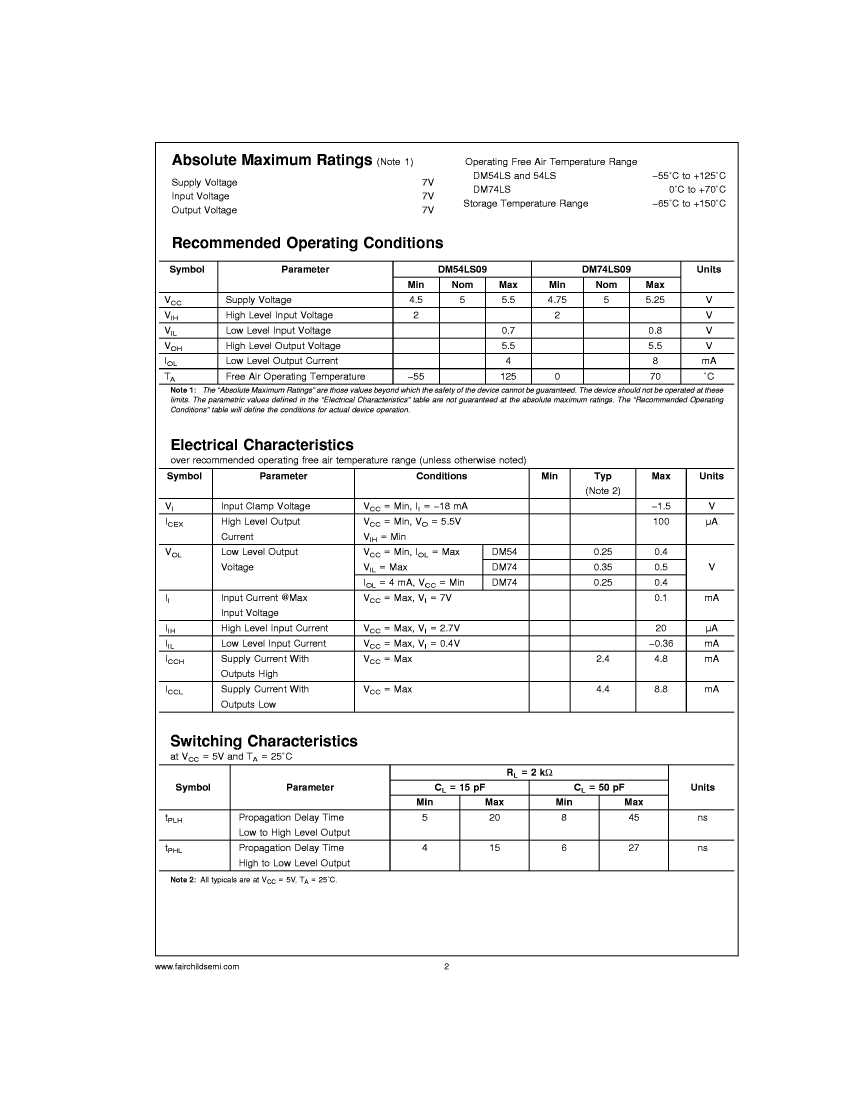

Preview

Download Datasheet

View All

DM54LS09N Related Products

	DM54LS09N	DM54LS09J	54LS09FMQB	54LS09DMQB	DM54LS09W	DM54LS09M
Description	AND Gate, LS Series, 4-Func, 2-Input, TTL, PDIP14, PLASTIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, CDFP14, CERAMIC, FP-14	AND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14
Parts packaging code	DIP	DIP	DFP	DIP	DFP	SOIC
package instruction	PLASTIC, DIP-14	CERAMIC, DIP-14	DFP, FL14,.3	CERAMIC, DIP-14	DFP, FL14,.3	SOP,
Contacts	14	14	14	14	14	14
Reach Compliance Code	unknown	unknown	compliant	unknown	compliant	unknown
series	LS	LS	LS	LS	LS	LS
JESD-30 code	R-PDIP-T14	R-GDIP-T14	R-GDFP-F14	R-GDIP-T14	R-GDFP-F14	R-PDSO-G14
Logic integrated circuit type	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE	AND GATE
Number of functions	4	4	4	4	4	4
Number of entries	2	2	2	2	2	2
Number of terminals	14	14	14	14	14	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output characteristics	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DFP	DIP	DFP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	SMALL OUTLINE
propagation delay (tpd)	27 ns	27 ns	27 ns	27 ns	27 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	2.032 mm	5.08 mm	2.032 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.62 mm	7.62 mm	6.2865 mm	7.62 mm	6.2865 mm	3.9 mm
Maker	Fairchild	Fairchild	-	Fairchild	-	Fairchild
length	19.18 mm	19.43 mm	-	19.43 mm	-	8.65 mm
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	-
JESD-609 code	-	e0	e0	e0	e0	-
MaximumI(ol)	-	0.004 A	0.004 A	0.004 A	0.004 A	-
Encapsulate equivalent code	-	DIP14,.3	FL14,.3	DIP14,.3	FL14,.3	-
power supply	-	5 V	5 V	5 V	5 V	-
Maximum supply current (ICC)	-	8.8 mA	8.8 mA	8.8 mA	8.8 mA	-
Prop。Delay @ Nom-Sup	-	45 ns	45 ns	45 ns	45 ns	-
Schmitt trigger	-	NO	NO	NO	NO	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	-	1	1	1	1	-
