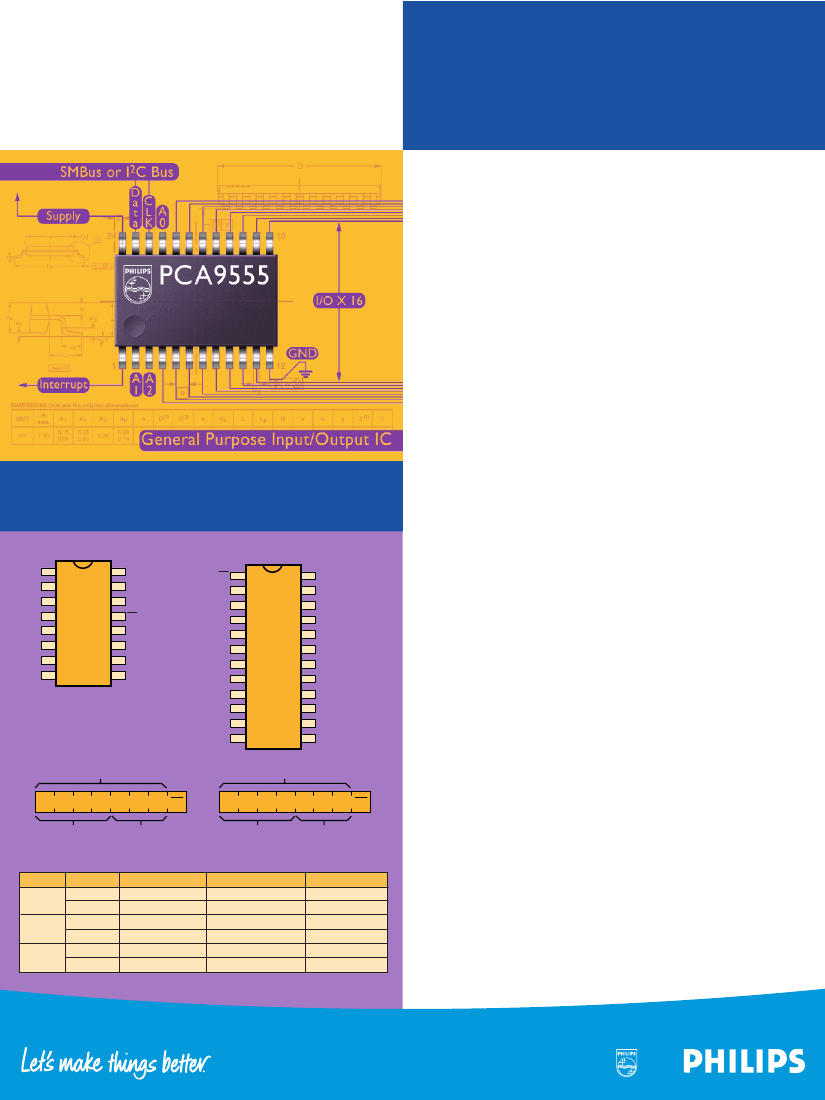

Philips Configuration
System Management ICs
PCA9554/54A/55
8- and 16-bit I
2
C and
SMBus I/O Port with Interrupt
Part Type Description
The PCA9554 and PCA9554A are 16-pin CMOS devices that provide
8 bits of General Purpose parallel Input/Output (GPIO) expansion for
I
2
C/SMBus applications. These I/O expanders provide a simple solu-
tion when additional I/O is needed for ACPI power switches, sensors,
pushbuttons, LEDs, fans, etc. The parts consist of an 8-bit Configura-
tion register (Input or Output selection); 8-bit Input register, 8-bit
Output register and an 8-bit Polarity inversion register (Active high or
Active low operation). The PCA9555 is a 24-pin CMOS device, which
provides 16 bits of GPIO and consists of two 8-bit Configuration,
Input, Output and Polarity inversion registers.
The system master can enable the PCA9554/54A/55 I/Os as either
inputs or outputs by writing to the I/O configuration bits. The data
for each Input or Output is kept in the corresponding Input or Output
register. The polarity of the read register can be inverted with the
Polarity Inversion Register. All registers can be read by the system mas-
ter. Although pin to pin and I
2
C address compatible with the PCF857X
series, software changes are required due to the enhancements and are
discussed in Application Note AN469. The PCA9554/54A/55 open-
drain interrupt output is activated when any input state differs from its
corresponding input port register state and is used to indicate to the
system master that an input state has changed. If an external hardware
reset is needed, the PCA9556/57 should be used.
Three hardware pins (A0, A1, A2) vary the fixed I
2
C address and allow
up to eight devices to share the same I
2
C/SMBus. The PCA9554A is
identical to the PCA9554 except that the fixed I
2
C address is different
allowing up to sixteen of these devices (eight of each) on the same
I
2
C/SMBus. The fixed I
2
C address of the PCA9555 is the same as the
PCA9554 allowing up to eight of these devices in any combination to
share the same I
2
C/SMBus.
The PCA9554/54A/55 were developed to enhance the Philips family
of I
2
C I/O expanders. The improvements include higher drive capability,
5V I/O tolerance, lower supply current, individual I/O configuration,
400 kHz clock frequency, and smaller packaging.
Pin Configurations
A0
A1
A2
I/O0
I/O1
I/O2
I/O3
VSS
1
16 VDD
INT
A1
A2
I/O0.0
I/O0.1
I/O0.2
I/O0.3
I/O0.4
I/O0.5
I/O0.6
I/O0.7
1
2
3
24 VDD
23 SDA
22 SCL
PCA9554
PCA9554A
2
3
4
5
6
7
8
15 SDA
14 SCL
13 INT
12 I/O7
11 I/O6
10 I/O5
9
I/O4
PCA9555
4
5
6
7
8
9
10
11
21 A0
20
19
18
17
16
15
14
13
I/O1.7
I/O1.6
I/O1.5
I/O1.4
I/O1.3
I/O1.2
I/O1.1
I/O1.0
PCA9554/54A/55 Features
• I
2
C and SMBus compatible
• 8 or 16 programmable I/Os compatible with most processors
— Input or output
— Push-Pull or open-drain outputs
— True vs. quasi bi-directional style I/O
• Outputs can directly drive LEDs
— 25 mA max sink and 10 mA max source per bit
— Capacity of 100 mA max per 8-bit register
• Open-drain interrupt output activated when input changes state
• Low I
DDH
standby current of 1.5 µA max
• 5 V tolerant I/Os
• Offered in SO Wide (D), SSOP (DB) and TSSOP (PW)
• Manufactured in high-volume CMOS process
VSS 12
SLAVE ADDRESS
I
2
C Address
A1
A0
R/W
0
1
SLAVE ADDRESS
0
1
0
0
A2
1
1
A2
A1
A0
R/W
FIXED
PROGRAMMABLE
FIXED
PROGRAMMABLE
PCA9554/55
PCA9554A
Order Information
Package Container
Tube
SO
T&R
Tube
SSOP
T&R
Tube
TSSOP
T&R
PCA9554
PCA9554D
PCA9554D-T
PCA9554DB
PCA9554DB-T
PCA9554PW
PCA9554PW-T
PCA9554A
PCA9554AD
PCA9554AD-T
PCA9554ADB
PCA9554ADB-T
PCA9554APW
PCA9554APW-T
PCA9555
PCA9555D
PCA9555D-T
PCA9555DB
PCA9555DB-T
PCA9555PW
PCA9555PW-T
PCA9554/54A/55 Operating Characteristics
• 2.3 V to 5.5 V operating voltage
• -40 to 85 ºC operating temperature range
• 0 to 400 kHz clock frequency
PCA9554/
54A/55
8- and 16-bit I
2
C and
SMBus I/O Port with Interrupt
Block Diagram
A0
PCA9554/54A/55
I/O0
I/O1
I/O2
8-BIT
I
2
C/SMBus
CONTROL
I/O3
INPUT/
OUTPUT
PORTS
I/O4
I/O5
I/O6
I/O7
The PCA9554/54A and
PCA9555 functional
diagram and I/O
schematic are identical
except that the PCA9555
has two 8-bit blocks of I/O.
A1
A2
SCL
SDA
INPUT
FILTER
WRITE pulse
READ pulse
VDD
POWER/ON
RESET
VCC
VSS
LP FILTER
NOTE: ALL I/Os ARE SET TO INPUTS AT RESET
INT
Simplified Schematic of I/O0 to I/O7
The PCA9554/54A/55
feature outputs that
sink 25 mA and source
10 mA while quasi bi-
directional outputs sink
25 mA but limit the
source current to only
100 µA.
DATA FROM
SHIFT REGISTER
CONFIGURATION
REGISTER
DATA FROM
SHIFT REGISTER
D
FF
Q1
WRITE
CONFIGURATION
PULSE
CK
Q
D
FF
I/O0 TO I/O7
WRITE PULSE
CK
Q
Q2
VSS
Q
100kΩ
Q
VDD
OUTPUT PORT
REGISTER DATA
OUTPUT
PORT
REGISTER
INPUT PORT
REGISTER
D
FF
Q
INPUT PORT
REGISTER DATA
READ PULSE
CK
Q
TO INT
DATA FROM
SHIFT REGISTER
D
FF
Q
NOTE: AT POWER-ON RESET,
ALL REGISTERS RETURN
TO DEFAULT VALUES
Q
POLARITY
REGISTER DATA
WRITE
POLARITY
PULSE
CK
POLARITY INVERSION
REGISTER
