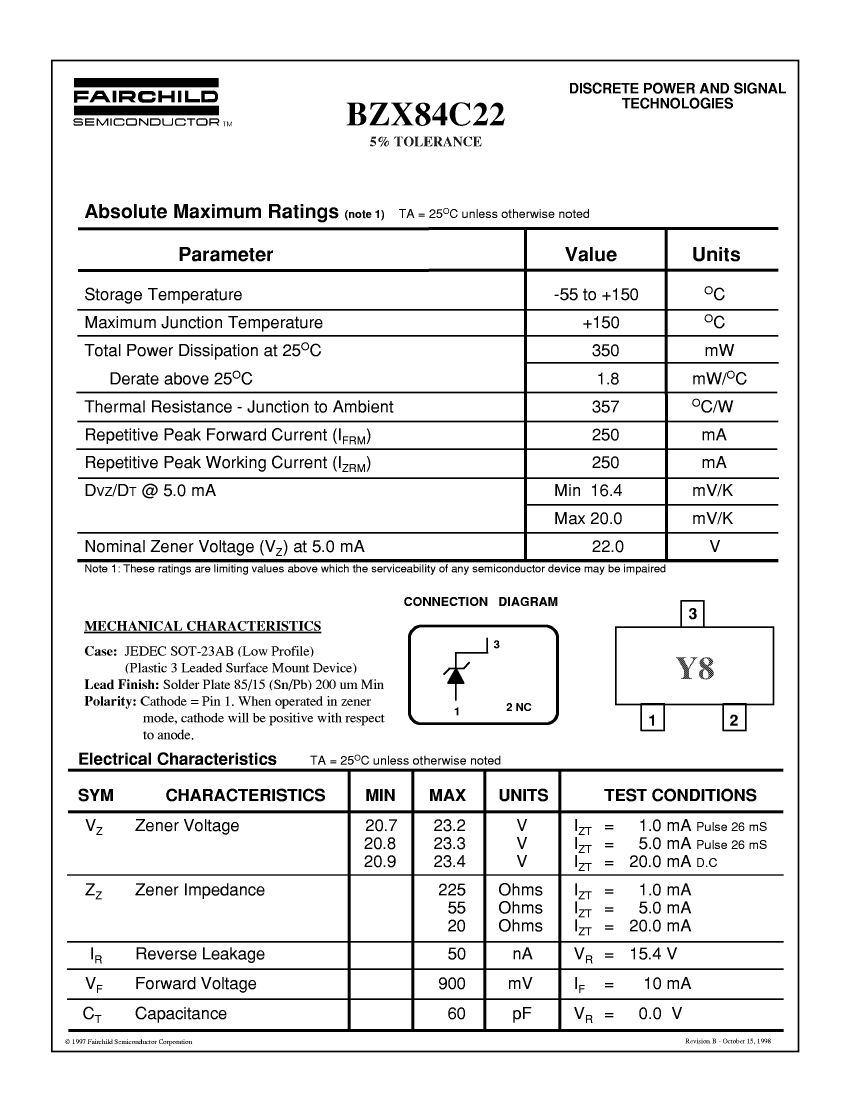

BZX84C22S62Z datasheet, PDF - EEWORLD Datasheet

BZX84C22S62Z: DescriptionZener Diode, 22V V(Z), 5%, 0.35W, Silicon, Unidirectional; CategoryDiscrete semiconductor diode; File Size62KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

BZX84C22S62Z Overview

Zener Diode, 22V V(Z), 5%, 0.35W, Silicon, Unidirectional

Parameter Name	Attribute value

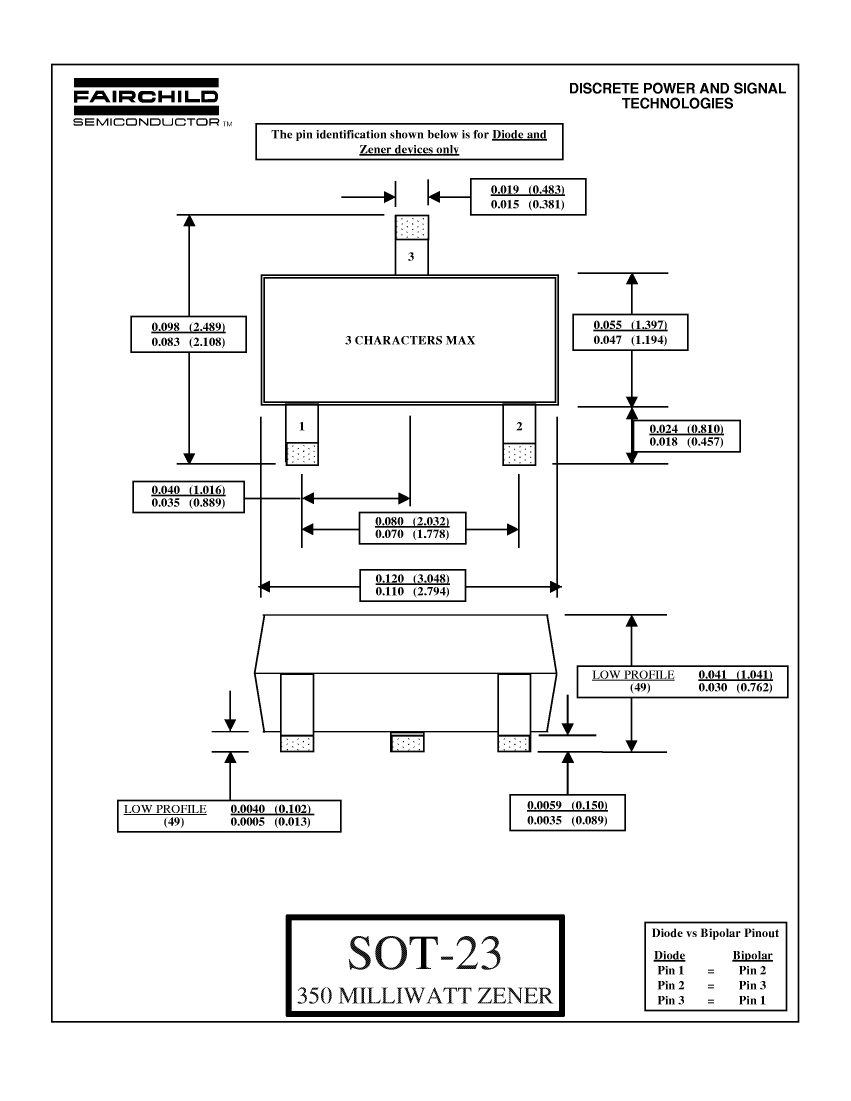

package instruction	R-PDSO-G3
Reach Compliance Code	unknow
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.35 W
Certification status	Not Qualified
Nominal reference voltage	22 V
surface mount	YES
technology	ZENER
Terminal form	GULL WING
Terminal location	DUAL
Maximum voltage tolerance	5%
Working test current	5 mA
Base Number Matches	1

	BZX84C22S62Z	BZX84C22L99Z	BZX84C22D87Z
Description	Zener Diode, 22V V(Z), 5%, 0.35W, Silicon, Unidirectional	Zener Diode, 22V V(Z), 5%, 0.35W, Silicon, Unidirectional	Zener Diode, 22V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN
package instruction	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Reach Compliance Code	unknow	unknow	compliant
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	ZENER DIODE	ZENER DIODE	ZENER DIODE
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
polarity	UNIDIRECTIONAL	UNIDIRECTIONAL	UNIDIRECTIONAL
Maximum power dissipation	0.35 W	0.35 W	0.35 W
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal reference voltage	22 V	22 V	22 V
surface mount	YES	YES	YES
technology	ZENER	ZENER	ZENER
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL
Maximum voltage tolerance	5%	5%	5%
Working test current	5 mA	5 mA	5 mA
Base Number Matches	1	1	1
