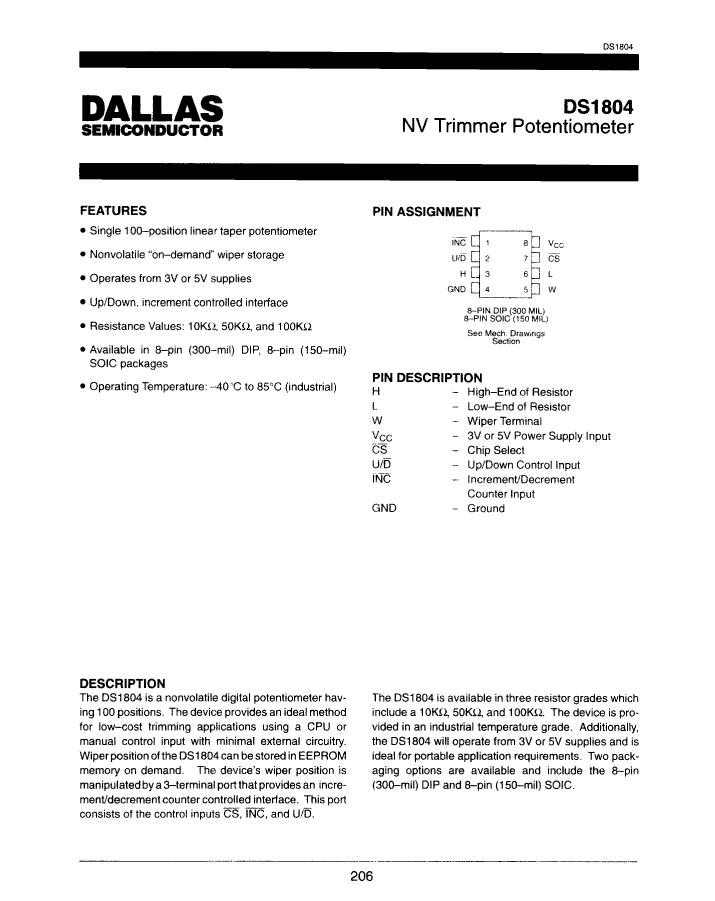

Digital Potentiometer, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, SOIC-8
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | DALLAS |
| package instruction | SOIC-8 |
| Reach Compliance Code | unknown |
| DS1804ZN-050 | DS1804N-050 | DS1804N-100 | DS1804ZN-010 | DS1804N-010 | DS1804ZN-100 | |
|---|---|---|---|---|---|---|
| Description | Digital Potentiometer, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, SOIC-8 | Digital Potentiometer, 50000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDIP8, PLASTIC, DIP-8 | Digital Potentiometer, 100000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDIP8, PLASTIC, DIP-8 | Digital Potentiometer, 10000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDSO8, SOIC-8 | Digital Potentiometer, 10000ohm, Increment/decrement Control Interface, 100 Positions, CMOS, PDIP8, PLASTIC, DIP-8 | Digital Potentiometer, 100000ohm, Increment/decrement Control Interface, 100 Positions, PDSO8, SOIC-8 |
| package instruction | SOIC-8 | PLASTIC, DIP-8 | PLASTIC, DIP-8 | SOIC-8 | PLASTIC, DIP-8 | SOIC-8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | - |
| Maker | DALLAS | DALLAS | DALLAS | - | DALLAS | DALLAS |
| control interface | - | INCREMENT/DECREMENT | INCREMENT/DECREMENT | INCREMENT/DECREMENT | INCREMENT/DECREMENT | INCREMENT/DECREMENT |
| Converter type | - | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER |
| JESD-30 code | - | R-PDIP-T8 | R-PDIP-T8 | R-PDSO-G8 | R-PDIP-T8 | R-PDSO-G8 |
| JESD-609 code | - | e0 | e0 | e0 | e0 | - |
| Number of positions | - | 100 | 100 | 100 | 100 | 100 |
| Number of terminals | - | 8 | 8 | 8 | 8 | 8 |
| Maximum operating temperature | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | - | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | - | DIP | DIP | SOP | DIP | SOP |
| Encapsulate equivalent code | - | DIP8,.3 | DIP8,.3 | SOP8,.25 | DIP8,.3 | - |
| Package shape | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE | IN-LINE | SMALL OUTLINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| power supply | - | 3/5 V | 3/5 V | 3/5 V | 3/5 V | - |
| Certification status | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| resistance law | - | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR |
| Nominal supply voltage | - | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | - | NO | NO | YES | NO | YES |
| technology | - | CMOS | CMOS | CMOS | CMOS | - |
| Temperature level | - | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | - |
| Terminal form | - | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | GULL WING |
| Terminal pitch | - | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | - |
| Terminal location | - | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | - | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | - |
| Nominal total resistance | - | 50000 Ω | 100000 Ω | 10000 Ω | 10000 Ω | 100000 Ω |
