P a r t
N u m b e r
G u i d e
N e u t r i k
N C 3 FA H 1 - B - 0 - D
Packaging:
Assembly:
Retention:
Shell:
Grounding:
®
P a r t
N u m b e r
G u i d e
D
D
w/o
-0
B
BAG
0
1
2
E
w/o number
Cable connector: bulk packed
Chassis connector: disassembled push latch
Latch lock
Retention spring
Black shell, gold contacts
Black shell, silver contacts
Separate ground contact connected to shell, male only
Pin 1 & panel & shell connected, no separate ground contact
Separate ground contact connected to shell & panel, separate Pin 1
Additional ground contacts
No ground / shell contact (except 4 / 5 pole), female only
Horizontal PCB mount
Laterial left PCB mount
Laterial right PCB mount
Solder cups
Verticale PCB mount
IDC for wires (no ground)
Mounting holes with M3 thread
Mounting holes with M2.5 thread
Not applicable
Female
Male
Adapter
powerCON
BNC
XLR
dummyPLUG
RJ45
RCA / CINCH
Jack
Cable Assemblies
Loudspeaker
Modules
Fiber Optic Connector
Plugs
Patch Panel
Circular Connector
Transformer
Termination:
H
HL
HR
L
V
Y
M3
M25
-
Series:
Gender:
A, AA, B, BA, D, DL, DLX, MPR, P, PX, RX, X, XX
F
M
Number of Contacts: 3, 4, 5, 6, 7, 8, 12
Connector Type:
A
AC
B
C
D
E
F
J (MJ, RJ, SJ)
K
L
M
O
P
PP
R
T
Definitions, Abbreviations & Useful Information see page 162.
8
innovative
solutions
I
superior
quality
X L R
C o n n e c t o r s
Content
Page
Cable Connectors:
XX Series .....................................................................
EMC-XLR Series ...........................................................
RX Series .....................................................................
XX-HE Series ...............................................................
XX-14 Series ................................................................
XX Crimp Series ...........................................................
crystalCON ..................................................................
convertCON .................................................................
XX-HD Series ..............................................................
X Series .......................................................................
X-HD Series .................................................................
XCC Series ...................................................................
FXS Series ....................................................................
FX-SPEC Series .............................................................
Technical Data .............................................................
Ordering Information ..................................................
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
21
Receptacles:
A Series ......................................................................
AA Series ....................................................................
B Series ......................................................................
BA Series .....................................................................
A / B Series 5-pole switch ..............................................
D Series .......................................................................
DL Series .....................................................................
DLX Series ..................................................................
DLX Crimp Series ........................................................
EMC Series ..................................................................
MPR-HD Series .............................................................
P Series .......................................................................
Combo Series ...............................................................
Combo A Series ..........................................................
Accessories ..................................................................
Technical Data .............................................................
Ordering Information A / AA Series ...............................
Ordering Information B / BA Series ................................
Ordering Information D / DL / DLX / DLX Crimp ...........
Ordering Information EMC / P / MPR-HD .....................
Ordering Information Combo / Combo A Series ...........
Panel Cutouts, Assembly Tools ....................................
23
23
24
24
25
25
26
26
27
27
28
28
29
30
31
32
34
35
35
36
36
36
10
innovative
solutions
I
superior
quality
X L R
C o n n e c t o r s
Introduction
Neutrik XLR connectors are the most well known series of
products manufactured by Neutrik, and have provided the
professional audio industry a simple, yet striking, concept
in connector features. We introduced our first XLR product
more than 30 years ago. Today it is the accepted standard
worldwide.
XLR connectors are part of almost every aspect of profes-
sional audio; as a microphone connector, in lighting systems,
and found in almost any piece of sound equipment in the
entertainment industry. The outstanding success of our XLR
products is Neutrik’s blend of innovation with the highest
quality performance.
www.neutrik.com
11

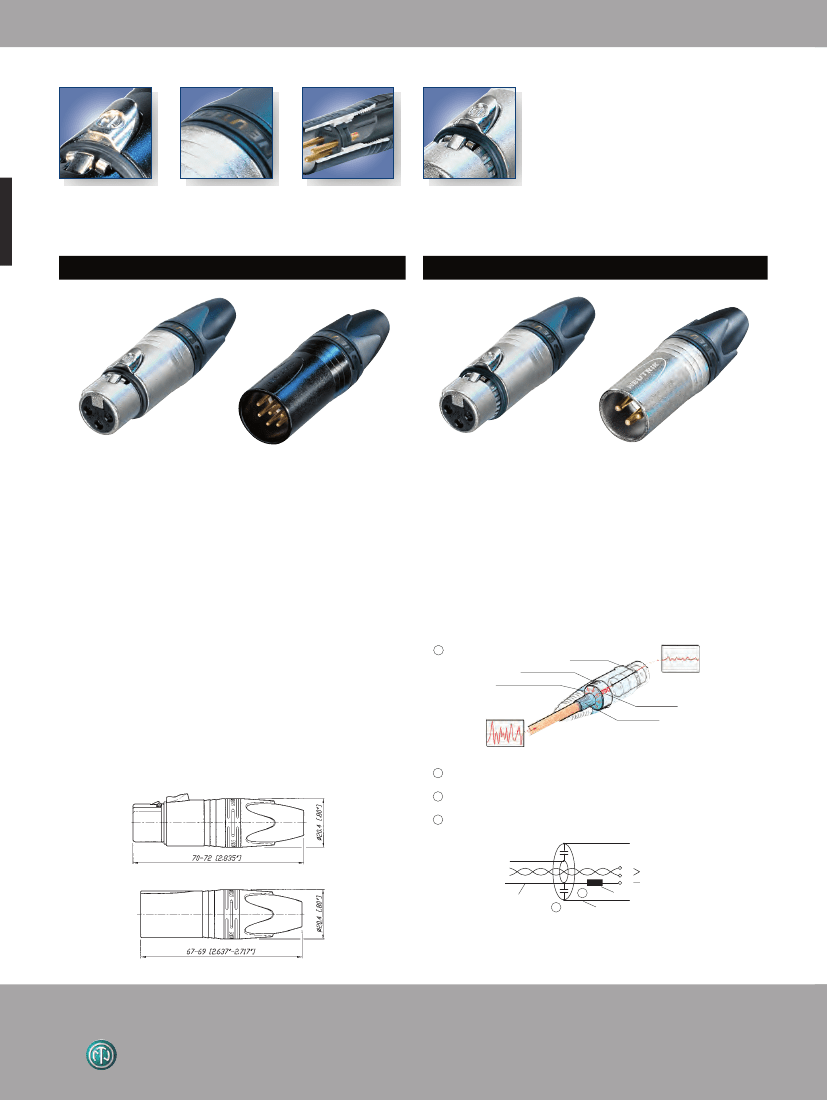

X L R
C a b l e
C o n n e c t o r s
Ergonomic latch
design
Neutrik hologram
Inside view
Circumferential ground shield
contact
XX Series
EMC-XLR Series
NC3FXX
NC6MXX-B
NC3FXX-EMC
NC3MXX-EMC
•
•
•
•
•
•
•
•
•
•
The next generation of the worldwide accepted standard
Unique cage type female contact - increases conductivity
Female contact with “solder stop” for ease soldering
Male connector without locking “window” - more robust
housing, increases durability
Improved chuck type strain relief - increases retention force
and makes assembly easier and faster
New ground contact - excellent contact integrity between
chassis and cable connector
Customized branding using translucent ring
Sleek and ergonomic design - valuable and handy
Unique hologram – guarantees genuineness and protects
against counterfeits
Internal thread on shell is well protected against any
damage
NC*FXX
•
3-pole male / female XLR cable connector with integrated
capacitive shield to shell connection to avoid RF-interference
and LF-noise
•
360° shield contact on female connector ensures best
possible shielding and chassis contact
•
Patent
1
Annular capacitor
Contact #1
Connector shell
Inductance
Cable shield
1
Design guarantees a continuous RF-shield connection but avoids ground
loops (no LF-shield connection)
2
Circular capacitor enables low-inductive shield connection to connector
housing
3
Cable shield - PIN 1 connection includes EMI suppression bead (blocks
high frequencies)
NC*MXX
cable shield
3
2
1
signal contacts
ground contacts
3
2
ferrite bead
connector shell
*: 3 - 7 contacts
