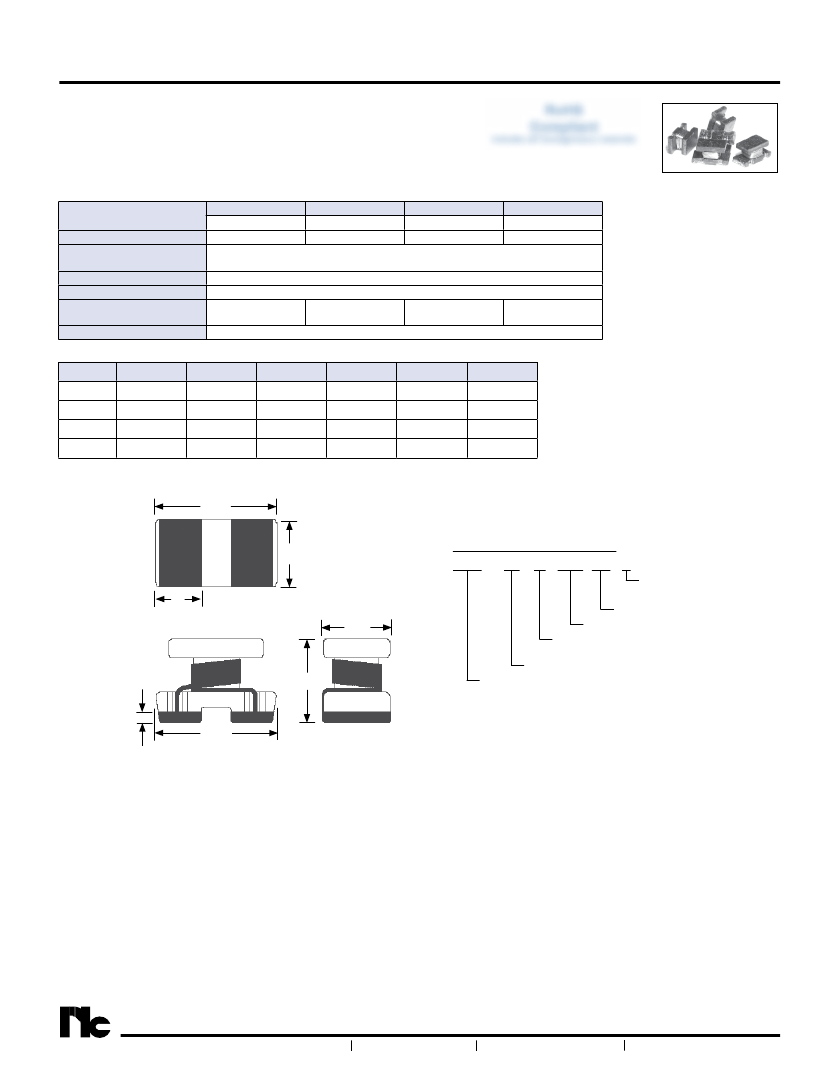

Wirewound Chip Inductors
FEaTuRES
•
•
•
•
•
SMALL SIZE AND SURFACE MOUNTABLE
includes all homogeneous materials
HIGH CURRENT AND LOW DC RESISTANCE CHARACTERISITICS
BOTH FLOW AND REFLOW SOLDERING APPLICABLE
*See Part Number System for Details
HIGH INDUCTANCE AVAILABLE IN SMALL SIZE
EMBOSSED PLASTIC TAPE PACKAGE FOR AUTOMATIC PICK-PLACE
Specifications
Inductance Range
Temperature Range
(Including Self-Heating)
Temperature Rise at Irms
Inductance Change at Irms
Inductance Tolerance
Resistance to Solder Heat
Series
NLQ25
NLQ32
NLQ35
NLQ45
Case Size
1008
1206
1210
1812
A
2.50 ± 0.2
3.20 ± 0.3
3.20 ± 0.3
4.50 ± 0.3
B
2.00 ± 0.2
1.60 ± 0.3
2.50 ± 0.3
3.20 ± 0.3
NLQ25
1008
1.0µH ~ 33µH
NLQ32
1206
0.12µH ~ 100µH
NLQ35
1210
0.15H ~ 560µH
NLQ45
1812
1.0µH ~ 470µH
NLQ Series
RoHS
Compliant
-25°C ~ +125°C
40°C max.
-10% typical
10% (K)
10% (K)
20% (M)
20% (M)
260°C for 5 seconds
C
1.80 ± 0.2
1.80 ± 0.3
2.20 ± 0.3
2.60 ± 0.5
D
0.15 min.
0.15 min.
0.15 min.
0.15 typ.
E
0.8 ± 0.2
1.15 ± 0.2
1.15 ± 0.2
1.75 min.
10% (K)
20% (M)
10% (K)
20% (M)
A
B
E
B
PaRT NuMbER SySTEM
25 M 1R0 TR F
NLQ
RoHS compliant
Packaging: TR = Tape & Reel
Inductance Value Code
Inductance Tolerance Code:
M = ±20%, K = ±10%
Size Code
Series
D
A
C
®
1
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change

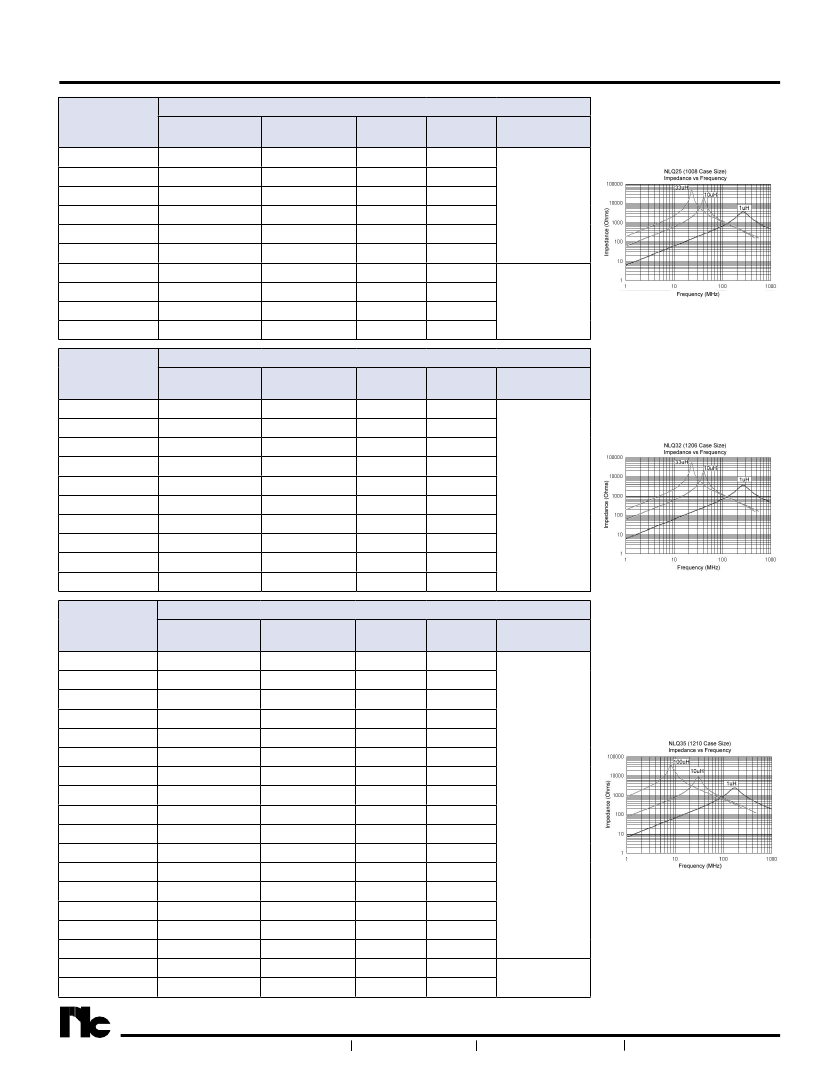

Wirewound Chip Inductors
STaNDaRD VaLuES - CaSE SIZE 25 (2.5 x 2.0 x 1.8mm)
Part Number
NLQ25M1R0TRF
NLQ25M1R5TRF
NLQ25M2R2TRF
NLQ25M3R3TRF
NLQ25M4R7TRF
NLQ25M6R8TRF
NLQ25K100TRF
NLQ25K150TRF
NLQ25K220TRF
NLQ25K330TRF
Inductance Value
(µH)
1.0 ± 20%
1.5 ± 20%
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 10%
15 ± 10%
22 ± 10%
33 ± 10%
DC Resistance
(Ω)
0.422
0.546
0.650
0.845
1.040
1.300
2.197
2.860
3.640
5.460
Irms
(mA)
475
435
390
340
285
275
210
175
160
120
SRF
(MHz) min.
200
165
95
55
43
39
32
21
18
16
2.52MHz
7.96MHz
Test Frequency
NLQ Series
STaNDaRD VaLuES - CaSE SIZE 32 (3.2 x 1.6 x 1.8mm)
Part Number
NLQ32MR12TRF
NLQ32MR22TRF
NLQ32MR47TRF
NLQ32M1R0TRF
NLQ32M2R2TRF
NLQ32M4R7TRF
NLQ32K100TRF
NLQ32K220TRF
NLQ32K470TRF
NLQ32K101TRF
Inductance Value
(µH)
0.10 ± 20%
0.22 ± 20%
0.47 ± 20%
1.0 ± 20%
2.2 ± 20%
4.7 ± 20%
10 ± 10%
22 ± 10%
47 ± 10%
100 ± 10%
DC Resistance
(Ω)
0.112
0.140
0.210
0.364
0.533
0.845
1.690
3.900
10.40
15.60
Irms
(mA)
970
850
700
510
430
340
230
160
100
80
SRF
(MHz) min.
250
250
180
100
50
31
20
14
10
7
1MHz
Test Frequency
STaNDaRD VaLuES - CaSE SIZE 35 (3.2 x 2.5 x 2.2mm)
Part Number
NLQ35MR15TRF
NLQ35MR27TRF
NLQ35MR47TRF
NLQ35M1R0TRF
NLQ35M2R2TRF
NLQ35M4R7TRF
NLQ35K100TRF
NLQ35K180TRF
NLQ35K220TRF
NLQ35K330TRF
NLQ35K470TRF
NLQ35K101TRF
NLQ35K221TRF
NLQ35K271TRF
NLQ35K331TRF
NLQ35K391TRF
NLQ35K471TRF
NLQ35K561TRF
®
Inductance Value
(µH)
0.15 ± 20%
0.27 ± 20%
0.47 ±20%
1.0 ± 20%
2.2 ± 20%
4.7 ± 20%
10 ± 10%
18 ± 10%
22 ± 10%
33 ± 10%
47 ± 10%
100 ± 10%
220 ± 10%
270 ± 10%
330 ± 10%
390 ± 10%
470 ± 10%
560 ± 10%
DC Resistance
(Ω)
0.028
0.034
0.042
0.117
0.169
0.260
0.572
0.852
0.923
1.235
1.690
4.550
10.92
11.85
13.00
22.10
24.70
28.60
Irms
(mA)
1450
1250
1100
800
600
450
300
270
250
220
170
100
70
66
60
60
60
60
SRF
(MHz) min.
400
250
150
96
64
43
26
20
19
14
15
10
6.8
4.5
5.6
5
5
5
1KHz
1MHz
Test Frequency
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change

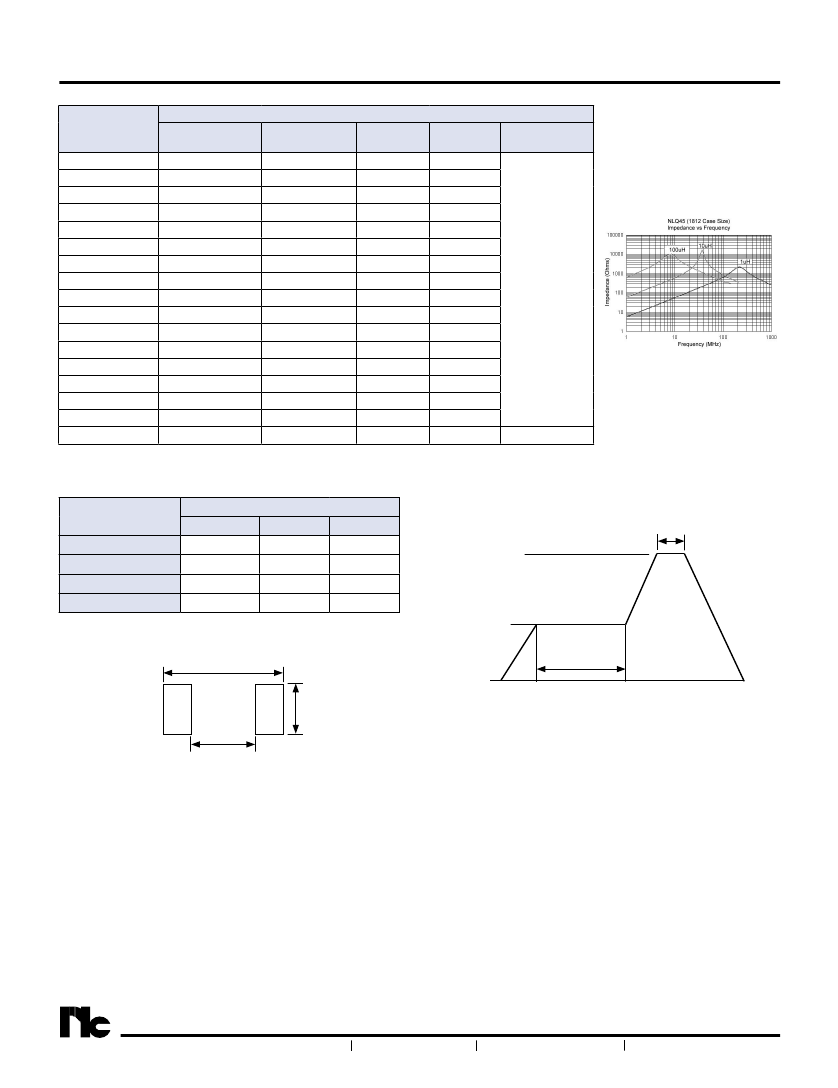

Wirewound Chip Inductors
STaNDaRD VaLuES - CaSE SIZE 45 (4.5 x 3.2 x 2.6mm)
Part Number
NLQ45M1R0TRF
NLQ45M1R5TRF
NLQ45M2R2TRF
NLQ45M3R3TRF
NLQ45M4R7TRF
NLQ45M6R8TRF
NLQ45K100TRF
NLQ45K150TRF
NLQ45K220TRF
NLQ45K330TRF
NLQ45K470TRF
NLQ45K680TRF
NLQ45K101TRF
NLQ45K151TRF
NLQ45K221TRF
NLQ45K331TRF
NLQ45K471TRF
Inductance Value
(µH)
1.0 ± 20%
1.5 ± 20%
2.2 ± 20%
3.3 ± 20%
4.7 ± 20%
6.8 ± 20%
10 ± 10%
15 ± 10%
22 ± 10%
33 ± 10%
47 ± 10%
68 ± 10%
100 ± 10%
150 ± 10%
220 ± 10%
330 ± 10%
470 ± 10%
DC Resistance
(Ω)
0.08
0.09
0.11
0.14
0.15
0.20
0.24
0.32
0.60
1.00
1.10
1.70
2.20
3.50
4.00
6.80
8.50
Irms
(mA)
1080
1000
900
800
750
720
650
570
420
310
280
220
190
130
110
100
90
SRF
(MHz) min.
100
85
60
47
43
30
23
20
15
12
10
8.4
6.8
5.5
4.5
3.6
3.0
1KHz
1MHz
Test Frequency
NLQ Series
Case Size
NLQ25
NLQ32
NLQ35
NLQ45
LaND PaTTERN DIMENSIONS (mm)
L
2.5
3.2
3.2
4.5
G
0.9
1.0
1.0
1.5
H
2.0
1.6
2.5
3.2
150°C
REFLOW SOLDERING PROFILE
5 ~ 10 sec. max.
260°C max.
L
25°C
H
60 sec.
G
®
3
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Specifications are subject to change
