SDS1003STE220M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> SDS1003STE220M

SDS1003STE220M: DescriptionGeneral Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD; CategoryPassive components inductor; File Size257KB，3 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

SDS1003STE220M Overview

General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, SMD

SDS1003STE220M Parametric

Parameter Name	Attribute value
Maker	KOA Speer
Reach Compliance Code	unknown
ECCN code	EAR99
core material	FERRITE
DC Resistance	0.3 Ω
Nominal inductance(L)	22 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e4
Manufacturer's serial number	SDS
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	0.8 A
Shape/Size Description	CYLINDRICAL PACKAGE
shield	YES
surface mount	YES
Terminal surface	SILVER
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

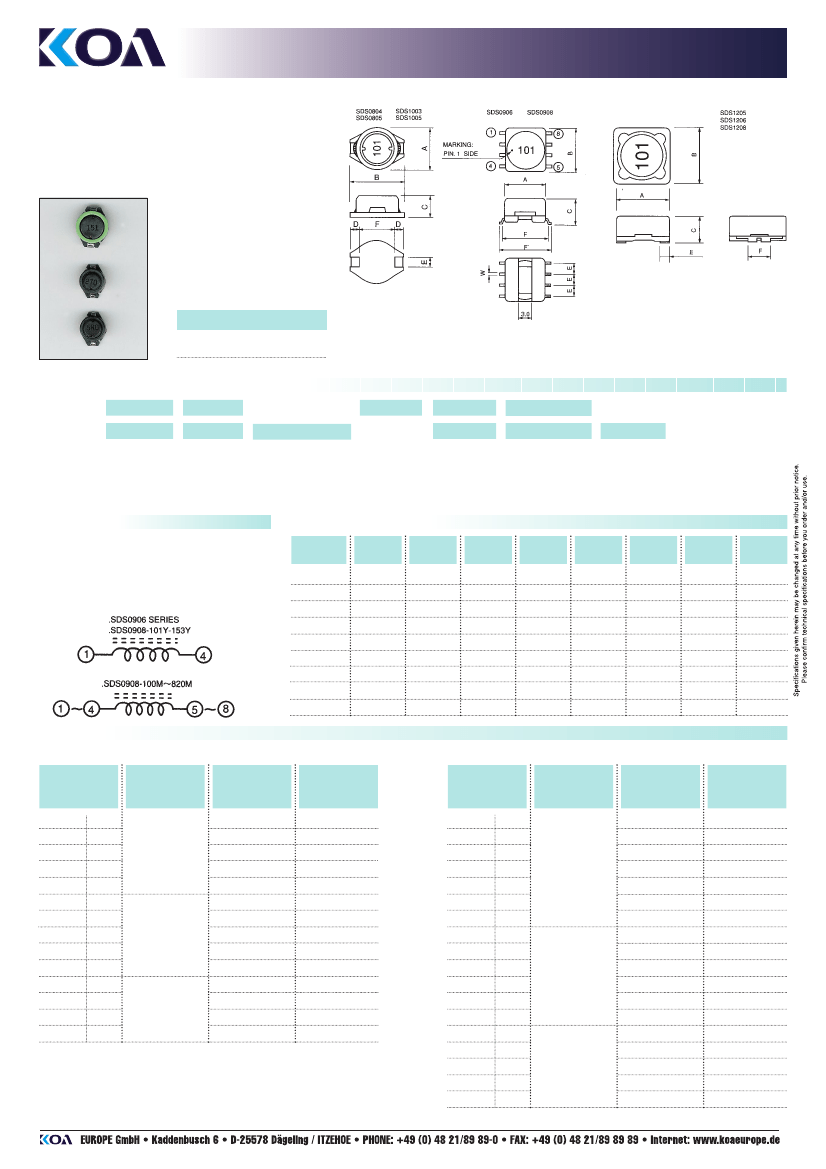

INDUCTORS

TECHNOLOGY OF TOMORROW

FERRITE CORE

SHIELDED POWER CHOKE COIL

SDS

IDENTIFICATION (mm)

MARKING

Black, 3 digits and marking dot

TYPE DESIGNATION (HOW TO ORDER)

Old Part No.

New Part No.

SDS

PRODUCT

CODE

1205

STYLE

TERMINATION

SURFACE MATERIAL

T: Sn

L: Sn/Pb

S: Ag

2R5

NOMINAL

INDUCTANCE

3 digits

(Unit: µH

)

INDUCTANCE

TOLERANCE

INDUCTANCE

TOLERANCE

TAPING*

*Please see “PACKAGING”

FEATURES

Shielded choke coil for large DC current with

low DC resistance

Small surface area allows high density mounting

Operating temperature range: -20° C ... + 80° C

Suitable for reflow soldering

DIMENSIONS (mm)

TYPE

SDS 0804

SDS 0805

SDS 1003

SDS 1005

SDS 0906

SDS 0908

SDS 1205

SDS 1206

SDS 1208

8.0 ± 0.2

10.3 ± 0.2

10.0 ± 0.2

9.5 ± 0.3

12.7 ± 0.3

10.5 ± 0.2

12.7 ± 0.2

10.5

12.7 ± 0.3

3.7 ± 0.3

4.5 ± 0.3

2.7 ± 0.3

4.9 ± 0.3

6.0 ± 0.3

7.5 ± 0.3

5.0 ± 0.5

6.0 ± 0.5

8.0 ± 0.5

2.1 ± 0.2

2.4 ± 0.2

––

2.0 ± 0.2

2.5 ± 0.2

2.5 ± 0.3

2.3 ± 0.2

––

0.7 ± 0.1

––

6.0 ± 0.3

––

6.0 ± 0.3

––

7.6 ± 0.3

––

7.6 ± 0.3

––

11.0 ± 0.5 12.7 ± 0.8

5.0 ± 0.2

––

5.0 ± 0.2

––

5.0 ± 0.2

––

RATING

SDS 0804 S

NOMINAL

INDUCTANCE

AND CODE

5.0 µH

7.5 µH

10.0 µH

12.0 µH

15.0 µH

18.0 µH

22.0 µH

27.0 µH

33.0 µH

39.0 µH

47.0 µH

56.0 µH

68.0 µH

82.0 µH

5R0

7R5

100

120

150

180

220

270

330

390

470

560

680

820

INDUCTANCE

TOLERANCE

RESISTANCE

(MAX.)

0.080

Ω

0.100

Ω

0.120

Ω

0.150

Ω

0.170

Ω

0.190

Ω

0.250

Ω

0.270

Ω

0.300

Ω

0.380

Ω

0.460

Ω

0.600

Ω

0.700

Ω

0.800

Ω

ALLOWABLE

DC CURRENT

(MAX.)

1.70 A

1.40 A

1.20 A

1.10 A

1.00 A

0.90 A

0.80 A

0.70 A

0.65 A

0.60 A

0.55 A

0.50 A

0.45 A

0.40 A

SDS 0805 S

NOMINAL

INDUCTANCE

AND CODE

2.2 µH

3.9 µH

5.6 µH

8.2 µH

10.0 µH

12.0 µH

15.0 µH

18.0 µH

22.0 µH

27.0 µH

33.0 µH

39.0 µH

47.0 µH

56.0 µH

68.0 µH

82.0 µH

100 µH

120 µH

2R2

3R9

5R6

8R2

100

120

150

180

220

270

330

390

470

560

680

820

101

121

INDUCTANCE

TOLERANCE

RESISTANCE

(MAX.)

0.04

Ω

0.055

Ω

0.065

Ω

0.08

Ω

0.10

Ω

0.12

Ω

0.14

Ω

0.16

Ω

0.18

Ω

0.20

Ω

0.24

Ω

0.26

Ω

0.28

Ω

0.38

Ω

0.44

Ω

0.55

Ω

0.60

Ω

0.75

Ω

ALLOWABLE

DC CURRENT

(MAX.)

2.50 A

2.10 A

1.95 A

1.75 A

1.50 A

1.40 A

1.30 A

1.20 A

1.10 A

1.00 A

0.92 A

0.84 A

0.75 A

0.68 A

0.60 A

0.54 A

0.50 A

0.45 A

M (± 20%)

Y (± 15%)

K (± 10%)
