DG441AZ/883 datasheet, PDF - EEWORLD Datasheet

DG441AZ/883: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, LCC-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size253KB，8 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

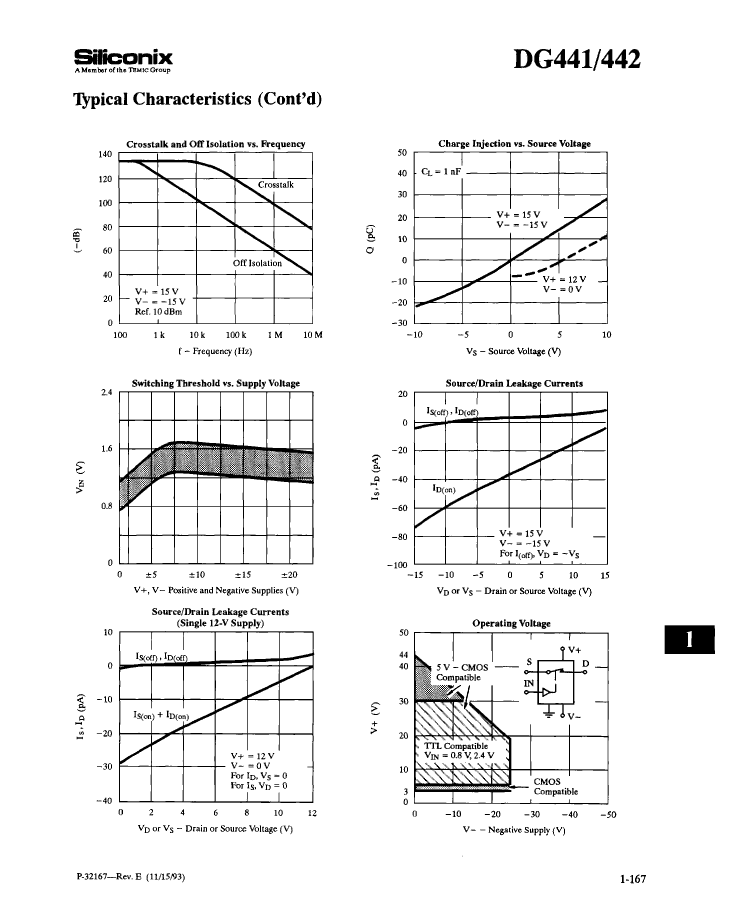

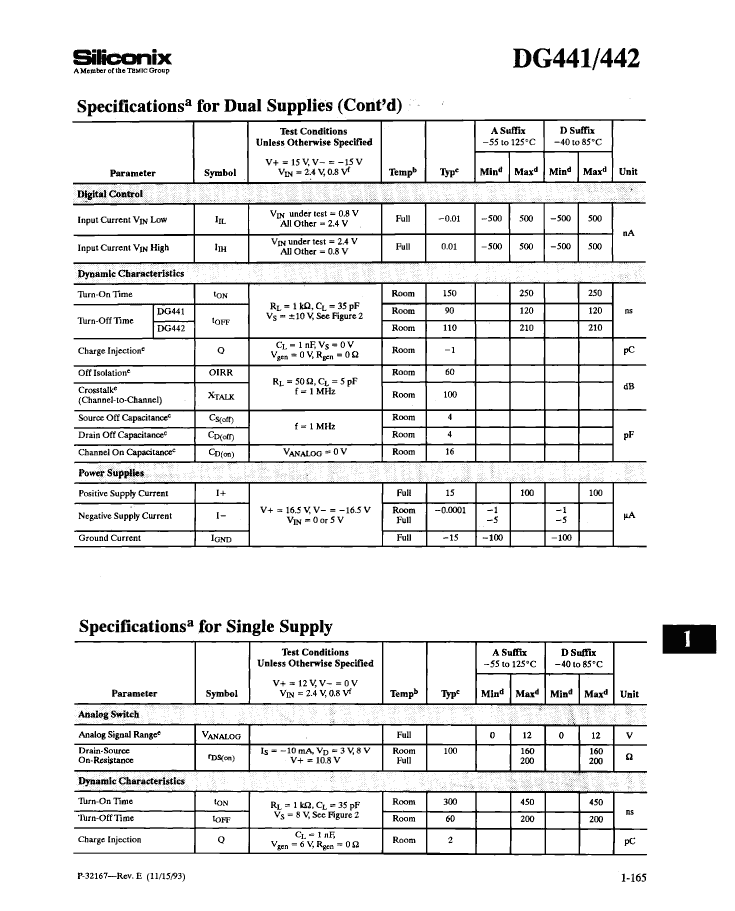

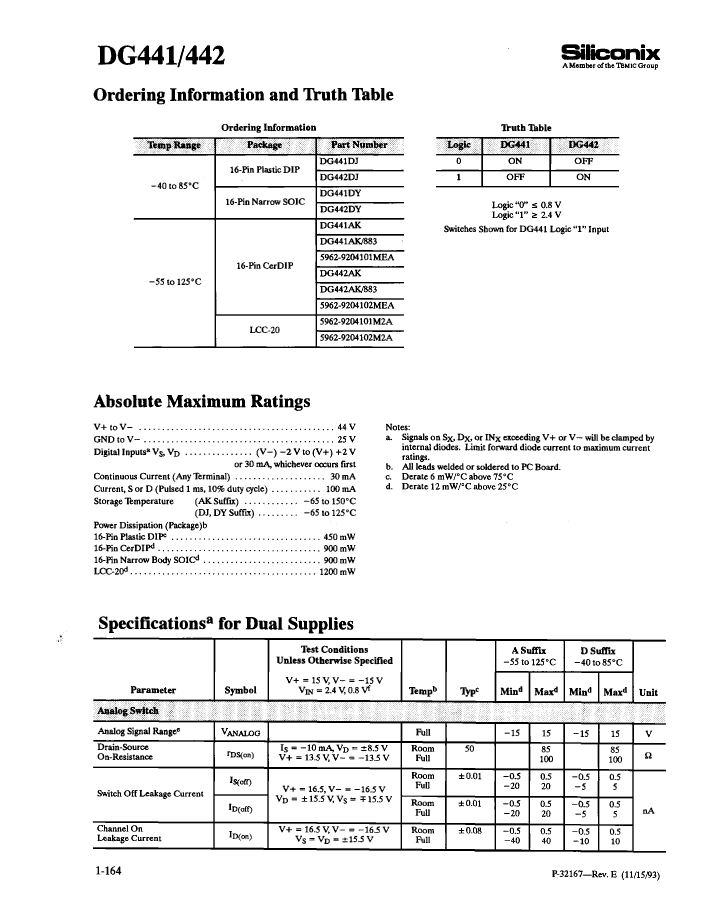

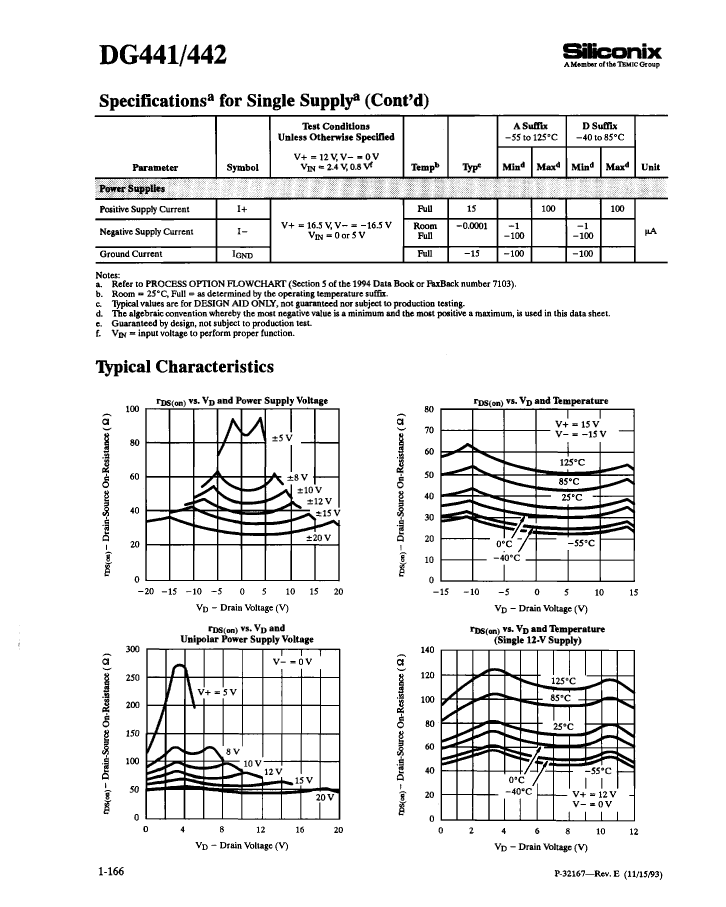

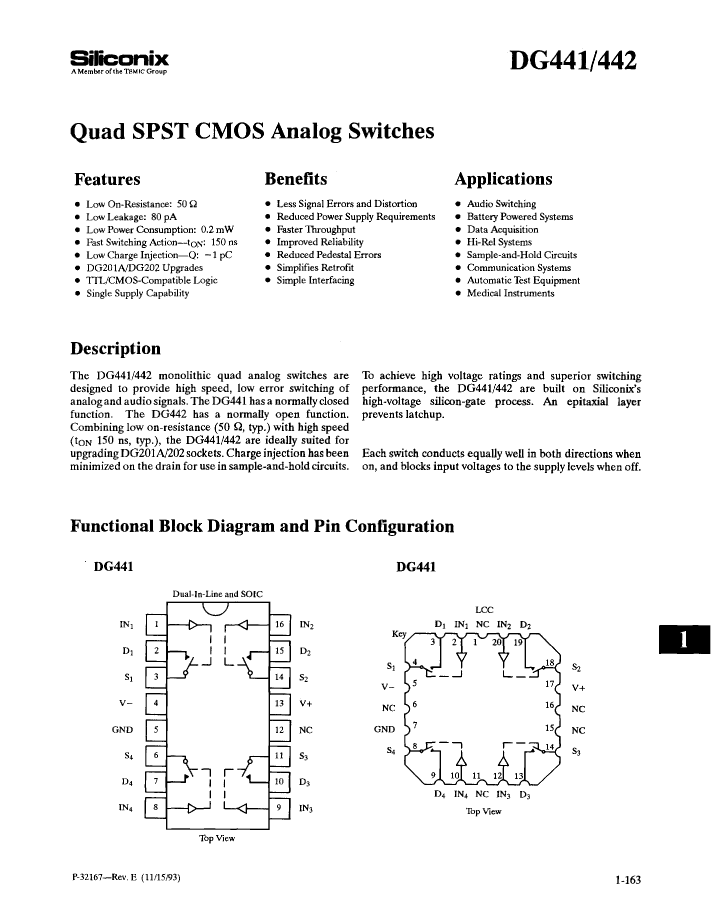

DG441AZ/883 Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, LCC-20, Multiplexer or Switch

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	QLCC
package instruction	QCCN,
Contacts	20
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	20
Nominal off-state isolation	60 dB
Maximum on-state resistance (Ron)	85 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply current (Isup)	0.1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	120 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	30
width	8.89 mm

	DG441AZ/883	DG442AZ/883
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, LCC-20, Multiplexer or Switch	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, CQCC20, LCC-20, Multiplexer or Switch
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Vishay	Vishay
Parts packaging code	QLCC	QLCC
package instruction	QCCN,	QCCN,
Contacts	20	20
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST
JESD-30 code	S-CQCC-N20	S-CQCC-N20
JESD-609 code	e0	e0
length	8.89 mm	8.89 mm
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	1
Number of functions	4	4
Number of terminals	20	20
Nominal off-state isolation	60 dB	60 dB
Maximum on-state resistance (Ron)	85 Ω	85 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	QCCN
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	240	240
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.54 mm	2.54 mm
Maximum supply current (Isup)	0.1 mA	0.1 mA
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	YES	YES
Maximum disconnect time	120 ns	210 ns
Maximum connection time	250 ns	250 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	30	30
width	8.89 mm	8.89 mm
