LF412MJ/883

Description
DUAL OP-AMP, 3000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP8, DIP-8
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size2MB,15 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

LF412MJ/883 Overview

DUAL OP-AMP, 3000uV OFFSET-MAX, 4MHz BAND WIDTH, CDIP8, DIP-8

LF412MJ/883 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRochester Electronics
Parts packaging codeDIP
package instructionDIP-8
Contacts8
Reach Compliance Codeunknown
Amplifier typeOPERATIONAL AMPLIFIER
Maximum average bias current (IIB)0.0002 µA
Nominal Common Mode Rejection Ratio100 dB
Maximum input offset voltage3000 µV
JESD-30 codeR-GDIP-T8
JESD-609 codee0
Humidity sensitivity level1
Negative supply voltage upper limit-18 V
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions2
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)260
Filter levelMIL-STD-883
Maximum seat height5.08 mm
Nominal slew rate15 V/us
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperature40
total doseMIL-STD-883 V
Nominal Uniform Gain Bandwidth4000 kHz
width7.62 mm

LF412MJ/883 Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu r xmu ai s
o
a
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
LF412 Low Offset, Low Drift Dual JFET Input Operational Amplifier
January 28, 2010
LF412
Low Offset, Low Drift Dual JFET Input Operational
Amplifier
General Description
These devices are low cost, high speed, JFET input opera-
tional amplifiers with very low input offset voltage and guar-
anteed input offset voltage drift. They require low supply
current yet maintain a large gain bandwidth product and fast
slew rate. In addition, well matched high voltage JFET input
devices provide very low input bias and offset currents. The
LF412 dual is pin compatible with the LM1558, allowing de-
signers to immediately upgrade the overall performance of
existing designs.
These amplifiers may be used in applications such as high
speed integrators, fast D/A converters, sample and hold cir-
cuits and many other circuits requiring low input offset voltage
and drift, low input bias current, high input impedance, high
slew rate and wide bandwidth.
Features
Internally trimmed offset voltage: 1 mV (max)
Input offset voltage drift: 10
μV/°C
(max)
Low input bias current: 50 pA
Low input noise current:
Wide gain bandwidth: 3 MHz (min)
High slew rate: 10V/μs (min)
Low supply current: 1.8 mA/Amplifier
High input impedance: 10
12
Ω
Low total harmonic distortion
0.02%
Low 1/f noise corner: 50 Hz
Fast settling time to 0.01%: 2
μs

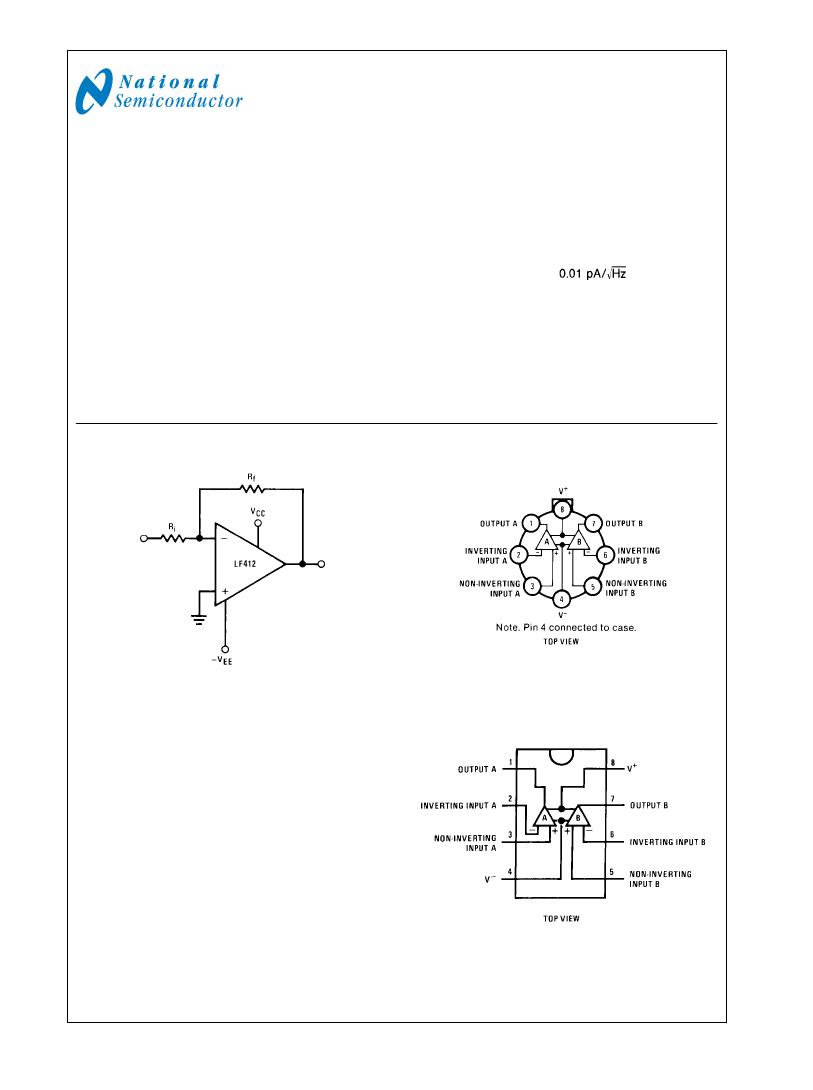

Typical Connection
Connection Diagrams
Metal Can Package
565642
565641
Ordering Information
X
Y
LF412XYZ
indicates electrical grade
indicates temperature range
“M”
for military
“C”
for commercial
indicates package type
“H”
or “N”
Order Number LF412MH, LF412CH
See NS Package Number H08A
or LF412MH/883
(Note
1)
See NS Package Number H08C
Dual-In-Line Package
Z
565644
Order Number LF412ACN, LF412CN
or LF412MJ/883
(Note
1)
See NS Package Number J08A or N08E
BI-FET II™ is a trademark of National Semiconductor Corporation.
© 2010 National Semiconductor Corporation
5656
www.national.com
LF412

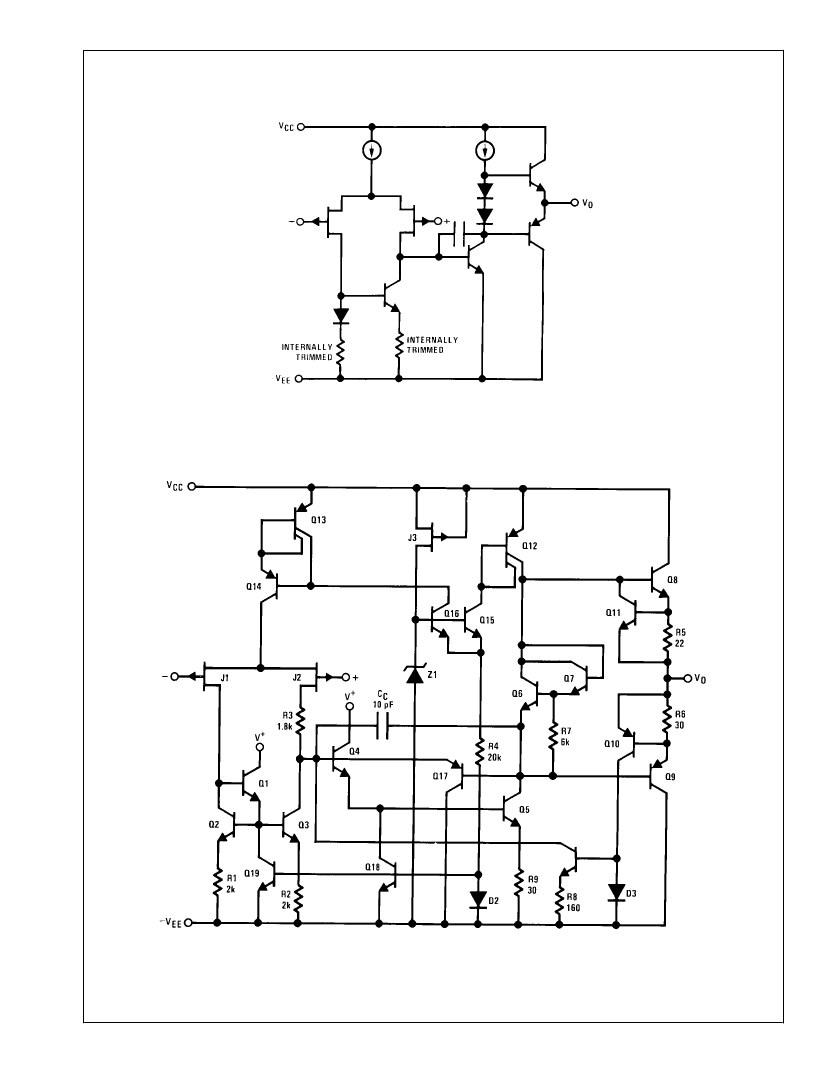

Simplified Schematic
