FES26A........FES26ET
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier
Voltage
200 to 1000 V
DO-214AC (SMA)
Current
1.0 A
R
FEATURES
Low profile package
Ideal for automated placement
Ultrafast recovery time for high efficiency
Low power losses
Low forward voltage drop
High forward surge current capability
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 1, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
DO-214AC (SMA). Epoxy meets UL 94V-0
flammability rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
HE3
suffix
for high reliability grade, meets JESD 201
class 2 whisker test.
TYPICAL APPLICATIONS
Used in high frequency rectification and freewheeling
application in switching mode converters and inverters for
consumer, computer, automotive and telecommunication.
Maximun Ratings and Electrical Characteristics at 25°C
FES26A FES26B FES26C FES26D FES26E FES26ET
Marking Code
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
t
rr
V
BR
T
j
T
stg
E
RSM
Peak Recurrent Reverse Voltage (V)
Maximum RMS Voltage (V)
Maximum DC Blocking Voltage (V)
Average forward current
Recurrent peak forward current
8.3 ms. peak forward surge current
Max. reverse recovery time from
I
F
= 0.5 A ; I
R
= 1 A ;I
RR
= 0.25 A
Avalanche breakdown voltage at 100 µA (V)
Operating temperature range
Storage temperature range
Maximum non repetitive peak reverse
Avalanche Energy I
R
= 1 A ; T
j
= 25 °C
at 25 °C
at 175 °C
at 25 °C
at 100 °C
(Jedec Method)
E1
200
140
200
E2
400
280
400
E3
600
420
600
1A
10 A
30 A
E4
800
560
800
E5
1000
700
1000
E6
1000
700
1000
30 ns
>300
>500
>700
75 ns
>900
-65 to + 175 °C
-65 to + 175 °C
10 mJ
50 ns
>1050
5 mJ
Electrical Characteristics at Tamb = 25 °C
V
F
I
R
R
thj-l
R
th (j-a)
Max. forward voltage drop at I
F
= 1 A
Max. freverse current at V
RRM
Typical thermal resistance
(5x5 mm
2
x 130 µm Copper Area)
2.5 V
1.3 V
5 µA
100 µA
27 °C/W
75 °C/W
Version: Jan-13
Page Number: 1/4
4.0 V
2.85 V
www.fagorelectronica.com
Document Name: fes26
FES26A........FESET
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier
Ordering information
PREFERRED P/N
FES26C TRTB
FES26C HE3 TRTB
FES26C TRTS
PACKAGE CODE
TRTB
TRTB
TRTS
DELIVERY MODE
13" diameter tape and reel
13" diameter tape and reel
7" diameter tape and reel
BASE QUANTITY
7,500
7,500
1,500
UNIT WEIGHT (g)
0.060
0.060
0.060

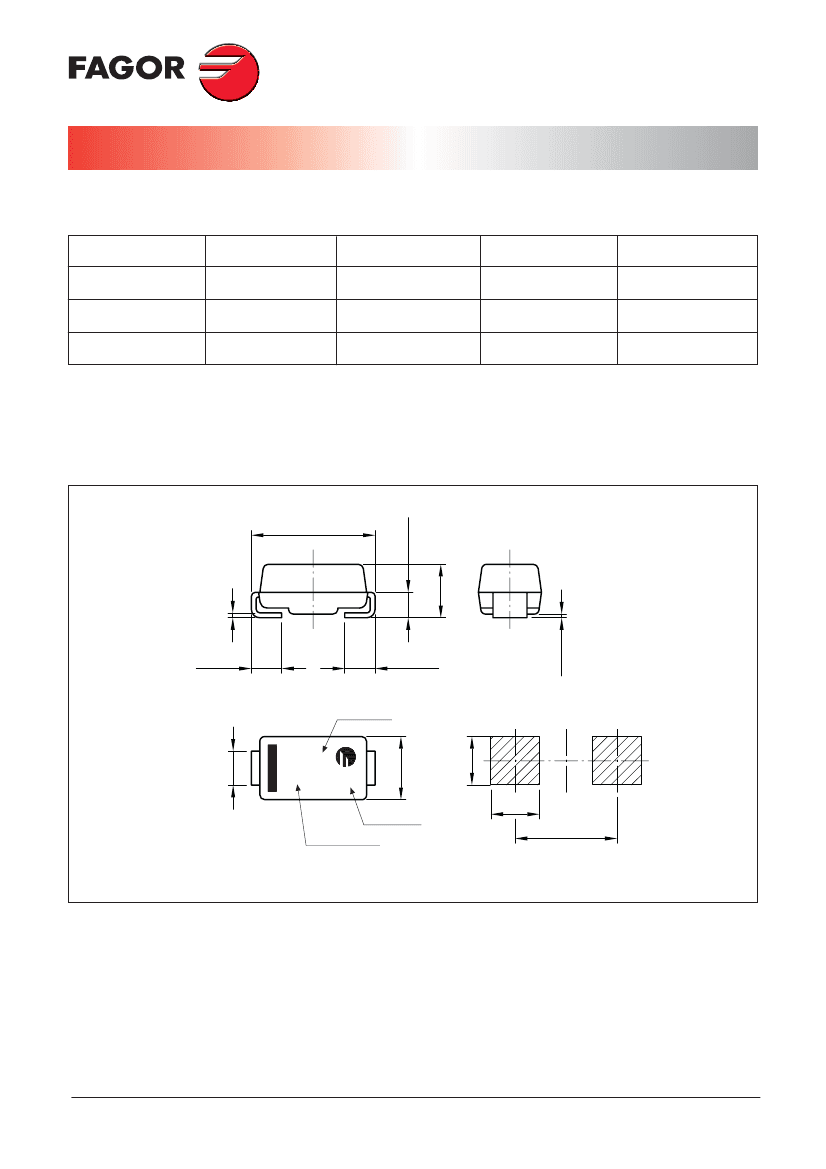

Package Outline Dimensions: (mm)
5.1
±0.3
DO-214AC (SMA)
1.05
±0.2
2.2
±0.3
0.2
-0.05
+0.1
1.25
±0.25
1.25
±0.25
Week code
Mounting Pad Layout
1.4
-0.1
2.6
±0.3
+0.2
MC
WW
Y
2
Year code
Marking code
2
4.2
www.fagorelectronica.com
Document Name: fes26
0.15
±0.1
Version: Jan-13
Page Number: 2/4
FES26A........FES26ET
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier

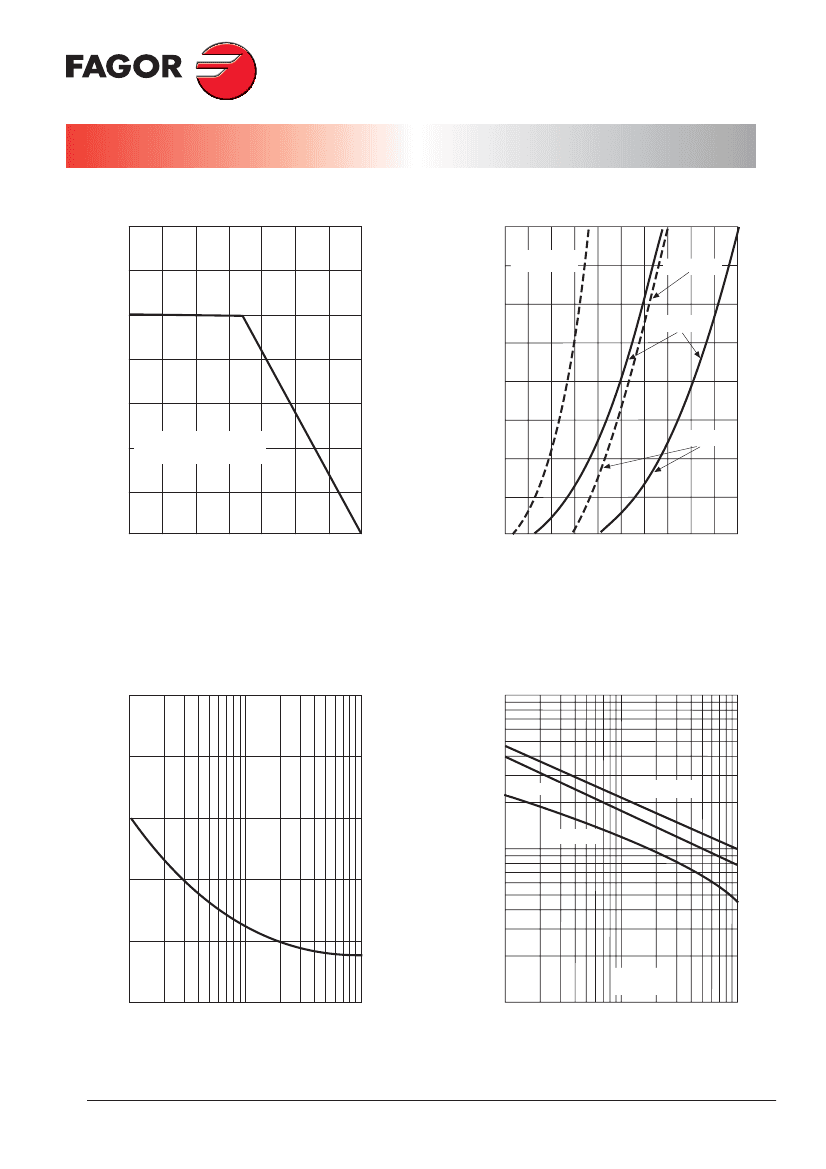

FORWARD CURRENT DERATING CURVE
MAXIMUM FORWARD CHARACTERISTIC
1.4
I
F(AV)
, average forward rectified current (A)
I
F
, instantaneous forward current (A)
1.2
1
0.8
0.6
0.4
0.2
0
5 x 5 mm
2
x 130 µ
Thick Copper Land Areas
2
T
j
= 175 °C
T
j
= 150 °C
1.5
T
j
= 25 °C
1
FES26ET
0.5
0
25
50
75 100 125 150 175
0
0
1
2
3
4
5
Lead temperature (°C)
V
F
, instantaneous forward voltage (V)
MAXIMUM NON REPETITIVE
PEAK FORWARD SURGE CURRENT
TYPICAL JUNCTION CAPACITANCE
50
100
I
FSM
, peak forward surge current (A)
C
j
, junction capacitance (pF)
40
FES26D,E
FES26A,B,C
30
10
FES26ET
20
10
0
1
2
4 6
10
20
40 60 100
1
T
j
= 25 °C
f = 1MHz
1
5
10
50
100
Number of cycles at 50 Hz.
V
R
, reverse voltage (V)
www.fagorelectronica.com
Document Name: fes26
Version: Jan-13
Page Number: 3/4
FES26A........FES26ET
1.0 Amp. Surface Mount Glass Passivated Ultrafast Recovery Rectifier
Disclaimer
All product, product specifications and data are subject to change without notice to improve reliability,
function or design or otherwise.
Fagor Electrónica, S.Coop., its affiliates, agents, and employees, and all persons acting on its or their
behalf (collectively, "Fagor"), disclaim any and all liability for any errors, inaccuracies or incompleteness contained
in any datasheet or in any other disclosure relating to any product.
Fagor makes no warranty, representation or guarantee regarding the suitability of the products for any particular
purpose or the continuing production of any product. To the maximum extent permitted by applicable law,
Fagor disclaims (i) any and all liability arising out of the application or use of any product, (ii) any and all
liability, including without limitation special, consequential or incidental damages, and (iii) any and all implied
warranties, including warranties of fitness for particular purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Fagor's knowledge
of typical requirements that are often placed on Fagor products in generic applications. Such statements are not
binding statements about the suitability of products for a particular application. It is the customer's responsibility
to validate that a particular product with the properties described in the product specification is suitable for use in a
particular application. Parameters provided in datasheets and/or specifications may vary in different applications
and performance may vary over time. All operating parameters, including typical parameters, must be validated
for each customer application by the customer's technical experts. Product specifications do not expand or
otherwise modify Fagor's terms and conditions of purchase, including but nos limited to the warranty expressed
therein.
Except as expressly indicated in writing. Fagor products are not designed for use in medical, life-saving, or
life-sustaining applications or for any other application in which the failure of the Fagor product could result in
personal injury or death. Customers using or selling Fagor products not expressly indicated for use in such
applications do so at their own risk and agree to fully indemnify and hold Fagor and its distributors harmless from
and against any and all claims, liabilities, expenses and damages arising or resulting in connection with such use
or sale, including attomeys fees, even if such claim alleges that Fagor or its distributor was negligent regarding
the design or manufacture of the part. Please contact authorized Fagor personnel to obtain written terms and
conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this
document or by any conduct of Fagor, Product names and markings noted herein may be trademarks of their
respective owners.
www.fagorelectronica.com
Document Name: fes26
Version: Jan-13
Page Number: 4/4
