SMF106A-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> SMF106A-C

SMF106A-C: DescriptionRectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size223KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SMF106A-C Overview

Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AC, SMA, 2 PIN

SMF106A-C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SECOS
package instruction	R-PDSO-C2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	30 A
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	800 V
Maximum reverse recovery time	0.5 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

SMF101A ~ SMF107A

Elektronische Bauelemente

RoHS Compliant Product

A suffix of “-C” specifies halogen-free and RoHS Compliant

50 ~ 1000 V

1.0 Amp Surface Mount Silicon

Fast Recovery Rectifiers

FEATURES



Surface mount device

High surge current capability

Low reverse current

Component in accordance to RoHS 2002/95/EC

SMA

MECHANICAL DATA



Cases：DO-214AC(SMA)

Case Material：Molded Plastic. UL Flammability

Classification Rating 94V-0

Terminals：Lead Free Plating(Tin Finish)

Solderable Per MIL-STD-202, Method 208

Polarity：Cathode Band

Weight：0.064 grams(approximate)

REF.

Millimeter

Min.

Max.

1.24

1.65

3.99

4.60

2.40

2.90

1.90

2.44

REF.

Millimeter

Min.

Max.

0.203

4.80

5.28

0.76

1.52

0.15

0.305

PACKAGE INFORMATION

Package

SMA

MPQ

Leader Size

13 inch

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Rating 25°C ambient temperature unless otherwise specified. Single phase half wave, 60Hz, resistive or inductive load.

For capacitive load, de-rate current by 20%)

Parameter

Maximum repetitive peak

reverse voltage

Maximum RMS voltage

Maximum DC blocking voltage

Maximum average forward rectified current

=55°C

Peak Forward Surge Current, 8.3ms single half

sine-wave superimposed on rated load

Maximum Instantaneous Forward Voltage

@ 1A

Maximum DC Reverse

=25°C

Current at Rated DC Blocking

=125°C

Voltage

Typical Junction Capacitance

Maximum Reverse Recovery Time

Thermal Resistance, Junction to Ambient

Thermal Resistance, Junction to Lead

Storage and Operating Temperature Range

Symbol

RRM

RMS

FSM

Trr

θJA

θJL

STG

, T

Part Number

SMF

101A

SMF

102A

SMF

103A

SMF

104A

SMF

105A

SMF

106A

SMF

107A

Unit

100

200

140

200

400

280

400

1.3

100

600

420

600

800

560

800

1000

700

1000



250

500

°C/W

°C

150

105

-55 ~ 150

NOTES:

1. Measured at 1.0MHz and applied reverse voltage of 4.0V D.C.

2. Measured with IF=0.5A, IR=1A, IRR=0.25A

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

29-Jul-2013 Rev. D

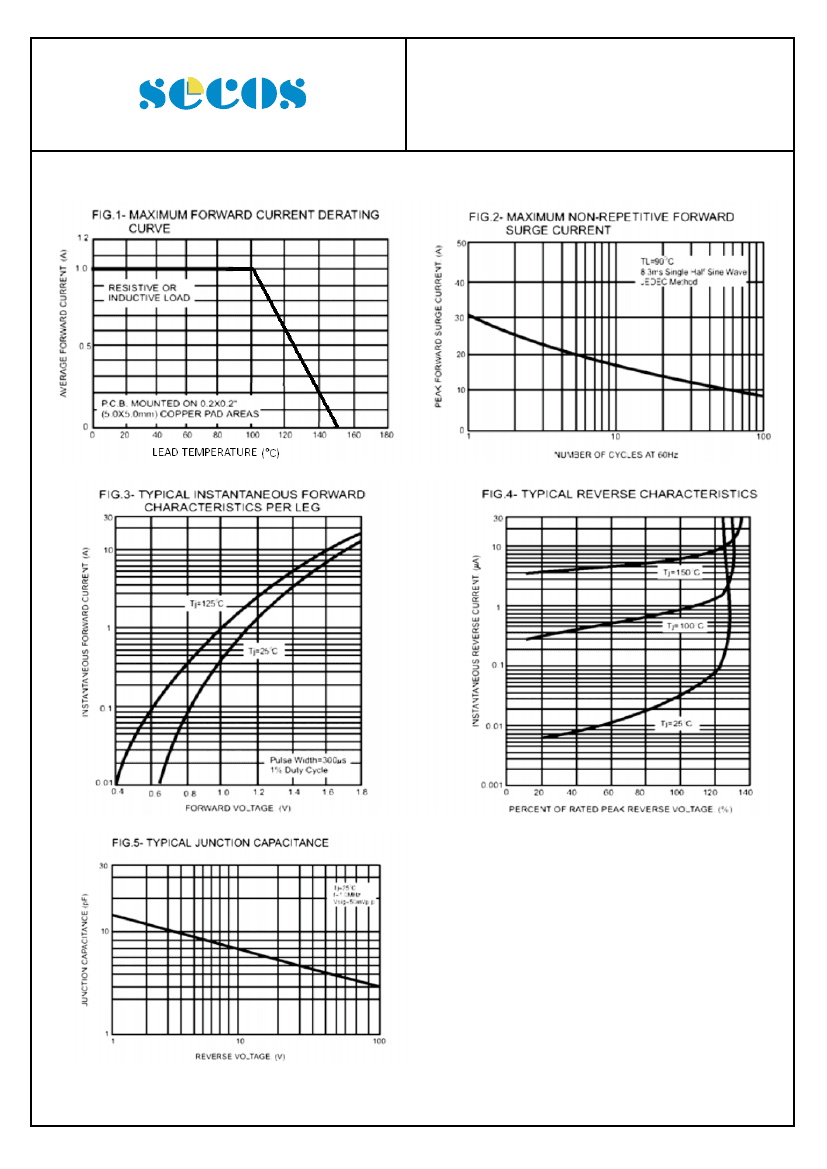

Page 1 of 2

SMF106A-C Related Products

	SMF106A-C	SMF103A-C	SMF104A-C	SMF105A-C	SMF101A-C	SMF102A-C	SMF107A-C
Description	Rectifier Diode, 1 Element, 1A, 800V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 200V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 400V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 600V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 50V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon, DO-214AC, SMA, 2 PIN	Rectifier Diode, 1 Element, 1A, 1000V V(RRM), Silicon, DO-214AC, SMA, 2 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC	DO-214AC
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Maximum non-repetitive peak forward current	30 A	30 A	30 A	30 A	30 A	30 A	30 A
Number of components	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	800 V	200 V	400 V	600 V	50 V	100 V	1000 V
Maximum reverse recovery time	0.5 µs	0.15 µs	0.15 µs	0.25 µs	0.15 µs	0.15 µs	0.5 µs
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
