S2GAR3G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S2GAR3G

S2GAR3G: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 400V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN; CategoryDiscrete semiconductor diode; File Size435KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

S2GAR3G Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 400V V(RRM), Silicon, DO-214AC, GREEN, PLASTIC, SMA, 2 PIN

S2GAR3G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	GREEN, PLASTIC, SMA, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JEDEC-95 code	DO-214AC
JESD-30 code	R-PDSO-C2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	5 µA
Maximum reverse recovery time	1.5 µs
surface mount	YES
Terminal form	C BEND
Terminal location	DUAL

Preview

Download Datasheet

View All

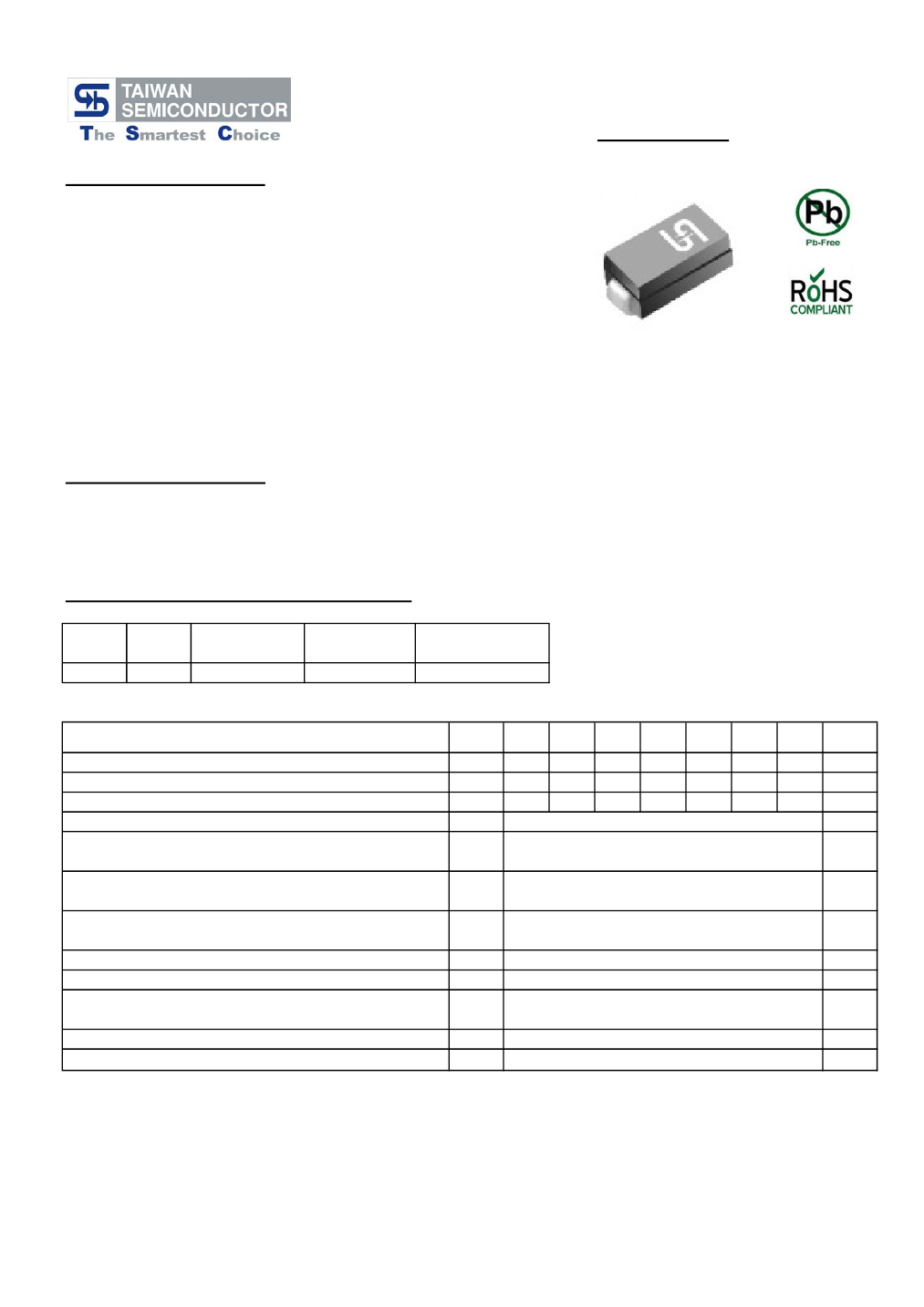

CREAT BY ART

S2AA - S2MA

1.5AMPS Surface Mount Rectifiers

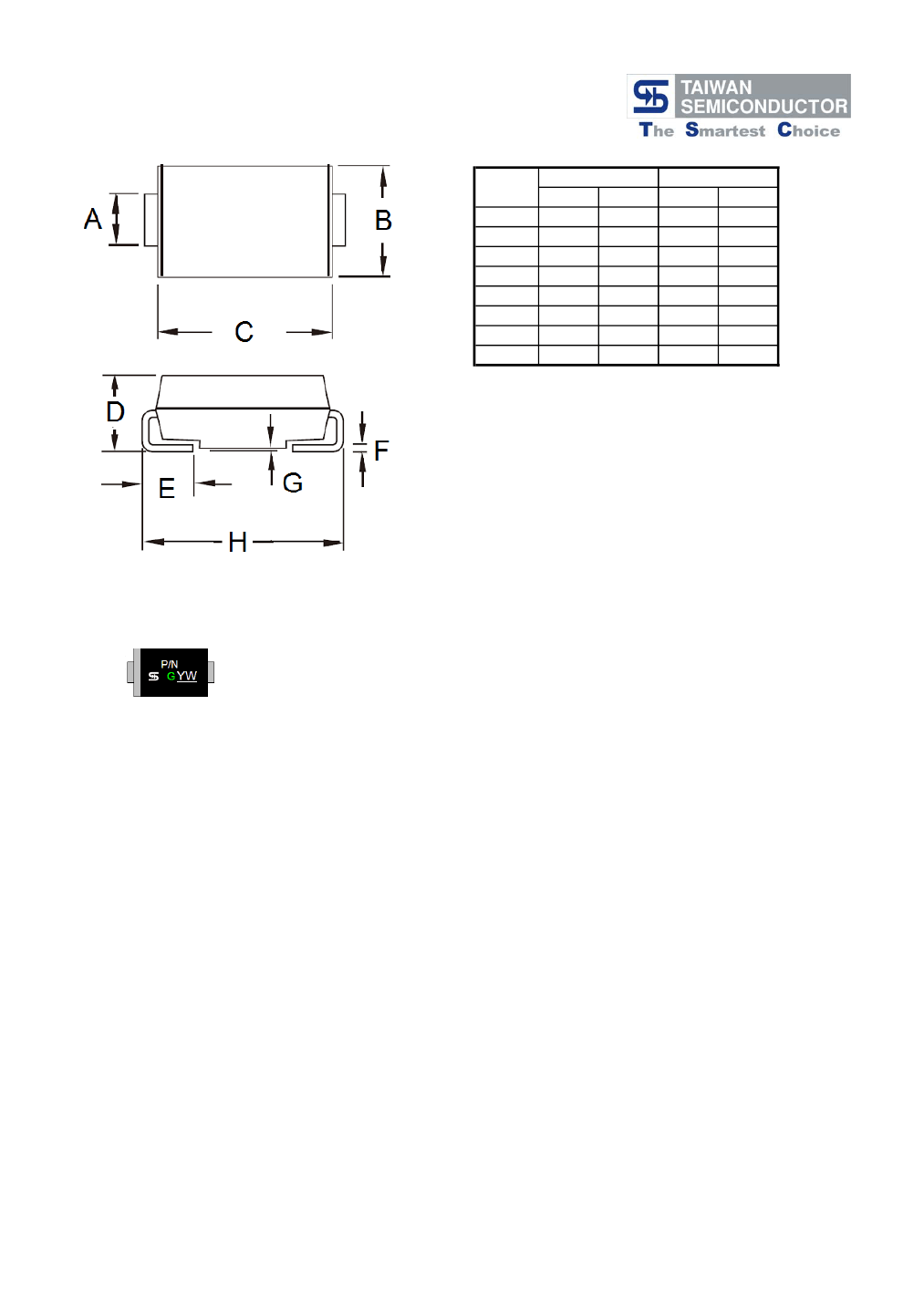

SMA/DO-214AC

Features

For surface mounted application

Glass passivated junction chip

Low forward voltage drop

High current capability

Easy pick and place

High surge current capability

Plastic material used carries Underwriters

Laboratory Classification 94V-0

Meet MSL level 1, per J-STD-020D,

lead free maximum peak of 260℃

High temperature soldering:

260℃/10 seconds at terminals

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic

Terminal: Pure tin plated, lead free

Polarity: Indicated by cathode band

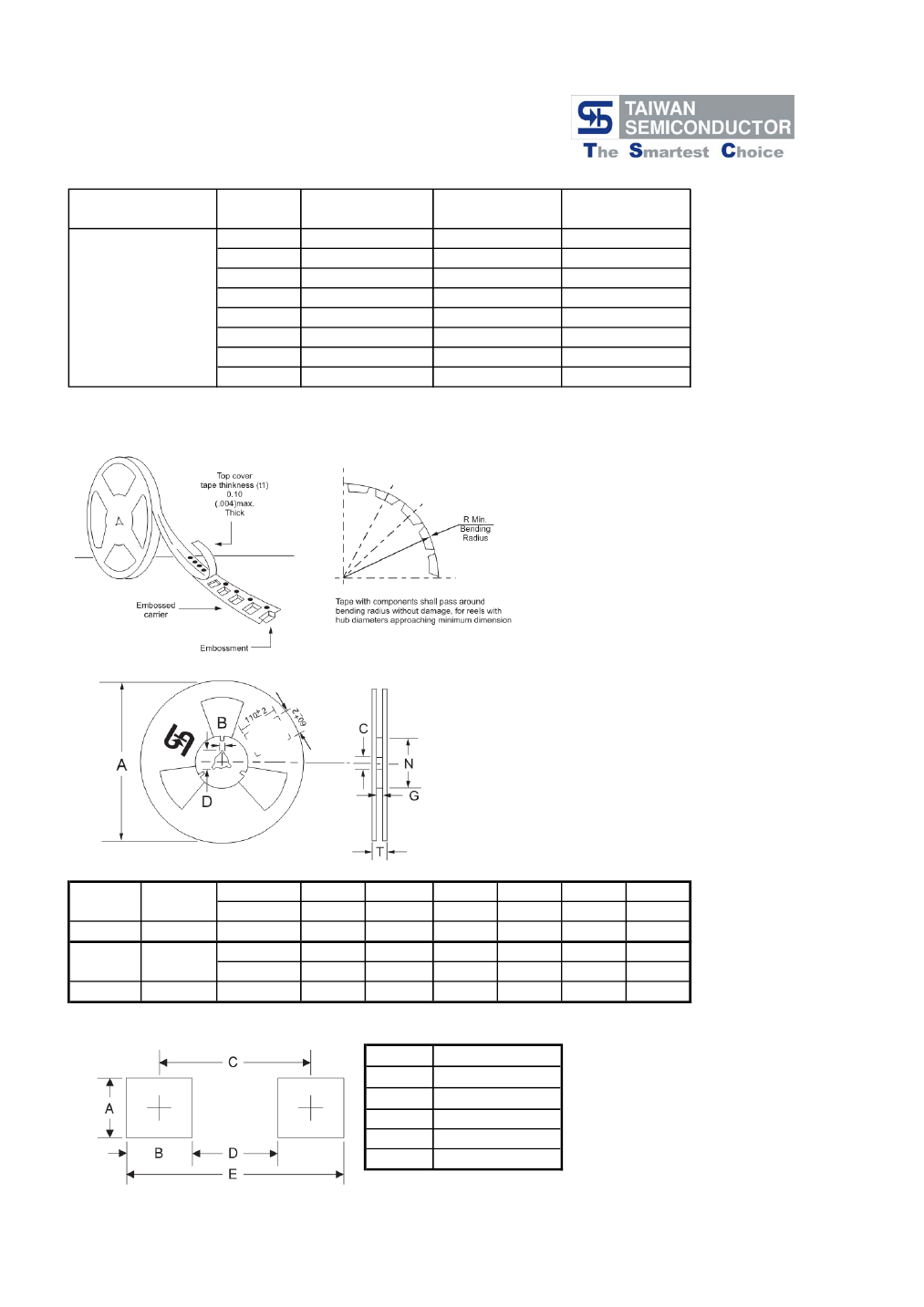

Packaging: 12mm tape per EIA STD RS-481

Weight: 0.064 grams

Ordering Information (example)

Part No.

S2AA

Package

SMA

Packing

1.8K / 7" REEL

Packing code

(Green)

R3G

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms Single Half Sine-wave

Superimposed on Rated Load (JEDEC method)

Maximum Instantaneous Forward Voltage (Note 1)

@ 1.5A

Maximum DC Reverse Current at

Rated DC Blocking Voltage

@ T

=25

℃

@ T

=125

℃

Symbol

RRM

RMS

F(AV)

FSM

Trr

θJL

θJA

STG

100

200

140

200

400

280

400

1.5

1.1

125

1.5

600

420

600

800

560

800

1000

700

1000

Units

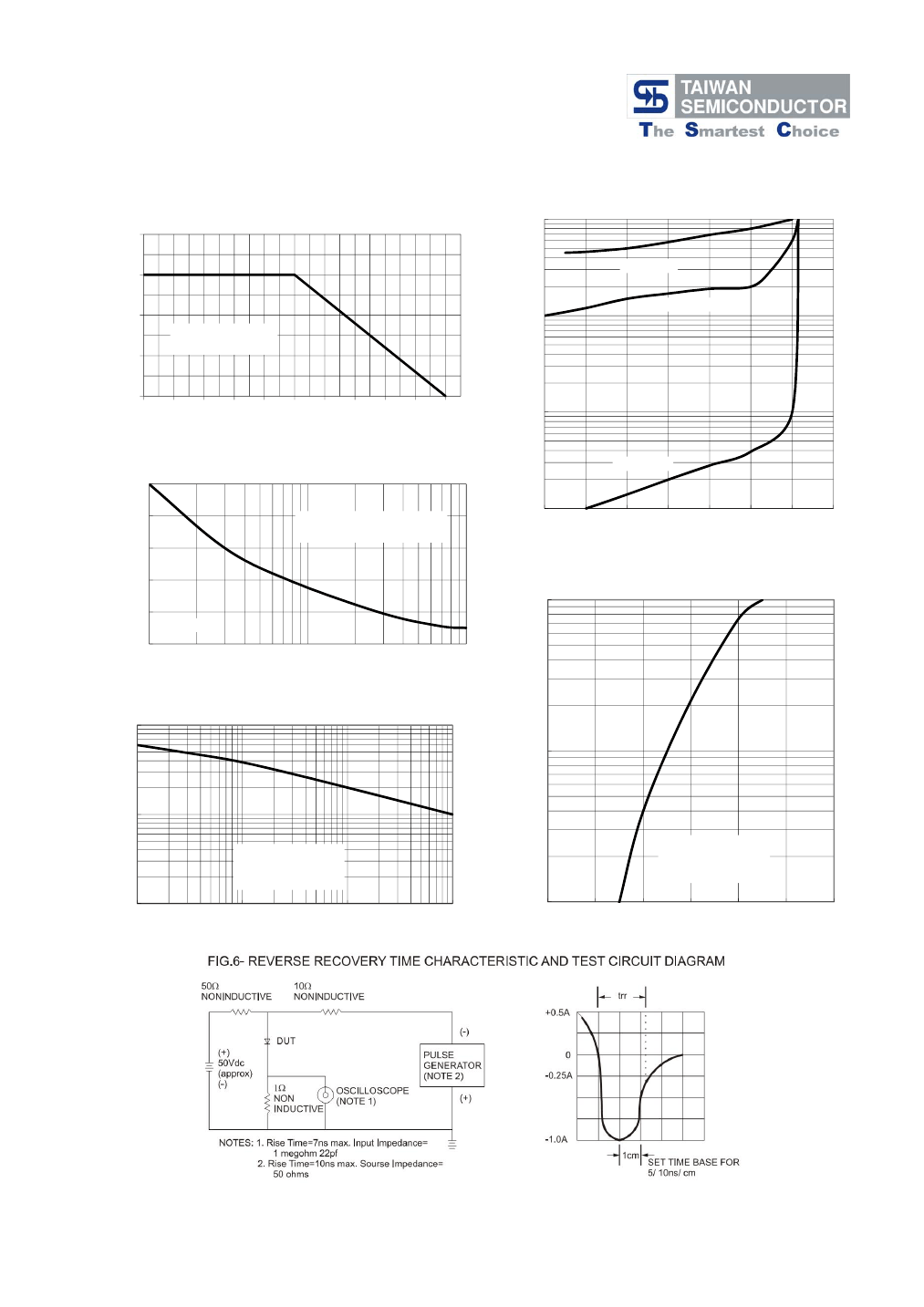

Typical Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance

Operating Temperature Range

Storage Temperature Range

Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied V

=4.0 Volts

C/W

- 55 to + 150

Version:H13
