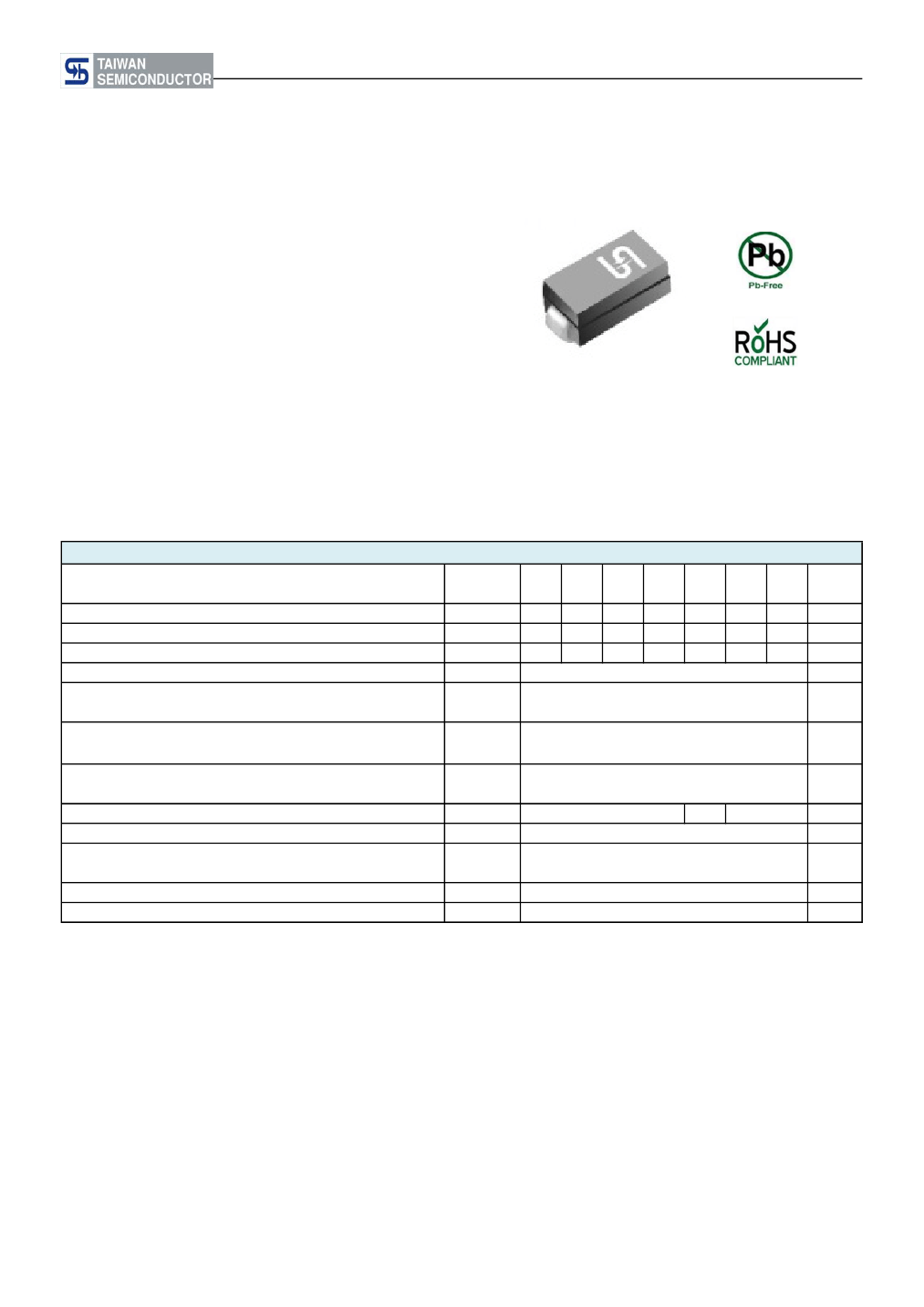

RS1A thru RS1M
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Glass passivated chip junction
- Ideal for automated placement
- Fast switching for high efficiency
- Moisture sensitivity level: level 1, per J-STD-020
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Surface Mount Fast Recovery Rectifiers
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - Green compound (halogen-free)
Base P/N with prefix "H" on packing code - AEC-Q101 qualified
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
with prefix "H" on packing code meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
DO-214AC (SMA)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@1A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
Trr
Cj
R
θJC
R
θJA
T
J
T
STG
150
10
32
105
- 55 to +150
- 55 to +150
O
RS
1A
50
35
50
RS
1B
100
70
100
RS
1D
200
140
200
RS
1G
400
280
400
1
30
1.3
5
50
RS
1J
600
420
600
RS
1K
800
560
800
RS
1M
1000
700
1000
UNIT
V
V
V
A
A
V
μA
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.
250
500
ns
pF
C/W
O
O
C
C
Document Number: DS_D1405049
Version: H14
RS1A thru RS1M
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
AEC-Q101
QUALIFIED
R3
R2
RS1x
(Note 1)
Prefix "H"
M2
F3
F2
F4
N/A
E3
E2
Suffix "G"
PACKING CODE GREEN COMPOUND
CODE
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "x" defines voltage from 50V (RS1A) to 1000V (RS1M)
EXAMPLE
PREFERRED P/N PART NO.
RS1M R3
RS1M R3G
RS1MHR3
RS1M
RS1M
RS1M
H
AEC-Q101
QUALIFIED
PACKING CODE
R3
R3
R3
G
Green compound
AEC-Q101 qualified
GREEN COMPOUND
CODE
DESCRIPTION

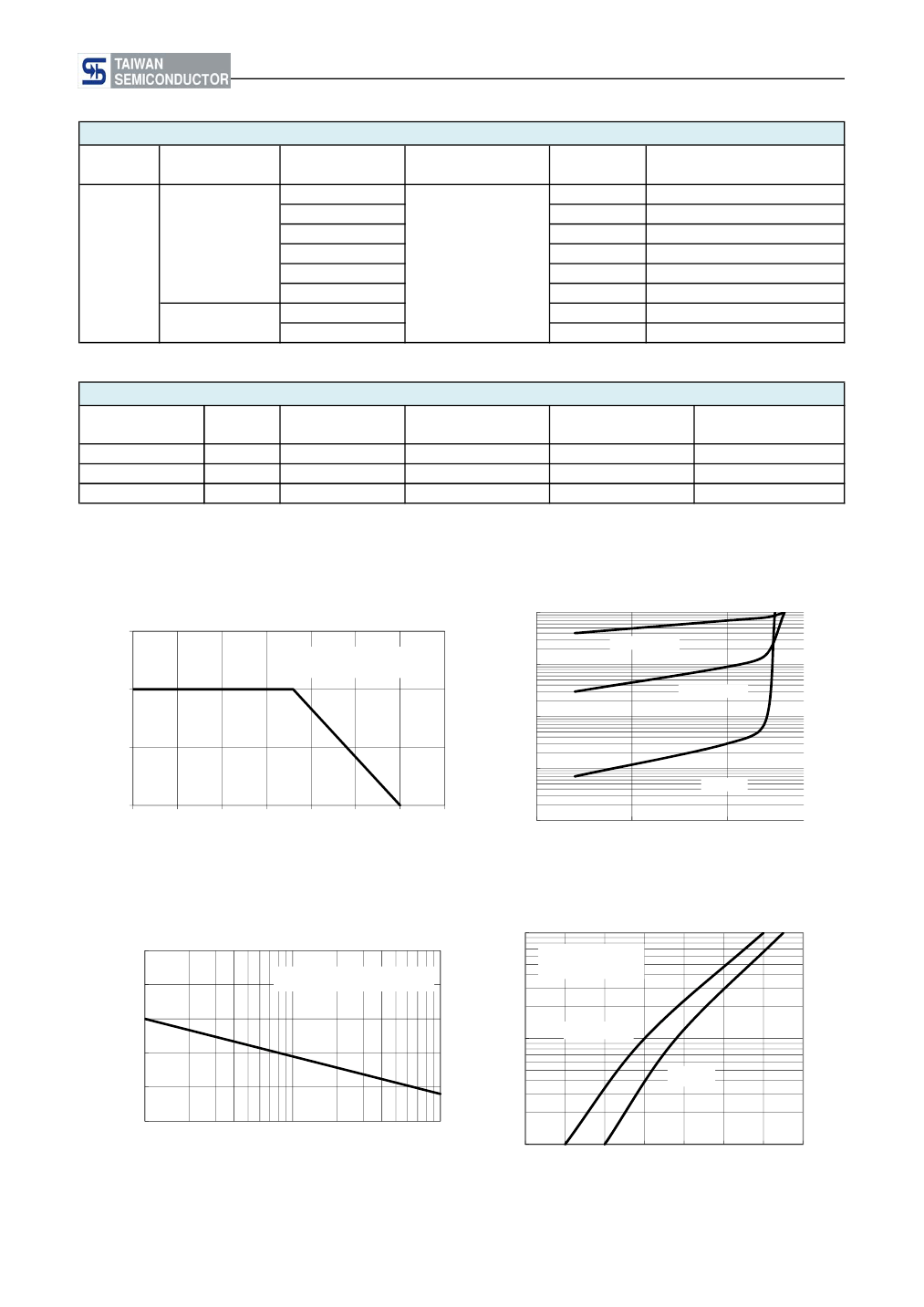

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
10
INSTANTANEOUS REVERSE CURRENT (μA)
TJ=150℃
1
TJ=100℃
0.1
FIG.1 FORWARD CURRENT DERATING CURVE
1.5
AVERAGE FORWARD CURRENT
(A)
RESISTIVE OR
INDUCTIVE LOAD
1
0.5
0.01
TJ=25℃
0.001
0
50
100
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
0
0
25
50
75
100
125
(
o
C)
150
175
LEAD TEMPERATURE
50
40
30
20
10
0
1
INSTANTANEOUS FORWARD CURRENT
(A)
PEAK FORWARD SURGE CURRENT
(A)
FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
Pulse Width=300μs
1% Duty Cycle
8.3mS Single Half Sine Wave
1
TJ=125℃
TJ=25℃
10
NUMBER OF CYCLES AT 60 Hz
100
0.1
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
Document Number: DS_D1405049
Version: H14
RS1A thru RS1M
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
100
f=1.0MHz
Vsig=50mVp-p
CAPACITANCE (pF)
10
1
1
10
REVERSE VOLTAGE (V)
100

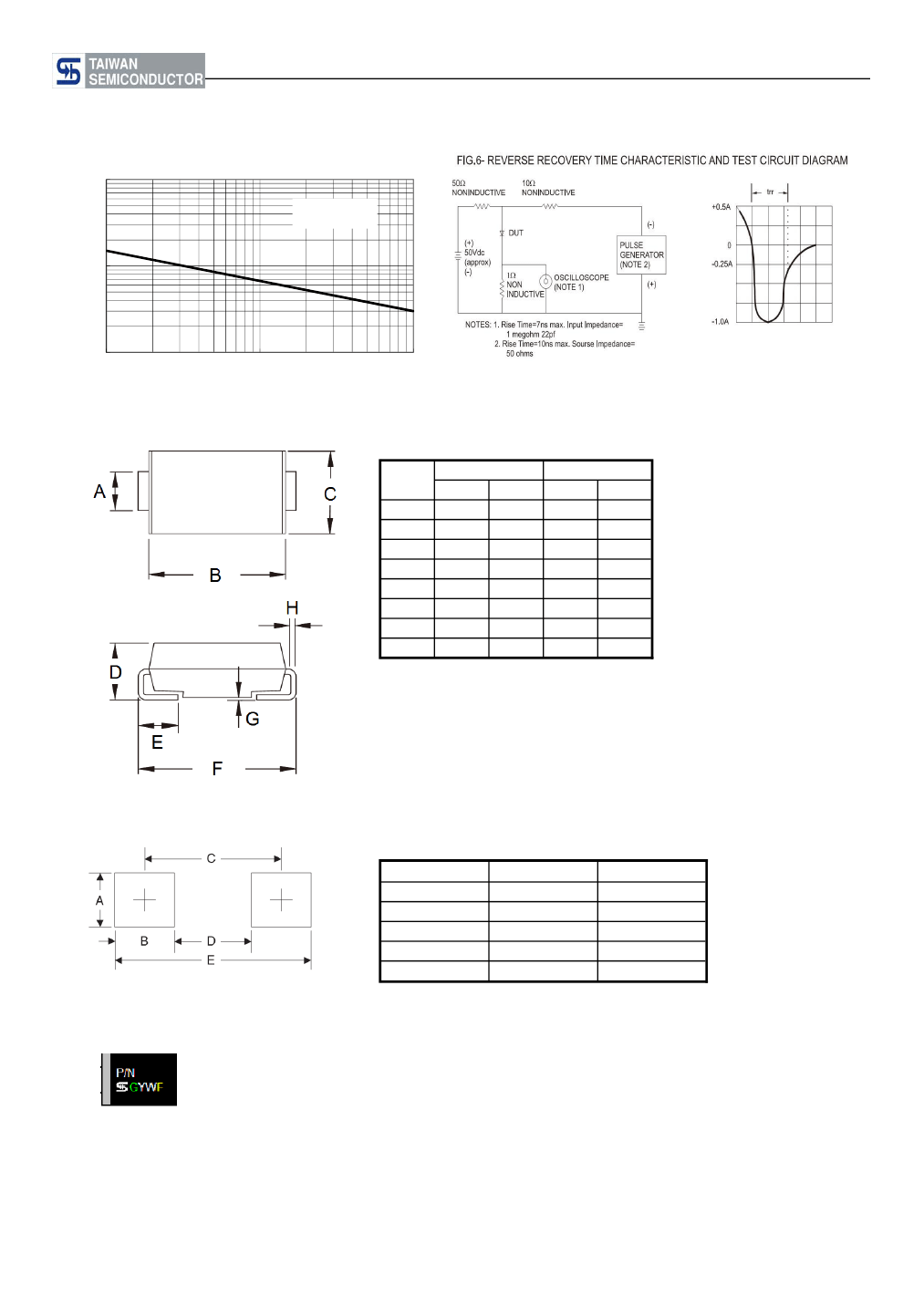

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
DIM.
A
B
C
D
E
F
G
H
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1405049
Version: H14
RS1A thru RS1M
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied,to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or seling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1405049
Version: H14
