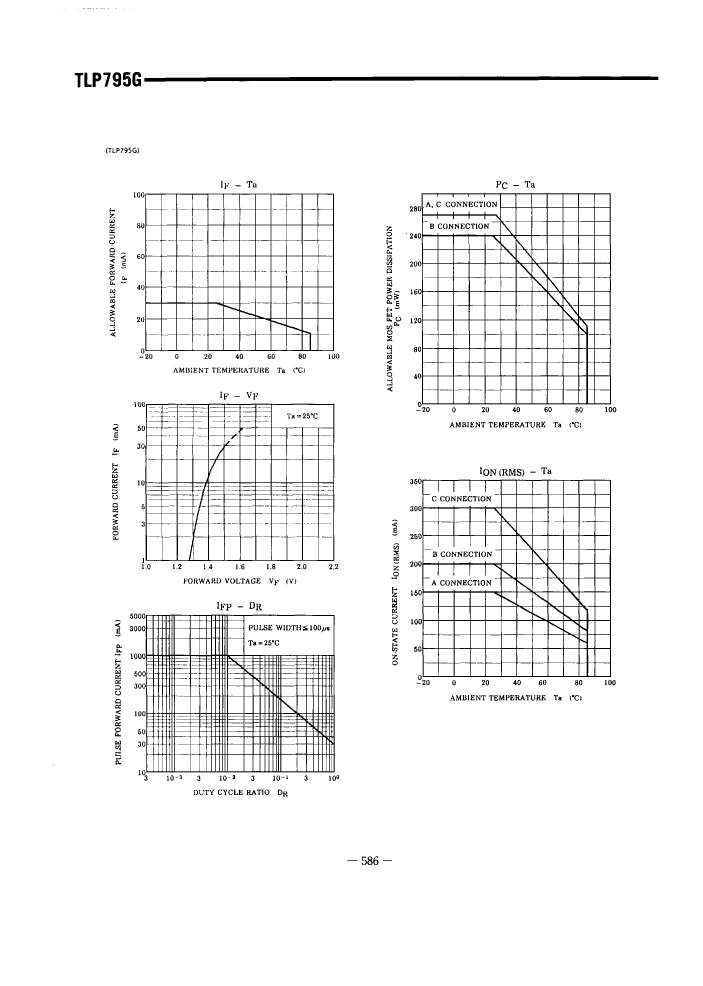

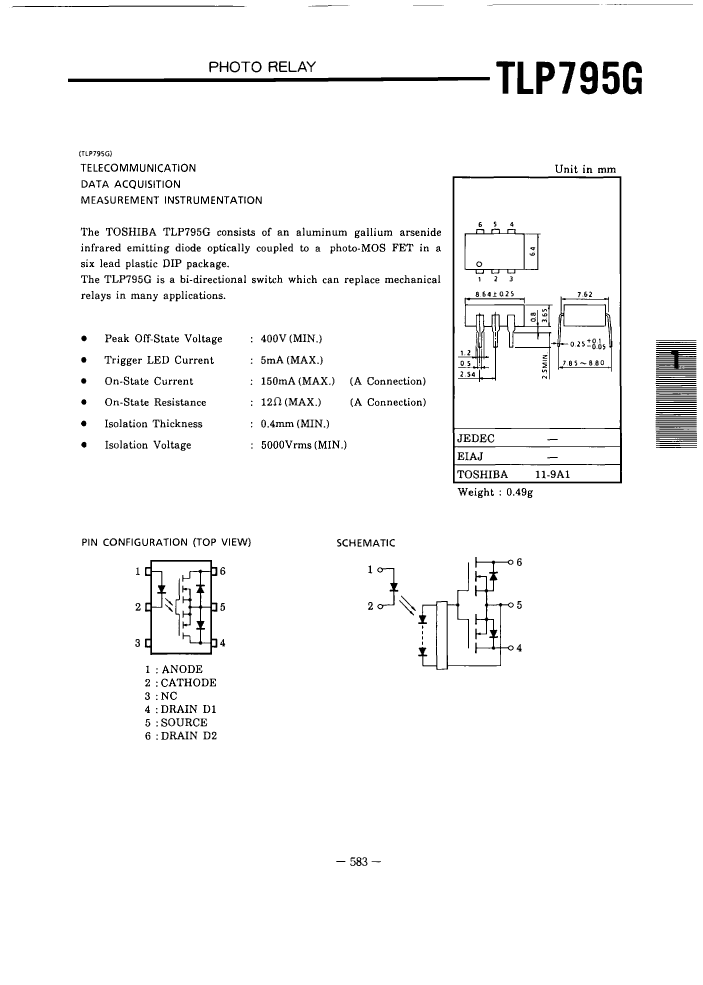

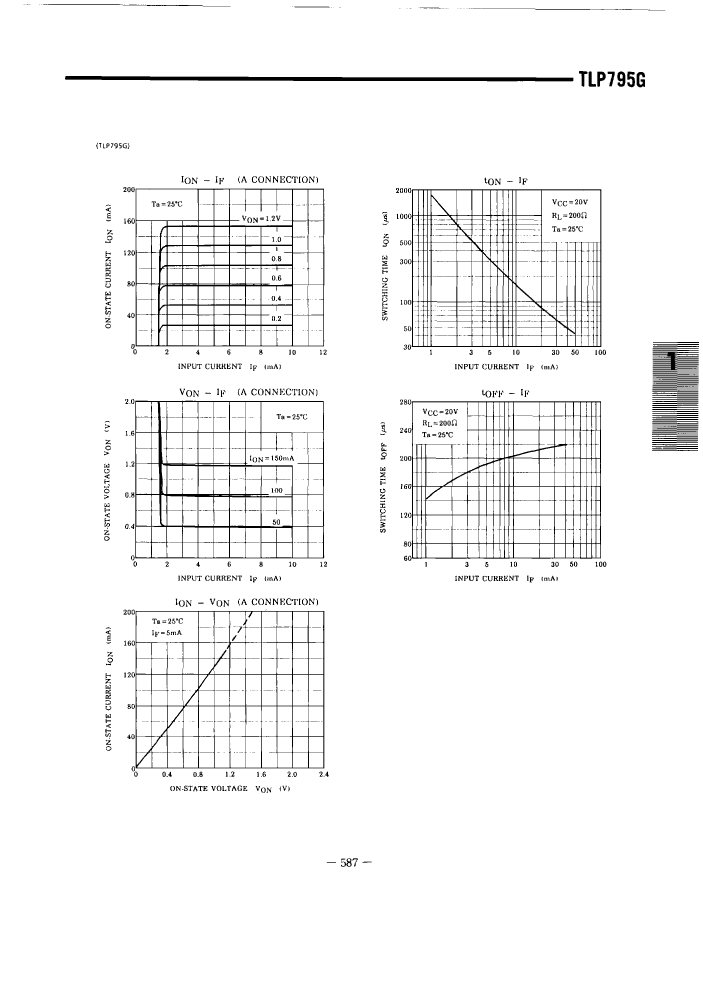

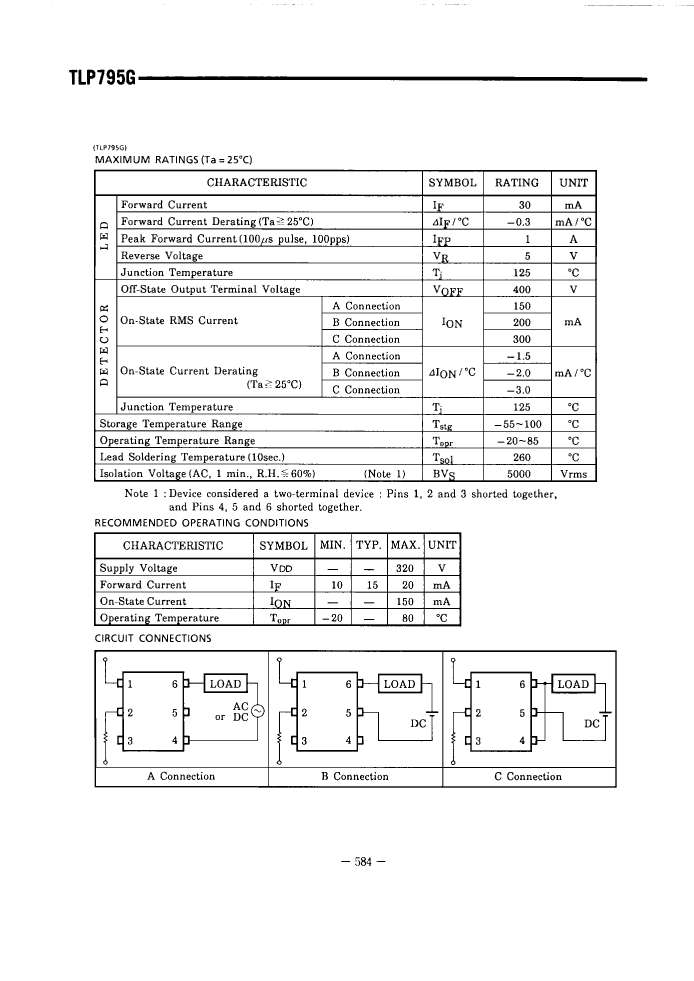

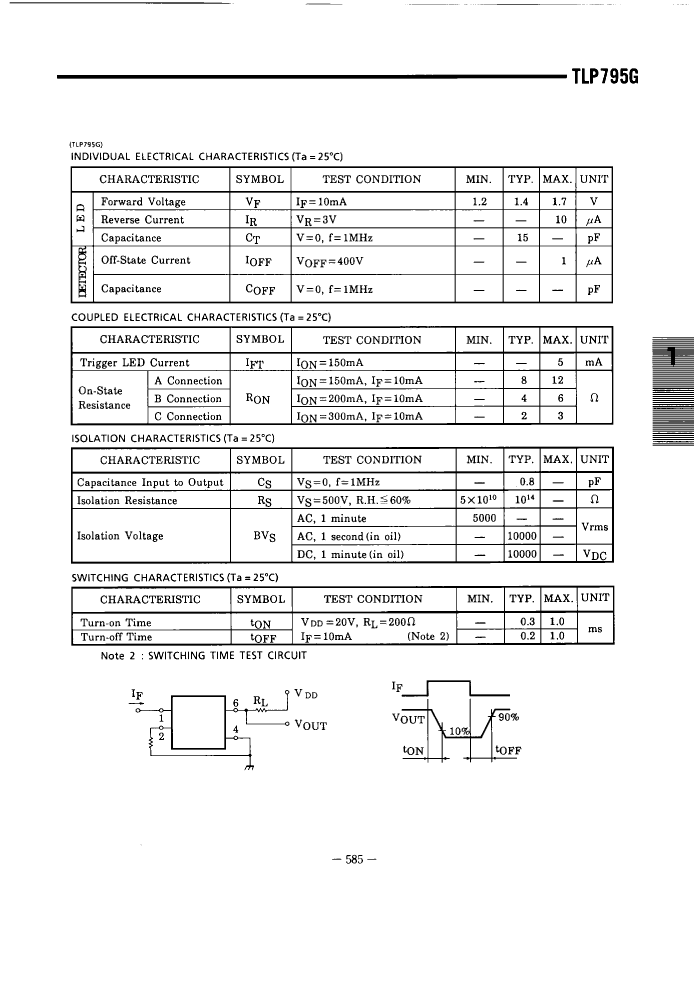

Preview

TLP795G(LF1): DescriptionSolid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX; CategoryLED optoelectronic/LED photoelectric; File Size142KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TLP795G(LF1) Overview

Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX

TLP795G(LF1) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Reach Compliance Code	unknown
Other features	BI-DIRECTIONAL
Configuration	SINGLE WITH BUILT-IN DIODE
Maximum forward current	0.03 A
Maximum insulation voltage	5000 V
Number of components	1
Maximum on-state current	0.15 A
Maximum on-state resistance	12 Ω
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR

Preview

Download Datasheet

View All

TLP795G(LF1) Related Products

	TLP795G(LF1)	TLP795G(LF4)	TLP795G(LF2)	TLP795G(TP5)	TLP795G(LF5)	TLP795G(TP4)	TLP795G(TP1)
Description	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX	Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 5000 V ISOLATION-MAX
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	BI-DIRECTIONAL	BI-DIRECTIONAL	BI-DIRECTIONAL	BI-DIRECTIONAL	BI-DIRECTIONAL	BI-DIRECTIONAL	BI-DIRECTIONAL
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Maximum forward current	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A	0.03 A
Maximum insulation voltage	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V	5000 V
Number of components	1	1	1	1	1	1	1
Maximum on-state current	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A	0.15 A
Maximum on-state resistance	12 Ω	12 Ω	12 Ω	12 Ω	12 Ω	12 Ω	12 Ω
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
