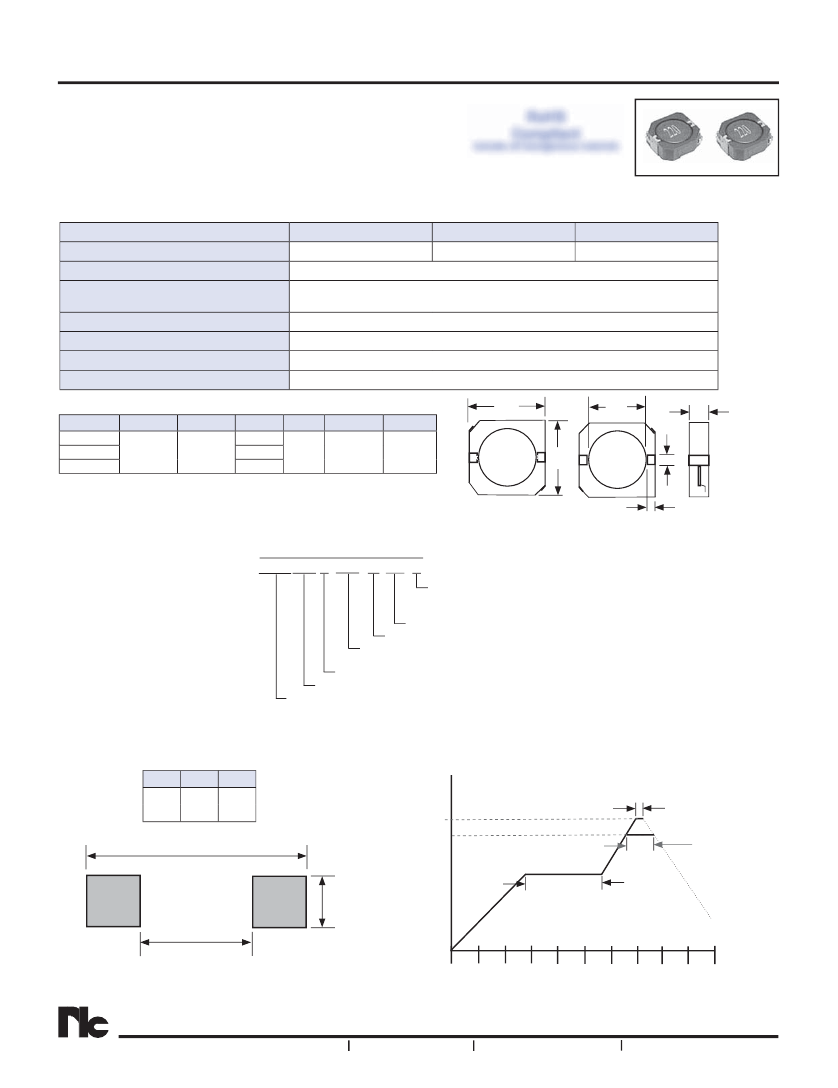

NPIS Shielded Power Inductors
FEATURES
• SHIELDED POWER INDUCTOR
• SMALL SIZE WITH CURRENT RATINGS TO 13.5 AMPS
• SURFACE MOUNTABLE CONSTRUCTION
• HIGH INDUCTANCE (UP TO 1,000μH)
• TAPED AND REELED FOR AUTOMATIC INSERTION
• FOR USE IN DC/DC CONVERTERS
CHARACTERISTICS
Case Size
Inductance Range
Ambient Operating Temperature Range
Maximum Component Temperature
(Ambient + Self-Heating)
Temperatrue Rise at IDC
Inductance Change at IDC
Inductance Tolerance
Resistance to Solder Heat
NPIS103F
0.8 ~ 150μH
NPIS__F Series
RoHS
Compliant
includes all homogeneous materials
*See Part Number System for Details
NPIS104F
1.5 ~ 330μH
-25°C ~ +85°C
+125°C
+40°C max.
-25% typical
±20% (M) & ±30% (Y)
260°C for 10 seconds
A
F
NPIS105F
0.8 ~ 1,000μH
DIMENSIONS (mm)
Series
A
NPIS103F
NPIS104F 10.6 max
NPIS105F
C
D
E
F
3.0 max
10.5 max 4.0 max 3.0 ref 1.2 ± 0.15 7.7 ± 0.3
5.0 max
B
C
220
B
D
E
PART NUMBER SYSTEM
NPIS104 F 151 M TR F
Termination Finish:
F = Standard Pb-free (100%Sn)
Packaging: TR = Tape & Reel
Inductance Tolerance Code: M=±20%, Y=±30%
Inductance Code (μH): 1st two digits are signi cant,
3rd digit is multiplier.
Construction Code (see drawing for details)
Size Code (see table for details)
Series
L
10.7
G
7.3
H
3.6
Temperature °C
300
250
REFLOW SOLDERING PROFILE
Soldering 260°C max.
5 seconds max.
Time above 230°C
30 seconds max.
L
200
150
100
50
Pre-Heat
150°C ~ 180°C
60 ~ 120 sec.
Cool Down
H
G
25
30
60
90 120 150 180 210 240 270 300
Time - Seconds
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Speci cations are subject to change
1
NPIS Shielded Power Inductors
Part Number
NPIS103F0R8YTRF
NPIS103F1R5YTRF
NPIS103F2R2YTRF
NPIS103F3R3YTRF
NPIS103F4R7YTRF
NPIS103F6R8YTRF
NPIS103F8R2YTRF
NPIS103F100MTRF
NPIS103F150MTRF
NPIS103F220MTRF
NPIS103F330MTRF
NPIS103F470MTRF
NPIS103F560MTRF
NPIS103F680MTRF
NPIS103F101MTRF
NPIS103F121MTRF
NPIS103F151MTRF
Inductance Value
(μH)
0.8 ± 30%
1.5 ± 30%
2.2 ± 30%
3.3 ± 30%
4.7 ± 30%
6.8 ± 30%
8.2 ± 30%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
NPIS__F Series
STANDARD VALUES - CASE SIZE 103 (10.6 x 10.5 x 3.0mm)
DC Resistance
DC Current
Test Frequency
(mΩ)
Irms/Isat (Amps)
5.7
8.3
11
5.8
16.9
5.1
21
4.7
100KHz
30
4
35
3.6
50
3
59
2.8
91
2.05
143
202
299
325
429
494
754
871
1.6
1.35
1.2
1.15
0.95
0.8
0.65
0.51
1KHz
Irms/Isat speci cation is based on +40°C temperature rise or -25% inductance change at inductance whichever is less.
STANDARD VALUES - CASE SIZE 104 (10.6 x 10.5 x 4.0mm)
DC Resistance
DC Current
Test Frequency
(mΩ)
Irms/Isat (Amps)
8.1
6.50
10.5
6.10
13.0
5.50
20.0
5.40
100KHz
22.0
5.40
27.0
4.50
27.0
4.50
40.0
3.80
80.0
3.10
73.0
93.0
128.0
213.0
304.0
506.0
756.0
1090.0
2.50
2.20
1.90
1.42
1.25
0.85
0.70
0.52
1KHz
Part Number
NPIS104F1R5YTRF
NPIS104F2R5YTRF
NPIS104F3R8YTRF
NPIS104F4R7YTRF
NPIS104F5R2YTRF
NPIS104F6R8YTRF
NPIS104F7R0YTRF
NPIS104F100MTRF
NPIS104F150MTRF
NPIS104F220MTRF
NPIS104F330MTRF
NPIS104F470MTRF
NPIS104F680MTRF
NPIS104F101MTRF
NPIS104F151MTRF
NPIS104F221MTRF
NPIS104F331MTRF
Inductance Value
(μH)
1.5 ± 30%
2.5 ± 30%
3.8 ± 30%
4.7 ± 30%
5.2 ± 30%
6.8 ± 30%
7.0 ± 30%
10 ± 20%
15 ± 20%
22 ± 20%
33 ± 20%
47 ± 20%
68 ± 20%
100 ± 20%
150 ± 20%
220 ± 20%
330 ± 20%
Irms/Isat speci cation is based on +40°C temperature rise or -25% inductance change at inductance whichever is less.
®
2
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Speci cations are subject to change
NPIS Shielded Power Inductors
Part Number
NPIS105FR80YTRF
NPIS105F1R5YTRF
NPIS105F2R2YTRF
NPIS105F3R3YTRF
NPIS105F4R7YTRF
NPIS105F6R8YTRF
NPIS105F8R2YTRF
NPIS105F100MTRF
NPIS105F120MTRF
NPIS105F150MTRF
NPIS105F180MTRF
NPIS105F220MTRF
NPIS105F270MTRF
NPIS105F330MTRF
NPIS105F390MTRF
NPIS105F470MTRF
NPIS105F560MTRF
NPIS105F680MTRF
NPIS105F820MTRF
NPIS105F101MTRF
NPIS105F121MTRF
NPIS105F151MTRF
NPIS105F181MTRF
NPIS105F221MTRF
NPIS105F331MTRF
NPIS105F391MTRF
NPIS105F471MTRF
NPIS105F561MTRF
NPIS105F681MTRF
NPIS105F821MTRF
NPIS105F102MTRF
NPIS__F Series
STANDARD VALUES - CASE SIZE 105 (10.6 x 10.5 x 5.2mm)
Inductance Value
DC Resistance
DC Current
Test Frequency
(μH)
(mΩ)
Irms/Isat (Amps)
0.8 ± 30%
4.3
13.50
1.5 ± 30%
5.8
10.5
2.2 ± 30%
7.2
9.25
3.3 ± 30%
10.4
7.80
100KHz
4.7 ± 30%
12.3
6.40
6.8 ± 30%
18.0
5.40
8.2 ± 30%
20.0
4.85
10 ± 20%
26.0
4.45
12 ± 20%
33.0
4.00
15 ± 20%
18 ± 20%
22 ± 20%
27 ± 20%
33 ± 20%
39 ± 20%
47 ± 20%
56 ± 20%
68 ± 20%
82 ± 20%
100 ± 20%
120 ± 20%
150 ± 20%
180 ± 20%
220 ± 20%
330 ± 20%
390 ± 20%
470 ± 20%
560 ± 20%
680 ± 20%
820 ± 20%
1,000 ± 20%
41.0
46.0
61.0
69.0
84.0
106.0
130.0
149.0
201.0
227.0
253.0
303.0
370.0
419.0
500.0
812.0
953.0
1289.0
1430.0
1599.0
1768.0
1989.0
3.60
3.20
2.95
2.70
2.40
2.30
2.00
1.90
1.65
1.50
1.35
1.28
1.12
1.04
0.94
0.75
0.70
0.60
0.54
0.52
0.50
0.48
1KHz
Irms/Isat speci cation is based on +40°C temperature rise or -25% inductance change at inductance whichever is less.
®
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
Speci cations are subject to change
