IS42S16400E
GENERAL DESCRIPTION
The 64Mb SDRAM is a high speed CMOS, dynamic
random-access memory designed to operate in 3.3V
memory systems containing 67,108,864 bits. Internally
configured as a quad-bank DRAM with a synchronous
interface. Each 16,777,216-bit bank is organized as 4,096
rows by 256 columns by 16 bits.
The 64Mb SDRAM includes an AUTO REFRESH MODE,
and a power-saving, power-down mode. All signals are
registered on the positive edge of the clock signal, CLK.
All inputs and outputs are LVTTL compatible.
The 64Mb SDRAM has the ability to synchronously burst
data at a high data rate with automatic column-address
generation, the ability to interleave between internal banks
to hide precharge time and the capability to randomly
change column addresses on each clock cycle during
burst access.
A self-timed row precharge initiated at the end of the burst
sequence is available with the AUTO PRECHARGE function
enabled.
Precharge
one bank while accessing one of the
other three banks will hide the precharge cycles and provide
seamless, high-speed, random-access operation.
SDRAM
read and write accesses are burst oriented starting
at a selected location and continuing for a programmed
number of locations in a programmed sequence. The
registration of an ACTIVE command begins accesses,
followed by a READ or WRITE command. The ACTIVE
command in conjunction with address bits registered are
used to select the bank and row to be accessed (BA0,
BA1 select the bank; A0-A11 select the row). The READ
or WRITE commands in conjunction with address bits
registered are used to select the starting column location
for the burst access.
Programmable READ or WRITE burst lengths consist of
1, 2, 4 and 8 locations, or full page, with a burst terminate
option.

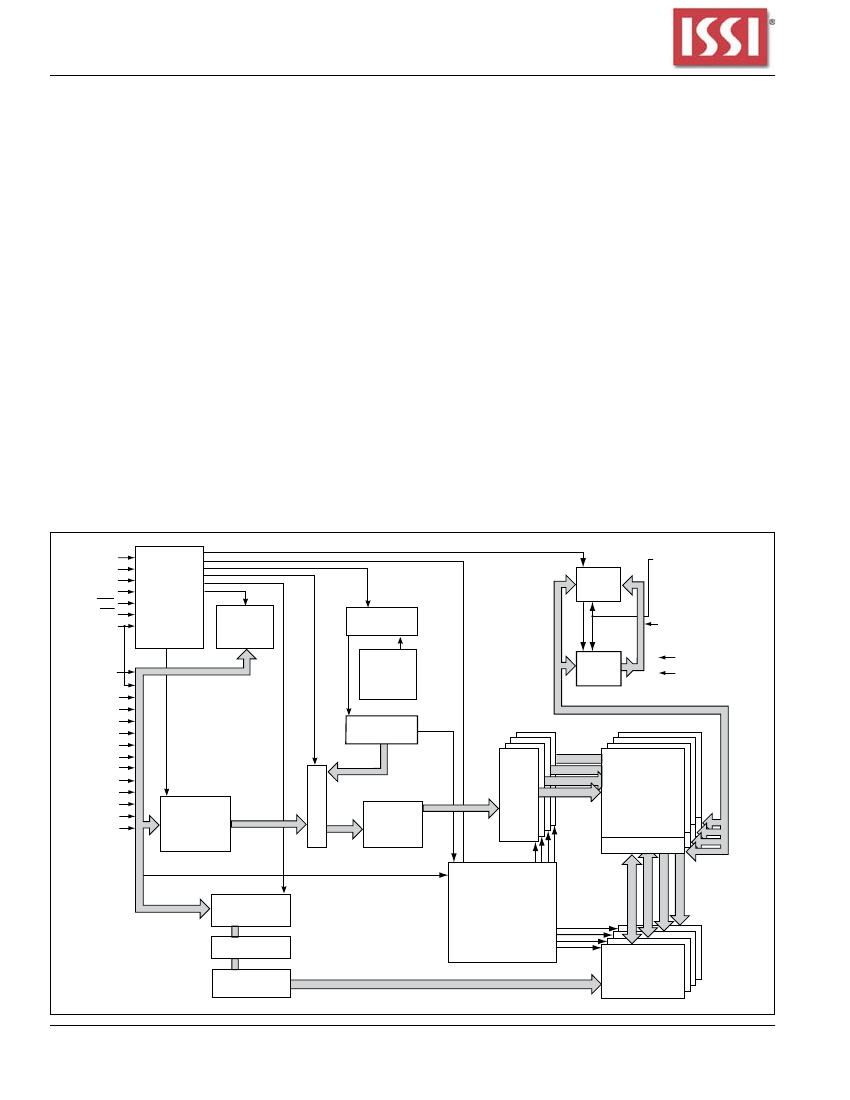

FUNCTIONAL BLOCK DIAGRAM
CLK
CKE
CS
RAS
CAS
WE
A10
DQM
COMMAND
DECODER
&
CLOCK
GENERATOR
DATA IN
BUFFER
16
16
MODE
REGISTER
12
REFRESH
CONTROLLER
DQ 0-15
SELF
REFRESH
CONTROLLER
A11
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
BA0
BA1
12
16
DATA OUT
BUFFER
V
DD
/V
DDQ
GND/GNDQ
16
REFRESH
COUNTER
4096
4096
4096
4096
ROW DECODER
MULTIPLEXER
12
MEMORY CELL
ARRAY
ROW
ADDRESS
LATCH
12
ROW
ADDRESS
BUFFER
BANK 0
SENSE AMP I/O GATE
COLUMN
ADDRESS LATCH
8
256K
(x 16)
BANK CONTROL LOGIC
BURST COUNTER
COLUMN
ADDRESS BUFFER
COLUMN DECODER
8
2
www.issi.com — Integrated Silicon Solution, Inc.
Rev. C
08/07/09
IS42S16400E
PIN FUNCTIONS
Symbol
A0-A11
TSOP Pin No.
23 to 26
29 to 34
22, 35
Type
Input Pin
Function (In Detail)
Address Inputs: A0-A11 are sampled during the ACTIVE
command (row-address A0-A11) and READ/WRITE command (A0-A7
with A10 defining auto precharge) to select one location out of the memory array
in the respective bank. A10 is sampled during a PRECHARGE command to deter-
mine if all banks are to be precharged (A10 HIGH) or bank selected by
BA0, BA1 (LOW). The address inputs also provide the op-code during a LOAD
MODE REGISTER command.
Bank Select Address: BA0 and BA1 defines which bank the ACTIVE, READ, WRITE
or PRECHARGE command is being applied.
CAS,
in conjunction with the
RAS
and
WE,
forms the device command. See the
"Command Truth Table" for details on device commands.
The CKE input determines whether the CLK input is enabled. The next rising edge
of the CLK signal will be valid when is CKE HIGH and invalid when LOW. When CKE
is LOW, the device will be in either power-down mode, clock suspend mode, or self
refresh mode.
CKE is an
asynchronous input.
CLK is the master clock input for this device. Except for CKE, all inputs to this device
are acquired in synchronization with the rising edge of this pin.
The CS
input determines whether command input is enabled within the device.
Command input is enabled when
CS is LOW, and disabled with CS is HIGH. The
device remains in the previous state when
CS is HIGH.
DQ0 to DQ15 are I/O pins. I/O through these pins can be controlled in byte units
using the LDQM and UDQM pins.
BA0, BA1
CAS
CKE
20, 21
17
37
Input Pin
Input Pin
Input Pin
CLK
CS
38
19
Input Pin
Input Pin
DQ0 to
DQ15
LDQM,
UDQM
2, 4, 5, 7, 8, 10,
11,13, 42, 44, 45,
47, 48, 50, 51, 53
15, 39
DQ Pin
Input Pin
RAS
WE
V
DDq
V
DD
GND
q
GND
18
16
3, 9, 43, 49
1, 14, 27
6, 12, 46, 52
28, 41, 54
LDQM and UDQM control the lower and upper bytes of the I/O buffers. In read
mode, LDQM and UDQM control the output buffer. When LDQM or UDQM is LOW,
the corresponding buffer byte is enabled, and when HIGH, disabled. The outputs
go to the HIGH impedance state when LDQM/UDQM is HIGH. This function cor-
responds to
OE in conventional DRAMs. In write mode, LDQM and UDQM control
the input buffer. When LDQM or UDQM is LOW, the corresponding buffer byte is en-
abled, and data can be written to the device. When LDQM or UDQM is HIGH, input
data is masked and cannot be written to the device.
Input Pin
RAS,
in conjunction with
CAS
and
WE,
forms the device command. See the "Com-
mand Truth Table" item for details on device commands.
Input Pin
WE,
in conjunction with
RAS
and
CAS,
forms the device command. See the "Com-
mand Truth Table" item for details on device commands.
Power Supply Pin V
DDq
is the output buffer power supply.
Power Supply Pin V
DD
is the device internal power supply.
Power Supply Pin
GND
q
is the output buffer ground.
Power Supply Pin
GND is the device internal ground.
Integrated Silicon Solution, Inc. — www.issi.com
Rev. C
08/07/09
3
IS42S16400E
FUNCTION
(In Detail)
A0-A11 are address inputs sampled during the ACTIVE
(row-address A0-A11) and READ/WRITE command (A0-A7
with A10 defining auto PRECHARGE).
A10 is sampled during
a PRECHARGE command to determine if all banks are to
be PRECHARGED (A10 HIGH) or bank selected by BA0,
BA1 (LOW). The address inputs also provide the op-code
during a LOAD MODE REGISTER command.
Bank Select Address (BA0 and BA1)
defines which bank
the ACTIVE, READ, WRITE or PRECHARGE command
is being applied.
CAS,
in conjunction with the
RAS
and
WE,
forms the device
command. See the “Command Truth Table” for details on
device commands.
The CKE input determines whether the CLK input is en-
abled. The next rising edge of the CLK signal will be valid
when is CKE HIGH and invalid when LOW. When CKE is
LOW, the device will be in either power-down mode, CLOCK
SUSPEND mode, or SELF-REFRESH mode. CKE is an
asynchronous input.
CLK is the master clock input for this device. Except for
CKE, all inputs to this device are acquired in synchroniza-
tion with the rising edge of this pin.
The CS
input determines whether command input is en-
abled within the device. Command input is enabled when
CS
is LOW, and disabled with
CS
is HIGH. The device
remains in the previous state when
CS
is HIGH. DQ0 to
DQ15 are DQ pins. DQ through these pins can be controlled
in byte units using the LDQM and UDQM pins.
LDQM and UDQM control the lower and upper bytes of
the DQ buffers. In read mode, LDQM and UDQM control
the output buffer. When LDQM or UDQM is LOW, the
corresponding buffer byte is enabled, and when HIGH,
disabled. The outputs go to the HIGH Impedance State
when LDQM/UDQM is HIGH. This function corresponds
to
OE
in conventional DRAMs. In write mode, LDQM and
UDQM control the input buffer. When LDQM or UDQM is
LOW, the corresponding buffer byte is enabled, and data
can be written to the device. When LDQM or UDQM is
HIGH, input data is masked and cannot be written to the
device.
RAS,
in conjunction with
CAS
and
WE
, forms the device
command. See the “Command Truth Table” item for details
on device commands.
WE
, in conjunction with
RAS
and
CAS
, forms the device
command. See the “Command Truth Table” item for details
on device commands.
V
DDq
is the output buffer power supply.
V
DD
is the device internal power supply.
GND
q
is the output buffer ground.
GND is the device internal ground.
4
READ
The READ command selects the bank from BA0, BA1 inputs
and starts a burst read access to an active row. Inputs
A0-A7 provides the starting column location. When A10 is
HIGH, this command functions as an AUTO PRECHARGE
command. When the auto precharge is selected, the row
being accessed will be precharged at the end of the READ
burst. The row will remain open for subsequent accesses
when AUTO PRECHARGE is not selected. DQ’s read
data is subject to the logic level on the DQM inputs two
clocks earlier. When a given DQM signal was registered
HIGH, the corresponding DQ’s will be High-Z two clocks
later. DQ’s will provide valid data when the DQM signal
was registered LOW.
WRITE
A burst write access to an active row is initiated with the
WRITE command. BA0, BA1 inputs selects the bank,
and the starting column location is provided by inputs
A0-A7. Whether or not AUTO-PRECHARGE is used is
determined by A10.
The row being accessed will be precharged at the end of
the WRITE burst, if AUTO PRECHARGE is selected. If
AUTO PRECHARGE is not selected, the row will remain
open for subsequent accesses.
A memory array is written with corresponding input data
on DQ’s and DQM input logic level appearing at the same
time. Data will be written to memory when DQM signal is
LOW. When DQM is HIGH, the corresponding data inputs
will be ignored, and a WRITE will not be executed to that
byte/column location.
PRECHARGE
The PRECHARGE command is used to deactivate the
open row in a particular bank or the open row in all banks.
BA0, BA1 can be used to select which bank is precharged
or they are treated as “Don’t Care”. A10 determined
whether one or all banks are precharged. After execut-
ing this command, the next command for the selected
banks(s) is executed after passage of the period t
RP
, which
is the period required for bank precharging. Once a bank
has been precharged, it is in the idle state and must be
activated prior to any READ or WRITE commands being
issued to that bank.
AUTO PRECHARGE
The AUTO PRECHARGE function ensures that the pre-
charge is initiated at the earliest valid stage within a burst.
This function allows for individual-bank precharge without
requiring an explicit command. A10 to enables the AUTO
PRECHARGE function in conjunction with a specific READ
or WRITE command. For each individual READ or WRITE
command, auto precharge is either enabled or disabled.
www.issi.com — Integrated Silicon Solution, Inc.
Rev. C
08/07/09
IS42S16400E
BURST TERMINATE
AUTO PRECHARGE does not apply except in full-page
burst mode. Upon completion of the READ or WRITE
burst, a precharge of the bank/row that is addressed is
automatically performed.
The BURST TERMINATE command forcibly terminates
the burst read and write operations by truncating either
fixed-length or full-page bursts and the most recently
registered READ or WRITE command prior to the BURST
TERMINATE.
AUTO REFRESH COMMAND
This command executes the AUTO REFRESH operation.
The row address and bank to be refreshed are automatically
generated during this operation. The stipulated period (t
rc
) is
required for a single refresh operation, and no other com-
mands can be executed during this period. This command is
executed at least 4096 times every 64ms. During an AUTO
REFRESH command, address bits are “Don’t Care”. This
command corresponds to CBR Auto-refresh.
COMMAND INHIBIT
COMMAND INHIBIT prevents new commands from being
executed. Operations in progress are not affected, apart
from whether the CLK signal is enabled
NO OPERATION
When
CS is low, the NOP command prevents unwanted
commands from being registered during idle or wait
states.
SELF REFRESH
During the SELF REFRESH operation, the row address to
be refreshed, the bank, and the refresh interval are gen-
erated automatically internally. SELF REFRESH can be
used to retain data in the SDRAM without external clocking,
even if the rest of the system is powered down. The SELF
REFRESH operation is started by dropping the CKE pin
from HIGH to LOW. During the SELF REFRESH operation
all other inputs to the SDRAM become “Don’t Care”. The
device must remain in self refresh mode for a minimum
period equal to t
ras
or may remain in self refresh mode
for an indefinite period beyond that. The SELF-REFRESH
operation continues as long as the CKE pin remains LOW
and there is no need for external control of any other pins.
The next command cannot be executed until the device
internal recovery period (t
rc
) has elapsed. Once CKE
goes HIGH, the NOP command must be issued (minimum
of two clocks)
to provide time for the completion of any
internal refresh in progress. After the self-refresh, since it
is impossible to determine the address of the last row to
be refreshed, an AUTO-REFRESH should immediately be
performed for all addresses.
LOAD MODE REGISTER
During the LOAD MODE REGISTER command the mode
register is loaded from A0-A11. This command can only
be issued when all banks are idle.
ACTIVE COMMAND
When the ACTIVE COMMAND is activated, BA0, BA1
inputs selects a bank to be accessed, and the address
inputs on A0-A11 selects the row. Until a PRECHARGE
command is issued to the bank, the row remains open
I'll send you a few tools. I have no money left. I hope you guys will support me. I found some tools for FPGA wireless tuning on the Internet. I've uploaded the ones that I think are good to use. I ho...
Recently, I am working on the effect of different acquisition circuits on the acquisition effect, so I use different circuits (same op amp) to achieve it. But the op amps I soldered on always break do...
100V is converted to 5V through the current transformer and then sent to AD7606 for AC sampling. How to determine the L value in the low-pass LC filter?eeworldpostqq...
[font=微软雅黑][size=3]If this is true, it may be a good thing. What I want to say here is that although I am poor, I will never buy a fake phone. The reason is very simple. This will only lead to the say...
[table=98%] [tr][td=10%][b]Activity method:[/b][/td][td][align=left]Follow the instructions on the road signs to update any basic information in your [color=rgb(17, 119, 136)][url=http://links.mkt102....
I want to use a single-chip microcomputer to output two sets of square waves with a phase difference of 180 degrees, and then I want to get a sine wave to provide an excitation signal for an inductive...
1. Overview
Will passive devices
produce nonlinear intermodulation distortion? The answer is yes! Although there is no systematic theoretical analysis, it has been found in engineerin...[Details]
1 Introduction
With the acceleration of the pace of urban modernization, society has higher requirements for urban road lighting and urban lighting projects. The state has clearly required tha...[Details]
In the previous series, we have listed some basic knowledge of C language in Tables 1 to 3. We hope that beginners can strengthen their memory of the above tables and gradually learn to use them wh...[Details]
This week, Microsoft held its 2012 Microsoft Worldwide Partner Conference (WPC) in Toronto, Canada. At the conference, Microsoft showed its new products and services to partners around the world. A...[Details]
Motors are important products that convert electrical energy into mechanical energy to achieve automation, and they are widely used in industrial control, medical electronics, white a...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
summary
This article will briefly analyze the success and shortcomings of high-frequency DC-DC switching power supplies in the process of miniaturization (the second basic goal), and propose m...[Details]
The power consumption of a switching power supply includes fixed losses caused by parasitic resistances such as semiconductor switches, magnetic components, and wiring, as well as switching losses ...[Details]
The principles to be followed are as follows:
(1) In terms of component layout, related components should be placed as close as possible. For example, clock generators, crystal oscillat...[Details]
Infrared remote control is widely used in home appliances, but the remote controls produced are not compatible with each other. The universal remote controls commonly seen on the market can only co...[Details]
The biggest advantage of Profibus is that it is guaranteed by the stable international standard EN50170 and has been proven to be universal in practical applications. It has been widely used in man...[Details]
Abstract: Based on the analysis of the characteristics of the IRIG-B (DC) code type, a design method for IRIG-B (DC) time code decoding is proposed. This method consists of a small number of periph...[Details]
Traditional synthesis techniques are increasingly unable to meet the needs of today's very large and complex FPGA designs implemented in 90nm and below process nodes. The problem is that traditio...[Details]
FPGA/CPLD
京公网安备 11010802033920号
EEWORLD
