KBPC3504FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> KBPC3504FM

KBPC3504FM: DescriptionBridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size94KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric View All

KBPC3504FM Overview

Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon

KBPC3504FM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	S-MUFM-D4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	S-MUFM-D4
JESD-609 code	e3/e4
Maximum non-repetitive peak forward current	400 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	35 A
Package body material	METAL
Package shape	SQUARE
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	TIN/SILVER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

KBPC 3500 F/W … KBPC 3514 F/W

Silicon-Bridge Rectifiers

Silizium-Brückengleichrichter

Type “FM”/”FP”

Nominal current

Nennstrom

Alternating input voltage

Eingangswechselspannung

35 A

35…900 V

Metal case (Index “M”) or

Plastic case with alu-bottom (Index “P”)

Metallgehäuse (Index “M”) oder

Kunststoffgeh. mit Alu-Boden (Index “P”)

Type “WM”/”WP”

Dimensions

Abmessungen

Weight approx.

Gewicht ca.

Compound has classification UL94V-0

Vergußmasse UL94V-0 klassifiziert

Dimensions / Maße in mm

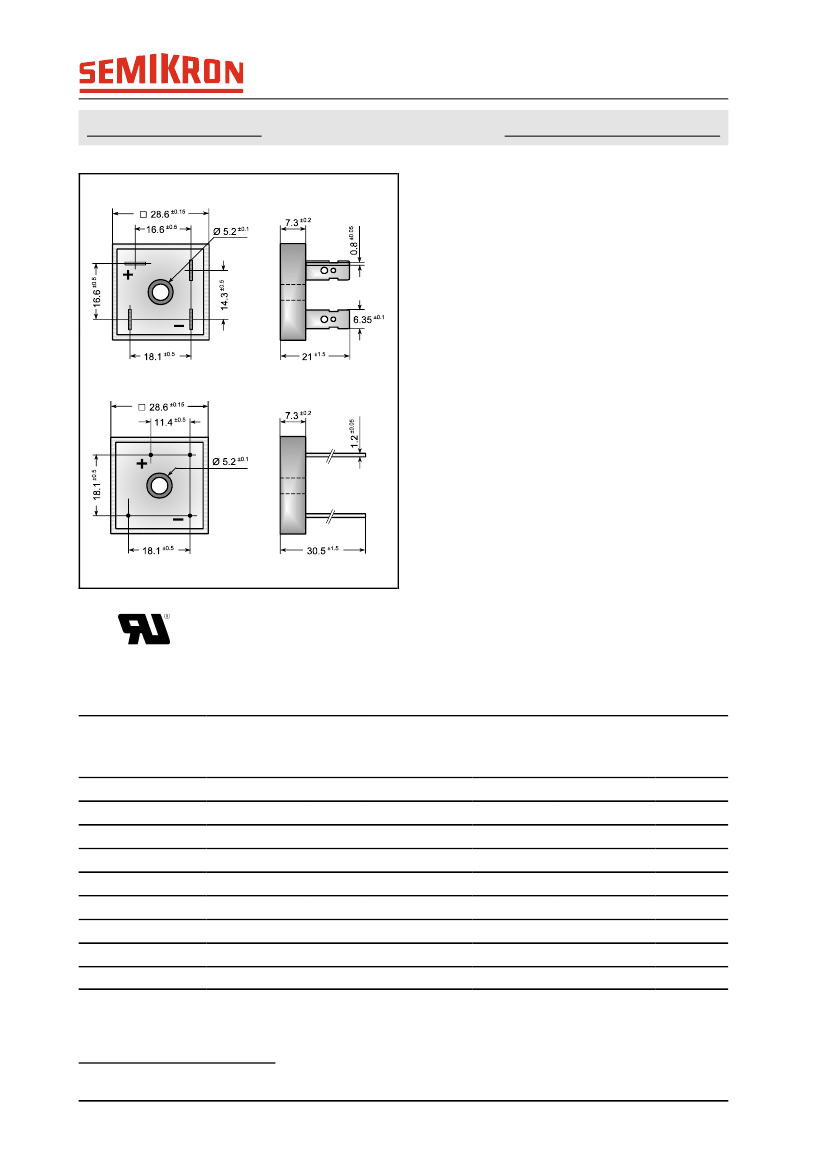

28.6 x 28.6 x 7.3 [mm]

23 g

Standard packaging bulk

Standard Lieferform lose im Karton

Recognized Product – Underwriters Laboratories Inc.® File E175067

Anerkanntes Produkt – Underwriters Laboratories Inc.® Nr. E175067

Maximum ratings

Type

Typ

Alternating input volt.

Eingangswechselspg.

VRMS

[V]

Grenzwerte

Rep. peak reverse voltage Surge peak reverse voltage

Period. Spitzensperrspanng. Stoßspitzensperrspanng.

RRM

[V]

)

RSM

[V]

)

KBPC 3500 F/W

KBPC 3501 F/W

KBPC 3502 F/W

KBPC 3504 F/W

KBPC 3506 F/W

KBPC 3508 F/W

KBPC 3510 F/W

KBPC 3512 F/W

KBPC 3514 F/W

140

280

420

560

700

800

900

100

200

400

600

800

1000

1200

1400

f > 15 Hz

FRM

130

250

450

700

1000

1200

1300

1400

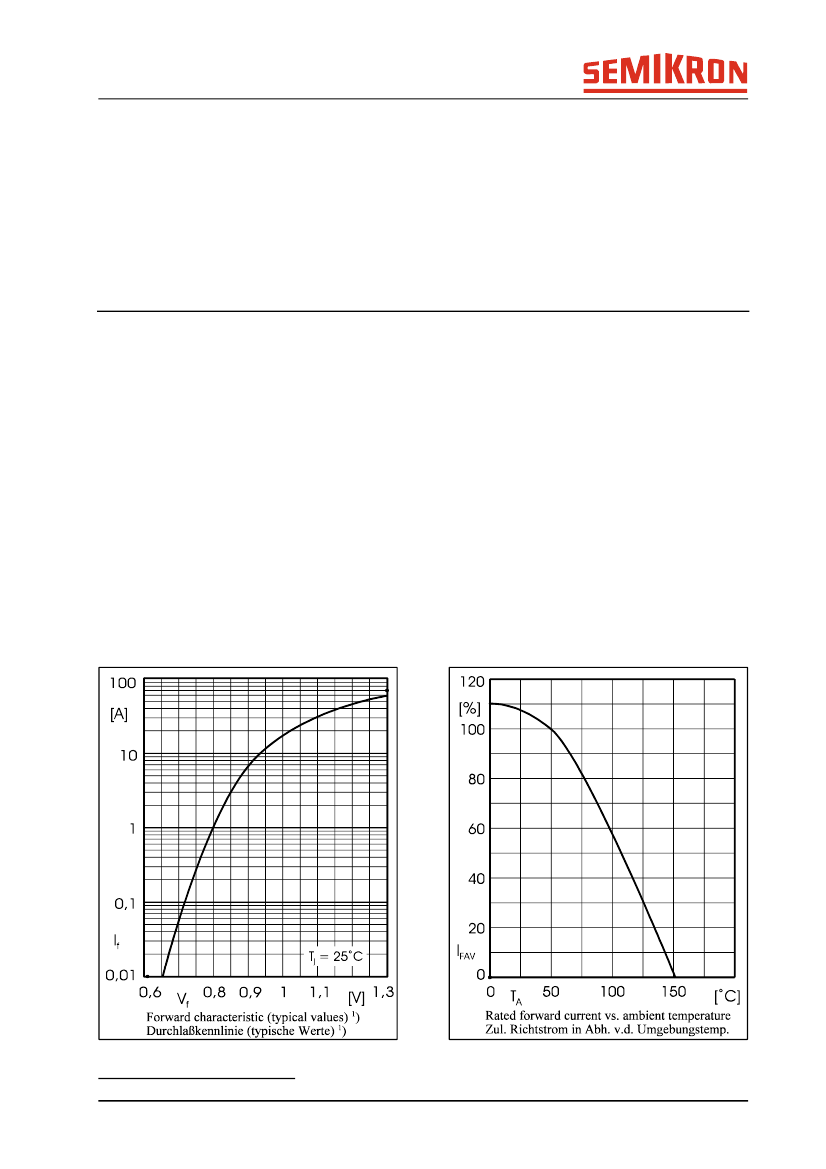

80 A

)

Repetitive peak fwd. current – Period. Spitzenstrom

) Valid for one branch – Gültig für einen Brückenzweig

) Valid, if the temperature of the case is kept to 120

C – Gültig, wenn die Gehäusetemperatur auf 120

C gehalten wird

356

221101
