DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. BRDB-600-1C
ABDB-600-1C
FEATURES
MECHANICAL SPECIFICATION
ACTUAL SIZE
DT
DB602
VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM
MECHANICAL STRENGTH AND HEAT DISSIPATION
(Solder Voids: Typical < 2%, Max. < 10% of Die Area)
BUILT-IN STRESS RELIEF MECHANISM FOR
SUPERIOR RELIABILITY AND PERFORMANCE
SURGE OVERLOAD RATING TO 250 AMPS PEAK
SERIES DB600 - DB610 and ADB604 - ADB608
BH
AC
UL RECOGNIZED - FILE #E124962
MECHANICAL DATA
Case: Molded plastic, U/L Flammability Rating 94V-0
Terminals: Round silver plated copper pins
Soldering: Per MIL-STD 202 Method 208 guaranteed
Polarity: Marked on side of case; positive lead at beleveled corner
Mounting Position: Any. Through hole provided for #6 screw
Weight: 0.13 Ounces (3.6 Grams)
SYM
BL
BH
D1
LL
LD
LL
AC
_
+
LD
D1
MILLIMETERS
MIN
14.7
5.8
10.3
19.0
1.0
MAX
15.7
6.9
11.3
n/a
1.1
INCHES
MIN
0.58
0.23
0.405
0.75
0.039
MAX
0.62
0.27
0.445
n/a
0.042
+
D1
_
BL
BL
MAXIMUM RATINGS & ELECTRICAL CHARACTERISTICS
Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, 60Hz, resistive or inductive load. For capacitive loads, derate current by 20%.
RATINGS
PARAMETER (TEST CONDITIONS)
Series Number
Maximum DC Blocking Voltage
Working Peak Reverse Voltage
Maximum Peak Recurrent Reverse Voltage
RMS Reverse Voltage
Power Dissipation in V
(BR)
Region for 100
µ
S Square Wave
Continuous Power Dissipation in V
(BR)
Region
@ T
HS
=80
o
C (Heat Sink Temp)
Thermal Energy (Rating for Fusing) t < 8.3 mSec
Peak Forward Surge Current. Single 60Hz Half-Sine Wave
Superimposed on Rated Load (JEDEC Method). T
J
= 150
O
C
Average Forward Rectified Current
@ T
C
= 50
o
C (Notes 1, 2)
@ T
A
= 40
o
C (Note 3)
SYMBOL
CONTROLLED
AVALANCHE
ADB ADB ADB DB
604 606 608 600
NON-CONTROLLED
AVALANCHE
DB DB
601 602
DB
604
DB
606
DB DB
608 610
UNITS
V
RM
V
RWM
V
RRM
V
R (RMS)
P
RM
P
R
I
2
t
I
FSM
I
O
T
J
, T
STG
V
(BR) Min
V
(BR) Max
V
FM
C
J
o
400
600 800
50
100
200
400
600
800 1000
VOLTS
280
420 560
400
2
35
70
140
280
n/a
420
560
700
WATTS
n/a
127
250
6
3
-55 to +150
450
650
850
n/a
n/a
0.95 (Typical < 0.90)
186
90
186
5 (Typical < 0.5
µ
A)
0.5
2000
16.0
5.7
90
AMPS
2
SEC
AMPS
Junction Operating and Storage Temperature Range
Minimum Avalanche Voltage
Maximum Avalanche Voltage
Maximum Forward Voltage (Per Diode) at 3 Amps DC
Typical Junction Capacitance (Note 4)
@ T
A
= 25 C
@T
A
= 100
o
C
Minimum Insulation Breakdown Voltage (Circuit to Case)
Maximum Reverse Current at Rated V
RM
Typical Thermal Resistance
NOTES: (1)
(2)
(3)
(4)
°C
900 1100 1300
VOLTS
I
RM
V
ISO
R
θJA
R
θJC
µA
mA
VOLTS
o
Junction to Ambient (Note 3)
Junction to Case (Note 2)
C/W
3.01 06db
Bolt bridge on heat sink with #6 screw, using silicon thermal compound between bridge and mounting surface for maximum heat transfer.
Bridge mounted on 4.0" sq. x 0.11" thick (10.5cm sq. x 0.3cm) aluminum plate
Bridge mounted on PC Board with 0.5" sq. (12mm sq.) copper pads and bridge lead length of 0.375" (9.5mm)
Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
E25
DIOTEC ELECTRONICS CORP.
18020 Hobart Blvd., Unit B
Gardena, CA 90248 U.S.A
Tel.: (310) 767-1052 Fax: (310) 767-7958
Data Sheet No. BRDB-600-2C
ABDB-600-2C
6 AMP SILICON BRIDGE RECTIFIERS

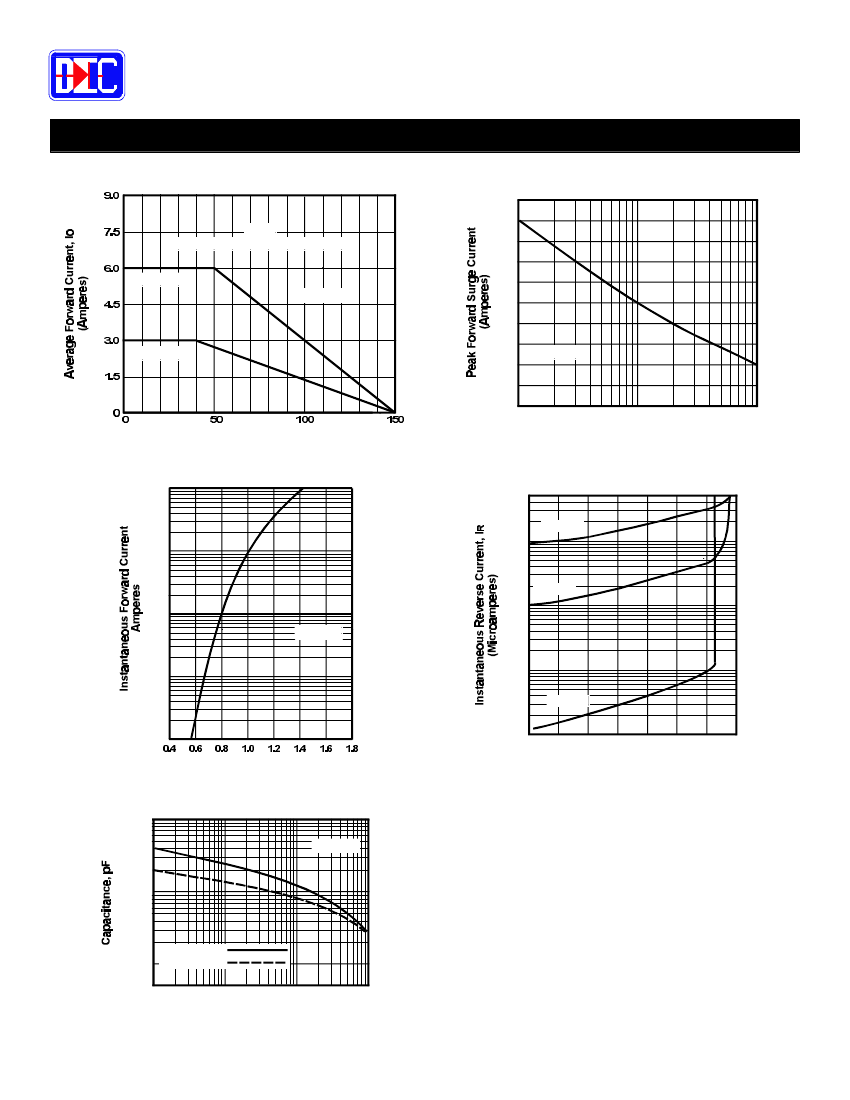

RATING & CHARACTERISTIC CURVES FOR SERIES DB600 - DB610 and SERIES ADB604 - ADB608
275
250
60Hz
Resistive or Inductive Loads
Case, Tc
NOTE 1
225
200
175
150
125
100
Ambient, T
A
75
50
25
1
NOTE 2
10
100
Temperature,
o
C
FIGURE 1. FORWARD CURRENT DERATING CURVE
100
Number of Cycles at 60 Hz
FIGURE 2. MAXIMUM NON-REPETITIVE SURGE CURRENT
100
T
J
= 125
o
C
100
10
T
J
= 100
o
C
10
1.0
NOTE 3
0.1
1.0
T
J
= 25
o
C
0.01
0.1
0
20
40
60
80
100
120
140
Instantaneous Forward Voltage (Volts)
FIGURE 3. TYPICAL FORWARD CHARACTERISTIC PER DIODE
1000
Percent of Rated Peak Reverse Voltage
FIGURE 4. TYPICAL REVERSE CHARACTERISTICS PER DIODE
NOTES
NOTE 4
(1) Case Temperature, T
C,
With Bridge Mounted on 4"Sq. x 0.11" Thick
(10.5cm Sq. x 0.3cm) Aluminum Plate
Ambient Temperature, T
A,
With Bridge Mounted on PC Board With
0.5" Sq. (12mm Sq.) Pads and Lead Length of, 0.375" (9.5mm)
(2) T
J
= 150
o
C
50 - 400V
600 - 1000V
(3) T
J
= 25
o
C; Pulse Width = 300
µ
Sec; 1% Duty Cycle
(4) T
J
= 25 C; f = 1 MHz; Vsig = 50mVp-p
o
100
10
0.1
1
10
100
Reverse Voltage, (Volts)
FIGURE 5. TYPICAL JUNCTION CAPACITANCE PER DIODE
3.01 06db
E26
