DB1501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB1501

DB1501: DescriptionBridge Rectifier Diode, Avalanche, 1 Phase, 15A, 100V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size88KB，2 Pages; ManufacturerDiotec Electronics Corp; Environmental Compliance

Download Datasheet Parametric Compare View All

DB1501 Overview

Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 100V V(RRM), Silicon

DB1501 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diotec Electronics Corp
package instruction	S-PUFM-D4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	S-PUFM-D4
Maximum non-repetitive peak forward current	300 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER

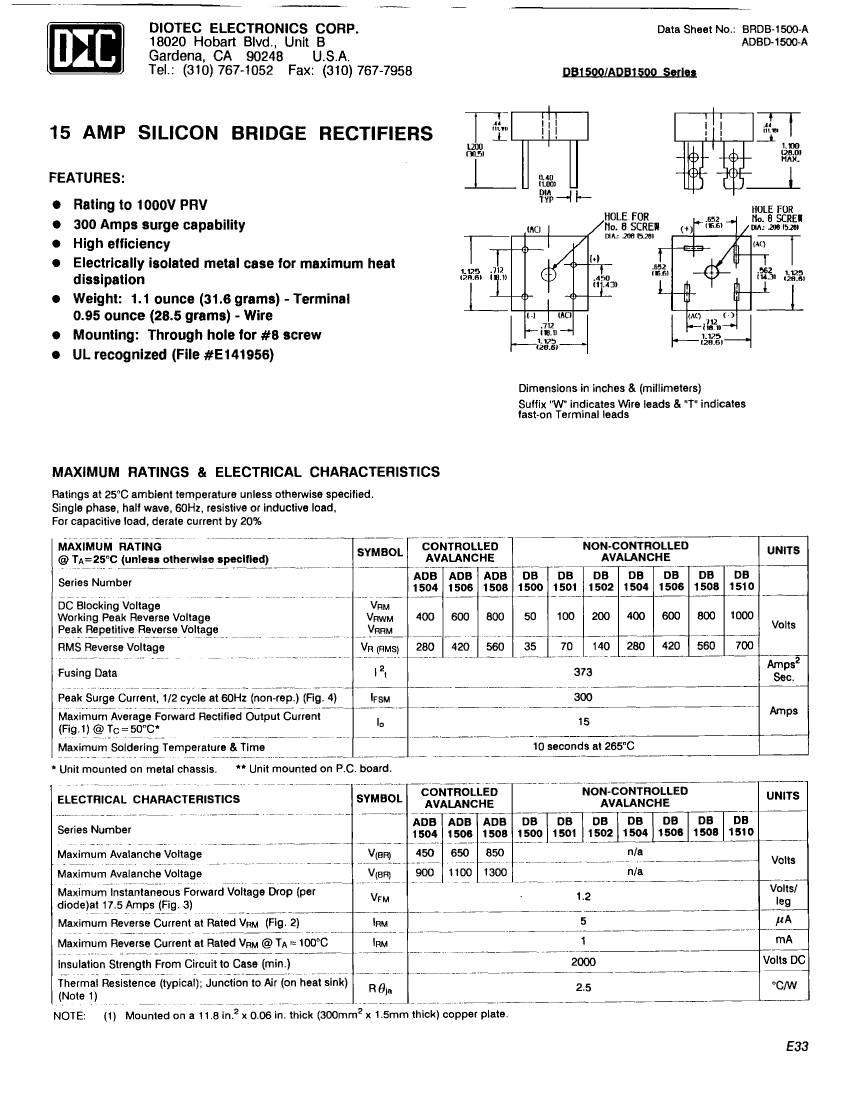

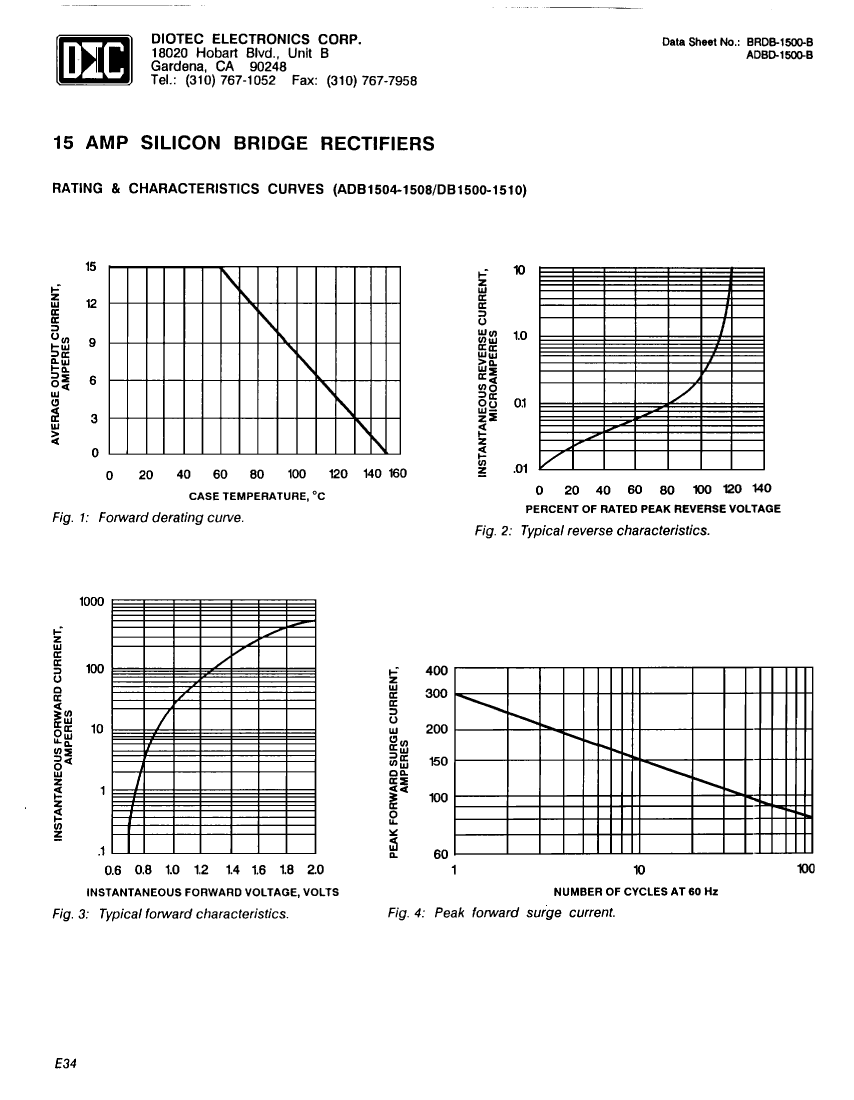

Preview

Download Datasheet

View All

DB1501 Related Products

	DB1501	ADB1506	ADB1508	DB1502	DB1500	DB1504	ADB1504	DB1510	DB1506	DB1508
Description	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 100V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 600V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 800V V(RRM), Silicon,	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 200V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 50V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 400V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 400V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 1000V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 600V V(RRM), Silicon	Bridge Rectifier Diode, Avalanche, 1 Phase, 15A, 800V V(RRM), Silicon
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4	S-PUFM-D4
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	600 V	800 V	200 V	50 V	400 V	400 V	1000 V	600 V	800 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maker	Diotec Electronics Corp	-	-	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp	Diotec Electronics Corp
Maximum forward voltage (VF)	1.1 V	-	-	1.1 V	1.1 V	1.1 V	-	1.1 V	1.1 V	1.1 V
Maximum operating temperature	125 °C	-	-	125 °C	125 °C	125 °C	-	125 °C	125 °C	125 °C
